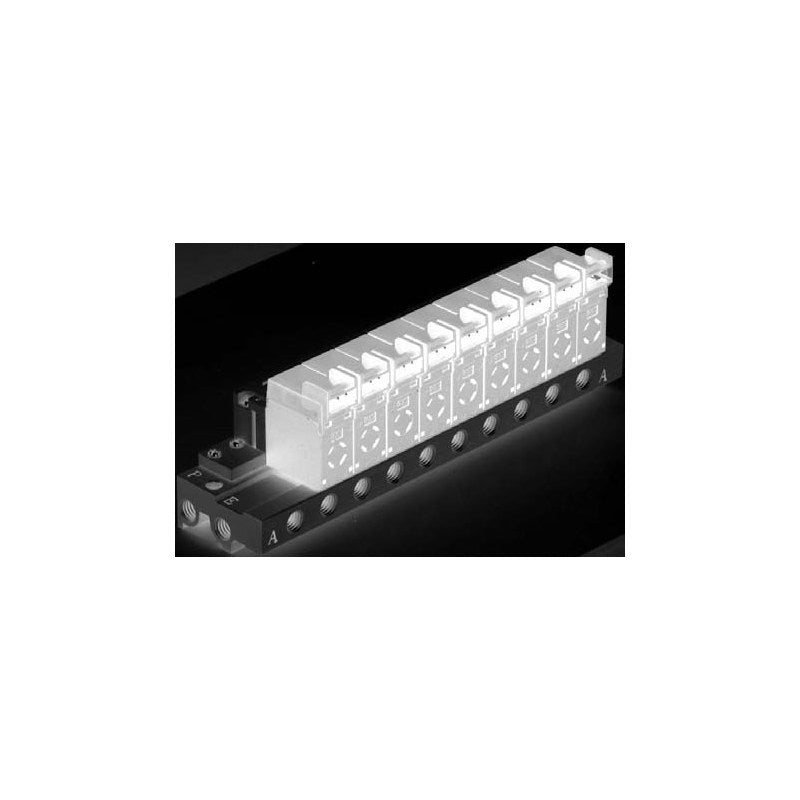

SMC VV3Q11/VV3Q12 Manifold for VQ100 3-Port Valves

SMC VV3Q11/VV3Q12 Manifold for VQ100 3-Port Valves

SMC VV3Q11 plug-in unit manifold with multi-connector and VV3Q12 plug-lead unit manifold for VQ100 series 3-port solenoid valves.

Key features

  • VV3Q11 plug-in unit manifold: 2 to 18 stations, multi-connector with top (U) or side (S) entry, cable 1.5/3/5 m or none
  • VV3Q12 plug-lead unit manifold: 2 to 20 stations for L/M plug connector or grommet valves; VV3Q12U base for U (high-flow) type
  • VV3Q11 accepts VQ1_0_-_F plug-in valves; VV3Q12 accepts VQ1_0_-_L/M/G valves
  • DIN rail mounting option D/DO for VV3Q11; port thread M5/Rc1/8 standard, NPT/NPTF/PF on order (01N/01T/01F)
  • Blanking plate assembly VVQ100-10A-1 (VV3Q11) / VVQ100-10A-2 (VV3Q12); N.C. and N.O. valves cannot be mixed

Specifications

Applicable valves VQ100 series (VQ110, VQ120)
Station counting From D side
Fluid Air, inert gas
Port size M5, Rc1/8 (P, E ports)
CE/UKCA Optional (-Q)
Valves Order separately, listed under the manifold part number
Source SMC Korea catalog VQ100 Series (SMCKR_VQ100.pdf), p. 8, 10
VV3Q11-02CU0 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-02CU1 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-02CU2 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-02CU3 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-02CS0 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-02CS1 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-02CS2 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-02CS3 Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-03CU0 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-03CU1 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-03CU2 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-03CU3 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-03CS0 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-03CS1 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-03CS2 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-03CS3 Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-04CU0 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-04CU1 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-04CU2 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-04CU3 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-04CS0 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-04CS1 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-04CS2 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-04CS3 Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-05CU0 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-05CU1 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-05CU2 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-05CU3 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-05CS0 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-05CS1 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-05CS2 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-05CS3 Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-06CU0 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-06CU1 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-06CU2 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-06CU3 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-06CS0 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-06CS1 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-06CS2 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-06CS3 Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-07CU0 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-07CU1 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-07CU2 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-07CU3 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-07CS0 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-07CS1 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-07CS2 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-07CS3 Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-08CU0 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-08CU1 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-08CU2 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-08CU3 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-08CS0 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-08CS1 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-08CS2 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-08CS3 Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-09CU0 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-09CU1 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-09CU2 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-09CU3 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-09CS0 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-09CS1 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-09CS2 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-09CS3 Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-10CU0 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-10CU1 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-10CU2 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-10CU3 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-10CS0 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-10CS1 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-10CS2 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-10CS3 Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-11CU0 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-11CU1 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-11CU2 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-11CU3 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-11CS0 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-11CS1 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-11CS2 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-11CS3 Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-12CU0 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-12CU1 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-12CU2 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-12CU3 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-12CS0 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-12CS1 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-12CS2 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-12CS3 Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-13CU0 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-13CU1 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-13CU2 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-13CU3 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-13CS0 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-13CS1 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-13CS2 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-13CS3 Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-14CU0 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-14CU1 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-14CU2 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-14CU3 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-14CS0 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-14CS1 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-14CS2 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-14CS3 Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-15CU0 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-15CU1 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-15CU2 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-15CU3 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-15CS0 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-15CS1 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-15CS2 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-15CS3 Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-16CU0 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-16CU1 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-16CU2 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-16CU3 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-16CS0 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-16CS1 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-16CS2 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-16CS3 Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-17CU0 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-17CU1 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-17CU2 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-17CU3 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-17CS0 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-17CS1 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-17CS2 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-17CS3 Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-18CU0 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-18CU1 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-18CU2 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-18CU3 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-18CS0 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-18CS1 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-18CS2 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-18CS3 Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q12-02 Manifold: VV3Q12 plug-lead unit | Stations: 2 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-02 Manifold: VV3Q12U for U (high-flow) type | Stations: 2 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-03 Manifold: VV3Q12 plug-lead unit | Stations: 3 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-03 Manifold: VV3Q12U for U (high-flow) type | Stations: 3 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-04 Manifold: VV3Q12 plug-lead unit | Stations: 4 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-04 Manifold: VV3Q12U for U (high-flow) type | Stations: 4 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-05 Manifold: VV3Q12 plug-lead unit | Stations: 5 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-05 Manifold: VV3Q12U for U (high-flow) type | Stations: 5 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-06 Manifold: VV3Q12 plug-lead unit | Stations: 6 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-06 Manifold: VV3Q12U for U (high-flow) type | Stations: 6 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-07 Manifold: VV3Q12 plug-lead unit | Stations: 7 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-07 Manifold: VV3Q12U for U (high-flow) type | Stations: 7 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-08 Manifold: VV3Q12 plug-lead unit | Stations: 8 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-08 Manifold: VV3Q12U for U (high-flow) type | Stations: 8 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-09 Manifold: VV3Q12 plug-lead unit | Stations: 9 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-09 Manifold: VV3Q12U for U (high-flow) type | Stations: 9 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-10 Manifold: VV3Q12 plug-lead unit | Stations: 10 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-10 Manifold: VV3Q12U for U (high-flow) type | Stations: 10 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-11 Manifold: VV3Q12 plug-lead unit | Stations: 11 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-11 Manifold: VV3Q12U for U (high-flow) type | Stations: 11 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-12 Manifold: VV3Q12 plug-lead unit | Stations: 12 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-12 Manifold: VV3Q12U for U (high-flow) type | Stations: 12 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-13 Manifold: VV3Q12 plug-lead unit | Stations: 13 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-13 Manifold: VV3Q12U for U (high-flow) type | Stations: 13 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-14 Manifold: VV3Q12 plug-lead unit | Stations: 14 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-14 Manifold: VV3Q12U for U (high-flow) type | Stations: 14 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-15 Manifold: VV3Q12 plug-lead unit | Stations: 15 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-15 Manifold: VV3Q12U for U (high-flow) type | Stations: 15 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-16 Manifold: VV3Q12 plug-lead unit | Stations: 16 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-16 Manifold: VV3Q12U for U (high-flow) type | Stations: 16 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-17 Manifold: VV3Q12 plug-lead unit | Stations: 17 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-17 Manifold: VV3Q12U for U (high-flow) type | Stations: 17 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-18 Manifold: VV3Q12 plug-lead unit | Stations: 18 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-18 Manifold: VV3Q12U for U (high-flow) type | Stations: 18 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-19 Manifold: VV3Q12 plug-lead unit | Stations: 19 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-19 Manifold: VV3Q12U for U (high-flow) type | Stations: 19 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-20 Manifold: VV3Q12 plug-lead unit | Stations: 20 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-20 Manifold: VV3Q12U for U (high-flow) type | Stations: 20 | Connector: Individual wiring (L/M/G) | Cable: None
ManifoldsSMC
174 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV3Q11/VV3Q12 Manifold for VQ100 3-Port Valves

Brand SMC·Manifolds

Available part numbers (174)

VV3Q11-02CU0, VV3Q11-02CU1, VV3Q11-02CU2, VV3Q11-02CU3, VV3Q11-02CS0, VV3Q11-02CS1, VV3Q11-02CS2, VV3Q11-02CS3, VV3Q11-03CU0, VV3Q11-03CU1 + 164 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VV3Q11-02CU0Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-02CU1Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-02CU2Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-02CU3Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-02CS0Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-02CS1Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-02CS2Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-02CS3Manifold: VV3Q11 plug-in unit | Stations: 2 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-03CU0Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-03CU1Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-03CU2Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-03CU3Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-03CS0Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-03CS1Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-03CS2Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-03CS3Manifold: VV3Q11 plug-in unit | Stations: 3 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-04CU0Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-04CU1Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-04CU2Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-04CU3Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-04CS0Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-04CS1Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-04CS2Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-04CS3Manifold: VV3Q11 plug-in unit | Stations: 4 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-05CU0Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-05CU1Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-05CU2Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-05CU3Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-05CS0Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-05CS1Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-05CS2Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-05CS3Manifold: VV3Q11 plug-in unit | Stations: 5 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-06CU0Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-06CU1Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-06CU2Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-06CU3Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-06CS0Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-06CS1Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-06CS2Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-06CS3Manifold: VV3Q11 plug-in unit | Stations: 6 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-07CU0Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-07CU1Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-07CU2Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-07CU3Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-07CS0Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-07CS1Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-07CS2Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-07CS3Manifold: VV3Q11 plug-in unit | Stations: 7 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-08CU0Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-08CU1Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-08CU2Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-08CU3Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-08CS0Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-08CS1Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-08CS2Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-08CS3Manifold: VV3Q11 plug-in unit | Stations: 8 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-09CU0Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-09CU1Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-09CU2Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-09CU3Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-09CS0Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-09CS1Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-09CS2Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-09CS3Manifold: VV3Q11 plug-in unit | Stations: 9 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-10CU0Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-10CU1Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-10CU2Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-10CU3Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-10CS0Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-10CS1Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-10CS2Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-10CS3Manifold: VV3Q11 plug-in unit | Stations: 10 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-11CU0Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-11CU1Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-11CU2Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-11CU3Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-11CS0Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-11CS1Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-11CS2Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-11CS3Manifold: VV3Q11 plug-in unit | Stations: 11 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-12CU0Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-12CU1Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-12CU2Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-12CU3Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-12CS0Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-12CS1Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-12CS2Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-12CS3Manifold: VV3Q11 plug-in unit | Stations: 12 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-13CU0Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-13CU1Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-13CU2Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-13CU3Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-13CS0Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-13CS1Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-13CS2Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-13CS3Manifold: VV3Q11 plug-in unit | Stations: 13 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-14CU0Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-14CU1Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-14CU2Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-14CU3Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-14CS0Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-14CS1Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-14CS2Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-14CS3Manifold: VV3Q11 plug-in unit | Stations: 14 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-15CU0Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-15CU1Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-15CU2Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-15CU3Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-15CS0Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-15CS1Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-15CS2Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-15CS3Manifold: VV3Q11 plug-in unit | Stations: 15 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-16CU0Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-16CU1Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-16CU2Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-16CU3Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-16CS0Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-16CS1Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-16CS2Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-16CS3Manifold: VV3Q11 plug-in unit | Stations: 16 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-17CU0Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-17CU1Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-17CU2Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-17CU3Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-17CS0Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-17CS1Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-17CS2Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-17CS3Manifold: VV3Q11 plug-in unit | Stations: 17 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q11-18CU0Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: No cable
VV3Q11-18CU1Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: 1.5 m
VV3Q11-18CU2Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: 3 m
VV3Q11-18CU3Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, top entry | Cable: 5 m
VV3Q11-18CS0Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: No cable
VV3Q11-18CS1Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: 1.5 m
VV3Q11-18CS2Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: 3 m
VV3Q11-18CS3Manifold: VV3Q11 plug-in unit | Stations: 18 | Connector: Multi-connector, side entry | Cable: 5 m
VV3Q12-02Manifold: VV3Q12 plug-lead unit | Stations: 2 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-02Manifold: VV3Q12U for U (high-flow) type | Stations: 2 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-03Manifold: VV3Q12 plug-lead unit | Stations: 3 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-03Manifold: VV3Q12U for U (high-flow) type | Stations: 3 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-04Manifold: VV3Q12 plug-lead unit | Stations: 4 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-04Manifold: VV3Q12U for U (high-flow) type | Stations: 4 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-05Manifold: VV3Q12 plug-lead unit | Stations: 5 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-05Manifold: VV3Q12U for U (high-flow) type | Stations: 5 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-06Manifold: VV3Q12 plug-lead unit | Stations: 6 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-06Manifold: VV3Q12U for U (high-flow) type | Stations: 6 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-07Manifold: VV3Q12 plug-lead unit | Stations: 7 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-07Manifold: VV3Q12U for U (high-flow) type | Stations: 7 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-08Manifold: VV3Q12 plug-lead unit | Stations: 8 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-08Manifold: VV3Q12U for U (high-flow) type | Stations: 8 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-09Manifold: VV3Q12 plug-lead unit | Stations: 9 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-09Manifold: VV3Q12U for U (high-flow) type | Stations: 9 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-10Manifold: VV3Q12 plug-lead unit | Stations: 10 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-10Manifold: VV3Q12U for U (high-flow) type | Stations: 10 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-11Manifold: VV3Q12 plug-lead unit | Stations: 11 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-11Manifold: VV3Q12U for U (high-flow) type | Stations: 11 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-12Manifold: VV3Q12 plug-lead unit | Stations: 12 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-12Manifold: VV3Q12U for U (high-flow) type | Stations: 12 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-13Manifold: VV3Q12 plug-lead unit | Stations: 13 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-13Manifold: VV3Q12U for U (high-flow) type | Stations: 13 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-14Manifold: VV3Q12 plug-lead unit | Stations: 14 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-14Manifold: VV3Q12U for U (high-flow) type | Stations: 14 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-15Manifold: VV3Q12 plug-lead unit | Stations: 15 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-15Manifold: VV3Q12U for U (high-flow) type | Stations: 15 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-16Manifold: VV3Q12 plug-lead unit | Stations: 16 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-16Manifold: VV3Q12U for U (high-flow) type | Stations: 16 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-17Manifold: VV3Q12 plug-lead unit | Stations: 17 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-17Manifold: VV3Q12U for U (high-flow) type | Stations: 17 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-18Manifold: VV3Q12 plug-lead unit | Stations: 18 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-18Manifold: VV3Q12U for U (high-flow) type | Stations: 18 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-19Manifold: VV3Q12 plug-lead unit | Stations: 19 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-19Manifold: VV3Q12U for U (high-flow) type | Stations: 19 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12-20Manifold: VV3Q12 plug-lead unit | Stations: 20 | Connector: Individual wiring (L/M/G) | Cable: None
VV3Q12U-20Manifold: VV3Q12U for U (high-flow) type | Stations: 20 | Connector: Individual wiring (L/M/G) | Cable: None

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
