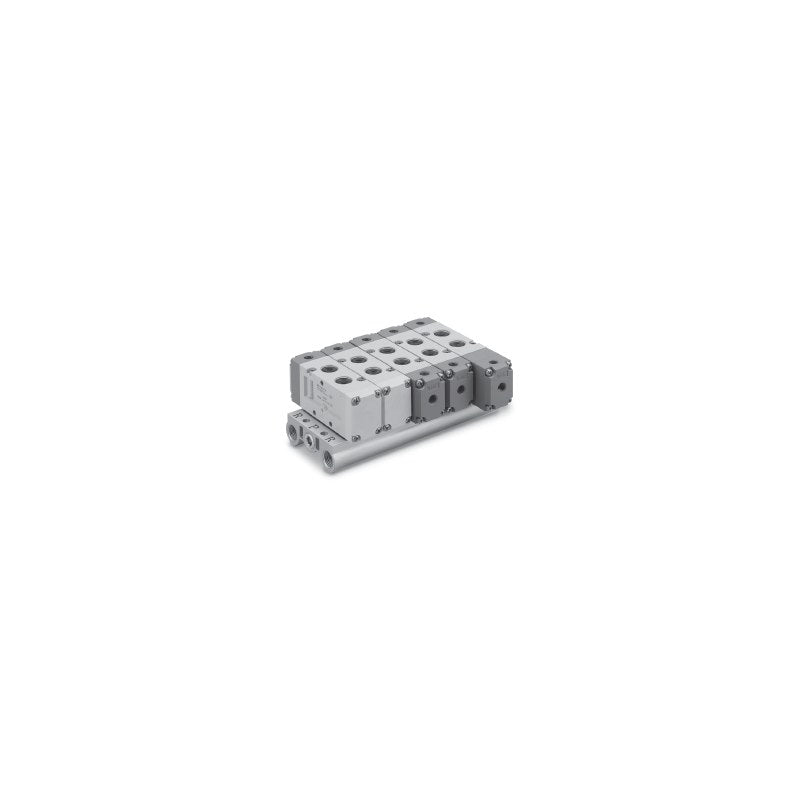

• SMC VV5FA Manifold for VFA Air Operated Valves (2 to 20 Stations)
1 1

SMC VV5FA Manifold for VFA Air Operated Valves (2 to 20 Stations)

SMC VV5FA Manifold for VFA Air Operated Valves (2 to 20 Stations)

SMC VV5FA manifold bases for VFA1000/3000/5000 air operated valves, in direct piping (types 20, 21, 30, 31) and base piping (type 40) versions.

Key features

  • Direct piping manifolds: VV5FA1-30, VV5FA3-30, VV5FA5-20 and VV5FA5-21 with common exhaust; VV5FA1-31 with individual EXH (M5)
  • Base piping manifolds VV5FA3-40 and VV5FA5-40 with Rc1/4 A/B ports in the base
  • P, R ports: VV5FA1 Rc1/8, VV5FA3 Rc1/4, VV5FA5-20 Rc3/8, VV5FA5-21 Rc1/2, VV5FA5-40 Rc3/8
  • Stations: 2 to 20 (VV5FA5-20 and -40 up to 10, VV5FA5-21 up to 15)
  • Order valves (VFA130, VFA330, VFA520, VFA340, VFA544) and blanking plates separately; G, NPT, NPTF threads on order

Specifications

Fluid Air
Applicable valves VFA1000/3000/5000 series
Station counting From D side
Supply/exhaust (10+ stations) Supply both 1(P) ports, exhaust both R ports
Valves Order separately
Source SMC Korea catalog VFA1000/3000/5000 (SMCKR_VFA1000_3000_5000.pdf), p. 1320-1321, 1326-1327 (PDF p. 18-19, 24-25)
VV5FA1-30-021 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 2 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-031 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 3 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-041 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 4 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-051 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 5 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-061 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 6 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-071 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 7 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-081 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 8 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-091 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 9 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-101 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 10 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-111 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 11 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-121 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 12 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-131 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 13 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-141 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 14 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-151 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 15 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-161 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 16 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-171 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 17 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-181 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 18 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-191 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 19 | EXH: Common | A/B port: On valve Rc1/8
VV5FA1-30-201 Series: VFA1000 | Manifold type: 30 direct piping | Stations: 20 | EXH: Common | A/B port: On valve Rc1/8
VV5FA3-30-021 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 2 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-031 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 3 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-041 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 4 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-051 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 5 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-061 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 6 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-071 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 7 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-081 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 8 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-091 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 9 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-101 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 10 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-111 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 11 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-121 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 12 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-131 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 13 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-141 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 14 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-151 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 15 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-161 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 16 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-171 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 17 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-181 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 18 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-191 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 19 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA3-30-201 Series: VFA3000 | Manifold type: 30 direct piping | Stations: 20 | EXH: Common | A/B port: On valve Rc1/8, 1/4
VV5FA5-20-021 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 2 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-031 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 3 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-041 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 4 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-051 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 5 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-061 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 6 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-071 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 7 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-081 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 8 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-091 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 9 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-20-101 Series: VFA5000 | Manifold type: 20 direct piping | Stations: 10 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-021 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 2 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-031 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 3 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-041 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 4 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-051 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 5 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-061 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 6 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-071 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 7 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-081 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 8 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-091 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 9 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-101 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 10 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-111 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 11 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-121 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 12 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-131 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 13 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-141 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 14 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA5-21-151 Series: VFA5000 | Manifold type: 21 direct piping | Stations: 15 | EXH: Common | A/B port: On valve Rc1/4, 3/8
VV5FA1-31-023 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 2 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-033 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 3 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-043 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 4 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-053 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 5 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-063 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 6 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-073 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 7 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-083 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 8 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-093 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 9 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-103 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 10 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-113 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 11 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-123 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 12 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-133 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 13 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-143 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 14 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-153 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 15 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-163 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 16 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-173 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 17 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-183 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 18 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-193 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 19 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA1-31-203 Series: VFA1000 | Manifold type: 31 direct piping | Stations: 20 | EXH: Individual | A/B port: On valve Rc1/8
VV5FA3-40-022-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 2 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-032-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 3 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-042-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 4 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-052-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 5 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-062-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 6 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-072-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 7 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-082-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 8 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-092-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 9 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-102-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 10 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-112-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 11 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-122-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 12 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-132-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 13 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-142-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 14 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-152-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 15 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-162-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 16 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-172-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 17 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-182-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 18 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-192-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 19 | EXH: Common | A/B port: Rc1/4 on base
VV5FA3-40-202-02 Series: VFA3000 | Manifold type: 40 base piping | Stations: 20 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-022-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 2 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-032-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 3 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-042-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 4 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-052-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 5 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-062-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 6 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-072-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 7 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-082-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 8 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-092-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 9 | EXH: Common | A/B port: Rc1/4 on base
VV5FA5-40-102-02 Series: VFA5000 | Manifold type: 40 base piping | Stations: 10 | EXH: Common | A/B port: Rc1/4 on base
ManifoldsSMC
108 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV5FA Manifold for VFA Air Operated Valves (2 to 20 Stations)

Brand SMC·Manifolds

Available part numbers (108)

VV5FA1-30-021, VV5FA1-30-031, VV5FA1-30-041, VV5FA1-30-051, VV5FA1-30-061, VV5FA1-30-071, VV5FA1-30-081, VV5FA1-30-091, VV5FA1-30-101, VV5FA1-30-111 + 98 more — see full table ↓
