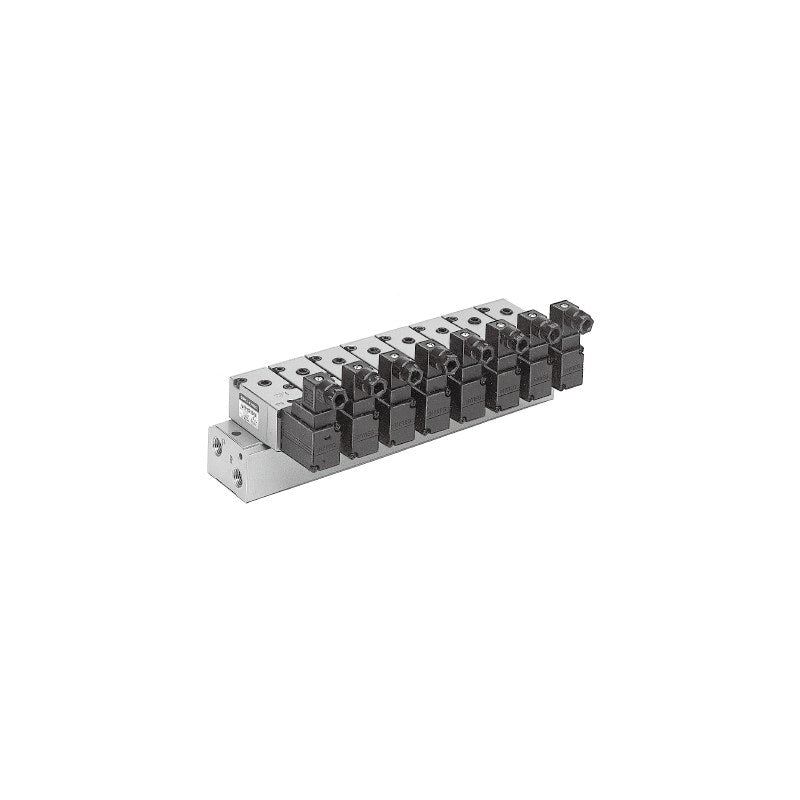

SMC VVEX manifold base for VY1 E-P HYREG base-mounted regulators (sizes B, 2, 4), with common supply and exhaust and up to 10 stations.

Key features

  • VVEXB for VY1B0x (2-10 stations), VVEX2 for VY120x (2-8), VVEX4 for VY140x (2-6)
  • Common SUP and EXH; internal pilot or common external pilot
  • Regulators and blanking plates ordered separately with the * mark, numbered from the left facing port 2(A)
  • Supply from both sides recommended for 5 or more stations (VY1B: 6 or more)
  • G/NPT/NPTF threads on order; blanking plates VEXB-6, VEX1-17, VEX4-5

Specifications

Fluid Air
Supply / exhaust Common SUP, common EXH
Pilot Internal or common external pilot
Pilot port M5
Thread Rc (standard)
Source SMC Korea catalog (SMCKR_VY1.pdf), p. 1004 (PDF p. 16)
