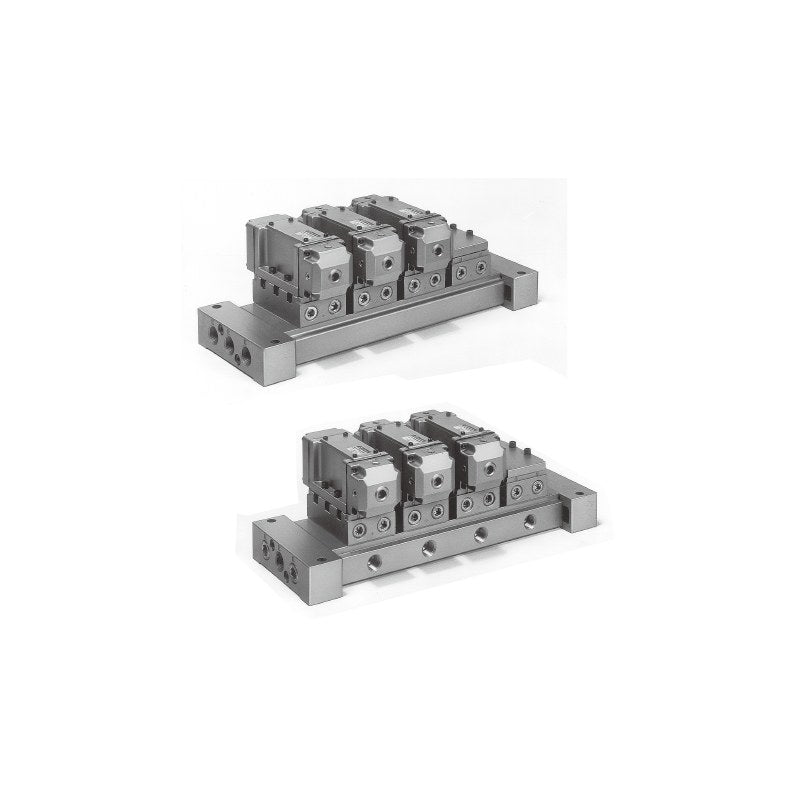

SMC VVPA450/460 Manifold for VPA4 Air Operated Valves

SMC VVPA450/460 Manifold for VPA4 Air Operated Valves

SMC VVPA450/VVPA460 B-mount manifold for VPA454-00 air operated valves, common supply with common or individual exhaust, side piped.

Key features

  • VVPA450 (3/4 base) for VPA4154-00/4254-00; VVPA460 (1 base) for VPA4354-00/4454-00 per catalog type table
  • P and E ports: VVPA450 Rc3/4, VVPA460 Rc1; A/B ports Rc1/2, 3/4 (450) or Rc3/4, 1 (460)
  • Up to 10 stations (VVPA460 up to 8); supply and exhaust from both sides above 4 stations
  • A/B bottom piping (1) and mixed A/B port sizes (M) on order
  • Blanking plate assembly XT038N-4A; order valves separately

Specifications

Fluid Air
Manifold type B mount, common supply
Piping Side piping (P, A/B, E)
Applicable valves VPA454-00
Blanking plate XT038N-4A (with gasket and bolts)
Valves Order separately
