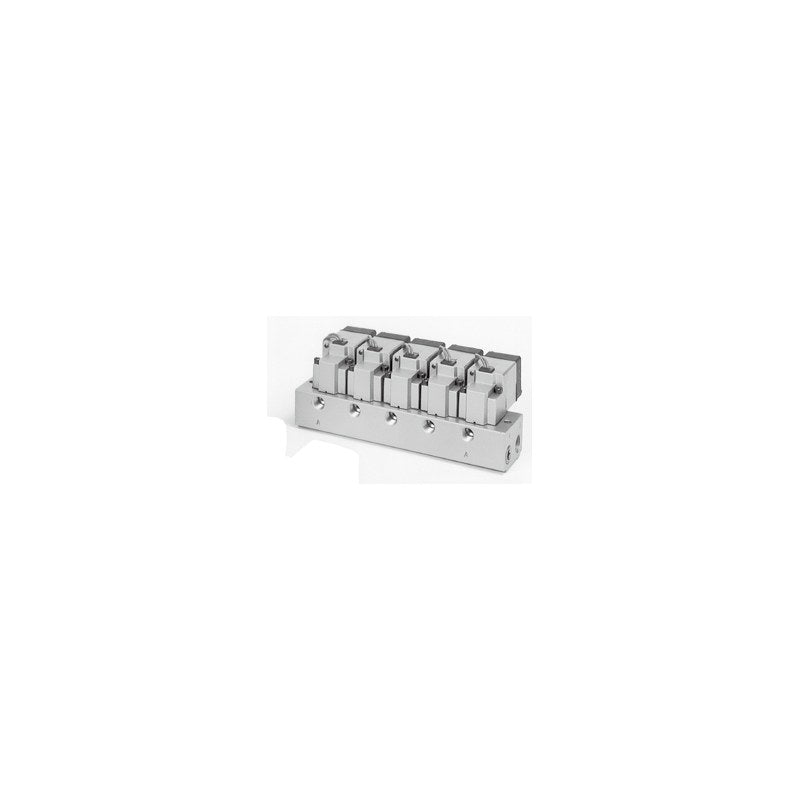

SMC VVS31 Manifold Base for VS3114 (2 to 10 Stations)

SMC VVS31 Manifold Base for VS3114 (2 to 10 Stations)

SMC VVS31 B-mount common-EXH manifold base for VS3114 3-port metal-seal solenoid valves, 2 to 10 stations.

Key features

  • B-mount manifold base with common EXH
  • Base ports P 3/8, A 1/4, E 3/8
  • Piping: all ports side (0) or A port bottom (1)
  • Blanking plate (gasket, screws) AXT338-17A available
  • NPT, NPTF and G threads semi-standard

Specifications

Manifold type B mount, common EXH
Stations 2 to 10
Applicable valves VS3114-00
Thread type Rc
Mass 0.16n + 0.1 kg (n = stations)
Source SMC Korea catalog VS3115/3110/3135/3145 (SMCKR_VS3115_3110_3135_3145.pdf), p. 2046 (PDF p. 4)
VVS310-021 Piping: P, A, E side | Stations: 2 stations | Base length L2: 100 mm
VVS310-031 Piping: P, A, E side | Stations: 3 stations | Base length L2: 138 mm
VVS310-041 Piping: P, A, E side | Stations: 4 stations | Base length L2: 176 mm
VVS310-051 Piping: P, A, E side | Stations: 5 stations | Base length L2: 214 mm
VVS310-061 Piping: P, A, E side | Stations: 6 stations | Base length L2: 252 mm
VVS310-071 Piping: P, A, E side | Stations: 7 stations | Base length L2: 290 mm
VVS310-081 Piping: P, A, E side | Stations: 8 stations | Base length L2: 328 mm
VVS310-091 Piping: P, A, E side | Stations: 9 stations | Base length L2: 366 mm
VVS310-101 Piping: P, A, E side | Stations: 10 stations | Base length L2: 404 mm
VVS311-021 Piping: P, E side / A bottom | Stations: 2 stations | Base length L2: 100 mm
VVS311-031 Piping: P, E side / A bottom | Stations: 3 stations | Base length L2: 138 mm
VVS311-041 Piping: P, E side / A bottom | Stations: 4 stations | Base length L2: 176 mm
VVS311-051 Piping: P, E side / A bottom | Stations: 5 stations | Base length L2: 214 mm
VVS311-061 Piping: P, E side / A bottom | Stations: 6 stations | Base length L2: 252 mm
VVS311-071 Piping: P, E side / A bottom | Stations: 7 stations | Base length L2: 290 mm
VVS311-081 Piping: P, E side / A bottom | Stations: 8 stations | Base length L2: 328 mm
VVS311-091 Piping: P, E side / A bottom | Stations: 9 stations | Base length L2: 366 mm
VVS311-101 Piping: P, E side / A bottom | Stations: 10 stations | Base length L2: 404 mm
ManifoldsSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VVS31 Manifold Base for VS3114 (2 to 10 Stations)

Brand SMC·Manifolds

Available part numbers (18)

VVS310-021, VVS310-031, VVS310-041, VVS310-051, VVS310-061, VVS310-071, VVS310-081, VVS310-091, VVS310-101, VVS311-021 + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VVS310-021Piping: P, A, E side | Stations: 2 stations | Base length L2: 100 mm
VVS310-031Piping: P, A, E side | Stations: 3 stations | Base length L2: 138 mm
VVS310-041Piping: P, A, E side | Stations: 4 stations | Base length L2: 176 mm
VVS310-051Piping: P, A, E side | Stations: 5 stations | Base length L2: 214 mm
VVS310-061Piping: P, A, E side | Stations: 6 stations | Base length L2: 252 mm
VVS310-071Piping: P, A, E side | Stations: 7 stations | Base length L2: 290 mm
VVS310-081Piping: P, A, E side | Stations: 8 stations | Base length L2: 328 mm
VVS310-091Piping: P, A, E side | Stations: 9 stations | Base length L2: 366 mm
VVS310-101Piping: P, A, E side | Stations: 10 stations | Base length L2: 404 mm
VVS311-021Piping: P, E side / A bottom | Stations: 2 stations | Base length L2: 100 mm
VVS311-031Piping: P, E side / A bottom | Stations: 3 stations | Base length L2: 138 mm
VVS311-041Piping: P, E side / A bottom | Stations: 4 stations | Base length L2: 176 mm
VVS311-051Piping: P, E side / A bottom | Stations: 5 stations | Base length L2: 214 mm
VVS311-061Piping: P, E side / A bottom | Stations: 6 stations | Base length L2: 252 mm
VVS311-071Piping: P, E side / A bottom | Stations: 7 stations | Base length L2: 290 mm
VVS311-081Piping: P, E side / A bottom | Stations: 8 stations | Base length L2: 328 mm
VVS311-091Piping: P, E side / A bottom | Stations: 9 stations | Base length L2: 366 mm
VVS311-101Piping: P, E side / A bottom | Stations: 10 stations | Base length L2: 404 mm
