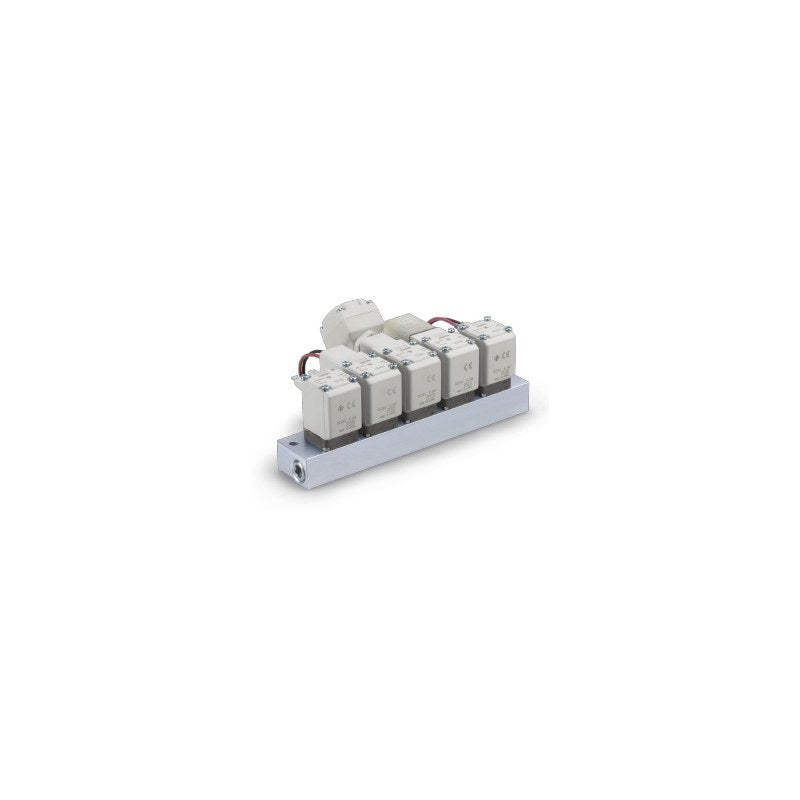

SMC VX21/22/23 2-Port Solenoid Valve for VVX2 Manifold (Air, Vacuum)

SMC VX21/22/23 2-Port Solenoid Valve for VVX2 Manifold (Air, Vacuum)

SMC VX21/22/23 series direct operated 2-port solenoid valve with resin body for mounting on VVX2 manifold bases, for air or medium vacuum.

Key features

  • Resin (PPS) body valve for VVX21/22/23 manifold bases; mounting direction on the base is fixed
  • Air type (fluid 0, NBR seal) for common-pressurization bases; medium vacuum type (fluid 4, FKM seal, oil-free, leak-free) for individual-pressurization bases
  • Coil sizes 1/2/3, N.C. and N.O.; orifice 2/3/5 mm (size 1), 4/7 mm (size 2), 5/7 mm (size 3)
  • Listed codes cover DC24V, AC100V, AC200V and AC220V (Z1B) with grommet; conduit, DIN terminal, conduit terminal and flat terminal entries by letter
  • Order with manifold base VVX2 and blanking plate VVX02*S-4A-N/F; prefix each mounted valve with * in the order

Specifications

Valve construction Direct operated poppet, manifold mounting
Body material Resin (PPS)
Coil insulation Class B
Enclosure IP65 (flat terminal IP40)
Power consumption (DC, N.C.) Size 1 4.5 W, size 2 7 W, size 3 10.5 W
Allowable voltage fluctuation ±10% of rated voltage
Special options Special voltage, lamp, no DIN connector, EPDM/FKM seal, oil-free, lead wire direction
Source SMC Korea catalog VX21/22/23 (SMCKR_VX2__new_.pdf), p. 37, 41 (PDF p. 11, 15)
VX2A0AA Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2A0AB Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A0AD Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A0AZ1B Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A0BA Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2A0BB Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A0BD Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A0BZ1B Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A0CA Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2A0CB Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A0CD Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A0CZ1B Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D0AA Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2D0AB Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D0AD Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D0AZ1B Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D0BA Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2D0BB Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D0BD Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D0BZ1B Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D0CA Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2D0CB Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D0CD Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D0CZ1B Fluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B0AA Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2B0AB Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B0AD Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B0AZ1B Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B0BA Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2B0BB Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B0BD Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B0BZ1B Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E0AA Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2E0AB Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E0AD Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E0AZ1B Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E0BA Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2E0BB Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E0BD Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E0BZ1B Fluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C0AA Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2C0AB Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C0AD Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C0AZ1B Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C0BA Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2C0BB Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C0BD Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C0BZ1B Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F0AA Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2F0AB Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F0AD Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F0AZ1B Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F0BA Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2F0BB Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F0BD Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F0BZ1B Fluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A4AA Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2A4AB Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A4AD Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A4AZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A4BA Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2A4BB Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A4BD Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A4BZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A4CA Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2A4CB Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A4CD Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A4CZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D4AA Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2D4AB Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D4AD Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D4AZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D4BA Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2D4BB Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D4BD Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D4BZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D4CA Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2D4CB Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D4CD Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D4CZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B4AA Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2B4AB Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B4AD Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B4AZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B4BA Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2B4BB Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B4BD Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B4BZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E4AA Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2E4AB Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E4AD Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E4AZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E4BA Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2E4BB Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E4BD Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E4BZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C4AA Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2C4AB Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C4AD Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C4AZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C4BA Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2C4BB Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C4BD Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C4BZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F4AA Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2F4AB Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F4AD Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F4AZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F4BA Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2F4BB Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F4BD Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F4BZ1B Fluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
2-Port ValvesSMC
112 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VX21/22/23 2-Port Solenoid Valve for VVX2 Manifold (Air, Vacuum)

Brand SMC·2-Port Valves

Available part numbers (112)

VX2A0AA, VX2A0AB, VX2A0AD, VX2A0AZ1B, VX2A0BA, VX2A0BB, VX2A0BD, VX2A0BZ1B, VX2A0CA, VX2A0CB + 102 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VX2A0AAFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2A0ABFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A0ADFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A0AZ1BFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A0BAFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2A0BBFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A0BDFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A0BZ1BFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A0CAFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2A0CBFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A0CDFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A0CZ1BFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D0AAFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2D0ABFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D0ADFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D0AZ1BFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D0BAFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2D0BBFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D0BDFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D0BZ1BFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D0CAFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2D0CBFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D0CDFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D0CZ1BFluid: Air (NBR seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B0AAFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2B0ABFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B0ADFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B0AZ1BFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B0BAFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2B0BBFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B0BDFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B0BZ1BFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E0AAFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2E0ABFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E0ADFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E0AZ1BFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E0BAFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2E0BBFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E0BDFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E0BZ1BFluid: Air (NBR seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C0AAFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2C0ABFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C0ADFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C0AZ1BFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C0BAFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2C0BBFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C0BDFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C0BZ1BFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F0AAFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2F0ABFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F0ADFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F0AZ1BFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F0BAFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2F0BBFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F0BDFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F0BZ1BFluid: Air (NBR seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A4AAFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2A4ABFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A4ADFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A4AZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A4BAFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2A4BBFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A4BDFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A4BZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2A4CAFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2A4CBFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2A4CDFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2A4CZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D4AAFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: DC24V, grommet
VX2D4ABFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D4ADFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D4AZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 2 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D4BAFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: DC24V, grommet
VX2D4BBFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D4BDFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D4BZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 3 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2D4CAFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2D4CBFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2D4CDFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2D4CZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 1 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B4AAFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2B4ABFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B4ADFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B4AZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2B4BAFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2B4BBFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2B4BDFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2B4BZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E4AAFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: DC24V, grommet
VX2E4ABFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E4ADFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E4AZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 4 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2E4BAFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2E4BBFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2E4BDFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2E4BZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 2 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C4AAFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2C4ABFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C4ADFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C4AZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2C4BAFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2C4BBFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2C4BDFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2C4BZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.C. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F4AAFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: DC24V, grommet
VX2F4ABFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F4ADFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F4AZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 5 mm | Voltage/entry: AC220V, grommet, surge supp.
VX2F4BAFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: DC24V, grommet
VX2F4BBFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC100V, grommet, surge supp.
VX2F4BDFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC200V, grommet, surge supp.
VX2F4BZ1BFluid: Medium vacuum (FKM seal) | Coil size: Size 3 | Valve type: N.O. | Orifice: 7 mm | Voltage/entry: AC220V, grommet, surge supp.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
