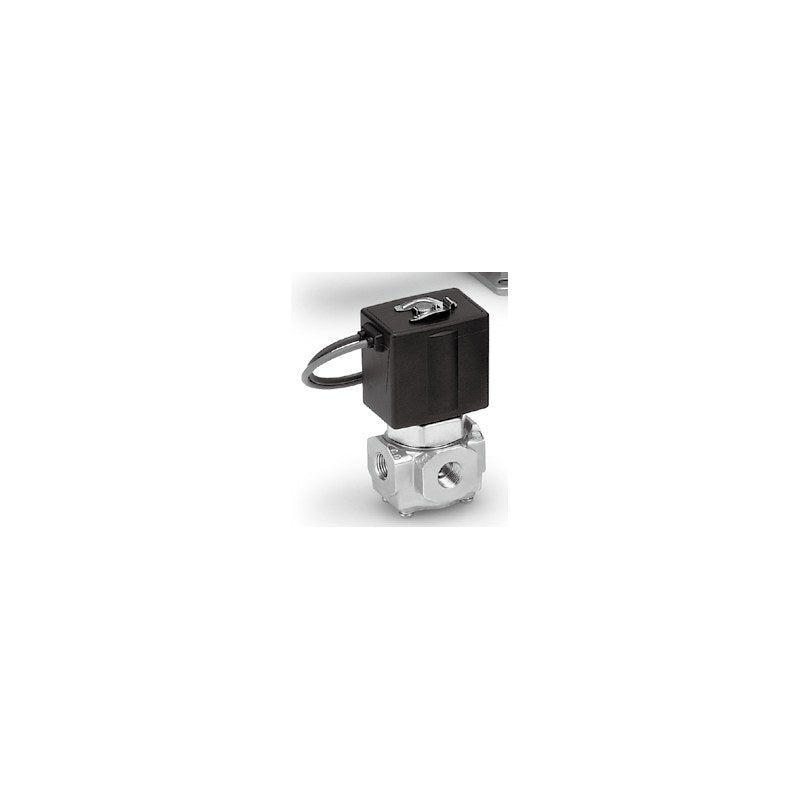

SMC VX31 Direct Operated 3-Port Solenoid Valve (Rc1/8, Rc1/4)

SMC VX31 direct operated 3-port solenoid valve (single unit) for air, water, oil and steam, with orifices 1.5 to 3 mm and Rc1/8 or Rc1/4 ports.

Key features

Direct-operated poppet 3-port valve for air, vacuum, water, hot water, oil and steam (max. 183°C); N.C., N.O. and COM. (universal) types
Body C37 (brass) or SUS; seals NBR, FKM, EPDM or FFKM/PTFE selected by option letter (blank/G/M/V/H/A air-water-oil, E/P hot water, D/N oil, S/Q steam)
Leak-free / medium-vacuum (0.1 Pa abs) options V and M; class H coil (AC only) for hot water, oil and steam options
Electrical entry: grommet (G/GS), conduit (C), conduit terminal (T/TS/TL/TZ), DIN terminal (D/DS/DL/DZ/DO); listed codes use grommet G. AC class B coils have a built-in full-wave rectifier (R1)
Thread Rc standard (NPTF T, G F, NPT N on order); oil-free (Z), bracket (-B) and other voltages (AC110/230/240/48V, DC12V) by code
IP65 equivalent enclosure, special magnetic material for improved corrosion resistance

Specifications

Valve construction	Direct operated poppet, 3-port
Proof pressure	3.0 MPa
Max. system pressure	2.0 MPa
Body material	C37 (brass) or stainless steel
Enclosure	IP65 equivalent (GS grommet IP40)
Electrical entry	Grommet (G) in listed codes
Allowable voltage fluctuation	±10% of rated voltage
Power consumption DC	VX31 4.5 W, VX32 7 W, VX33 10.5 W
Ambient temperature	-20 to 60°C (AC), -20 to 40°C (DC)
Source	SMC Korea catalog VX31/32/33 Series (SMCKR_VX31_32_33.pdf), p. 380-383, 386-389, 392-393 (PDF p. 4-7, 10-13, 16-17)

VX3110-01-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3110-01-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110-01-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110-01-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110G-01-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3110G-01-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110G-01-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110G-01-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110M-01-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3110M-01-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110M-01-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110M-01-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110V-01-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3110V-01-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110V-01-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110V-01-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110H-01-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3110H-01-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110H-01-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110H-01-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110A-01-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3110A-01-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110A-01-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110A-01-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110E-01-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3110E-01-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3110E-01-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3110P-01-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3110P-01-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3110P-01-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3110D-01-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3110D-01-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3110D-01-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3110N-01-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3110N-01-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3110N-01-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3112-01-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3112-01-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112-01-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112-01-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112G-01-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3112G-01-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112G-01-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112G-01-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112M-01-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3112M-01-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112M-01-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112M-01-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112V-01-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3112V-01-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112V-01-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112V-01-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112H-01-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3112H-01-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112H-01-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112H-01-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112A-01-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3112A-01-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112A-01-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112A-01-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112E-01-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3112E-01-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3112E-01-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3112P-01-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3112P-01-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3112P-01-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3112D-01-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3112D-01-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3112D-01-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3112N-01-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3112N-01-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3112N-01-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3114-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3114-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114G-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3114G-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114G-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114G-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114M-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3114M-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114M-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114M-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114V-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3114V-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114V-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114V-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114H-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3114H-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114H-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114H-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114A-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3114A-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114A-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114A-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114E-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3114E-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3114E-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3114P-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3114P-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3114P-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3114D-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3114D-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3114D-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3114N-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3114N-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3114N-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3114S-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3114S-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3114S-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3114Q-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3114Q-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3114Q-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3120-01-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3120-01-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120-01-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120-01-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120G-01-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3120G-01-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120G-01-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120G-01-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120M-01-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3120M-01-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120M-01-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120M-01-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120V-01-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3120V-01-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120V-01-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120V-01-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120H-01-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3120H-01-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120H-01-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120H-01-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120A-01-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3120A-01-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120A-01-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120A-01-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120E-01-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3120E-01-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3120E-01-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3120P-01-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3120P-01-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3120P-01-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3120D-01-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3120D-01-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3120D-01-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3120N-01-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3120N-01-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3120N-01-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3122-01-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3122-01-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122-01-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122-01-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122G-01-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3122G-01-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122G-01-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122G-01-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122M-01-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3122M-01-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122M-01-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122M-01-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122V-01-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3122V-01-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122V-01-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122V-01-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122H-01-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3122H-01-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122H-01-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122H-01-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122A-01-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3122A-01-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122A-01-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122A-01-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122E-01-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3122E-01-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3122E-01-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3122P-01-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3122P-01-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3122P-01-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3122D-01-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3122D-01-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3122D-01-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3122N-01-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3122N-01-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3122N-01-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3124-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3124-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124G-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3124G-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124G-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124G-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124M-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3124M-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124M-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124M-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124V-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3124V-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124V-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124V-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124H-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3124H-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124H-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124H-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124A-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3124A-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124A-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124A-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124E-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3124E-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3124E-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3124P-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3124P-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3124P-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3124D-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3124D-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3124D-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3124N-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3124N-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3124N-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3124S-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3124S-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3124S-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3124Q-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3124Q-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3124Q-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3130-01-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3130-01-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130-01-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130-01-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130G-01-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3130G-01-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130G-01-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130G-01-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130M-01-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3130M-01-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130M-01-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130M-01-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130V-01-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3130V-01-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130V-01-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130V-01-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130H-01-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3130H-01-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130H-01-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130H-01-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130A-01-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3130A-01-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130A-01-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130A-01-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130E-01-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3130E-01-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3130E-01-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3130P-01-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3130P-01-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3130P-01-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3130D-01-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3130D-01-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3130D-01-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3130N-01-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3130N-01-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3130N-01-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3132-01-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3132-01-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132-01-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132-01-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132G-01-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3132G-01-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132G-01-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132G-01-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132M-01-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3132M-01-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132M-01-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132M-01-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132V-01-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3132V-01-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132V-01-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132V-01-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132H-01-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3132H-01-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132H-01-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132H-01-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132A-01-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3132A-01-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132A-01-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132A-01-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132E-01-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3132E-01-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3132E-01-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3132P-01-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3132P-01-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3132P-01-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3132D-01-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3132D-01-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3132D-01-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3132N-01-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3132N-01-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3132N-01-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3134-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3134-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134G-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3134G-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134G-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134G-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134M-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3134M-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134M-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134M-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134V-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3134V-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134V-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134V-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134H-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3134H-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134H-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134H-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134A-01-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3134A-01-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134A-01-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134A-01-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134E-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3134E-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3134E-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3134P-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3134P-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3134P-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3134D-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3134D-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3134D-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3134N-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3134N-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3134N-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3134S-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3134S-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3134S-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3134Q-01-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3134Q-01-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3134Q-01-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3110-02-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3110-02-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110-02-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110-02-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110G-02-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3110G-02-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110G-02-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110G-02-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110M-02-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3110M-02-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110M-02-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110M-02-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110V-02-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3110V-02-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110V-02-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110V-02-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110H-02-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3110H-02-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110H-02-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110H-02-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110A-02-5G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3110A-02-1GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3110A-02-2GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3110A-02-4GR1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3110E-02-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3110E-02-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3110E-02-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3110P-02-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3110P-02-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3110P-02-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3110D-02-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3110D-02-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3110D-02-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3110N-02-1G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3110N-02-2G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3110N-02-4G1		Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3112-02-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3112-02-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112-02-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112-02-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112G-02-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3112G-02-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112G-02-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112G-02-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112M-02-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3112M-02-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112M-02-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112M-02-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112V-02-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3112V-02-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112V-02-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112V-02-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112H-02-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3112H-02-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112H-02-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112H-02-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112A-02-5G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3112A-02-1GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3112A-02-2GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3112A-02-4GR1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3112E-02-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3112E-02-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3112E-02-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3112P-02-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3112P-02-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3112P-02-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3112D-02-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3112D-02-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3112D-02-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3112N-02-1G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3112N-02-2G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3112N-02-4G1		Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3114-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3114-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114G-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3114G-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114G-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114G-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114M-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3114M-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114M-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114M-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114V-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3114V-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114V-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114V-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114H-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3114H-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114H-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114H-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114A-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3114A-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3114A-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3114A-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3114E-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3114E-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3114E-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3114P-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3114P-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3114P-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3114D-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3114D-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3114D-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3114N-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3114N-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3114N-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3114S-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3114S-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3114S-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3114Q-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3114Q-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3114Q-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3120-02-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3120-02-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120-02-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120-02-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120G-02-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3120G-02-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120G-02-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120G-02-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120M-02-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3120M-02-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120M-02-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120M-02-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120V-02-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3120V-02-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120V-02-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120V-02-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120H-02-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3120H-02-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120H-02-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120H-02-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120A-02-5G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3120A-02-1GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3120A-02-2GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3120A-02-4GR1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3120E-02-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3120E-02-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3120E-02-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3120P-02-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3120P-02-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3120P-02-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3120D-02-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3120D-02-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3120D-02-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3120N-02-1G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3120N-02-2G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3120N-02-4G1		Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3122-02-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3122-02-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122-02-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122-02-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122G-02-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3122G-02-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122G-02-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122G-02-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122M-02-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3122M-02-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122M-02-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122M-02-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122V-02-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3122V-02-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122V-02-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122V-02-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122H-02-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3122H-02-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122H-02-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122H-02-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122A-02-5G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3122A-02-1GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3122A-02-2GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3122A-02-4GR1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3122E-02-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3122E-02-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3122E-02-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3122P-02-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3122P-02-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3122P-02-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3122D-02-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3122D-02-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3122D-02-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3122N-02-1G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3122N-02-2G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3122N-02-4G1		Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3124-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3124-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124G-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3124G-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124G-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124G-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124M-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3124M-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124M-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124M-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124V-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3124V-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124V-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124V-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124H-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3124H-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124H-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124H-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124A-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3124A-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3124A-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3124A-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3124E-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3124E-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3124E-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3124P-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3124P-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3124P-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3124D-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3124D-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3124D-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3124N-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3124N-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3124N-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3124S-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3124S-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3124S-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3124Q-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3124Q-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3124Q-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3130-02-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3130-02-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130-02-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130-02-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130G-02-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3130G-02-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130G-02-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130G-02-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130M-02-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3130M-02-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130M-02-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130M-02-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130V-02-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3130V-02-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130V-02-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130V-02-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130H-02-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3130H-02-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130H-02-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130H-02-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130A-02-5G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3130A-02-1GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3130A-02-2GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3130A-02-4GR1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3130E-02-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3130E-02-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3130E-02-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3130P-02-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3130P-02-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3130P-02-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3130D-02-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3130D-02-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3130D-02-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3130N-02-1G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3130N-02-2G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3130N-02-4G1		Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3132-02-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3132-02-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132-02-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132-02-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132G-02-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3132G-02-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132G-02-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132G-02-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132M-02-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3132M-02-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132M-02-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132M-02-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132V-02-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3132V-02-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132V-02-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132V-02-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132H-02-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3132H-02-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132H-02-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132H-02-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132A-02-5G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3132A-02-1GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3132A-02-2GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3132A-02-4GR1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3132E-02-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3132E-02-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3132E-02-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3132P-02-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3132P-02-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3132P-02-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3132D-02-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3132D-02-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3132D-02-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3132N-02-1G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3132N-02-2G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3132N-02-4G1		Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3134-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3134-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134G-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
VX3134G-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134G-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134G-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134M-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3134M-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134M-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134M-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134V-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
VX3134V-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134V-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134V-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134H-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
VX3134H-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134H-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134H-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134A-02-5G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
VX3134A-02-1GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
VX3134A-02-2GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
VX3134A-02-4GR1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
VX3134E-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3134E-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3134E-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3134P-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
VX3134P-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
VX3134P-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
VX3134D-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3134D-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3134D-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3134N-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
VX3134N-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
VX3134N-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
VX3134S-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3134S-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3134S-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
VX3134Q-02-1G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
VX3134Q-02-2G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
VX3134Q-02-4G1		Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H

2-Port ValvesSMC

684 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VX31 Direct Operated 3-Port Solenoid Valve (Rc1/8, Rc1/4)

Brand SMC·2-Port Valves

Available part numbers (684)

VX3110-01-5G1, VX3110-01-1GR1, VX3110-01-2GR1, VX3110-01-4GR1, VX3110G-01-5G1, VX3110G-01-1GR1, VX3110G-01-2GR1, VX3110G-01-4GR1, VX3110M-01-5G1, VX3110M-01-1GR1 + 674 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VX3110-01-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3110-01-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110-01-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110-01-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110G-01-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3110G-01-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110G-01-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110G-01-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110M-01-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3110M-01-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110M-01-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110M-01-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110V-01-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3110V-01-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110V-01-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110V-01-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110H-01-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3110H-01-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110H-01-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110H-01-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110A-01-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3110A-01-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110A-01-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110A-01-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110E-01-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3110E-01-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3110E-01-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3110P-01-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3110P-01-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3110P-01-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3110D-01-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3110D-01-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3110D-01-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3110N-01-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3110N-01-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3110N-01-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3112-01-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3112-01-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112-01-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112-01-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112G-01-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3112G-01-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112G-01-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112G-01-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112M-01-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3112M-01-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112M-01-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112M-01-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112V-01-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3112V-01-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112V-01-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112V-01-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112H-01-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3112H-01-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112H-01-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112H-01-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112A-01-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3112A-01-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112A-01-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112A-01-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112E-01-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3112E-01-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3112E-01-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3112P-01-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3112P-01-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3112P-01-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3112D-01-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3112D-01-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3112D-01-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3112N-01-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3112N-01-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3112N-01-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3114-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3114-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114G-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3114G-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114G-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114G-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114M-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3114M-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114M-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114M-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114V-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3114V-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114V-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114V-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114H-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3114H-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114H-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114H-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114A-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3114A-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114A-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114A-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114E-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3114E-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3114E-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3114P-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3114P-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3114P-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3114D-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3114D-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3114D-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3114N-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3114N-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3114N-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3114S-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3114S-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3114S-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3114Q-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3114Q-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3114Q-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3120-01-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3120-01-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120-01-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120-01-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120G-01-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3120G-01-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120G-01-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120G-01-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120M-01-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3120M-01-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120M-01-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120M-01-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120V-01-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3120V-01-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120V-01-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120V-01-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120H-01-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3120H-01-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120H-01-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120H-01-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120A-01-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3120A-01-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120A-01-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120A-01-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120E-01-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3120E-01-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3120E-01-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3120P-01-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3120P-01-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3120P-01-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3120D-01-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3120D-01-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3120D-01-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3120N-01-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3120N-01-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3120N-01-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3122-01-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3122-01-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122-01-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122-01-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122G-01-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3122G-01-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122G-01-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122G-01-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122M-01-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3122M-01-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122M-01-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122M-01-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122V-01-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3122V-01-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122V-01-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122V-01-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122H-01-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3122H-01-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122H-01-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122H-01-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122A-01-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3122A-01-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122A-01-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122A-01-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122E-01-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3122E-01-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3122E-01-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3122P-01-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3122P-01-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3122P-01-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3122D-01-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3122D-01-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3122D-01-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3122N-01-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3122N-01-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3122N-01-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3124-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3124-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124G-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3124G-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124G-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124G-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124M-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3124M-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124M-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124M-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124V-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3124V-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124V-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124V-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124H-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3124H-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124H-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124H-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124A-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3124A-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124A-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124A-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124E-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3124E-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3124E-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3124P-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3124P-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3124P-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3124D-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3124D-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3124D-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3124N-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3124N-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3124N-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3124S-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3124S-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3124S-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3124Q-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3124Q-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3124Q-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3130-01-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3130-01-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130-01-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130-01-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130G-01-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3130G-01-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130G-01-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130G-01-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130M-01-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3130M-01-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130M-01-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130M-01-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130V-01-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3130V-01-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130V-01-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130V-01-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130H-01-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3130H-01-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130H-01-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130H-01-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130A-01-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3130A-01-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130A-01-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130A-01-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130E-01-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3130E-01-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3130E-01-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3130P-01-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3130P-01-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3130P-01-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3130D-01-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3130D-01-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3130D-01-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3130N-01-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3130N-01-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3130N-01-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3132-01-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3132-01-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132-01-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132-01-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132G-01-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3132G-01-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132G-01-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132G-01-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132M-01-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3132M-01-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132M-01-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132M-01-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132V-01-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3132V-01-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132V-01-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132V-01-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132H-01-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3132H-01-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132H-01-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132H-01-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132A-01-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3132A-01-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132A-01-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132A-01-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132E-01-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3132E-01-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3132E-01-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3132P-01-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3132P-01-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3132P-01-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3132D-01-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3132D-01-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3132D-01-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3132N-01-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3132N-01-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3132N-01-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3134-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3134-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134G-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3134G-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134G-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134G-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134M-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3134M-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134M-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134M-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134V-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3134V-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134V-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134V-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134H-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3134H-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134H-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134H-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134A-01-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3134A-01-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134A-01-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134A-01-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134E-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3134E-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3134E-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3134P-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3134P-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3134P-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3134D-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3134D-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3134D-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3134N-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3134N-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3134N-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3134S-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3134S-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3134S-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3134Q-01-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3134Q-01-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3134Q-01-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/8 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3110-02-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3110-02-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110-02-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110-02-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110G-02-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3110G-02-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110G-02-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110G-02-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110M-02-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3110M-02-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110M-02-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110M-02-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110V-02-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3110V-02-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110V-02-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110V-02-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110H-02-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3110H-02-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110H-02-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110H-02-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110A-02-5G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3110A-02-1GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3110A-02-2GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3110A-02-4GR1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3110E-02-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3110E-02-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3110E-02-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3110P-02-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3110P-02-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3110P-02-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3110D-02-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3110D-02-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3110D-02-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3110N-02-1G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3110N-02-2G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3110N-02-4G1	Valve type: N.C. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3112-02-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3112-02-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112-02-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112-02-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112G-02-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3112G-02-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112G-02-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112G-02-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112M-02-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3112M-02-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112M-02-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112M-02-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112V-02-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3112V-02-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112V-02-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112V-02-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112H-02-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3112H-02-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112H-02-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112H-02-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112A-02-5G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3112A-02-1GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3112A-02-2GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3112A-02-4GR1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3112E-02-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3112E-02-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3112E-02-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3112P-02-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3112P-02-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3112P-02-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3112D-02-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3112D-02-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3112D-02-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3112N-02-1G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3112N-02-2G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3112N-02-4G1	Valve type: N.O. \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3114-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3114-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114G-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3114G-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114G-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114G-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114M-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3114M-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114M-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114M-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114V-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3114V-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114V-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114V-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114H-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3114H-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114H-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114H-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114A-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3114A-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3114A-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3114A-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3114E-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3114E-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3114E-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3114P-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3114P-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3114P-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3114D-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3114D-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3114D-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3114N-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3114N-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3114N-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3114S-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3114S-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3114S-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3114Q-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3114Q-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3114Q-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø1.5 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3120-02-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3120-02-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120-02-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120-02-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120G-02-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3120G-02-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120G-02-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120G-02-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120M-02-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3120M-02-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120M-02-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120M-02-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120V-02-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3120V-02-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120V-02-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120V-02-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120H-02-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3120H-02-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120H-02-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120H-02-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120A-02-5G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3120A-02-1GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3120A-02-2GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3120A-02-4GR1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3120E-02-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3120E-02-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3120E-02-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3120P-02-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3120P-02-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3120P-02-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3120D-02-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3120D-02-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3120D-02-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3120N-02-1G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3120N-02-2G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3120N-02-4G1	Valve type: N.C. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3122-02-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3122-02-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122-02-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122-02-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122G-02-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3122G-02-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122G-02-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122G-02-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122M-02-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3122M-02-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122M-02-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122M-02-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122V-02-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3122V-02-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122V-02-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122V-02-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122H-02-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3122H-02-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122H-02-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122H-02-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122A-02-5G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3122A-02-1GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3122A-02-2GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3122A-02-4GR1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3122E-02-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3122E-02-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3122E-02-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3122P-02-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3122P-02-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3122P-02-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3122D-02-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3122D-02-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3122D-02-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3122N-02-1G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3122N-02-2G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3122N-02-4G1	Valve type: N.O. \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3124-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3124-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124G-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3124G-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124G-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124G-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124M-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3124M-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124M-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124M-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124V-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3124V-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124V-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124V-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124H-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3124H-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124H-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124H-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124A-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3124A-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3124A-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3124A-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3124E-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3124E-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3124E-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3124P-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3124P-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3124P-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3124D-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3124D-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3124D-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3124N-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3124N-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3124N-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3124S-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3124S-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3124S-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3124Q-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3124Q-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3124Q-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø2.2 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3130-02-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3130-02-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130-02-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130-02-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130G-02-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3130G-02-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130G-02-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130G-02-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130M-02-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3130M-02-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130M-02-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130M-02-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130V-02-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3130V-02-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130V-02-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130V-02-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130H-02-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3130H-02-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130H-02-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130H-02-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130A-02-5G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3130A-02-1GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3130A-02-2GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3130A-02-4GR1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3130E-02-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3130E-02-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3130E-02-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3130P-02-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3130P-02-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3130P-02-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3130D-02-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3130D-02-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3130D-02-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3130N-02-1G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3130N-02-2G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3130N-02-4G1	Valve type: N.C. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3132-02-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3132-02-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132-02-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132-02-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132G-02-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3132G-02-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132G-02-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132G-02-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132M-02-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3132M-02-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132M-02-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132M-02-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132V-02-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3132V-02-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132V-02-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132V-02-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132H-02-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3132H-02-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132H-02-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132H-02-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132A-02-5G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3132A-02-1GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3132A-02-2GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3132A-02-4GR1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3132E-02-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3132E-02-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3132E-02-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3132P-02-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3132P-02-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3132P-02-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3132D-02-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3132D-02-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3132D-02-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3132N-02-1G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3132N-02-2G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3132N-02-4G1	Valve type: N.O. \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3134-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3134-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / C37 body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134G-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: DC24V \| Coil: DC, class B
	VX3134G-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134G-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134G-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: NBR / SUS body (air, water) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134M-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3134M-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134M-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134M-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134V-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: DC24V \| Coil: DC, class B
	VX3134V-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134V-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134V-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, leak-free, vacuum (air) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134H-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3134H-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134H-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134H-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS body (water, oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134A-02-5G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: DC24V \| Coil: DC, class B
	VX3134A-02-1GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC100V \| Coil: AC class B, rectifier (R1)
	VX3134A-02-2GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC200V \| Coil: AC class B, rectifier (R1)
	VX3134A-02-4GR1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37 body (oil) \| Voltage: AC220V \| Coil: AC class B, rectifier (R1)
	VX3134E-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3134E-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3134E-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / C37, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3134P-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC100V \| Coil: AC class H
	VX3134P-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC200V \| Coil: AC class H
	VX3134P-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: EPDM / SUS, H coil (hot water) \| Voltage: AC220V \| Coil: AC class H
	VX3134D-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3134D-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3134D-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / C37, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3134N-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC100V \| Coil: AC class H
	VX3134N-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC200V \| Coil: AC class H
	VX3134N-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FKM / SUS, H coil (oil) \| Voltage: AC220V \| Coil: AC class H
	VX3134S-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3134S-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3134S-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / C37, H coil (steam) \| Voltage: AC220V \| Coil: AC class H
	VX3134Q-02-1G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC100V \| Coil: AC class H
	VX3134Q-02-2G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC200V \| Coil: AC class H
	VX3134Q-02-4G1	Valve type: COM. (universal) \| Orifice / port: ø3 mm, Rc1/4 \| Option: FFKM-PTFE / SUS, H coil (steam) \| Voltage: AC220V \| Coil: AC class H

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VX31 Direct Operated 3-Port Solenoid Valve (Rc1/8, Rc1/4)
