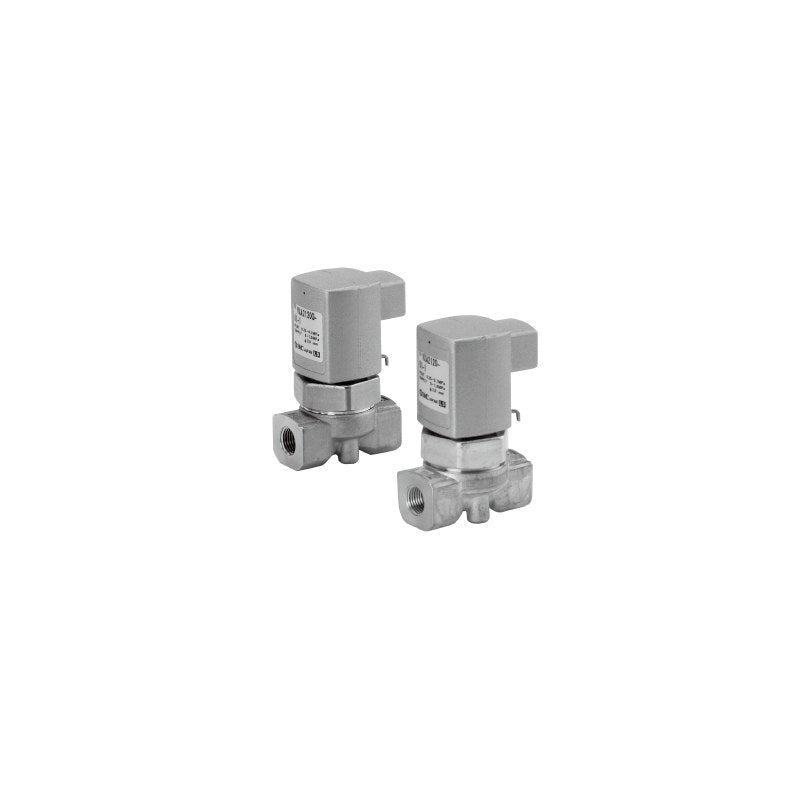

SMC VXA21/22 2-Port Air Operated Valve (Single Unit and Manifold)

SMC VXA21/22 2-Port Air Operated Valve (Single Unit and Manifold)

SMC VXA21/22 series air-operated 2-port poppet valve for air, vacuum, water and oil, as single unit (orifice 3 to 10 mm, Rc1/8 to Rc1/2) or VVXA21/22 manifold.

Key features

  • Pilot-operated poppet driven by 0.25 to 0.7 MPa pilot air; N.C. or N.O.
  • Single unit body C37 or SUS with NBR, FKM or EPDM seal: options blank/G/V/M (air, vacuum), B/J (water), A/H (oil)
  • Leak-free / medium vacuum (0.1 Pa abs) options V and M
  • VVXA21/22 manifold: Zn valve body on aluminum base, common or individual pilot pressure, 2 to 10 stations, individual ports Rc1/8/Rc1/4, common ports Rc3/8
  • NPTF/G/NPT thread (T/F/N), bracket (-B, VX021N/VX022N/VX023N-12A) on order

Specifications

Valve construction Air operated poppet, 2-port
Proof pressure 1.5 MPa
Max. system pressure 1.0 MPa (orifice 8/10 mm: 0.4 MPa)
Pilot pressure 0.25 to 0.7 MPa
Max. operating pressure differential 0.1 to 1.0 MPa depending on orifice
Fluid temperature -5 to 60°C (V, M: -5 to 40°C)
Ambient temperature -5 to 40°C
Leakage Air 1 cm³/min or less; V/M 10⁻⁶ Pa·m³/s or less
Port thread Rc standard
Source SMC Korea catalog VXA21/22 Series (SMCKR_VXA21_VXA22.pdf), p. 409-419 (PDF p. 3-13)
VXA2120-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2120G-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2120V-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2120M-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2120B-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2120J-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2120A-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2120H-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2122-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2122G-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2122V-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2122M-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2122B-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2122J-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2122A-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2122H-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2130-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2130G-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2130V-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2130M-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2130B-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2130J-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2130A-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2130H-01-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2132-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2132G-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2132V-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2132M-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2132B-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2132J-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2132A-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2132H-01-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2120-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2120G-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2120V-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2120M-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2120B-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2120J-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2120A-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2120H-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2122-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2122G-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2122V-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2122M-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2122B-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2122J-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2122A-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2122H-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2130-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2130G-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2130V-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2130M-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2130B-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2130J-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2130A-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2130H-02-1 Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2132-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2132G-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2132V-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2132M-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2132B-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2132J-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2132A-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2132H-02-1 Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2230-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2230G-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2230V-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2230M-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2230B-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2230J-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2230A-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2230H-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2232-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2232G-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2232V-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2232M-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2232B-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2232J-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2232A-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2232H-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2240-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2240G-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2240V-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2240M-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2240B-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2240J-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2240A-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2240H-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2242-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2242G-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2242V-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2242M-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2242B-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2242J-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2242A-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2242H-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2250-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2250G-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2250V-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2250M-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2250B-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2250J-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2250A-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2250H-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2252-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2252G-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2252V-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2252M-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2252B-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2252J-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2252A-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2252H-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2260-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2260G-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2260V-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2260M-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2260B-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2260J-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2260A-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2260H-02-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2262-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2262G-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2262V-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2262M-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2262B-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2262J-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2262A-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2262H-02-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2230-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2230G-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2230V-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2230M-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2230B-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2230J-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2230A-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2230H-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2232-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2232G-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2232V-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2232M-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2232B-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2232J-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2232A-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2232H-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2240-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2240G-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2240V-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2240M-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2240B-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2240J-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2240A-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2240H-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2242-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2242G-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2242V-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2242M-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2242B-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2242J-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2242A-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2242H-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2250-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2250G-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2250V-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2250M-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2250B-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2250J-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2250A-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2250H-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2252-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2252G-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2252V-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2252M-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2252B-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2252J-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2252A-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2252H-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2260-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2260G-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2260V-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2260M-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2260B-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2260J-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2260A-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2260H-03-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2262-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2262G-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2262V-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2262M-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2262B-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2262J-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2262A-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2262H-03-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2260-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / C37 body
VXA2260G-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / SUS body
VXA2260V-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37, leak-free, vacuum
VXA2260M-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS, leak-free, vacuum
VXA2260B-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / C37 body (water)
VXA2260J-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / SUS body (water)
VXA2260A-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37 body (oil)
VXA2260H-04-1 Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS body (oil)
VXA2262-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / C37 body
VXA2262G-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / SUS body
VXA2262V-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37, leak-free, vacuum
VXA2262M-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS, leak-free, vacuum
VXA2262B-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / C37 body (water)
VXA2262J-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / SUS body (water)
VXA2262A-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37 body (oil)
VXA2262H-04-1 Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS body (oil)
VXA2121-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2121A-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2121B-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2121V-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2123-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2123A-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2123B-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2123V-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2131-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2131A-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2131B-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2131V-00-1 Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2133-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2133A-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2133B-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2133V-00-1 Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2231-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2231A-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2231B-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2231V-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2233-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2233A-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2233B-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2233V-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2241-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2241A-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2241B-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2241V-00-1 Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2243-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2243A-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2243B-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2243V-00-1 Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VVXA211-02-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA211-03-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA211-04-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA211-05-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA211-06-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA211-07-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA211-08-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA211-09-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA211-10-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA211V-02-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA211V-03-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA211V-04-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA211V-05-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA211V-06-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA211V-07-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA211V-08-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA211V-09-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA211V-10-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA212-02-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA212-03-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA212-04-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA212-05-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA212-06-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA212-07-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA212-08-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA212-09-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA212-10-1 Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VVXA212V-02-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA212V-03-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA212V-04-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA212V-05-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA212V-06-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA212V-07-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA212V-08-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA212V-09-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA212V-10-1 Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VVXA221-02-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA221-03-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA221-04-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA221-05-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA221-06-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA221-07-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA221-08-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA221-09-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA221-10-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA221V-02-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA221V-03-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA221V-04-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA221V-05-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA221V-06-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA221V-07-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA221V-08-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA221V-09-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA221V-10-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA222-02-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA222-03-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA222-04-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA222-05-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA222-06-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA222-07-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA222-08-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA222-09-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA222-10-1 Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VVXA222V-02-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA222V-03-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA222V-04-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA222V-05-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA222V-06-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA222V-07-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA222V-08-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA222V-09-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA222V-10-1 Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VX011-001N Item: Blanking plate | Series: VXA21 | Orifice: N/A | Port: N/A | Option: NBR seal
VX011-001F Item: Blanking plate | Series: VXA21 | Orifice: N/A | Port: N/A | Option: FKM seal
VX011-001E Item: Blanking plate | Series: VXA21 | Orifice: N/A | Port: N/A | Option: EPDM seal
VX011-006N Item: Blanking plate | Series: VXA22 | Orifice: N/A | Port: N/A | Option: NBR seal
VX011-006F Item: Blanking plate | Series: VXA22 | Orifice: N/A | Port: N/A | Option: FKM seal
VX011-006E Item: Blanking plate | Series: VXA22 | Orifice: N/A | Port: N/A | Option: EPDM seal
2-Port ValvesSMC
318 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXA21/22 2-Port Air Operated Valve (Single Unit and Manifold)

Brand SMC·2-Port Valves

Available part numbers (318)

VXA2120-01-1, VXA2120G-01-1, VXA2120V-01-1, VXA2120M-01-1, VXA2120B-01-1, VXA2120J-01-1, VXA2120A-01-1, VXA2120H-01-1, VXA2122-01-1, VXA2122G-01-1 + 308 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXA2120-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2120G-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2120V-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2120M-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2120B-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2120J-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2120A-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2120H-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2122-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2122G-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2122V-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2122M-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2122B-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2122J-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2122A-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2122H-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2130-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2130G-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2130V-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2130M-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2130B-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2130J-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2130A-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2130H-01-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2132-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / C37 body
VXA2132G-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: NBR / SUS body
VXA2132V-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37, leak-free, vacuum
VXA2132M-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS, leak-free, vacuum
VXA2132B-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / C37 body (water)
VXA2132J-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: EPDM / SUS body (water)
VXA2132A-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / C37 body (oil)
VXA2132H-01-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/8 | Option: FKM / SUS body (oil)
VXA2120-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2120G-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2120V-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2120M-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2120B-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2120J-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2120A-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2120H-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2122-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2122G-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2122V-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2122M-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2122B-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2122J-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2122A-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2122H-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2130-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2130G-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2130V-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2130M-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2130B-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2130J-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2130A-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2130H-02-1Item: Single unit N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2132-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2132G-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2132V-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2132M-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2132B-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2132J-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2132A-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2132H-02-1Item: Single unit N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2230-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2230G-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2230V-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2230M-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2230B-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2230J-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2230A-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2230H-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2232-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2232G-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2232V-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2232M-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2232B-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2232J-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2232A-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2232H-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2240-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2240G-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2240V-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2240M-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2240B-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2240J-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2240A-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2240H-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2242-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2242G-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2242V-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2242M-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2242B-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2242J-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2242A-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2242H-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2250-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2250G-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2250V-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2250M-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2250B-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2250J-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2250A-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2250H-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2252-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2252G-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2252V-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2252M-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2252B-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2252J-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2252A-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2252H-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2260-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2260G-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2260V-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2260M-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2260B-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2260J-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2260A-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2260H-02-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2262-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / C37 body
VXA2262G-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: NBR / SUS body
VXA2262V-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37, leak-free, vacuum
VXA2262M-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS, leak-free, vacuum
VXA2262B-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / C37 body (water)
VXA2262J-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: EPDM / SUS body (water)
VXA2262A-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / C37 body (oil)
VXA2262H-02-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/4 | Option: FKM / SUS body (oil)
VXA2230-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2230G-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2230V-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2230M-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2230B-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2230J-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2230A-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2230H-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2232-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2232G-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2232V-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2232M-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2232B-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2232J-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2232A-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2232H-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2240-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2240G-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2240V-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2240M-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2240B-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2240J-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2240A-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2240H-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2242-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2242G-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2242V-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2242M-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2242B-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2242J-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2242A-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2242H-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2250-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2250G-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2250V-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2250M-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2250B-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2250J-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2250A-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2250H-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2252-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2252G-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2252V-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2252M-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2252B-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2252J-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2252A-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2252H-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø8 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2260-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2260G-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2260V-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2260M-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2260B-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2260J-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2260A-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2260H-03-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2262-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / C37 body
VXA2262G-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: NBR / SUS body
VXA2262V-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37, leak-free, vacuum
VXA2262M-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS, leak-free, vacuum
VXA2262B-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / C37 body (water)
VXA2262J-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: EPDM / SUS body (water)
VXA2262A-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / C37 body (oil)
VXA2262H-03-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc3/8 | Option: FKM / SUS body (oil)
VXA2260-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / C37 body
VXA2260G-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / SUS body
VXA2260V-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37, leak-free, vacuum
VXA2260M-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS, leak-free, vacuum
VXA2260B-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / C37 body (water)
VXA2260J-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / SUS body (water)
VXA2260A-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37 body (oil)
VXA2260H-04-1Item: Single unit N.C. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS body (oil)
VXA2262-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / C37 body
VXA2262G-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: NBR / SUS body
VXA2262V-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37, leak-free, vacuum
VXA2262M-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS, leak-free, vacuum
VXA2262B-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / C37 body (water)
VXA2262J-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: EPDM / SUS body (water)
VXA2262A-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / C37 body (oil)
VXA2262H-04-1Item: Single unit N.O. | Series: VXA22 | Orifice: ø10 mm | Port: Rc1/2 | Option: FKM / SUS body (oil)
VXA2121-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2121A-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2121B-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2121V-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2123-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2123A-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2123B-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2123V-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø3 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2131-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2131A-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2131B-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2131V-00-1Item: Valve for manifold N.C. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2133-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2133A-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2133B-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2133V-00-1Item: Valve for manifold N.O. | Series: VXA21 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2231-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2231A-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2231B-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2231V-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2233-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2233A-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2233B-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2233V-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø4.5 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2241-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2241A-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2241B-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2241V-00-1Item: Valve for manifold N.C. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VXA2243-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: NBR, Zn body / Al base
VXA2243A-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, Zn body / Al base
VXA2243B-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: EPDM, Zn body / Al base
VXA2243V-00-1Item: Valve for manifold N.O. | Series: VXA22 | Orifice: ø6 mm | Port: Manifold mount | Option: FKM, leak-free, vacuum
VVXA211-02-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA211-03-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA211-04-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA211-05-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA211-06-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA211-07-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA211-08-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA211-09-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA211-10-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA211V-02-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA211V-03-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA211V-04-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA211V-05-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA211V-06-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA211V-07-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA211V-08-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA211V-09-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA211V-10-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA212-02-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA212-03-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA212-04-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA212-05-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA212-06-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA212-07-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA212-08-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA212-09-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA212-10-1Item: Manifold base, common pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VVXA212V-02-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA212V-03-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA212V-04-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA212V-05-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA212V-06-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA212V-07-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA212V-08-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA212V-09-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA212V-10-1Item: Manifold base, individual pressure | Series: VVXA21 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VVXA221-02-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA221-03-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA221-04-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA221-05-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA221-06-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA221-07-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA221-08-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA221-09-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA221-10-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA221V-02-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 2 stations | Option: Aluminum base
VVXA221V-03-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 3 stations | Option: Aluminum base
VVXA221V-04-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 4 stations | Option: Aluminum base
VVXA221V-05-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 5 stations | Option: Aluminum base
VVXA221V-06-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 6 stations | Option: Aluminum base
VVXA221V-07-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 7 stations | Option: Aluminum base
VVXA221V-08-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 8 stations | Option: Aluminum base
VVXA221V-09-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 9 stations | Option: Aluminum base
VVXA221V-10-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/8, 10 stations | Option: Aluminum base
VVXA222-02-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA222-03-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA222-04-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA222-05-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA222-06-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA222-07-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA222-08-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA222-09-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA222-10-1Item: Manifold base, common pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VVXA222V-02-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 2 stations | Option: Aluminum base
VVXA222V-03-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 3 stations | Option: Aluminum base
VVXA222V-04-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 4 stations | Option: Aluminum base
VVXA222V-05-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 5 stations | Option: Aluminum base
VVXA222V-06-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 6 stations | Option: Aluminum base
VVXA222V-07-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 7 stations | Option: Aluminum base
VVXA222V-08-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 8 stations | Option: Aluminum base
VVXA222V-09-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 9 stations | Option: Aluminum base
VVXA222V-10-1Item: Manifold base, individual pressure | Series: VVXA22 | Orifice: N/A | Port: Rc1/4, 10 stations | Option: Aluminum base
VX011-001NItem: Blanking plate | Series: VXA21 | Orifice: N/A | Port: N/A | Option: NBR seal
VX011-001FItem: Blanking plate | Series: VXA21 | Orifice: N/A | Port: N/A | Option: FKM seal
VX011-001EItem: Blanking plate | Series: VXA21 | Orifice: N/A | Port: N/A | Option: EPDM seal
VX011-006NItem: Blanking plate | Series: VXA22 | Orifice: N/A | Port: N/A | Option: NBR seal
VX011-006FItem: Blanking plate | Series: VXA22 | Orifice: N/A | Port: N/A | Option: FKM seal
VX011-006EItem: Blanking plate | Series: VXA22 | Orifice: N/A | Port: N/A | Option: EPDM seal

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
