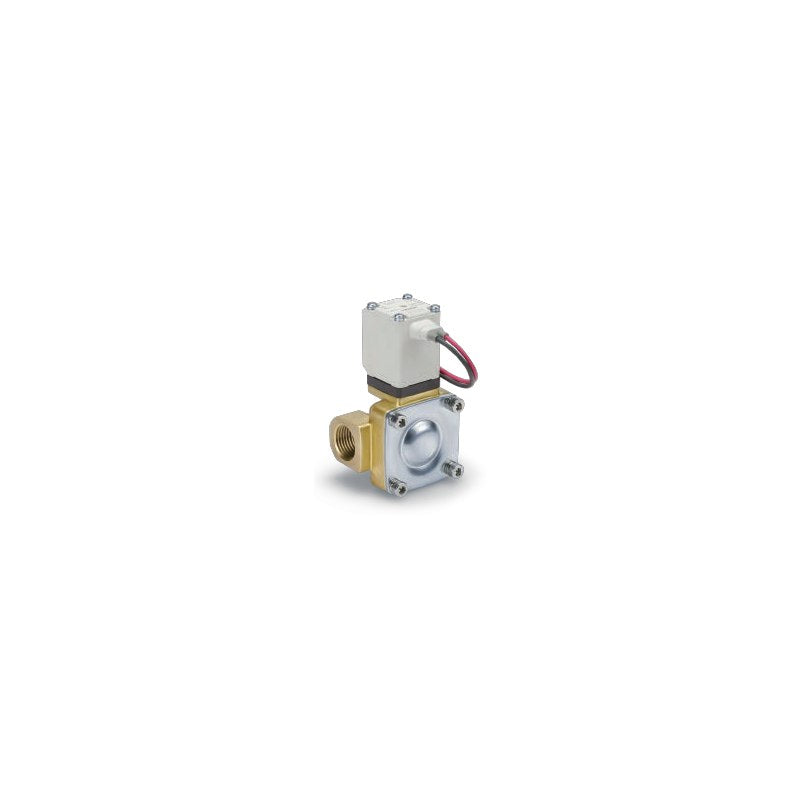

SMC VXD Pilot Operated 2-Port Solenoid Valve (8A to 50A)

SMC VXD series pilot operated diaphragm 2-port solenoid valve for air, water, oil, hot water and hot oil, port sizes 1/4 to 1 and 32A to 50A flange, N.C. or N.O.

Key features

Pilot operated diaphragm valve, orifice 10 to 50 mm (VXD23-29 N.C., VXD2A-2G N.O.)
Body: aluminium or resin with one-touch fittings (air), C37 brass or stainless steel up to 25A, CAC408 bronze flange for 32A/40A/50A
Seal per fluid: NBR (air, water), FKM (oil, hot oil), EPDM (hot water to 99°C); class H coil for hot water and hot oil
Listed codes cover DC24V, AC100V, AC200V and AC220V (Z1B) with grommet entry; conduit, DIN terminal, conduit terminal and flat terminal by letter
Options by suffix: special voltage, lamp, no DIN connector, FKM/EPDM seal, oil-free, G/NPT thread, bracket, lead wire direction
Low power: 4.5 W (VXD23-25), 7 W (VXD26-27), 10.5 W (VXD28-29), DC N.C.; IP65 enclosure

Specifications

Valve construction	Pilot operated 2-port diaphragm
Withstand pressure	2.0 MPa (resin body 1.5 MPa)
Thread type	Rc (32A and up: flange; resin body: one-touch fitting)
Enclosure	Dustproof, jetproof IP65 (flat terminal IP40)
Coil insulation	Class B (hot water, hot oil: class H)
Allowable voltage fluctuation	±10% of rated voltage
Apparent power (AC, class B, N.C.)	VXD23-25 7 VA, VXD26-27 9.5 VA, VXD28-29 12 VA
Ambient temperature	-20 to 60°C
Fluid temperature	Air -10 to 60°C; hot water 1 to 99°C; hot oil -5 to 100°C
Source	SMC Korea catalog VXD (SMCKR_VXD.pdf), p. 113-114, 116, 120, 123, 126, 129, 132-133 (PDF p. 1-2, 4, 8, 11, 14, 17, 20-21)

VXD230AA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD230AB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD230AD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD230AZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD230BA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD230BB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD230BD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD230BZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD230CA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD230CB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD230CD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD230CZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD230DA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD230DB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD230DD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD230DZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD230EA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD230EB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD230ED		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD230EZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD230FA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD230FB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD230FD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD230FZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A0AA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A0AB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A0AD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A0AZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A0BA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A0BB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A0BD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A0BZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A0CA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A0CB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A0CD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A0CZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A0DA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A0DB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A0DD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A0DZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A0EA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A0EB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A0ED		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A0EZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A0FA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A0FB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A0FD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A0FZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD240GA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD240GB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD240GD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD240GZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD240HA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD240HB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD240HD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD240HZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD240JA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD240JB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD240JD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD240JZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD240KA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD240KB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD240KD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD240KZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B0GA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B0GB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B0GD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B0GZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B0HA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B0HB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B0HD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B0HZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B0JA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B0JB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B0JD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B0JZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B0KA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B0KB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B0KD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B0KZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD250LA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD250LB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD250LD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD250LZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD250MA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD250MB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD250MD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD250MZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C0LA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C0LB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C0LD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C0LZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C0MA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C0MB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C0MD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C0MZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD260NA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD260NB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD260ND		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD260NZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD260PA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD260PB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD260PD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD260PZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D0NA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D0NB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D0ND		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D0NZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D0PA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D0PB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D0PD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D0PZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD270QA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD270QB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD270QD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD270QZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2E0QA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD2E0QB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2E0QD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2E0QZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD280RA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD280RB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD280RD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD280RZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2F0RA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD2F0RB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2F0RD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2F0RZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD290SA		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD290SB		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD290SD		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD290SZ1B		Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2G0SA		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD2G0SB		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2G0SD		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2G0SZ1B		Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD232AA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD232AB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD232AD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD232AZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD232BA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD232BB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD232BD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD232BZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD232CA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD232CB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD232CD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD232CZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD232DA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD232DB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD232DD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD232DZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD232EA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD232EB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD232ED		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD232EZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD232FA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD232FB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD232FD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD232FZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A2AA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A2AB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A2AD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A2AZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A2BA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A2BB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A2BD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A2BZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A2CA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A2CB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A2CD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A2CZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A2DA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A2DB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A2DD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A2DZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A2EA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A2EB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A2ED		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A2EZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A2FA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A2FB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A2FD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A2FZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD242GA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD242GB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD242GD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD242GZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD242HA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD242HB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD242HD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD242HZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD242JA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD242JB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD242JD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD242JZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD242KA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD242KB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD242KD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD242KZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B2GA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B2GB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B2GD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B2GZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B2HA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B2HB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B2HD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B2HZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B2JA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B2JB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B2JD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B2JZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B2KA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B2KB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B2KD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B2KZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD252LA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD252LB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD252LD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD252LZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD252MA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD252MB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD252MD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD252MZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C2LA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C2LB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C2LD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C2LZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C2MA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C2MB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C2MD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C2MZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD262NA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD262NB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD262ND		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD262NZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD262PA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD262PB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD262PD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD262PZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D2NA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D2NB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D2ND		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D2NZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D2PA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D2PB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D2PD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D2PZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD272QA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD272QB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD272QD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD272QZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2E2QA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD2E2QB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2E2QD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2E2QZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD282RA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD282RB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD282RD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD282RZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2F2RA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD2F2RB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2F2RD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2F2RZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD292SA		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD292SB		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD292SD		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD292SZ1B		Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2G2SA		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD2G2SB		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2G2SD		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2G2SZ1B		Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD233AA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD233AB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD233AD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD233AZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD233BA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD233BB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD233BD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD233BZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD233CA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD233CB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD233CD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD233CZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD233DA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD233DB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD233DD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD233DZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD233EA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD233EB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD233ED		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD233EZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD233FA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD233FB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD233FD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD233FZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A3AA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A3AB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A3AD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A3AZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A3BA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A3BB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A3BD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A3BZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A3CA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A3CB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A3CD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A3CZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A3DA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A3DB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A3DD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A3DZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A3EA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A3EB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A3ED		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A3EZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A3FA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A3FB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A3FD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A3FZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD243GA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD243GB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD243GD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD243GZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD243HA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD243HB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD243HD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD243HZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD243JA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD243JB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD243JD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD243JZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD243KA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD243KB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD243KD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD243KZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B3GA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B3GB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B3GD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B3GZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B3HA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B3HB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B3HD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B3HZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B3JA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B3JB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B3JD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B3JZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B3KA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B3KB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B3KD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B3KZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD253LA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD253LB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD253LD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD253LZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD253MA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD253MB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD253MD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD253MZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C3LA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C3LB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C3LD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C3LZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C3MA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C3MB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C3MD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C3MZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD263NA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD263NB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD263ND		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD263NZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD263PA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD263PB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD263PD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD263PZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D3NA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D3NB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D3ND		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D3NZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D3PA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D3PB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D3PD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D3PZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD273QA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD273QB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD273QD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD273QZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2E3QA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD2E3QB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2E3QD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2E3QZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD283RA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD283RB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD283RD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD283RZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2F3RA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD2F3RB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2F3RD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2F3RZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD293SA		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD293SB		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD293SD		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD293SZ1B		Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2G3SA		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD2G3SB		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2G3SD		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2G3SZ1B		Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD235AA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD235AB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD235AD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD235AZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD235BA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD235BB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD235BD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD235BZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD235CA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD235CB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD235CD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD235CZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD235DA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD235DB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD235DD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD235DZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD235EA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD235EB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD235ED		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD235EZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD235FA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD235FB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD235FD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD235FZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A5AA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A5AB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A5AD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A5AZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A5BA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A5BB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A5BD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A5BZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A5CA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A5CB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A5CD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A5CZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A5DA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A5DB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A5DD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A5DZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A5EA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A5EB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A5ED		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A5EZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A5FA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A5FB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A5FD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A5FZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD245GA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD245GB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD245GD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD245GZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD245HA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD245HB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD245HD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD245HZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD245JA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD245JB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD245JD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD245JZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD245KA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD245KB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD245KD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD245KZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B5GA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B5GB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B5GD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B5GZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B5HA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B5HB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B5HD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B5HZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B5JA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B5JB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B5JD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B5JZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B5KA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B5KB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B5KD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B5KZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD255LA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD255LB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD255LD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD255LZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD255MA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD255MB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD255MD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD255MZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C5LA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C5LB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C5LD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C5LZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C5MA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C5MB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C5MD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C5MZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD265NA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD265NB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD265ND		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD265NZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD265PA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD265PB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD265PD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD265PZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D5NA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D5NB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D5ND		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D5NZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D5PA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D5PB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D5PD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D5PZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD275QA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD275QB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD275QD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD275QZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2E5QA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD2E5QB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2E5QD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2E5QZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD285RA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD285RB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD285RD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD285RZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2F5RA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD2F5RB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2F5RD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2F5RZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD295SA		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD295SB		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD295SD		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD295SZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2G5SA		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD2G5SB		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2G5SD		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2G5SZ1B		Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD236AA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD236AB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD236AD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD236AZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD236BA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD236BB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD236BD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD236BZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD236CA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD236CB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD236CD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD236CZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD236DA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD236DB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD236DD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD236DZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD236EA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD236EB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD236ED		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD236EZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD236FA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD236FB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD236FD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD236FZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A6AA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A6AB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A6AD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A6AZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A6BA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A6BB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A6BD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A6BZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A6CA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A6CB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A6CD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A6CZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A6DA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A6DB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A6DD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A6DZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A6EA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A6EB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A6ED		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A6EZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2A6FA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
VXD2A6FB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2A6FD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2A6FZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD246GA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD246GB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD246GD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD246GZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD246HA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD246HB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD246HD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD246HZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD246JA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD246JB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD246JD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD246JZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD246KA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD246KB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD246KD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD246KZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B6GA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B6GB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B6GD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B6GZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B6HA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B6HB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B6HD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B6HZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B6JA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B6JB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B6JD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B6JZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2B6KA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
VXD2B6KB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2B6KD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2B6KZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD256LA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD256LB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD256LD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD256LZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD256MA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD256MB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD256MD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD256MZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C6LA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C6LB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C6LD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C6LZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2C6MA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
VXD2C6MB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2C6MD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2C6MZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD266NA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD266NB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD266ND		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD266NZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD266PA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD266PB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD266PD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD266PZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D6NA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D6NB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D6ND		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D6NZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2D6PA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
VXD2D6PB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2D6PD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2D6PZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD276QA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD276QB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD276QD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD276QZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2E6QA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
VXD2E6QB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2E6QD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2E6QZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD286RA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD286RB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD286RD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD286RZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2F6RA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
VXD2F6RB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2F6RD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2F6RZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD296SA		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD296SB		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD296SD		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD296SZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
VXD2G6SA		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
VXD2G6SB		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
VXD2G6SD		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
VXD2G6SZ1B		Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.

2-Port ValvesSMC

680 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXD Pilot Operated 2-Port Solenoid Valve (8A to 50A)

Brand SMC·2-Port Valves

Available part numbers (680)

VXD230AA, VXD230AB, VXD230AD, VXD230AZ1B, VXD230BA, VXD230BB, VXD230BD, VXD230BZ1B, VXD230CA, VXD230CB + 670 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VXD230AA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD230AB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD230AD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD230AZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD230BA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD230BB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD230BD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD230BZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD230CA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD230CB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD230CD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD230CZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD230DA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD230DB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD230DD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD230DZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD230EA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD230EB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD230ED	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD230EZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD230FA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD230FB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD230FD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD230FZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A0AA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A0AB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A0AD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A0AZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A0BA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A0BB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A0BD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A0BZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A0CA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A0CB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A0CD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A0CZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Al \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A0DA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A0DB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A0DD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A0DZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø10 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A0EA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A0EB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A0ED	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A0EZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø3/8in one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A0FA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A0FB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A0FD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A0FZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: Resin \| Port size: ø12 one-touch \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD240GA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD240GB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD240GD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD240GZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD240HA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD240HB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD240HD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD240HZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD240JA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD240JB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD240JD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD240JZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD240KA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD240KB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD240KD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD240KZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B0GA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B0GB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B0GD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B0GZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B0HA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B0HB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B0HD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B0HZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B0JA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B0JB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B0JD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B0JZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B0KA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B0KB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B0KD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B0KZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD250LA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD250LB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD250LD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD250LZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD250MA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD250MB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD250MD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD250MZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C0LA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C0LB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C0LD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C0LZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C0MA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C0MB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C0MD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C0MZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD260NA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD260NB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD260ND	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD260NZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD260PA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD260PB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD260PD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD260PZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D0NA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D0NB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D0ND	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D0NZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D0PA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D0PB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D0PD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D0PZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD270QA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD270QB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD270QD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD270QZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2E0QA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD2E0QB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2E0QD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2E0QZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD280RA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD280RB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD280RD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD280RZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2F0RA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD2F0RB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2F0RD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2F0RZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD290SA	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD290SB	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD290SD	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD290SZ1B	Fluid: Air (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2G0SA	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD2G0SB	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2G0SD	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2G0SZ1B	Fluid: Air (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD232AA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD232AB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD232AD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD232AZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD232BA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD232BB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD232BD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD232BZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD232CA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD232CB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD232CD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD232CZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD232DA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD232DB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD232DD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD232DZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD232EA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD232EB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD232ED	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD232EZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD232FA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD232FB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD232FD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD232FZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A2AA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A2AB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A2AD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A2AZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A2BA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A2BB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A2BD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A2BZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A2CA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A2CB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A2CD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A2CZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A2DA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A2DB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A2DD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A2DZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A2EA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A2EB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A2ED	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A2EZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A2FA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A2FB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A2FD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A2FZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD242GA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD242GB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD242GD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD242GZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD242HA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD242HB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD242HD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD242HZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD242JA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD242JB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD242JD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD242JZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD242KA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD242KB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD242KD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD242KZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B2GA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B2GB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B2GD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B2GZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B2HA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B2HB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B2HD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B2HZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B2JA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B2JB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B2JD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B2JZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B2KA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B2KB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B2KD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B2KZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD252LA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD252LB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD252LD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD252LZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD252MA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD252MB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD252MD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD252MZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C2LA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C2LB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C2LD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C2LZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C2MA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C2MB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C2MD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C2MZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD262NA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD262NB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD262ND	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD262NZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD262PA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD262PB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD262PD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD262PZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D2NA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D2NB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D2ND	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D2NZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D2PA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D2PB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D2PD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D2PZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD272QA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD272QB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD272QD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD272QZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2E2QA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD2E2QB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2E2QD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2E2QZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD282RA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD282RB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD282RD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD282RZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2F2RA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD2F2RB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2F2RD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2F2RZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD292SA	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD292SB	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD292SD	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD292SZ1B	Fluid: Water (NBR seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2G2SA	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD2G2SB	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2G2SD	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2G2SZ1B	Fluid: Water (NBR seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD233AA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD233AB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD233AD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD233AZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD233BA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD233BB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD233BD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD233BZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD233CA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD233CB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD233CD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD233CZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD233DA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD233DB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD233DD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD233DZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD233EA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD233EB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD233ED	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD233EZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD233FA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD233FB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD233FD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD233FZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A3AA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A3AB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A3AD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A3AZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A3BA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A3BB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A3BD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A3BZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A3CA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A3CB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A3CD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A3CZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A3DA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A3DB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A3DD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A3DZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A3EA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A3EB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A3ED	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A3EZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A3FA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A3FB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A3FD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A3FZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD243GA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD243GB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD243GD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD243GZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD243HA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD243HB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD243HD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD243HZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD243JA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD243JB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD243JD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD243JZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD243KA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD243KB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD243KD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD243KZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B3GA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B3GB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B3GD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B3GZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B3HA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B3HB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B3HD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B3HZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B3JA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B3JB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B3JD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B3JZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B3KA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B3KB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B3KD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B3KZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD253LA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD253LB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD253LD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD253LZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD253MA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD253MB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD253MD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD253MZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C3LA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C3LB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C3LD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C3LZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C3MA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C3MB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C3MD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C3MZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD263NA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD263NB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD263ND	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD263NZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD263PA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD263PB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD263PD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD263PZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D3NA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D3NB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D3ND	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D3NZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D3PA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D3PB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D3PD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D3PZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD273QA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD273QB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD273QD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD273QZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2E3QA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD2E3QB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2E3QD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2E3QZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD283RA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD283RB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD283RD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD283RZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2F3RA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD2F3RB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2F3RD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2F3RZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD293SA	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD293SB	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD293SD	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD293SZ1B	Fluid: Oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2G3SA	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD2G3SB	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2G3SD	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2G3SZ1B	Fluid: Oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD235AA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD235AB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD235AD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD235AZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD235BA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD235BB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD235BD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD235BZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD235CA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD235CB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD235CD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD235CZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD235DA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD235DB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD235DD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD235DZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD235EA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD235EB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD235ED	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD235EZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD235FA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD235FB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD235FD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD235FZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A5AA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A5AB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A5AD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A5AZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A5BA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A5BB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A5BD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A5BZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A5CA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A5CB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A5CD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A5CZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A5DA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A5DB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A5DD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A5DZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A5EA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A5EB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A5ED	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A5EZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A5FA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A5FB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A5FD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A5FZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD245GA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD245GB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD245GD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD245GZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD245HA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD245HB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD245HD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD245HZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD245JA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD245JB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD245JD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD245JZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD245KA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD245KB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD245KD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD245KZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B5GA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B5GB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B5GD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B5GZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B5HA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B5HB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B5HD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B5HZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B5JA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B5JB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B5JD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B5JZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B5KA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B5KB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B5KD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B5KZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD255LA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD255LB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD255LD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD255LZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD255MA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD255MB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD255MD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD255MZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C5LA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C5LB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C5LD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C5LZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C5MA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C5MB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C5MD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C5MZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD265NA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD265NB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD265ND	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD265NZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD265PA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD265PB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD265PD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD265PZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D5NA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D5NB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D5ND	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D5NZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D5PA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D5PB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D5PD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D5PZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD275QA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD275QB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD275QD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD275QZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2E5QA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD2E5QB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2E5QD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2E5QZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD285RA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD285RB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD285RD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD285RZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2F5RA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD2F5RB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2F5RD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2F5RZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD295SA	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD295SB	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD295SD	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD295SZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2G5SA	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD2G5SB	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2G5SD	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2G5SZ1B	Fluid: Hot water (EPDM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD236AA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD236AB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD236AD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD236AZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD236BA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD236BB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD236BD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD236BZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD236CA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD236CB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD236CD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD236CZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD236DA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD236DB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD236DD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD236DZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD236EA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD236EB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD236ED	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD236EZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD236FA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD236FB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD236FD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD236FZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A6AA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A6AB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A6AD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A6AZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A6BA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A6BB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A6BD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A6BZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A6CA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A6CB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A6CD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A6CZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A6DA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A6DB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A6DD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A6DZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/4 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A6EA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A6EB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A6ED	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A6EZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2A6FA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: DC24V, grommet
	VXD2A6FB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2A6FD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2A6FZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 10 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD246GA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD246GB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD246GD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD246GZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD246HA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD246HB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD246HD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD246HZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD246JA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD246JB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD246JD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD246JZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD246KA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD246KB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD246KD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD246KZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B6GA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B6GB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B6GD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B6GZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B6HA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B6HB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B6HD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B6HZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B6JA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B6JB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B6JD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B6JZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/8 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2B6KA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: DC24V, grommet
	VXD2B6KB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2B6KD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2B6KZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1/2 \| Orifice: 15 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD256LA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD256LB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD256LD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD256LZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD256MA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD256MB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD256MD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD256MZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C6LA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C6LB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C6LD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C6LZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2C6MA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: DC24V, grommet
	VXD2C6MB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2C6MD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2C6MZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc3/4 \| Orifice: 20 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD266NA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD266NB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD266ND	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD266NZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD266PA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD266PB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD266PD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD266PZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D6NA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D6NB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D6ND	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D6NZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: C37 \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2D6PA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: DC24V, grommet
	VXD2D6PB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2D6PD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2D6PZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: SUS \| Port size: Rc1 \| Orifice: 25 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD276QA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD276QB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD276QD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD276QZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2E6QA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: DC24V, grommet
	VXD2E6QB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2E6QD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2E6QZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 32A flange \| Orifice: 35 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD286RA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD286RB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD286RD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD286RZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2F6RA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: DC24V, grommet
	VXD2F6RB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2F6RD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2F6RZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 40A flange \| Orifice: 40 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD296SA	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD296SB	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD296SD	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD296SZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.C. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.
	VXD2G6SA	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: DC24V, grommet
	VXD2G6SB	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC100V, grommet, surge supp.
	VXD2G6SD	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC200V, grommet, surge supp.
	VXD2G6SZ1B	Fluid: Hot oil (FKM seal) \| Valve type: N.O. \| Body material: CAC408 \| Port size: 50A flange \| Orifice: 50 mm \| Voltage/entry: AC220V, grommet, surge supp.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VXD Pilot Operated 2-Port Solenoid Valve (8A to 50A)
