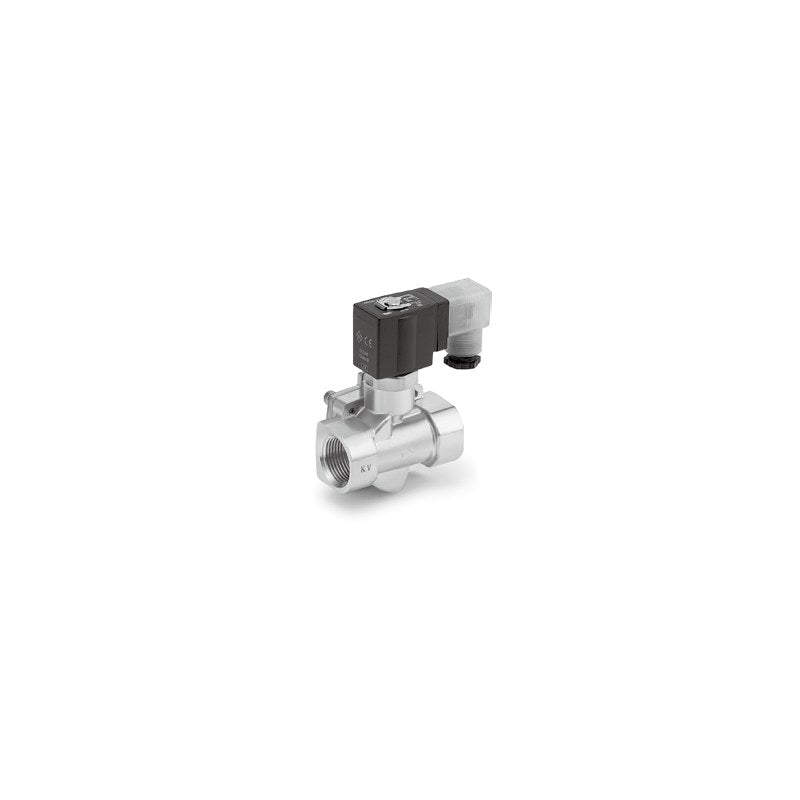

SMC VXE21/22/23 Low Power Direct Operated 2-Port Solenoid Valve

SMC VXE21/22/23 Low Power Direct Operated 2-Port Solenoid Valve

SMC VXE21/22/23 series energy-saving direct-operated 2-port solenoid valve (N.C.) for air, water and oil, with power-saving circuit cutting holding power to about 1/3 of the VX2 series.

Key features

  • Built-in power-saving circuit: holding power 1.5 W (VXE21), 2.3 W (VXE22), 3 W (VXE23); lower coil temperature rise
  • Mounting dimensions and basic specifications equal to VX21/22/23; coil interchangeable with VX2 (DC12V/24V)
  • Single unit Rc1/8 to Rc1/2 (orifice ø2 to ø10) and manifold valves for VVX21/22/23 bases (manifold bases ordered separately)
  • Seal/body by option letter: NBR, FKM, EPDM, PTFE with C37 or SUS body; Al, C37 or SUS manifold bases
  • DC24V listed (DC12V available); grommet G listed, conduit C, DIN D/DL/DO and conduit terminal T/TL on order
  • IP65, RoHS; surge voltage protection built in; NPTF/G/NPT threads, oil-free (Z) and bracket (B) available

Specifications

Valve structure Direct-operated poppet, N.C.
Fluid Air, water, oil
Proof pressure 5.0 MPa
Rated voltage DC24V (DC12V available)
Electrical entry (listed) Grommet (G)
Coil insulation Class B, surge voltage protection built in
Enclosure IP65
Inrush current (DC24V) 0.19 A / 0.29 A / 0.44 A (200 ms)
Ambient temperature -20 to 60°C (air)
Allowable voltage fluctuation ±10% of rated voltage
Source SMC Korea catalog VXE (SMCKR_VXE.pdf), p. 257-281
VXE2110-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: NBR / C37 (std)
VXE2110G-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: NBR / SUS
VXE2110V-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2110M-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2110A-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / C37 (oil)
VXE2110H-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / SUS (oil)
VXE2110L-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / SUS, high corrosion
VXE2110J-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: EPDM / SUS, non-copper
VXE2110B-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: EPDM / C37
VXE2110C-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: PTFE / C37
VXE2110K-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: PTFE / SUS
VXE2120-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: NBR / C37 (std)
VXE2120G-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: NBR / SUS
VXE2120V-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2120M-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2120A-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2120H-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2120L-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2120J-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2120B-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: EPDM / C37
VXE2120C-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: PTFE / C37
VXE2120K-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: PTFE / SUS
VXE2130-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2130G-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: NBR / SUS
VXE2130V-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2130M-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2130A-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2130H-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2130L-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2130J-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2130B-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: EPDM / C37
VXE2130C-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: PTFE / C37
VXE2130K-01-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: PTFE / SUS
VXE2110-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: NBR / C37 (std)
VXE2110G-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: NBR / SUS
VXE2110V-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2110M-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2110A-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / C37 (oil)
VXE2110H-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / SUS (oil)
VXE2110L-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / SUS, high corrosion
VXE2110J-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: EPDM / SUS, non-copper
VXE2110B-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: EPDM / C37
VXE2110C-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: PTFE / C37
VXE2110K-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: PTFE / SUS
VXE2120-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / C37 (std)
VXE2120G-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / SUS
VXE2120V-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2120M-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2120A-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2120H-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2120L-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2120J-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2120B-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / C37
VXE2120C-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / C37
VXE2120K-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / SUS
VXE2130-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2130G-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / SUS
VXE2130V-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2130M-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2130A-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2130H-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2130L-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2130J-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2130B-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / C37
VXE2130C-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / C37
VXE2130K-02-5G1 Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / SUS
VXE2220-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / C37 (std)
VXE2220G-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / SUS
VXE2220V-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2220M-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2220A-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2220H-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2220L-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2220J-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2220B-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / C37
VXE2220C-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / C37
VXE2220K-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / SUS
VXE2230-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2230G-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / SUS
VXE2230V-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2230M-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2230A-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2230H-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2230L-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2230J-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2230B-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / C37
VXE2230C-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / C37
VXE2230K-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / SUS
VXE2240-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / C37 (std)
VXE2240G-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / SUS
VXE2240V-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2240M-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2240A-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2240H-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2240L-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2240J-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2240B-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / C37
VXE2240C-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / C37
VXE2240K-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / SUS
VXE2250-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / C37 (std)
VXE2250G-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / SUS
VXE2250V-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2250M-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2250A-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2250H-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2250L-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2250J-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2250B-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / C37
VXE2250C-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / C37
VXE2250K-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / SUS
VXE2260-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / C37 (std)
VXE2260G-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / SUS
VXE2260V-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2260M-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2260A-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2260H-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2260L-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2260J-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2260B-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / C37
VXE2260C-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / C37
VXE2260K-02-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / SUS
VXE2220-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / C37 (std)
VXE2220G-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / SUS
VXE2220V-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2220M-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2220A-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2220H-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2220L-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2220J-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2220B-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / C37
VXE2220C-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / C37
VXE2220K-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / SUS
VXE2230-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2230G-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / SUS
VXE2230V-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2230M-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2230A-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2230H-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2230L-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2230J-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2230B-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / C37
VXE2230C-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / C37
VXE2230K-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / SUS
VXE2240-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / C37 (std)
VXE2240G-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / SUS
VXE2240V-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2240M-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2240A-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2240H-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2240L-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2240J-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2240B-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / C37
VXE2240C-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / C37
VXE2240K-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / SUS
VXE2250-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / C37 (std)
VXE2250G-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / SUS
VXE2250V-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2250M-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2250A-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2250H-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2250L-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2250J-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2250B-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / C37
VXE2250C-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / C37
VXE2250K-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / SUS
VXE2260-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / C37 (std)
VXE2260G-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / SUS
VXE2260V-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2260M-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2260A-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2260H-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2260L-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2260J-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2260B-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / C37
VXE2260C-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / C37
VXE2260K-03-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / SUS
VXE2260-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / C37 (std)
VXE2260G-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / SUS
VXE2260V-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2260M-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2260A-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2260H-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2260L-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2260J-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2260B-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / C37
VXE2260C-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / C37
VXE2260K-04-5G1 Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / SUS
VXE2320-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / C37 (std)
VXE2320G-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / SUS
VXE2320V-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2320M-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2320A-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2320H-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2320L-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2320J-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2320B-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / C37
VXE2320C-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / C37
VXE2320K-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / SUS
VXE2330-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2330G-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / SUS
VXE2330V-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2330M-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2330A-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2330H-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2330L-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2330J-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2330B-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / C37
VXE2330C-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / C37
VXE2330K-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / SUS
VXE2340-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / C37 (std)
VXE2340G-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / SUS
VXE2340V-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2340M-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2340A-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2340H-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2340L-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2340J-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2340B-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / C37
VXE2340C-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / C37
VXE2340K-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / SUS
VXE2350-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / C37 (std)
VXE2350G-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / SUS
VXE2350V-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2350M-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2350A-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2350H-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2350L-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2350J-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2350B-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / C37
VXE2350C-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / C37
VXE2350K-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / SUS
VXE2360-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / C37 (std)
VXE2360G-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / SUS
VXE2360V-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2360M-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2360A-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2360H-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2360L-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2360J-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2360B-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / C37
VXE2360C-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / C37
VXE2360K-02-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / SUS
VXE2320-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / C37 (std)
VXE2320G-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / SUS
VXE2320V-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2320M-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2320A-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2320H-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2320L-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2320J-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2320B-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / C37
VXE2320C-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / C37
VXE2320K-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / SUS
VXE2330-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2330G-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / SUS
VXE2330V-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2330M-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2330A-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2330H-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2330L-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2330J-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2330B-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / C37
VXE2330C-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / C37
VXE2330K-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / SUS
VXE2340-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / C37 (std)
VXE2340G-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / SUS
VXE2340V-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2340M-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2340A-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2340H-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2340L-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2340J-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2340B-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / C37
VXE2340C-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / C37
VXE2340K-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / SUS
VXE2350-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / C37 (std)
VXE2350G-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / SUS
VXE2350V-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2350M-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2350A-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2350H-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2350L-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2350J-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2350B-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / C37
VXE2350C-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / C37
VXE2350K-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / SUS
VXE2360-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / C37 (std)
VXE2360G-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / SUS
VXE2360V-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2360M-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2360A-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2360H-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2360L-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2360J-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2360B-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / C37
VXE2360C-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / C37
VXE2360K-03-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / SUS
VXE2360-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / C37 (std)
VXE2360G-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / SUS
VXE2360V-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2360M-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2360A-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2360H-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2360L-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2360J-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2360B-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / C37
VXE2360C-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / C37
VXE2360K-04-5G1 Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / SUS
VXE2111-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: NBR / Al base (air)
VXE2111V-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2111R-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / Al base, non-copper
VXE2111-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: NBR / C37 base
VXE2111G-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: NBR / SUS base
VXE2111L-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / SUS base, high corrosion
VXE2111A-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / C37 base (oil)
VXE2111H-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / SUS base (oil)
VXE2121-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / Al base (air)
VXE2121V-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2121R-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, non-copper
VXE2121-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / C37 base
VXE2121G-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / SUS base
VXE2121L-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base, high corrosion
VXE2121A-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / C37 base (oil)
VXE2121H-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base (oil)
VXE2131-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / Al base (air)
VXE2131V-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2131R-00-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, non-copper
VXE2131-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / C37 base
VXE2131G-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / SUS base
VXE2131L-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base, high corrosion
VXE2131A-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / C37 base (oil)
VXE2131H-5G1 Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base (oil)
VXE2221-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / Al base (air)
VXE2221V-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2221R-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, non-copper
VXE2221-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / C37 base
VXE2221G-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / SUS base
VXE2221L-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base, high corrosion
VXE2221A-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / C37 base (oil)
VXE2221H-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base (oil)
VXE2231-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / Al base (air)
VXE2231V-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2231R-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, non-copper
VXE2231-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / C37 base
VXE2231G-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / SUS base
VXE2231L-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base, high corrosion
VXE2231A-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / C37 base (oil)
VXE2231H-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base (oil)
VXE2241-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / Al base (air)
VXE2241V-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2241R-00-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, non-copper
VXE2241-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / C37 base
VXE2241G-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / SUS base
VXE2241L-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base, high corrosion
VXE2241A-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / C37 base (oil)
VXE2241H-5G1 Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base (oil)
VXE2321-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / Al base (air)
VXE2321V-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2321R-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, non-copper
VXE2321-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / C37 base
VXE2321G-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / SUS base
VXE2321L-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base, high corrosion
VXE2321A-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / C37 base (oil)
VXE2321H-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base (oil)
VXE2331-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / Al base (air)
VXE2331V-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2331R-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, non-copper
VXE2331-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / C37 base
VXE2331G-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / SUS base
VXE2331L-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base, high corrosion
VXE2331A-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / C37 base (oil)
VXE2331H-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base (oil)
VXE2341-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / Al base (air)
VXE2341V-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2341R-00-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, non-copper
VXE2341-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / C37 base
VXE2341G-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / SUS base
VXE2341L-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base, high corrosion
VXE2341A-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / C37 base (oil)
VXE2341H-5G1 Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base (oil)
2-Port ValvesSMC
380 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXE21/22/23 Low Power Direct Operated 2-Port Solenoid Valve

Brand SMC·2-Port Valves

Available part numbers (380)

VXE2110-01-5G1, VXE2110G-01-5G1, VXE2110V-01-5G1, VXE2110M-01-5G1, VXE2110A-01-5G1, VXE2110H-01-5G1, VXE2110L-01-5G1, VXE2110J-01-5G1, VXE2110B-01-5G1, VXE2110C-01-5G1 + 370 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXE2110-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: NBR / C37 (std)
VXE2110G-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: NBR / SUS
VXE2110V-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2110M-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2110A-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / C37 (oil)
VXE2110H-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / SUS (oil)
VXE2110L-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: FKM / SUS, high corrosion
VXE2110J-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: EPDM / SUS, non-copper
VXE2110B-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: EPDM / C37
VXE2110C-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: PTFE / C37
VXE2110K-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø2 mm | Seal / body: PTFE / SUS
VXE2120-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: NBR / C37 (std)
VXE2120G-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: NBR / SUS
VXE2120V-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2120M-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2120A-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2120H-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2120L-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2120J-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2120B-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: EPDM / C37
VXE2120C-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: PTFE / C37
VXE2120K-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø3 mm | Seal / body: PTFE / SUS
VXE2130-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2130G-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: NBR / SUS
VXE2130V-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2130M-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2130A-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2130H-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2130L-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2130J-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2130B-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: EPDM / C37
VXE2130C-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: PTFE / C37
VXE2130K-01-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/8, ø4.5 mm | Seal / body: PTFE / SUS
VXE2110-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: NBR / C37 (std)
VXE2110G-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: NBR / SUS
VXE2110V-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2110M-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2110A-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / C37 (oil)
VXE2110H-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / SUS (oil)
VXE2110L-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: FKM / SUS, high corrosion
VXE2110J-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: EPDM / SUS, non-copper
VXE2110B-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: EPDM / C37
VXE2110C-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: PTFE / C37
VXE2110K-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø2 mm | Seal / body: PTFE / SUS
VXE2120-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / C37 (std)
VXE2120G-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / SUS
VXE2120V-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2120M-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2120A-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2120H-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2120L-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2120J-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2120B-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / C37
VXE2120C-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / C37
VXE2120K-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / SUS
VXE2130-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2130G-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / SUS
VXE2130V-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2130M-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2130A-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2130H-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2130L-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2130J-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2130B-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / C37
VXE2130C-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / C37
VXE2130K-02-5G1Model: VXE21 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / SUS
VXE2220-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / C37 (std)
VXE2220G-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / SUS
VXE2220V-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2220M-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2220A-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2220H-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2220L-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2220J-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2220B-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / C37
VXE2220C-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / C37
VXE2220K-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / SUS
VXE2230-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2230G-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / SUS
VXE2230V-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2230M-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2230A-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2230H-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2230L-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2230J-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2230B-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / C37
VXE2230C-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / C37
VXE2230K-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / SUS
VXE2240-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / C37 (std)
VXE2240G-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / SUS
VXE2240V-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2240M-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2240A-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2240H-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2240L-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2240J-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2240B-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / C37
VXE2240C-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / C37
VXE2240K-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / SUS
VXE2250-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / C37 (std)
VXE2250G-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / SUS
VXE2250V-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2250M-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2250A-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2250H-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2250L-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2250J-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2250B-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / C37
VXE2250C-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / C37
VXE2250K-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / SUS
VXE2260-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / C37 (std)
VXE2260G-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / SUS
VXE2260V-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2260M-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2260A-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2260H-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2260L-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2260J-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2260B-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / C37
VXE2260C-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / C37
VXE2260K-02-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / SUS
VXE2220-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / C37 (std)
VXE2220G-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / SUS
VXE2220V-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2220M-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2220A-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2220H-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2220L-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2220J-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2220B-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / C37
VXE2220C-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / C37
VXE2220K-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / SUS
VXE2230-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2230G-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / SUS
VXE2230V-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2230M-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2230A-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2230H-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2230L-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2230J-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2230B-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / C37
VXE2230C-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / C37
VXE2230K-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / SUS
VXE2240-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / C37 (std)
VXE2240G-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / SUS
VXE2240V-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2240M-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2240A-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2240H-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2240L-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2240J-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2240B-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / C37
VXE2240C-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / C37
VXE2240K-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / SUS
VXE2250-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / C37 (std)
VXE2250G-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / SUS
VXE2250V-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2250M-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2250A-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2250H-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2250L-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2250J-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2250B-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / C37
VXE2250C-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / C37
VXE2250K-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / SUS
VXE2260-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / C37 (std)
VXE2260G-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / SUS
VXE2260V-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2260M-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2260A-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2260H-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2260L-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2260J-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2260B-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / C37
VXE2260C-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / C37
VXE2260K-03-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / SUS
VXE2260-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / C37 (std)
VXE2260G-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / SUS
VXE2260V-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2260M-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2260A-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2260H-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2260L-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2260J-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2260B-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / C37
VXE2260C-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / C37
VXE2260K-04-5G1Model: VXE22 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / SUS
VXE2320-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / C37 (std)
VXE2320G-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: NBR / SUS
VXE2320V-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2320M-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2320A-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2320H-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2320L-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2320J-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2320B-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: EPDM / C37
VXE2320C-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / C37
VXE2320K-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø3 mm | Seal / body: PTFE / SUS
VXE2330-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2330G-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: NBR / SUS
VXE2330V-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2330M-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2330A-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2330H-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2330L-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2330J-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2330B-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: EPDM / C37
VXE2330C-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / C37
VXE2330K-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø4.5 mm | Seal / body: PTFE / SUS
VXE2340-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / C37 (std)
VXE2340G-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: NBR / SUS
VXE2340V-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2340M-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2340A-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2340H-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2340L-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2340J-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2340B-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: EPDM / C37
VXE2340C-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / C37
VXE2340K-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø6 mm | Seal / body: PTFE / SUS
VXE2350-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / C37 (std)
VXE2350G-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: NBR / SUS
VXE2350V-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2350M-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2350A-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2350H-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2350L-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2350J-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2350B-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: EPDM / C37
VXE2350C-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / C37
VXE2350K-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø8 mm | Seal / body: PTFE / SUS
VXE2360-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / C37 (std)
VXE2360G-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: NBR / SUS
VXE2360V-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2360M-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2360A-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2360H-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2360L-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2360J-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2360B-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: EPDM / C37
VXE2360C-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / C37
VXE2360K-02-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/4, ø10 mm | Seal / body: PTFE / SUS
VXE2320-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / C37 (std)
VXE2320G-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: NBR / SUS
VXE2320V-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2320M-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2320A-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / C37 (oil)
VXE2320H-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS (oil)
VXE2320L-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: FKM / SUS, high corrosion
VXE2320J-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / SUS, non-copper
VXE2320B-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: EPDM / C37
VXE2320C-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / C37
VXE2320K-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø3 mm | Seal / body: PTFE / SUS
VXE2330-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / C37 (std)
VXE2330G-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: NBR / SUS
VXE2330V-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2330M-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2330A-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / C37 (oil)
VXE2330H-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS (oil)
VXE2330L-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: FKM / SUS, high corrosion
VXE2330J-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / SUS, non-copper
VXE2330B-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: EPDM / C37
VXE2330C-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / C37
VXE2330K-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø4.5 mm | Seal / body: PTFE / SUS
VXE2340-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / C37 (std)
VXE2340G-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: NBR / SUS
VXE2340V-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2340M-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2340A-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / C37 (oil)
VXE2340H-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS (oil)
VXE2340L-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: FKM / SUS, high corrosion
VXE2340J-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / SUS, non-copper
VXE2340B-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: EPDM / C37
VXE2340C-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / C37
VXE2340K-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø6 mm | Seal / body: PTFE / SUS
VXE2350-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / C37 (std)
VXE2350G-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: NBR / SUS
VXE2350V-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2350M-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2350A-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / C37 (oil)
VXE2350H-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS (oil)
VXE2350L-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: FKM / SUS, high corrosion
VXE2350J-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / SUS, non-copper
VXE2350B-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: EPDM / C37
VXE2350C-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / C37
VXE2350K-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø8 mm | Seal / body: PTFE / SUS
VXE2360-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / C37 (std)
VXE2360G-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: NBR / SUS
VXE2360V-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2360M-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2360A-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2360H-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2360L-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2360J-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2360B-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: EPDM / C37
VXE2360C-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / C37
VXE2360K-03-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc3/8, ø10 mm | Seal / body: PTFE / SUS
VXE2360-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / C37 (std)
VXE2360G-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: NBR / SUS
VXE2360V-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37, leak-free/vacuum
VXE2360M-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, leak-free/vacuum
VXE2360A-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / C37 (oil)
VXE2360H-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS (oil)
VXE2360L-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: FKM / SUS, high corrosion
VXE2360J-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / SUS, non-copper
VXE2360B-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: EPDM / C37
VXE2360C-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / C37
VXE2360K-04-5G1Model: VXE23 | Mounting: Single unit | Port / orifice: Rc1/2, ø10 mm | Seal / body: PTFE / SUS
VXE2111-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: NBR / Al base (air)
VXE2111V-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2111R-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / Al base, non-copper
VXE2111-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: NBR / C37 base
VXE2111G-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: NBR / SUS base
VXE2111L-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / SUS base, high corrosion
VXE2111A-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / C37 base (oil)
VXE2111H-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø2 mm | Seal / body: FKM / SUS base (oil)
VXE2121-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / Al base (air)
VXE2121V-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2121R-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, non-copper
VXE2121-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / C37 base
VXE2121G-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / SUS base
VXE2121L-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base, high corrosion
VXE2121A-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / C37 base (oil)
VXE2121H-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base (oil)
VXE2131-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / Al base (air)
VXE2131V-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2131R-00-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, non-copper
VXE2131-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / C37 base
VXE2131G-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / SUS base
VXE2131L-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base, high corrosion
VXE2131A-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / C37 base (oil)
VXE2131H-5G1Model: VXE21 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base (oil)
VXE2221-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / Al base (air)
VXE2221V-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2221R-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, non-copper
VXE2221-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / C37 base
VXE2221G-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / SUS base
VXE2221L-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base, high corrosion
VXE2221A-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / C37 base (oil)
VXE2221H-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base (oil)
VXE2231-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / Al base (air)
VXE2231V-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2231R-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, non-copper
VXE2231-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / C37 base
VXE2231G-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / SUS base
VXE2231L-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base, high corrosion
VXE2231A-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / C37 base (oil)
VXE2231H-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base (oil)
VXE2241-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / Al base (air)
VXE2241V-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2241R-00-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, non-copper
VXE2241-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / C37 base
VXE2241G-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / SUS base
VXE2241L-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base, high corrosion
VXE2241A-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / C37 base (oil)
VXE2241H-5G1Model: VXE22 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base (oil)
VXE2321-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / Al base (air)
VXE2321V-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2321R-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / Al base, non-copper
VXE2321-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / C37 base
VXE2321G-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: NBR / SUS base
VXE2321L-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base, high corrosion
VXE2321A-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / C37 base (oil)
VXE2321H-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø3 mm | Seal / body: FKM / SUS base (oil)
VXE2331-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / Al base (air)
VXE2331V-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2331R-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / Al base, non-copper
VXE2331-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / C37 base
VXE2331G-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: NBR / SUS base
VXE2331L-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base, high corrosion
VXE2331A-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / C37 base (oil)
VXE2331H-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø4.5 mm | Seal / body: FKM / SUS base (oil)
VXE2341-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / Al base (air)
VXE2341V-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, leak-free/vacuum
VXE2341R-00-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / Al base, non-copper
VXE2341-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / C37 base
VXE2341G-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: NBR / SUS base
VXE2341L-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base, high corrosion
VXE2341A-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / C37 base (oil)
VXE2341H-5G1Model: VXE23 | Mounting: Manifold valve | Port / orifice: Manifold, ø6 mm | Seal / body: FKM / SUS base (oil)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
