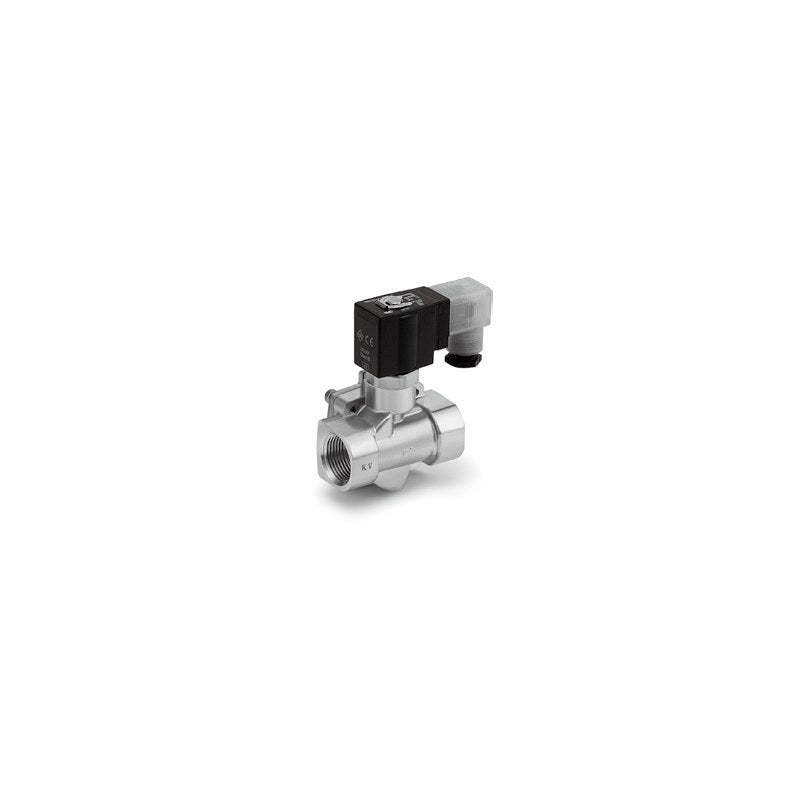

SMC VXED21/22/23 Low Power Pilot Operated 2-Port Solenoid Valve

SMC VXED21/22/23 Low Power Pilot Operated 2-Port Solenoid Valve

SMC VXED21/22/23 series energy-saving pilot-operated 2-port solenoid valve (N.C.) for air, water and oil, Rc1/4 to Rc1 and 32A to 50A flange.

Key features

  • Power-saving circuit reduces holding power to about 1/3 of VXD series; coil interchangeable with VXD (DC12V/24V)
  • Orifice ø10 to ø50 mm; threaded Rc1/4 to Rc1 (C37 or SUS) and 32A/40A/50A flange (CAC408)
  • Seal/body by option letter: NBR, FKM, EPDM with C37/CAC408 or SUS body (SUS for 1/4" to 1")
  • DC24V listed (DC12V available); grommet G listed, conduit, DIN and conduit terminal entries on order
  • IP65, RoHS; NPTF/G/NPT threads, oil-free (Z) and bracket (B) available

Specifications

Valve structure Pilot-operated diaphragm, N.C.
Fluid Air, water, oil
Rated voltage DC24V (DC12V available)
Electrical entry (listed) Grommet (G)
Coil insulation Class B, surge voltage protection built in
Enclosure IP65
Holding power VXED21 1.8 W, VXED22 2.3 W, VXED23 3 W
Allowable voltage fluctuation ±10% of rated voltage
Source SMC Korea catalog VXE (SMCKR_VXE.pdf), p. 283-295
VXED2130-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2130G-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXED2130A-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2130H-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXED2130L-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXED2130J-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXED2130B-02-5G1 Model: VXED21 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: EPDM / C37-CAC408
VXED2130-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2130G-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXED2130A-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2130H-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXED2130L-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXED2130J-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXED2130B-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: EPDM / C37-CAC408
VXED2140-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2140G-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS
VXED2140A-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2140H-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS (oil)
VXED2140L-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS, high corrosion
VXED2140J-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS, non-copper
VXED2140B-03-5G1 Model: VXED21 | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408
VXED2130-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2130G-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXED2130A-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2130H-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXED2130L-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXED2130J-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXED2130B-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: EPDM / C37-CAC408
VXED2140-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2140G-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS
VXED2140A-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2140H-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS (oil)
VXED2140L-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS, high corrosion
VXED2140J-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS, non-copper
VXED2140B-04-5G1 Model: VXED21 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408
VXED2150-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2150G-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS
VXED2150A-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2150H-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS (oil)
VXED2150L-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS, high corrosion
VXED2150J-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS, non-copper
VXED2150B-06-5G1 Model: VXED21 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408
VXED2260-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2260G-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS
VXED2260A-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2260H-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS (oil)
VXED2260L-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS, high corrosion
VXED2260J-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS, non-copper
VXED2260B-10-5G1 Model: VXED22 | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408
VXED2270-32-5G1 Model: VXED22 | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2270A-32-5G1 Model: VXED22 | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2270B-32-5G1 Model: VXED22 | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408
VXED2380-40-5G1 Model: VXED23 | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2380A-40-5G1 Model: VXED23 | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2380B-40-5G1 Model: VXED23 | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408
VXED2390-50-5G1 Model: VXED23 | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std)
VXED2390A-50-5G1 Model: VXED23 | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 (oil)
VXED2390B-50-5G1 Model: VXED23 | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408
