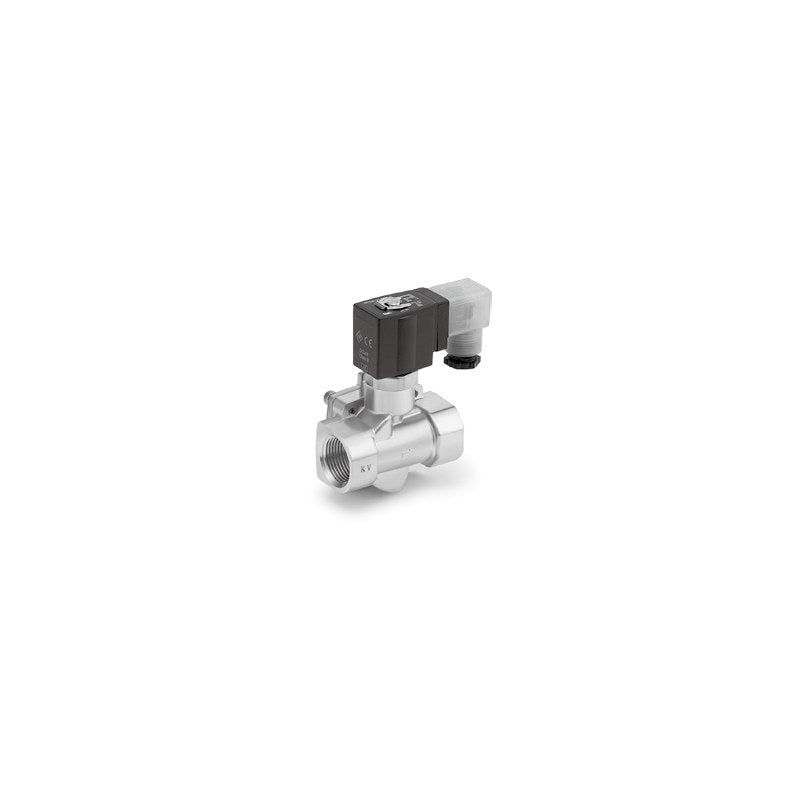

SMC VXEZ22/23 Low Power Zero Differential Pressure 2-Port Valve

SMC VXEZ22/23 Low Power Zero Differential Pressure 2-Port Valve

SMC VXEZ22/23 series energy-saving zero differential pressure, pilot-operated 2-port solenoid valve (N.C.) for air, water and oil, Rc1/4 to Rc1.

Key features

  • Operates from zero pressure differential (pilot assisted by plunger)
  • Power-saving circuit reduces holding power to about 1/3 of VXZ series; coil interchangeable with VXZ (DC12V/24V)
  • Orifice ø10 to ø25 mm, port Rc1/4 to Rc1, C37 or SUS body
  • Seal/body by option letter: NBR, FKM, EPDM with C37 or SUS body
  • DC24V listed (DC12V available); grommet G listed, conduit, DIN and conduit terminal entries on order

Specifications

Valve structure Zero differential pressure, pilot-operated, N.C.
Fluid Air, water, oil
Rated voltage DC24V (DC12V available)
Electrical entry (listed) Grommet (G)
Coil insulation Class B, surge voltage protection built in
Enclosure IP65
Holding power VXEZ22 2.3 W, VXEZ23 3 W
Allowable voltage fluctuation ±10% of rated voltage
Source SMC Korea catalog VXE (SMCKR_VXE.pdf), p. 297-307
VXEZ2230-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37 (std)
VXEZ2230G-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXEZ2230A-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / C37 (oil)
VXEZ2230H-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXEZ2230L-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2230J-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2230B-02-5G1 Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: EPDM / C37
VXEZ2230-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37 (std)
VXEZ2230G-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXEZ2230A-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / C37 (oil)
VXEZ2230H-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXEZ2230L-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2230J-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2230B-03-5G1 Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: EPDM / C37
VXEZ2240-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37 (std)
VXEZ2240G-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS
VXEZ2240A-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37 (oil)
VXEZ2240H-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS (oil)
VXEZ2240L-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2240J-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2240B-04-5G1 Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37
VXEZ2350-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37 (std)
VXEZ2350G-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS
VXEZ2350A-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37 (oil)
VXEZ2350H-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS (oil)
VXEZ2350L-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2350J-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2350B-06-5G1 Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37
VXEZ2360-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37 (std)
VXEZ2360G-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS
VXEZ2360A-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37 (oil)
VXEZ2360H-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS (oil)
VXEZ2360L-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2360J-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2360B-10-5G1 Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37
2-Port ValvesSMC
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXEZ22/23 Low Power Zero Differential Pressure 2-Port Valve

Brand SMC·2-Port Valves

Available part numbers (35)

VXEZ2230-02-5G1, VXEZ2230G-02-5G1, VXEZ2230A-02-5G1, VXEZ2230H-02-5G1, VXEZ2230L-02-5G1, VXEZ2230J-02-5G1, VXEZ2230B-02-5G1, VXEZ2230-03-5G1, VXEZ2230G-03-5G1, VXEZ2230A-03-5G1 + 25 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXEZ2230-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37 (std)
VXEZ2230G-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXEZ2230A-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / C37 (oil)
VXEZ2230H-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXEZ2230L-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2230J-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2230B-02-5G1Model: VXEZ22 | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: EPDM / C37
VXEZ2230-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37 (std)
VXEZ2230G-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / SUS
VXEZ2230A-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / C37 (oil)
VXEZ2230H-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / SUS (oil)
VXEZ2230L-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2230J-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2230B-03-5G1Model: VXEZ22 | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: EPDM / C37
VXEZ2240-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37 (std)
VXEZ2240G-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS
VXEZ2240A-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37 (oil)
VXEZ2240H-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS (oil)
VXEZ2240L-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2240J-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2240B-04-5G1Model: VXEZ22 | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37
VXEZ2350-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37 (std)
VXEZ2350G-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS
VXEZ2350A-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37 (oil)
VXEZ2350H-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS (oil)
VXEZ2350L-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2350J-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2350B-06-5G1Model: VXEZ23 | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37
VXEZ2360-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37 (std)
VXEZ2360G-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS
VXEZ2360A-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37 (oil)
VXEZ2360H-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS (oil)
VXEZ2360L-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS, high corrosion
VXEZ2360J-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS, non-copper
VXEZ2360B-10-5G1Model: VXEZ23 | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37
