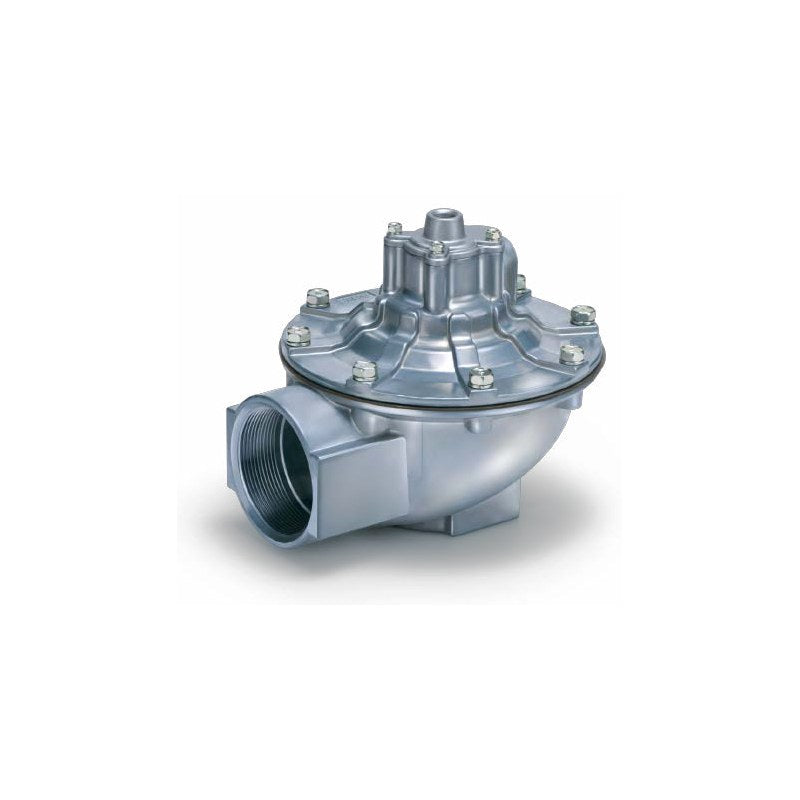

SMC VXF2 2-Port Solenoid Valve for Dust Collectors (20A to 100A)

SMC VXF2 2-Port Solenoid Valve for Dust Collectors (20A to 100A)

SMC VXF2 series pilot-operated 2-port solenoid pulse valve for dust collector bag-filter cleaning, in port sizes 20A to 100A with straight or flange bodies.

Key features

  • Port sizes 20A to 100A (orifice 22 to 100 mm); straight threaded body, flange body, and flange body I/II (orifice body) types for 80A
  • Diaphragm/main valve NBR/POM for standard temperature (max. 60°C) or FKM/PTFE for high temperature (max. 100°C), with or without silencer
  • IP65 enclosure, UL94V-0 flame-retardant coil, AC types with built-in full-wave rectifier
  • Electrical entry: grommet, grommet with surge suppressor, DIN terminal, conduit terminal, conduit and flat terminal; listed codes use grommet (A for DC24V, B/D/Z1B surge-protected for AC)
  • Other voltages (AC110/230V, AC24/48/240V, DC12V), lamp and G/NPT threads ordered by suffix (Z + option, A/B); high-temperature type is AC only

Specifications

Fluid Air
Valve type Pilot operated, N.C., diaphragm
Min. operating pressure 0.03 MPa (20A to 40A), 0.1 MPa (50A to 100A)
Max. operating pressure 0.7 MPa
Fluid temperature -10 to 60°C (NBR/POM), -10 to 100°C (FKM/PTFE), no freezing
Ambient temperature -10 to 60°C
Coil insulation Class B (std temp) / Class H (high temp)
Enclosure IP65
Allowable voltage fluctuation ±10% of rated voltage
Power DC 7 W (size 23: 8 W); AC 7/9 VA (size 23: 10/12 VA)
Port thread Rc (straight type); G/NPT on order
Source SMC Korea catalog VXF2/VXFA2 Series (SMCKR_VXF2.pdf), p. 338-339, 342 (PDF p. 4-5, 8)
VXF21AAA Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF21AAB Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF21AAD Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF21AAZ1B Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF21ABA Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF21ABB Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF21ABD Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF21ABZ1B Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF21ACB Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF21ACD Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF21ACZ1B Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF21ADB Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF21ADD Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF21ADZ1B Size: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF22AAA Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF22AAB Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF22AAD Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF22AAZ1B Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF22ABA Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF22ABB Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF22ABD Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF22ABZ1B Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF22ACB Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF22ACD Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF22ACZ1B Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF22ADB Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF22ADD Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF22ADZ1B Size: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF23AAA Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF23AAB Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF23AAD Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF23AAZ1B Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF23ABA Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF23ABB Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF23ABD Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF23ABZ1B Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF23ACB Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF23ACD Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF23ACZ1B Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF23ADB Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF23ADD Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF23ADZ1B Size: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF24AAA Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF24AAB Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF24AAD Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF24AAZ1B Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF24ABA Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF24ABB Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF24ABD Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF24ABZ1B Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF24ACB Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF24ACD Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF24ACZ1B Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF24ADB Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF24ADD Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF24ADZ1B Size: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF25AAA Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF25AAB Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF25AAD Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF25AAZ1B Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF25ABA Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF25ABB Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF25ABD Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF25ABZ1B Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF25ACB Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF25ACD Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF25ACZ1B Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF25ADB Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF25ADD Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF25ADZ1B Size: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF25BAA Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF25BAB Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF25BAD Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF25BAZ1B Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF25BBA Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF25BBB Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF25BBD Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF25BBZ1B Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF25BCB Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF25BCD Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF25BCZ1B Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF25BDB Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF25BDD Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF25BDZ1B Size: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26AAA Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26AAB Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26AAD Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26AAZ1B Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26ABA Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26ABB Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26ABD Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26ABZ1B Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26ACB Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26ACD Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26ACZ1B Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26ADB Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26ADD Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26ADZ1B Size: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26BAA Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26BAB Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26BAD Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26BAZ1B Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26BBA Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26BBB Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26BBD Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26BBZ1B Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26BCB Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26BCD Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26BCZ1B Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26BDB Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26BDD Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26BDZ1B Size: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26CAA Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26CAB Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26CAD Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26CAZ1B Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26CBA Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26CBB Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26CBD Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26CBZ1B Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26CCB Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26CCD Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26CCZ1B Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26CDB Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26CDD Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26CDZ1B Size: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26DAA Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26DAB Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26DAD Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26DAZ1B Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26DBA Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26DBB Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26DBD Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26DBZ1B Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26DCB Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26DCD Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26DCZ1B Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26DDB Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26DDD Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26DDZ1B Size: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF27BAA Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF27BAB Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF27BAD Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF27BAZ1B Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF27BBA Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF27BBB Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF27BBD Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF27BBZ1B Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF27BCB Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF27BCD Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF27BCZ1B Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF27BDB Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF27BDD Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF27BDZ1B Size: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF28BAA Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF28BAB Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF28BAD Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF28BAZ1B Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF28BBA Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF28BBB Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF28BBD Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF28BBZ1B Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF28BCB Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF28BCD Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF28BCZ1B Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF28BDB Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF28BDD Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF28BDZ1B Size: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
2-Port ValvesSMC
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXF2 2-Port Solenoid Valve for Dust Collectors (20A to 100A)

Brand SMC·2-Port Valves

Available part numbers (168)

VXF21AAA, VXF21AAB, VXF21AAD, VXF21AAZ1B, VXF21ABA, VXF21ABB, VXF21ABD, VXF21ABZ1B, VXF21ACB, VXF21ACD + 158 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXF21AAASize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF21AABSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF21AADSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF21AAZ1BSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF21ABASize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF21ABBSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF21ABDSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF21ABZ1BSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF21ACBSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF21ACDSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF21ACZ1BSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF21ADBSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF21ADDSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF21ADZ1BSize: 20A (3/4), ø22 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF22AAASize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF22AABSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF22AADSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF22AAZ1BSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF22ABASize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF22ABBSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF22ABDSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF22ABZ1BSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF22ACBSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF22ACDSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF22ACZ1BSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF22ADBSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF22ADDSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF22ADZ1BSize: 25A (1), ø28 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF23AAASize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF23AABSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF23AADSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF23AAZ1BSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF23ABASize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF23ABBSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF23ABDSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF23ABZ1BSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF23ACBSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF23ACDSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF23ACZ1BSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF23ADBSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF23ADDSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF23ADZ1BSize: 40A (1 1/2), ø44 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF24AAASize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF24AABSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF24AADSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF24AAZ1BSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF24ABASize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF24ABBSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF24ABDSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF24ABZ1BSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF24ACBSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF24ACDSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF24ACZ1BSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF24ADBSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF24ADDSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF24ADZ1BSize: 50A (2), ø53 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF25AAASize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF25AABSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF25AADSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF25AAZ1BSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF25ABASize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF25ABBSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF25ABDSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF25ABZ1BSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF25ACBSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF25ACDSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF25ACZ1BSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF25ADBSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF25ADDSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF25ADZ1BSize: 65A (2 1/2), ø70 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF25BAASize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF25BABSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF25BADSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF25BAZ1BSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF25BBASize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF25BBBSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF25BBDSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF25BBZ1BSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF25BCBSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF25BCDSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF25BCZ1BSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF25BDBSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF25BDDSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF25BDZ1BSize: 65A (2 1/2), ø70 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26AAASize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26AABSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26AADSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26AAZ1BSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26ABASize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26ABBSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26ABDSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26ABZ1BSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26ACBSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26ACDSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26ACZ1BSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26ADBSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26ADDSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26ADZ1BSize: 80A (3), ø80 mm | Piping: Straight (threaded) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26BAASize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26BABSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26BADSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26BAZ1BSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26BBASize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26BBBSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26BBDSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26BBZ1BSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26BCBSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26BCDSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26BCZ1BSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26BDBSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26BDDSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26BDZ1BSize: 80A (3), ø80 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26CAASize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26CABSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26CADSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26CAZ1BSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26CBASize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26CBBSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26CBDSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26CBZ1BSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26CCBSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26CCDSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26CCZ1BSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26CDBSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26CDDSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26CDZ1BSize: 80A (3), ø80 mm | Piping: Flange body I (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF26DAASize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF26DABSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF26DADSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF26DAZ1BSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF26DBASize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF26DBBSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF26DBDSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF26DBZ1BSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF26DCBSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF26DCDSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF26DCZ1BSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF26DDBSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF26DDDSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF26DDZ1BSize: 80A (3), ø80 mm | Piping: Flange body II (orifice body) | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF27BAASize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF27BABSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF27BADSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF27BAZ1BSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF27BBASize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF27BBBSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF27BBDSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF27BBZ1BSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF27BCBSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF27BCDSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF27BCZ1BSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF27BDBSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF27BDDSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF27BDZ1BSize: 90A (3 1/2), ø90 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V
VXF28BAASize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: DC24V
VXF28BABSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC100V
VXF28BADSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC200V
VXF28BAZ1BSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, no silencer, std temp | Voltage: AC220V
VXF28BBASize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: DC24V
VXF28BBBSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC100V
VXF28BBDSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC200V
VXF28BBZ1BSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: NBR/POM, with silencer, std temp | Voltage: AC220V
VXF28BCBSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC100V
VXF28BCDSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC200V
VXF28BCZ1BSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, no silencer, high temp | Voltage: AC220V
VXF28BDBSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC100V
VXF28BDDSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC200V
VXF28BDZ1BSize: 100A (4), ø100 mm | Piping: Flange | Diaphragm / silencer: FKM/PTFE, with silencer, high temp | Voltage: AC220V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
