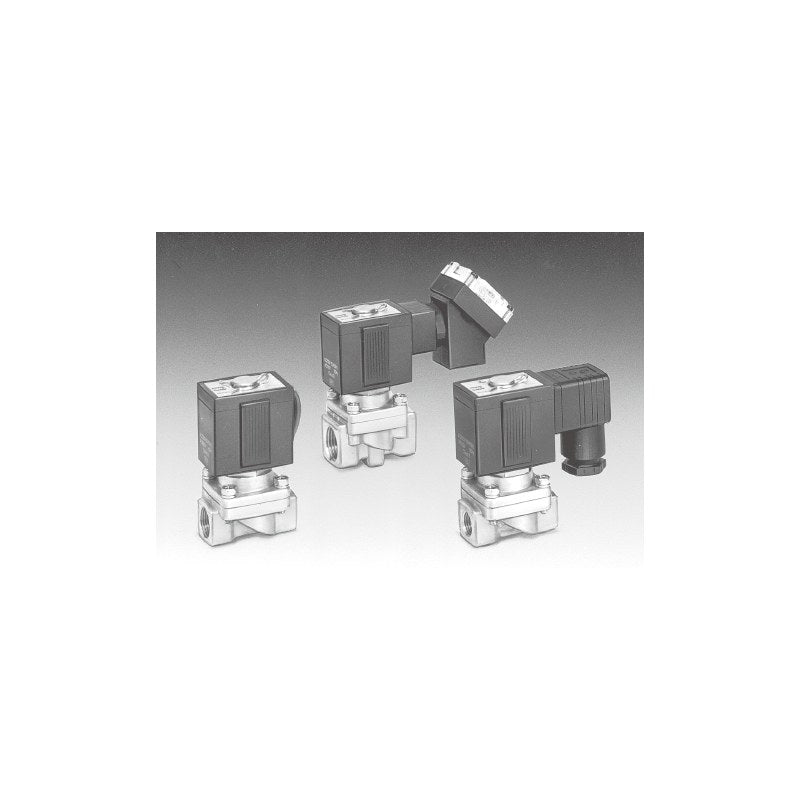

SMC VXH High Pressure Pilot Operated 2-Port Solenoid Valve

SMC VXH High Pressure Pilot Operated 2-Port Solenoid Valve

SMC VXH series pilot-operated diaphragm 2-port solenoid valve for high pressure, with ø10 mm orifice and 2.0 MPa maximum operating pressure differential.

Key features

  • ø10 mm orifice with max. operating pressure differential 2.0 MPa
  • For water, oil and air; N.C. single unit, port Rc1/4, 3/8, 1/2
  • AC coil, class B insulation: AC100V, 110V, 200V, 220V, 240V, 48V; listed codes cover AC100V, AC200V, AC220V
  • Electrical entry grommet (G), conduit (C), DIN terminal (D), conduit terminal (T); listed codes use G
  • Surge suppressor (S), light (L), both (Z), bracket (B) and CE-compliant (Q, DIN terminal) as suffixes

Specifications

Valve structure Pilot-operated diaphragm, N.C.
Orifice ø10 mm
Max. operating pressure differential 2.0 MPa (water, air, oil 1.5 MPa)
Min. operating pressure differential 0.05 MPa
Max. system pressure 2.0 MPa
Flow (Kv) 1.6 (1/4"), 2.0 (3/8", 1/2")
Power (AC) Apparent 18 VA (50 Hz holding), 7.5 W
Mass 550 g (1/4", 3/8"), 630 g (1/2")
Source SMC Korea catalog VXH (SMCKR_VXH.pdf), p. 333-334
VXH2230-02-1G Port: Rc1/4 | Flow (Kv): 1.6 | Coil: AC100V, grommet (G)
VXH2230-02-2G Port: Rc1/4 | Flow (Kv): 1.6 | Coil: AC200V, grommet (G)
VXH2230-02-4G Port: Rc1/4 | Flow (Kv): 1.6 | Coil: AC220V, grommet (G)
VXH2230-03-1G Port: Rc3/8 | Flow (Kv): 2.0 | Coil: AC100V, grommet (G)
VXH2230-03-2G Port: Rc3/8 | Flow (Kv): 2.0 | Coil: AC200V, grommet (G)
VXH2230-03-4G Port: Rc3/8 | Flow (Kv): 2.0 | Coil: AC220V, grommet (G)
VXH2230-04-1G Port: Rc1/2 | Flow (Kv): 2.0 | Coil: AC100V, grommet (G)
VXH2230-04-2G Port: Rc1/2 | Flow (Kv): 2.0 | Coil: AC200V, grommet (G)
VXH2230-04-4G Port: Rc1/2 | Flow (Kv): 2.0 | Coil: AC220V, grommet (G)
