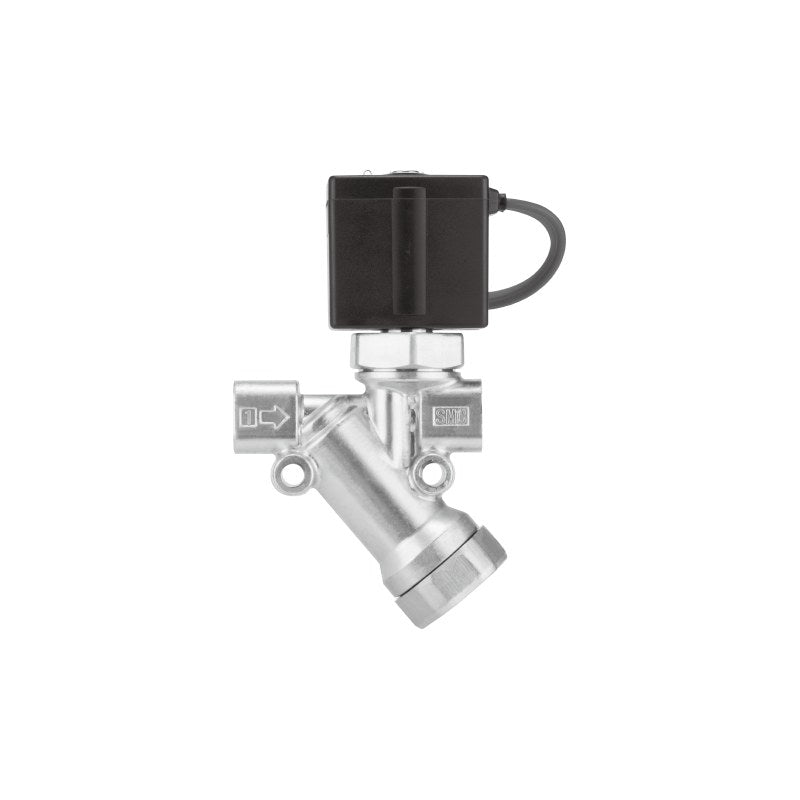

SMC VXK21/22/23 Direct Operated 2-Port Solenoid Valve (Y-Strainer)

SMC VXK21/22/23 series direct-operated 2-port solenoid valve with built-in Y-type strainer (100 mesh) for air, water, oil and steam, N.C. or N.O.

Key features

Built-in Y-type strainer (100 mesh SUS) removes foreign matter; element replaceable without removing piping
Space and piping-work saving vs. separate strainer; IP65, RoHS
C37 body; seal by solenoid valve option: NBR (std), FKM (V vacuum/leak-free, A/D oil), EPDM (E hot water), PTFE (S steam)
Listed AC codes for class B use full-wave rectifier type (R, required for air); non-rectifier AC (water/oil) also available
Listed codes cover DC24V, AC100V, AC200V, AC220V with grommet; conduit, DIN and conduit terminal entries, S/L/Z options on order
NPTF (T), G (F), NPT (N) threads, oil-free (Z) and bracket (B) available

Specifications

Valve structure	Direct-operated poppet with Y-strainer
Body material	C37 (brass)
Proof pressure	5.0 MPa
Enclosure	IP65 (dust-tight, water-jet-proof)
Strainer	100 mesh, stainless steel
Coil insulation	Class B, class H (AC only)
Power (DC)	VXK21 4.5 W, VXK22 7 W, VXK23 10.5 W
Max. system pressure	3.0 MPa (VXK21 1/8": 1.0 MPa)
Allowable voltage fluctuation	±10% of rated voltage
Source	SMC Korea catalog VXK (SMCKR_VXK.pdf), p. 81-97

VXK2110-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2110-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2110-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2110-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2110V-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2110V-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2110V-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2110V-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2110E-01-1G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2110E-01-2G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2110E-01-4G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2110A-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2110A-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2110A-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2110A-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2110D-01-1G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2110D-01-2G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2110D-01-4G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2120-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2120-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2120-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2120-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2120V-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2120V-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2120V-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2120V-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2120E-01-1G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2120E-01-2G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2120E-01-4G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2120A-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2120A-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2120A-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2120A-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2120D-01-1G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2120D-01-2G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2120D-01-4G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2130-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2130-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2130-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2130-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2130V-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2130V-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2130V-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2130V-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2130E-01-1G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2130E-01-2G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2130E-01-4G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2130A-01-5G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2130A-01-1GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2130A-01-2GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2130A-01-4GR1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2130D-01-1G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2130D-01-2G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2130D-01-4G1		Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2110-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2110-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2110-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2110-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2110V-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2110V-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2110V-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2110V-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2110E-02-1G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2110E-02-2G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2110E-02-4G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2110A-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2110A-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2110A-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2110A-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2110D-02-1G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2110D-02-2G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2110D-02-4G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2120-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2120-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2120-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2120-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2120V-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2120V-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2120V-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2120V-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2120E-02-1G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2120E-02-2G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2120E-02-4G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2120A-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2120A-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2120A-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2120A-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2120D-02-1G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2120D-02-2G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2120D-02-4G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2130-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2130-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2130-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2130-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2130V-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2130V-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2130V-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2130V-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2130E-02-1G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2130E-02-2G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2130E-02-4G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2130A-02-5G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2130A-02-1GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2130A-02-2GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2130A-02-4GR1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2130D-02-1G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2130D-02-2G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2130D-02-4G1		Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2220-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2220-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2220-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2220-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2220V-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2220V-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2220V-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2220V-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2220E-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2220E-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2220E-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2220A-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2220A-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2220A-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2220A-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2220D-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2220D-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2220D-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2230-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2230-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2230-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2230-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2230V-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2230V-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2230V-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2230V-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2230E-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2230E-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2230E-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2230A-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2230A-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2230A-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2230A-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2230D-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2230D-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2230D-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2240-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2240-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2240-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2240-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2240V-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2240V-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2240V-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2240V-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2240E-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2240E-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2240E-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2240A-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2240A-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2240A-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2240A-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2240D-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2240D-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2240D-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2250-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2250-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2250-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2250-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2250V-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2250V-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2250V-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2250V-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2250E-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2250E-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2250E-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2250A-02-5G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2250A-02-1GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2250A-02-2GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2250A-02-4GR1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2250D-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2250D-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2250D-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2220-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2220-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2220-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2220-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2220V-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2220V-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2220V-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2220V-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2220E-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2220E-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2220E-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2220A-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2220A-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2220A-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2220A-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2220D-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2220D-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2220D-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2230-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2230-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2230-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2230-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2230V-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2230V-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2230V-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2230V-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2230E-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2230E-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2230E-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2230A-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2230A-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2230A-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2230A-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2230D-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2230D-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2230D-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2240-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2240-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2240-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2240-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2240V-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2240V-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2240V-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2240V-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2240E-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2240E-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2240E-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2240A-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2240A-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2240A-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2240A-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2240D-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2240D-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2240D-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2250-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2250-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2250-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2250-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2250V-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2250V-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2250V-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2250V-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2250E-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2250E-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2250E-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2250A-03-5G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2250A-03-1GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2250A-03-2GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2250A-03-4GR1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2250D-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2250D-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2250D-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2320-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2320-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2320-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2320-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2320V-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2320V-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2320V-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2320V-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2320E-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2320E-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2320E-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2320A-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2320A-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2320A-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2320A-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2320D-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2320D-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2320D-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2330-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2330-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2330-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2330-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2330V-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2330V-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2330V-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2330V-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2330E-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2330E-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2330E-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2330A-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2330A-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2330A-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2330A-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2330D-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2330D-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2330D-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2340-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2340-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2340-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2340-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2340V-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2340V-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2340V-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2340V-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2340E-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2340E-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2340E-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2340A-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2340A-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2340A-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2340A-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2340D-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2340D-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2340D-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2350-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2350-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2350-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2350-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2350V-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2350V-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2350V-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2350V-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2350E-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2350E-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2350E-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2350A-02-5G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2350A-02-1GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2350A-02-2GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2350A-02-4GR1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2350D-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2350D-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2350D-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2320-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2320-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2320-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2320-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2320V-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2320V-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2320V-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2320V-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2320E-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2320E-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2320E-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2320A-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2320A-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2320A-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2320A-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2320D-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2320D-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2320D-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2330-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2330-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2330-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2330-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2330V-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2330V-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2330V-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2330V-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2330E-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2330E-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2330E-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2330A-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2330A-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2330A-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2330A-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2330D-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2330D-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2330D-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2340-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2340-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2340-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2340-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2340V-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2340V-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2340V-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2340V-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2340E-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2340E-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2340E-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2340A-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2340A-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2340A-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2340A-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2340D-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2340D-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2340D-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2350-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2350-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2350-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2350-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2350V-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2350V-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2350V-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2350V-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2350E-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2350E-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2350E-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2350A-03-5G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2350A-03-1GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2350A-03-2GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2350A-03-4GR1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2350D-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2350D-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2350D-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2112-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2112-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2112-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2112-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2112V-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2112V-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2112V-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2112V-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2112E-01-1G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2112E-01-2G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2112E-01-4G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2112A-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2112A-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2112A-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2112A-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2112D-01-1G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2112D-01-2G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2112D-01-4G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2122-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2122-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2122-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2122-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2122V-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2122V-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2122V-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2122V-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2122E-01-1G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2122E-01-2G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2122E-01-4G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2122A-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2122A-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2122A-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2122A-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2122D-01-1G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2122D-01-2G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2122D-01-4G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2132-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2132-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2132-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2132-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2132V-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2132V-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2132V-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2132V-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2132E-01-1G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2132E-01-2G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2132E-01-4G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2132A-01-5G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2132A-01-1GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2132A-01-2GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2132A-01-4GR1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2132D-01-1G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2132D-01-2G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2132D-01-4G1		Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2112-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2112-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2112-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2112-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2112V-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2112V-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2112V-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2112V-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2112E-02-1G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2112E-02-2G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2112E-02-4G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2112A-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2112A-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2112A-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2112A-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2112D-02-1G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2112D-02-2G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2112D-02-4G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2122-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2122-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2122-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2122-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2122V-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2122V-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2122V-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2122V-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2122E-02-1G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2122E-02-2G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2122E-02-4G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2122A-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2122A-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2122A-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2122A-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2122D-02-1G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2122D-02-2G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2122D-02-4G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2132-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2132-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2132-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2132-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2132V-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2132V-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2132V-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2132V-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2132E-02-1G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2132E-02-2G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2132E-02-4G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2132A-02-5G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2132A-02-1GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2132A-02-2GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2132A-02-4GR1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2132D-02-1G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2132D-02-2G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2132D-02-4G1		Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2222-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2222-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2222-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2222-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2222V-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2222V-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2222V-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2222V-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2222E-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2222E-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2222E-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2222A-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2222A-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2222A-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2222A-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2222D-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2222D-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2222D-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2232-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2232-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2232-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2232-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2232V-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2232V-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2232V-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2232V-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2232E-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2232E-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2232E-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2232A-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2232A-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2232A-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2232A-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2232D-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2232D-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2232D-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2242-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2242-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2242-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2242-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2242V-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2242V-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2242V-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2242V-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2242E-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2242E-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2242E-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2242A-02-5G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2242A-02-1GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2242A-02-2GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2242A-02-4GR1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2242D-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2242D-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2242D-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2222-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2222-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2222-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2222-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2222V-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2222V-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2222V-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2222V-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2222E-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2222E-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2222E-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2222A-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2222A-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2222A-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2222A-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2222D-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2222D-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2222D-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2232-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2232-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2232-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2232-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2232V-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2232V-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2232V-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2232V-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2232E-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2232E-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2232E-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2232A-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2232A-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2232A-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2232A-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2232D-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2232D-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2232D-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2242-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2242-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2242-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2242-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2242V-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2242V-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2242V-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2242V-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2242E-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2242E-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2242E-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2242A-03-5G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2242A-03-1GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2242A-03-2GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2242A-03-4GR1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2242D-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2242D-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2242D-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2322-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2322-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2322-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2322-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2322V-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2322V-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2322V-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2322V-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2322E-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2322E-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2322E-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2322A-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2322A-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2322A-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2322A-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2322D-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2322D-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2322D-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2332-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2332-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2332-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2332-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2332V-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2332V-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2332V-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2332V-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2332E-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2332E-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2332E-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2332A-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2332A-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2332A-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2332A-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2332D-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2332D-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2332D-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2342-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2342-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2342-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2342-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2342V-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2342V-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2342V-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2342V-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2342E-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2342E-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2342E-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2342A-02-5G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2342A-02-1GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2342A-02-2GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2342A-02-4GR1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2342D-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2342D-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2342D-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2322-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2322-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2322-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2322-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2322V-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2322V-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2322V-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2322V-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2322E-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2322E-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2322E-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2322A-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2322A-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2322A-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2322A-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2322D-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2322D-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2322D-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2332-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2332-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2332-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2332-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2332V-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2332V-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2332V-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2332V-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2332E-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2332E-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2332E-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2332A-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2332A-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2332A-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2332A-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2332D-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2332D-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2332D-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2342-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
VXK2342-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
VXK2342-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
VXK2342-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
VXK2342V-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
VXK2342V-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
VXK2342V-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
VXK2342V-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
VXK2342E-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
VXK2342E-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
VXK2342E-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
VXK2342A-03-5G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
VXK2342A-03-1GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
VXK2342A-03-2GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
VXK2342A-03-4GR1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
VXK2342D-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
VXK2342D-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
VXK2342D-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
VXK2230S-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2230S-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2230S-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2240S-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2240S-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2240S-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2250S-02-1G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2250S-02-2G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2250S-02-4G1		Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2220S-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2220S-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2220S-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2230S-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2230S-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2230S-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2240S-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2240S-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2240S-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2250S-03-1G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2250S-03-2G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2250S-03-4G1		Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2330S-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2330S-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2330S-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2340S-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2340S-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2340S-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2350S-02-1G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2350S-02-2G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2350S-02-4G1		Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2330S-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2330S-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2330S-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2340S-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2340S-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2340S-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2350S-03-1G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2350S-03-2G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2350S-03-4G1		Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2222S-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2222S-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2222S-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2232S-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2232S-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2232S-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2242S-02-1G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2242S-02-2G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2242S-02-4G1		Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2222S-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2222S-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2222S-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2232S-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2232S-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2232S-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2242S-03-1G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2242S-03-2G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2242S-03-4G1		Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2332S-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2332S-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2332S-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2342S-02-1G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2342S-02-2G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2342S-02-4G1		Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2332S-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2332S-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2332S-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
VXK2342S-03-1G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
VXK2342S-03-2G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
VXK2342S-03-4G1		Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet

2-Port ValvesSMC

789 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXK21/22/23 Direct Operated 2-Port Solenoid Valve (Y-Strainer)

Brand SMC·2-Port Valves

Available part numbers (789)

VXK2110-01-5G1, VXK2110-01-1GR1, VXK2110-01-2GR1, VXK2110-01-4GR1, VXK2110V-01-5G1, VXK2110V-01-1GR1, VXK2110V-01-2GR1, VXK2110V-01-4GR1, VXK2110E-01-1G1, VXK2110E-01-2G1 + 779 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VXK2110-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2110-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2110-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2110-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2110V-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2110V-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2110V-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2110V-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2110E-01-1G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2110E-01-2G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2110E-01-4G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2110A-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2110A-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2110A-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2110A-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2110D-01-1G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2110D-01-2G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2110D-01-4G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2120-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2120-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2120-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2120-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2120V-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2120V-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2120V-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2120V-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2120E-01-1G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2120E-01-2G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2120E-01-4G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2120A-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2120A-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2120A-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2120A-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2120D-01-1G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2120D-01-2G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2120D-01-4G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2130-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2130-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2130-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2130-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2130V-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2130V-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2130V-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2130V-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2130E-01-1G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2130E-01-2G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2130E-01-4G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2130A-01-5G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2130A-01-1GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2130A-01-2GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2130A-01-4GR1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2130D-01-1G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2130D-01-2G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2130D-01-4G1	Model: VXK21 N.C. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2110-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2110-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2110-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2110-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2110V-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2110V-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2110V-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2110V-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2110E-02-1G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2110E-02-2G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2110E-02-4G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2110A-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2110A-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2110A-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2110A-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2110D-02-1G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2110D-02-2G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2110D-02-4G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2120-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2120-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2120-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2120-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2120V-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2120V-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2120V-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2120V-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2120E-02-1G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2120E-02-2G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2120E-02-4G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2120A-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2120A-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2120A-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2120A-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2120D-02-1G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2120D-02-2G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2120D-02-4G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2130-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2130-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2130-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2130-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2130V-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2130V-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2130V-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2130V-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2130E-02-1G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2130E-02-2G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2130E-02-4G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2130A-02-5G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2130A-02-1GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2130A-02-2GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2130A-02-4GR1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2130D-02-1G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2130D-02-2G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2130D-02-4G1	Model: VXK21 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2220-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2220-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2220-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2220-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2220V-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2220V-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2220V-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2220V-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2220E-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2220E-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2220E-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2220A-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2220A-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2220A-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2220A-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2220D-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2220D-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2220D-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2230-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2230-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2230-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2230-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2230V-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2230V-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2230V-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2230V-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2230E-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2230E-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2230E-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2230A-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2230A-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2230A-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2230A-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2230D-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2230D-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2230D-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2240-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2240-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2240-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2240-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2240V-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2240V-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2240V-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2240V-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2240E-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2240E-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2240E-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2240A-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2240A-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2240A-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2240A-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2240D-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2240D-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2240D-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2250-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2250-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2250-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2250-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2250V-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2250V-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2250V-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2250V-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2250E-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2250E-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2250E-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2250A-02-5G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2250A-02-1GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2250A-02-2GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2250A-02-4GR1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2250D-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2250D-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2250D-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2220-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2220-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2220-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2220-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2220V-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2220V-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2220V-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2220V-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2220E-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2220E-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2220E-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2220A-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2220A-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2220A-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2220A-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2220D-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2220D-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2220D-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2230-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2230-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2230-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2230-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2230V-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2230V-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2230V-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2230V-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2230E-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2230E-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2230E-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2230A-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2230A-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2230A-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2230A-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2230D-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2230D-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2230D-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2240-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2240-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2240-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2240-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2240V-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2240V-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2240V-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2240V-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2240E-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2240E-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2240E-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2240A-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2240A-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2240A-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2240A-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2240D-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2240D-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2240D-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2250-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2250-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2250-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2250-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2250V-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2250V-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2250V-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2250V-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2250E-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2250E-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2250E-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2250A-03-5G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2250A-03-1GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2250A-03-2GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2250A-03-4GR1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2250D-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2250D-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2250D-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2320-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2320-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2320-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2320-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2320V-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2320V-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2320V-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2320V-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2320E-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2320E-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2320E-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2320A-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2320A-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2320A-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2320A-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2320D-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2320D-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2320D-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2330-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2330-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2330-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2330-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2330V-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2330V-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2330V-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2330V-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2330E-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2330E-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2330E-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2330A-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2330A-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2330A-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2330A-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2330D-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2330D-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2330D-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2340-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2340-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2340-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2340-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2340V-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2340V-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2340V-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2340V-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2340E-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2340E-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2340E-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2340A-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2340A-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2340A-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2340A-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2340D-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2340D-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2340D-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2350-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2350-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2350-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2350-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2350V-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2350V-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2350V-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2350V-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2350E-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2350E-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2350E-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2350A-02-5G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2350A-02-1GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2350A-02-2GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2350A-02-4GR1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2350D-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2350D-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2350D-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2320-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2320-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2320-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2320-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2320V-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2320V-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2320V-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2320V-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2320E-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2320E-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2320E-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2320A-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2320A-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2320A-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2320A-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2320D-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2320D-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2320D-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2330-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2330-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2330-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2330-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2330V-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2330V-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2330V-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2330V-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2330E-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2330E-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2330E-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2330A-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2330A-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2330A-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2330A-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2330D-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2330D-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2330D-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2340-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2340-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2340-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2340-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2340V-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2340V-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2340V-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2340V-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2340E-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2340E-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2340E-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2340A-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2340A-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2340A-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2340A-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2340D-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2340D-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2340D-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2350-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2350-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2350-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2350-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2350V-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2350V-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2350V-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2350V-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2350E-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2350E-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2350E-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2350A-03-5G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2350A-03-1GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2350A-03-2GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2350A-03-4GR1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2350D-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2350D-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2350D-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2112-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2112-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2112-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2112-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2112V-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2112V-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2112V-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2112V-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2112E-01-1G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2112E-01-2G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2112E-01-4G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2112A-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2112A-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2112A-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2112A-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2112D-01-1G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2112D-01-2G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2112D-01-4G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2122-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2122-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2122-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2122-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2122V-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2122V-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2122V-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2122V-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2122E-01-1G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2122E-01-2G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2122E-01-4G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2122A-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2122A-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2122A-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2122A-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2122D-01-1G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2122D-01-2G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2122D-01-4G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2132-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2132-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2132-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2132-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2132V-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2132V-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2132V-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2132V-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2132E-01-1G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2132E-01-2G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2132E-01-4G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2132A-01-5G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2132A-01-1GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2132A-01-2GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2132A-01-4GR1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2132D-01-1G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2132D-01-2G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2132D-01-4G1	Model: VXK21 N.O. \| Port: Rc1/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2112-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2112-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2112-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2112-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2112V-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2112V-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2112V-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2112V-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2112E-02-1G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2112E-02-2G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2112E-02-4G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2112A-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2112A-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2112A-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2112A-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2112D-02-1G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2112D-02-2G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2112D-02-4G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø2 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2122-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2122-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2122-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2122-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2122V-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2122V-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2122V-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2122V-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2122E-02-1G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2122E-02-2G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2122E-02-4G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2122A-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2122A-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2122A-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2122A-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2122D-02-1G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2122D-02-2G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2122D-02-4G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2132-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2132-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2132-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2132-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2132V-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2132V-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2132V-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2132V-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2132E-02-1G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2132E-02-2G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2132E-02-4G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2132A-02-5G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2132A-02-1GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2132A-02-2GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2132A-02-4GR1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2132D-02-1G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2132D-02-2G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2132D-02-4G1	Model: VXK21 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2222-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2222-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2222-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2222-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2222V-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2222V-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2222V-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2222V-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2222E-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2222E-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2222E-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2222A-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2222A-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2222A-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2222A-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2222D-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2222D-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2222D-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2232-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2232-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2232-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2232-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2232V-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2232V-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2232V-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2232V-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2232E-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2232E-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2232E-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2232A-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2232A-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2232A-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2232A-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2232D-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2232D-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2232D-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2242-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2242-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2242-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2242-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2242V-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2242V-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2242V-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2242V-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2242E-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2242E-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2242E-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2242A-02-5G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2242A-02-1GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2242A-02-2GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2242A-02-4GR1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2242D-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2242D-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2242D-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2222-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2222-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2222-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2222-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2222V-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2222V-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2222V-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2222V-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2222E-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2222E-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2222E-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2222A-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2222A-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2222A-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2222A-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2222D-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2222D-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2222D-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2232-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2232-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2232-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2232-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2232V-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2232V-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2232V-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2232V-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2232E-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2232E-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2232E-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2232A-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2232A-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2232A-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2232A-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2232D-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2232D-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2232D-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2242-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2242-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2242-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2242-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2242V-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2242V-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2242V-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2242V-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2242E-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2242E-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2242E-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2242A-03-5G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2242A-03-1GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2242A-03-2GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2242A-03-4GR1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2242D-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2242D-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2242D-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2322-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2322-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2322-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2322-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2322V-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2322V-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2322V-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2322V-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2322E-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2322E-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2322E-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2322A-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2322A-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2322A-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2322A-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2322D-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2322D-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2322D-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2332-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2332-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2332-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2332-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2332V-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2332V-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2332V-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2332V-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2332E-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2332E-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2332E-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2332A-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2332A-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2332A-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2332A-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2332D-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2332D-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2332D-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2342-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2342-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2342-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2342-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2342V-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2342V-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2342V-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2342V-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2342E-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2342E-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2342E-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2342A-02-5G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2342A-02-1GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2342A-02-2GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2342A-02-4GR1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2342D-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2342D-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2342D-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2322-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2322-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2322-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2322-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2322V-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2322V-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2322V-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2322V-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2322E-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2322E-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2322E-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2322A-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2322A-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2322A-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2322A-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2322D-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2322D-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2322D-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2332-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2332-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2332-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2332-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2332V-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2332V-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2332V-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2332V-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2332E-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2332E-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2332E-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2332A-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2332A-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2332A-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2332A-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2332D-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2332D-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2332D-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2342-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: DC24V, grommet
	VXK2342-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC100V, grommet, rectifier
	VXK2342-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC200V, grommet, rectifier
	VXK2342-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: NBR, class B (air/water) \| Coil: AC220V, grommet, rectifier
	VXK2342V-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: DC24V, grommet
	VXK2342V-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC100V, grommet, rectifier
	VXK2342V-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC200V, grommet, rectifier
	VXK2342V-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, leak-free/vacuum, oil-free \| Coil: AC220V, grommet, rectifier
	VXK2342E-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC100V, grommet
	VXK2342E-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC200V, grommet
	VXK2342E-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: EPDM, class H (hot water) \| Coil: AC220V, grommet
	VXK2342A-03-5G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: DC24V, grommet
	VXK2342A-03-1GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC100V, grommet, rectifier
	VXK2342A-03-2GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC200V, grommet, rectifier
	VXK2342A-03-4GR1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class B (oil) \| Coil: AC220V, grommet, rectifier
	VXK2342D-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC100V, grommet
	VXK2342D-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC200V, grommet
	VXK2342D-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: FKM, class H (hot oil) \| Coil: AC220V, grommet
	VXK2230S-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2230S-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2230S-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2240S-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2240S-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2240S-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2250S-02-1G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2250S-02-2G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2250S-02-4G1	Model: VXK22 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2220S-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2220S-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2220S-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2230S-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2230S-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2230S-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2240S-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2240S-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2240S-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2250S-03-1G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2250S-03-2G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2250S-03-4G1	Model: VXK22 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2330S-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2330S-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2330S-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2340S-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2340S-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2340S-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2350S-02-1G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2350S-02-2G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2350S-02-4G1	Model: VXK23 N.C. \| Port: Rc1/4 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2330S-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2330S-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2330S-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2340S-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2340S-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2340S-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2350S-03-1G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2350S-03-2G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2350S-03-4G1	Model: VXK23 N.C. \| Port: Rc3/8 \| Orifice: ø8 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2222S-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2222S-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2222S-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2232S-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2232S-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2232S-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2242S-02-1G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2242S-02-2G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2242S-02-4G1	Model: VXK22 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2222S-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2222S-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2222S-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø3 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2232S-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2232S-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2232S-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2242S-03-1G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2242S-03-2G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2242S-03-4G1	Model: VXK22 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2332S-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2332S-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2332S-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2342S-02-1G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2342S-02-2G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2342S-02-4G1	Model: VXK23 N.O. \| Port: Rc1/4 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2332S-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2332S-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2332S-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø4.5 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet
	VXK2342S-03-1G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC100V, grommet
	VXK2342S-03-2G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC200V, grommet
	VXK2342S-03-4G1	Model: VXK23 N.O. \| Port: Rc3/8 \| Orifice: ø6 mm \| Seal: PTFE, class H (steam) \| Coil: AC220V, grommet

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC VXK21/22/23 Direct Operated 2-Port Solenoid Valve (Y-Strainer)
