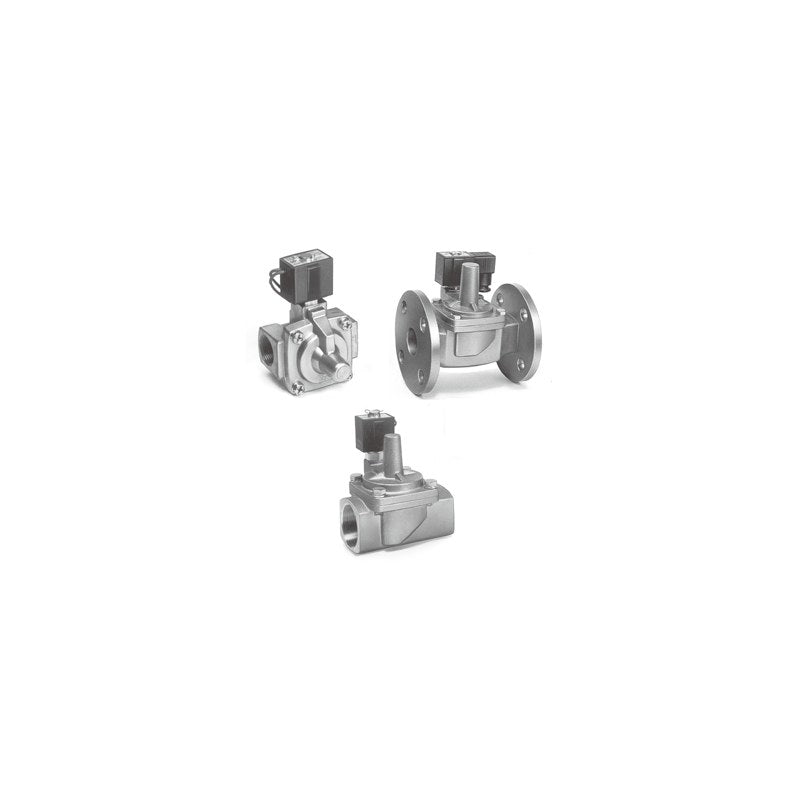

SMC VXP21/22/23 Pilot Operated 2-Port Solenoid Valve (N.C./N.O.)

SMC VXP21/22/23 Pilot Operated 2-Port Solenoid Valve (N.C./N.O.)

SMC VXP21/22/23 series pilot-operated 2-port solenoid valve for air, gas, steam, water and oil, N.C. or N.O., with threaded 1/4" to 2" or 32A to 50A flange body.

Key features

  • N.C. and N.O. valve types, orifice ø10 to ø50 mm
  • Body C37/CAC408 or stainless steel; seal NBR, FKM, EPDM or PTFE selected by solenoid valve option letter
  • Threaded body Rc1/4 to Rc2 or flange 32A/40A/50A; NPTF (T), G (F), NPT (N) on order
  • Coil class B (H-class options D, E, N, P, Q, S for hot water/oil/steam); listed codes cover DC24V, AC100V, AC200V, AC220V
  • Electrical entry G grommet (listed), C conduit, D DIN terminal, T conduit terminal; S/L/Z electrical options, bracket (B), CE/UKCA (Q)
  • Quick disassembly/assembly; drip-proof (-X36) made to order

Specifications

Valve structure Pilot-operated diaphragm
Fluid Air, gas, steam, water, oil
Max. system pressure 1.5 MPa (steam 1.0 MPa)
Min. operating pressure differential 0.03 to 0.04 MPa
Max. operating pressure differential (N.C.) Up to 1.0 MPa (size dependent)
Max. operating pressure differential (N.O.) 0.7 MPa (oil 0.6 MPa)
Flow (Kv) 1.6 (10A) to 43 (50A)
Coil insulation Class B (standard)
Allowable voltage fluctuation ±10% of rated voltage
Source SMC Korea catalog VXP21/22/23 (SMCKR_VXP.pdf), p. 311-316
VXP2130-02-5G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2130-02-1G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2130-02-2G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2130-02-4G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2130C-02-5G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2130C-02-1G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2130C-02-2G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2130C-02-4G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2130K-02-5G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2130K-02-1G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2130K-02-2G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2130K-02-4G Valve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2130-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2130-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2130-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2130-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2130C-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2130C-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2130C-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2130C-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2130K-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2130K-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2130K-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2130K-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2140-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2140-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2140-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2140-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2140A-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2140A-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2140A-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2140A-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2140B-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2140B-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2140B-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2140B-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2140C-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2140C-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2140C-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2140C-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2140G-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2140G-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2140G-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2140G-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2140H-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2140H-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2140H-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2140H-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2140J-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2140J-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2140J-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2140J-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2140K-03-5G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2140K-03-1G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2140K-03-2G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2140K-03-4G Valve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2130-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2130-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2130-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2130-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2130C-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2130C-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2130C-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2130C-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2130K-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2130K-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2130K-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2130K-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2140-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2140-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2140-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2140-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2140A-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2140A-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2140A-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2140A-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2140B-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2140B-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2140B-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2140B-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2140C-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2140C-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2140C-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2140C-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2140G-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2140G-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2140G-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2140G-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2140H-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2140H-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2140H-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2140H-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2140J-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2140J-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2140J-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2140J-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2140K-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2140K-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2140K-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2140K-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2150-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2150-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2150-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2150-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2150A-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2150A-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2150A-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2150A-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2150B-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2150B-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2150B-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2150B-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2150C-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2150C-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2150C-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2150C-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2150G-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2150G-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2150G-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2150G-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2150H-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2150H-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2150H-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2150H-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2150J-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2150J-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2150J-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2150J-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2150K-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2150K-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2150K-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2150K-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2260-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2260-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2260-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2260-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2260A-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2260A-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2260A-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2260A-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2260B-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2260B-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2260B-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2260B-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2260C-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2260C-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2260C-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2260C-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2260G-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2260G-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2260G-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2260G-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2260H-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2260H-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2260H-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2260H-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2260J-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2260J-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2260J-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2260J-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2260K-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2260K-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2260K-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2260K-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2270-12-5G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2270-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2270-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2270-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2270A-12-5G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2270A-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2270A-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2270A-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2270B-12-5G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2270B-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2270B-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2270B-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2270C-12-5G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2270C-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2270C-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2270C-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2380-14-5G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2380-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2380-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2380-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2380A-14-5G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2380A-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2380A-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2380A-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2380B-14-5G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2380B-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2380B-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2380B-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2380C-14-5G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2380C-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2380C-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2380C-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2390-20-5G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2390-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2390-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2390-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2390A-20-5G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2390A-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2390A-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2390A-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2390B-20-5G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2390B-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2390B-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2390B-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2390C-20-5G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2390C-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2390C-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2390C-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2270-32-5G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2270-32-1G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2270-32-2G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2270-32-4G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2270A-32-5G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2270A-32-1G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2270A-32-2G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2270A-32-4G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2270B-32-5G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2270B-32-1G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2270B-32-2G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2270B-32-4G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2270C-32-5G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2270C-32-1G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2270C-32-2G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2270C-32-4G Valve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2380-40-5G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2380-40-1G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2380-40-2G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2380-40-4G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2380A-40-5G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2380A-40-1G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2380A-40-2G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2380A-40-4G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2380B-40-5G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2380B-40-1G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2380B-40-2G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2380B-40-4G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2380C-40-5G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2380C-40-1G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2380C-40-2G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2380C-40-4G Valve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2390-50-5G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2390-50-1G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2390-50-2G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2390-50-4G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2390A-50-5G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2390A-50-1G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2390A-50-2G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2390A-50-4G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2390B-50-5G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2390B-50-1G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2390B-50-2G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2390B-50-4G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2390C-50-5G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2390C-50-1G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2390C-50-2G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2390C-50-4G Valve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2142-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2142-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2142-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2142-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2142A-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2142A-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2142A-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2142A-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2142B-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2142B-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2142B-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2142B-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2142C-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2142C-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2142C-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2142C-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2142G-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2142G-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2142G-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2142G-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2142H-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2142H-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2142H-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2142H-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2142J-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2142J-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2142J-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2142J-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2142K-03-5G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2142K-03-1G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2142K-03-2G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2142K-03-4G Valve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2142-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2142-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2142-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2142-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2142A-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2142A-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2142A-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2142A-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2142B-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2142B-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2142B-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2142B-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2142C-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2142C-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2142C-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2142C-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2142G-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2142G-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2142G-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2142G-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2142H-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2142H-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2142H-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2142H-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2142J-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2142J-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2142J-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2142J-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2142K-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2142K-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2142K-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2142K-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2152-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2152-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2152-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2152-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2152A-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2152A-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2152A-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2152A-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2152B-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2152B-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2152B-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2152B-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2152C-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2152C-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2152C-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2152C-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2152G-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2152G-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2152G-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2152G-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2152H-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2152H-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2152H-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2152H-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2152J-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2152J-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2152J-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2152J-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2152K-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2152K-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2152K-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2152K-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2262-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2262-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2262-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2262-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2262A-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2262A-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2262A-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2262A-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2262B-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2262B-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2262B-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2262B-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2262C-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2262C-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2262C-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2262C-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2262G-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2262G-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2262G-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2262G-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2262H-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2262H-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2262H-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2262H-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2262J-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2262J-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2262J-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2262J-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2262K-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2262K-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2262K-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2262K-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2272-12-5G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2272-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2272-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2272-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2272A-12-5G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2272A-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2272A-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2272A-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2272B-12-5G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2272B-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2272B-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2272B-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2272C-12-5G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2272C-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2272C-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2272C-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2382-14-5G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2382-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2382-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2382-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2382A-14-5G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2382A-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2382A-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2382A-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2382B-14-5G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2382B-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2382B-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2382B-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2382C-14-5G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2382C-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2382C-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2382C-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2392-20-5G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2392-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2392-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2392-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2392A-20-5G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2392A-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2392A-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2392A-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2392B-20-5G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2392B-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2392B-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2392B-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2392C-20-5G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2392C-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2392C-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2392C-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2272-32-5G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2272-32-1G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2272-32-2G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2272-32-4G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2272A-32-5G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2272A-32-1G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2272A-32-2G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2272A-32-4G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2272B-32-5G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2272B-32-1G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2272B-32-2G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2272B-32-4G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2272C-32-5G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2272C-32-1G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2272C-32-2G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2272C-32-4G Valve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2382-40-5G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2382-40-1G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2382-40-2G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2382-40-4G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2382A-40-5G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2382A-40-1G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2382A-40-2G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2382A-40-4G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2382B-40-5G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2382B-40-1G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2382B-40-2G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2382B-40-4G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2382C-40-5G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2382C-40-1G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2382C-40-2G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2382C-40-4G Valve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2392-50-5G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2392-50-1G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2392-50-2G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2392-50-4G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2392A-50-5G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2392A-50-1G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2392A-50-2G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2392A-50-4G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2392B-50-5G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2392B-50-1G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2392B-50-2G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2392B-50-4G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2392C-50-5G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2392C-50-1G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2392C-50-2G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2392C-50-4G Valve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
2-Port ValvesSMC
484 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXP21/22/23 Pilot Operated 2-Port Solenoid Valve (N.C./N.O.)

Brand SMC·2-Port Valves

Available part numbers (484)

VXP2130-02-5G, VXP2130-02-1G, VXP2130-02-2G, VXP2130-02-4G, VXP2130C-02-5G, VXP2130C-02-1G, VXP2130C-02-2G, VXP2130C-02-4G, VXP2130K-02-5G, VXP2130K-02-1G + 474 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXP2130-02-5GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2130-02-1GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2130-02-2GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2130-02-4GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2130C-02-5GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2130C-02-1GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2130C-02-2GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2130C-02-4GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2130K-02-5GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2130K-02-1GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2130K-02-2GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2130K-02-4GValve type: N.C. | Port: Rc1/4 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2130-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2130-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2130-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2130-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2130C-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2130C-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2130C-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2130C-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2130K-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2130K-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2130K-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2130K-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2140-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2140-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2140-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2140-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2140A-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2140A-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2140A-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2140A-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2140B-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2140B-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2140B-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2140B-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2140C-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2140C-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2140C-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2140C-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2140G-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2140G-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2140G-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2140G-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2140H-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2140H-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2140H-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2140H-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2140J-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2140J-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2140J-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2140J-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2140K-03-5GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2140K-03-1GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2140K-03-2GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2140K-03-4GValve type: N.C. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2130-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2130-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2130-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2130-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2130C-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2130C-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2130C-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2130C-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2130K-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2130K-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2130K-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2130K-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø10 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2140-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2140-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2140-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2140-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2140A-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2140A-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2140A-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2140A-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2140B-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2140B-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2140B-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2140B-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2140C-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2140C-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2140C-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2140C-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2140G-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2140G-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2140G-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2140G-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2140H-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2140H-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2140H-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2140H-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2140J-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2140J-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2140J-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2140J-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2140K-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2140K-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2140K-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2140K-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2150-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2150-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2150-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2150-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2150A-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2150A-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2150A-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2150A-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2150B-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2150B-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2150B-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2150B-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2150C-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2150C-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2150C-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2150C-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2150G-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2150G-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2150G-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2150G-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2150H-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2150H-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2150H-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2150H-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2150J-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2150J-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2150J-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2150J-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2150K-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2150K-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2150K-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2150K-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2260-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2260-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2260-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2260-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2260A-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2260A-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2260A-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2260A-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2260B-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2260B-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2260B-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2260B-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2260C-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2260C-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2260C-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2260C-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2260G-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2260G-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2260G-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2260G-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2260H-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2260H-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2260H-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2260H-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2260J-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2260J-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2260J-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2260J-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2260K-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2260K-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2260K-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2260K-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2270-12-5GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2270-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2270-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2270-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2270A-12-5GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2270A-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2270A-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2270A-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2270B-12-5GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2270B-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2270B-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2270B-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2270C-12-5GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2270C-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2270C-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2270C-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2380-14-5GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2380-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2380-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2380-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2380A-14-5GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2380A-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2380A-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2380A-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2380B-14-5GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2380B-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2380B-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2380B-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2380C-14-5GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2380C-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2380C-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2380C-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2390-20-5GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2390-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2390-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2390-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2390A-20-5GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2390A-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2390A-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2390A-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2390B-20-5GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2390B-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2390B-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2390B-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2390C-20-5GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2390C-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2390C-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2390C-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2270-32-5GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2270-32-1GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2270-32-2GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2270-32-4GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2270A-32-5GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2270A-32-1GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2270A-32-2GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2270A-32-4GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2270B-32-5GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2270B-32-1GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2270B-32-2GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2270B-32-4GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2270C-32-5GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2270C-32-1GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2270C-32-2GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2270C-32-4GValve type: N.C. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2380-40-5GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2380-40-1GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2380-40-2GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2380-40-4GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2380A-40-5GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2380A-40-1GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2380A-40-2GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2380A-40-4GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2380B-40-5GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2380B-40-1GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2380B-40-2GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2380B-40-4GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2380C-40-5GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2380C-40-1GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2380C-40-2GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2380C-40-4GValve type: N.C. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2390-50-5GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2390-50-1GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2390-50-2GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2390-50-4GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2390A-50-5GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2390A-50-1GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2390A-50-2GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2390A-50-4GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2390B-50-5GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2390B-50-1GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2390B-50-2GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2390B-50-4GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2390C-50-5GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2390C-50-1GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2390C-50-2GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2390C-50-4GValve type: N.C. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2142-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2142-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2142-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2142-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2142A-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2142A-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2142A-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2142A-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2142B-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2142B-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2142B-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2142B-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2142C-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2142C-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2142C-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2142C-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2142G-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2142G-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2142G-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2142G-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2142H-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2142H-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2142H-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2142H-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2142J-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2142J-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2142J-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2142J-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2142K-03-5GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2142K-03-1GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2142K-03-2GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2142K-03-4GValve type: N.O. | Port: Rc3/8 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2142-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2142-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2142-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2142-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2142A-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2142A-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2142A-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2142A-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2142B-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2142B-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2142B-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2142B-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2142C-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2142C-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2142C-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2142C-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2142G-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2142G-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2142G-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2142G-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2142H-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2142H-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2142H-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2142H-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2142J-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2142J-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2142J-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2142J-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2142K-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2142K-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2142K-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2142K-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø15 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2152-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2152-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2152-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2152-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2152A-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2152A-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2152A-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2152A-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2152B-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2152B-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2152B-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2152B-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2152C-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2152C-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2152C-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2152C-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2152G-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2152G-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2152G-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2152G-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2152H-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2152H-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2152H-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2152H-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2152J-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2152J-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2152J-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2152J-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2152K-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2152K-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2152K-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2152K-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2262-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2262-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2262-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2262-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2262A-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2262A-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2262A-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2262A-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2262B-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2262B-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2262B-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2262B-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2262C-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2262C-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2262C-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2262C-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2262G-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: DC24V, grommet
VXP2262G-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC100V, grommet
VXP2262G-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC200V, grommet
VXP2262G-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: NBR / SUS | Coil: AC220V, grommet
VXP2262H-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: DC24V, grommet
VXP2262H-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC100V, grommet
VXP2262H-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC200V, grommet
VXP2262H-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: FKM / SUS | Coil: AC220V, grommet
VXP2262J-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: DC24V, grommet
VXP2262J-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC100V, grommet
VXP2262J-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC200V, grommet
VXP2262J-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: EPDM / SUS | Coil: AC220V, grommet
VXP2262K-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: DC24V, grommet
VXP2262K-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC100V, grommet
VXP2262K-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC200V, grommet
VXP2262K-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal / body: PTFE / SUS | Coil: AC220V, grommet
VXP2272-12-5GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2272-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2272-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2272-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2272A-12-5GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2272A-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2272A-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2272A-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2272B-12-5GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2272B-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2272B-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2272B-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2272C-12-5GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2272C-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2272C-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2272C-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2382-14-5GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2382-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2382-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2382-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2382A-14-5GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2382A-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2382A-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2382A-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2382B-14-5GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2382B-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2382B-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2382B-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2382C-14-5GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2382C-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2382C-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2382C-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2392-20-5GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2392-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2392-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2392-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2392A-20-5GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2392A-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2392A-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2392A-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2392B-20-5GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2392B-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2392B-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2392B-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2392C-20-5GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2392C-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2392C-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2392C-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2272-32-5GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2272-32-1GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2272-32-2GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2272-32-4GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2272A-32-5GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2272A-32-1GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2272A-32-2GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2272A-32-4GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2272B-32-5GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2272B-32-1GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2272B-32-2GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2272B-32-4GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2272C-32-5GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2272C-32-1GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2272C-32-2GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2272C-32-4GValve type: N.O. | Port: 32A flange | Orifice: ø35 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2382-40-5GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2382-40-1GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2382-40-2GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2382-40-4GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2382A-40-5GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2382A-40-1GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2382A-40-2GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2382A-40-4GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2382B-40-5GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2382B-40-1GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2382B-40-2GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2382B-40-4GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2382C-40-5GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2382C-40-1GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2382C-40-2GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2382C-40-4GValve type: N.O. | Port: 40A flange | Orifice: ø40 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet
VXP2392-50-5GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: DC24V, grommet
VXP2392-50-1GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC100V, grommet
VXP2392-50-2GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC200V, grommet
VXP2392-50-4GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: NBR / C37-CAC408 (std) | Coil: AC220V, grommet
VXP2392A-50-5GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: DC24V, grommet
VXP2392A-50-1GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC100V, grommet
VXP2392A-50-2GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC200V, grommet
VXP2392A-50-4GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: FKM / C37-CAC408 | Coil: AC220V, grommet
VXP2392B-50-5GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: DC24V, grommet
VXP2392B-50-1GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC100V, grommet
VXP2392B-50-2GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC200V, grommet
VXP2392B-50-4GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: EPDM / C37-CAC408 | Coil: AC220V, grommet
VXP2392C-50-5GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: DC24V, grommet
VXP2392C-50-1GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC100V, grommet
VXP2392C-50-2GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC200V, grommet
VXP2392C-50-4GValve type: N.O. | Port: 50A flange | Orifice: ø50 mm | Seal / body: PTFE / C37-CAC408 | Coil: AC220V, grommet

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
