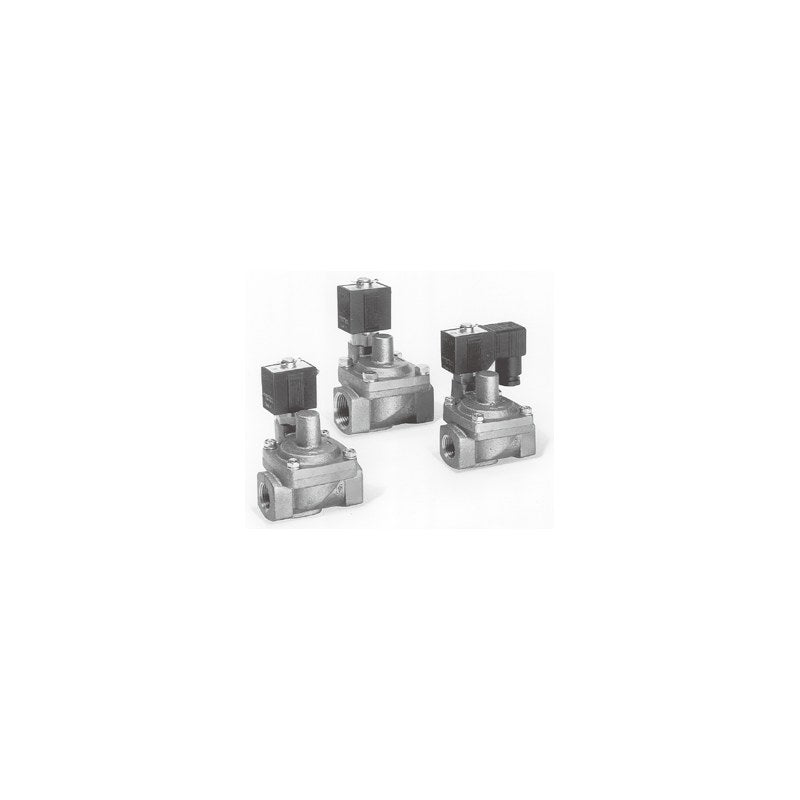

SMC VXR21/22/23 Water Hammer Relief Pilot 2-Port Solenoid Valve

SMC VXR21/22/23 Water Hammer Relief Pilot 2-Port Solenoid Valve

SMC VXR21/22/23 series water hammer relief, pilot-operated 2-port solenoid valve for water and oil, N.C. or N.O., Rc1/2 to Rc2.

Key features

  • Water hammer relief construction; quick disassembly and assembly
  • N.C. and N.O. types, orifice ø20 to ø50 mm, CAC408 body
  • Seal NBR (standard), FKM (A) or FKM with class H coil (D, AC only) for hot water / heavy oil to 80°C
  • Listed codes cover DC24V, AC100V, AC200V, AC220V; AC110V, 240V, 48V and DC12V available
  • Electrical entry G grommet (listed), C conduit, D DIN terminal, T conduit terminal; S/L/Z electrical options
  • NPTF (T), G (F), NPT (N) port threads on order; drip-proof (-X36) made to order

Specifications

Valve structure Pilot-operated diaphragm, water hammer relief
Fluid Water (to 60°C), turbine oil
Body material CAC408
Max. system pressure 1.5 MPa
Min. operating pressure differential 0.04 MPa
Max. operating pressure differential N.C. 1.0 MPa water / 0.7 MPa oil; N.O. 0.7 / 0.6 MPa
Flow (Kv) 5.7 (1/2") to 42.8 (2")
Ambient temperature -10 to 60°C (DC 40°C)
Allowable voltage fluctuation ±10% of rated voltage
Source SMC Korea catalog VXR21/22/23 (SMCKR_VXR.pdf), p. 323-328
VXR2150-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2150-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2150-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2150-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2150A-04-5G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2150A-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2150A-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2150A-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2150D-04-1G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2150D-04-2G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2150D-04-4G Valve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2150-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2150-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2150-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2150-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2150A-06-5G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2150A-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2150A-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2150A-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2150D-06-1G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2150D-06-2G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2150D-06-4G Valve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2260-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2260-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2260-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2260-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2260A-10-5G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2260A-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2260A-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2260A-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2260D-10-1G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2260D-10-2G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2260D-10-4G Valve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2270-12-5G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2270-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2270-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2270-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2270A-12-5G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2270A-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2270A-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2270A-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2270D-12-1G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2270D-12-2G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2270D-12-4G Valve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2380-14-5G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2380-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2380-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2380-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2380A-14-5G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2380A-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2380A-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2380A-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2380D-14-1G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2380D-14-2G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2380D-14-4G Valve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2390-20-5G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2390-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2390-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2390-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2390A-20-5G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2390A-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2390A-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2390A-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2390D-20-1G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2390D-20-2G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2390D-20-4G Valve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2152-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2152-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2152-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2152-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2152A-04-5G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2152A-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2152A-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2152A-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2152D-04-1G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2152D-04-2G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2152D-04-4G Valve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2152-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2152-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2152-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2152-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2152A-06-5G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2152A-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2152A-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2152A-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2152D-06-1G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2152D-06-2G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2152D-06-4G Valve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2262-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2262-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2262-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2262-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2262A-10-5G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2262A-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2262A-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2262A-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2262D-10-1G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2262D-10-2G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2262D-10-4G Valve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2272-12-5G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2272-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2272-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2272-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2272A-12-5G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2272A-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2272A-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2272A-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2272D-12-1G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2272D-12-2G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2272D-12-4G Valve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2382-14-5G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2382-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2382-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2382-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2382A-14-5G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2382A-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2382A-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2382A-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2382D-14-1G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2382D-14-2G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2382D-14-4G Valve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2392-20-5G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2392-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2392-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2392-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2392A-20-5G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2392A-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2392A-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2392A-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2392D-20-1G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2392D-20-2G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2392D-20-4G Valve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
2-Port ValvesSMC
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXR21/22/23 Water Hammer Relief Pilot 2-Port Solenoid Valve

Brand SMC·2-Port Valves

Available part numbers (132)

VXR2150-04-5G, VXR2150-04-1G, VXR2150-04-2G, VXR2150-04-4G, VXR2150A-04-5G, VXR2150A-04-1G, VXR2150A-04-2G, VXR2150A-04-4G, VXR2150D-04-1G, VXR2150D-04-2G + 122 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXR2150-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2150-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2150-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2150-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2150A-04-5GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2150A-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2150A-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2150A-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2150D-04-1GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2150D-04-2GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2150D-04-4GValve type: N.C. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2150-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2150-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2150-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2150-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2150A-06-5GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2150A-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2150A-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2150A-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2150D-06-1GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2150D-06-2GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2150D-06-4GValve type: N.C. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2260-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2260-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2260-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2260-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2260A-10-5GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2260A-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2260A-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2260A-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2260D-10-1GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2260D-10-2GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2260D-10-4GValve type: N.C. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2270-12-5GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2270-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2270-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2270-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2270A-12-5GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2270A-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2270A-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2270A-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2270D-12-1GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2270D-12-2GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2270D-12-4GValve type: N.C. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2380-14-5GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2380-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2380-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2380-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2380A-14-5GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2380A-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2380A-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2380A-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2380D-14-1GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2380D-14-2GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2380D-14-4GValve type: N.C. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2390-20-5GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2390-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2390-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2390-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2390A-20-5GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2390A-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2390A-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2390A-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2390D-20-1GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2390D-20-2GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2390D-20-4GValve type: N.C. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2152-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2152-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2152-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2152-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2152A-04-5GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2152A-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2152A-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2152A-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2152D-04-1GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2152D-04-2GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2152D-04-4GValve type: N.O. | Port: Rc1/2 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2152-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2152-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2152-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2152-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2152A-06-5GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2152A-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2152A-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2152A-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2152D-06-1GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2152D-06-2GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2152D-06-4GValve type: N.O. | Port: Rc3/4 | Orifice: ø20 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2262-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2262-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2262-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2262-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2262A-10-5GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2262A-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2262A-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2262A-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2262D-10-1GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2262D-10-2GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2262D-10-4GValve type: N.O. | Port: Rc1 | Orifice: ø25 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2272-12-5GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2272-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2272-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2272-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2272A-12-5GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2272A-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2272A-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2272A-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2272D-12-1GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2272D-12-2GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2272D-12-4GValve type: N.O. | Port: Rc1-1/4 | Orifice: ø35 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2382-14-5GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2382-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2382-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2382-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2382A-14-5GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2382A-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2382A-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2382A-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2382D-14-1GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2382D-14-2GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2382D-14-4GValve type: N.O. | Port: Rc1-1/2 | Orifice: ø40 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet
VXR2392-20-5GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: DC24V, grommet
VXR2392-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC100V, grommet
VXR2392-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC200V, grommet
VXR2392-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: NBR, class B coil (std) | Coil: AC220V, grommet
VXR2392A-20-5GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: DC24V, grommet
VXR2392A-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC100V, grommet
VXR2392A-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC200V, grommet
VXR2392A-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class B coil | Coil: AC220V, grommet
VXR2392D-20-1GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC100V, grommet
VXR2392D-20-2GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC200V, grommet
VXR2392D-20-4GValve type: N.O. | Port: Rc2 | Orifice: ø50 mm | Seal: FKM, class H coil (hot) | Coil: AC220V, grommet

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
