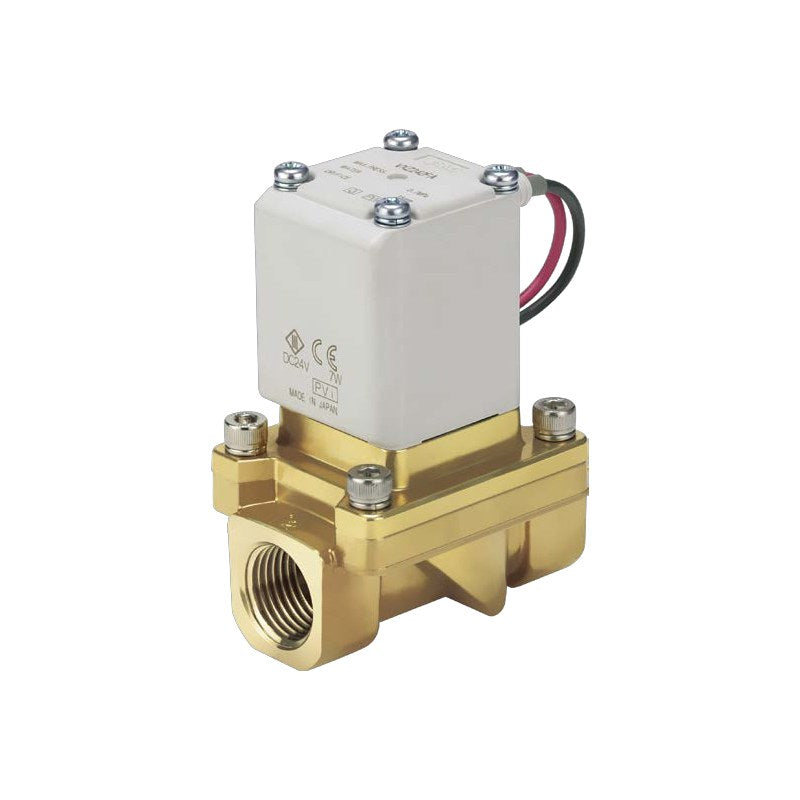

SMC VXZ 2-Port Solenoid Valve (Zero Differential, Pilot, 10A-25A)

SMC VXZ 2-Port Solenoid Valve (Zero Differential, Pilot, 10A-25A)

SMC VXZ series zero-differential-pressure pilot-operated 2-port diaphragm solenoid valve for air, water, oil, hot water and hot oil, N.C. or N.O., in 10A to 25A body sizes.

Key features

  • Operates from 0 MPa pressure differential; usable with zero hydraulic head
  • Fluid symbol sets the seal and coil: air/water NBR (class B), oil FKM (class B), hot water EPDM (class H), hot oil FKM (class H)
  • Bodies: C37 brass or stainless (all fluids), plus aluminium and resin bodies with one-touch fittings on the 10A air valve
  • Listed codes: DC24V grommet (A), AC100V/AC200V grommet with surge suppressor (B/D), AC220V special voltage grommet (Z1B)
  • Other entries ordered by symbol: DIN terminal (G-L), conduit terminal (M-R), conduit (S-W), flat terminal (Y); AC110V/AC230V, AC24V/48V/240V, DC12V and lamp (2x) or DIN-without-connector (3x) codes available
  • Other options: FKM seal for ozone/deionized water, oil-free, G or NPT thread, bracket, special lead wire direction and length (XL)

Specifications

Valve construction Zero differential pressure, pilot-operated diaphragm
Min. operating pressure differential 0 MPa
Max. operating pressure differential N.C. AC 1.0 / DC 0.7 MPa (air, water); oil types 0.7 MPa
Max. system pressure 1.5 MPa
Withstand pressure 2.0 MPa (resin body 1.5 MPa)
Enclosure IP65 (flat terminal IP40)
Allowable voltage fluctuation ±10% of rated voltage
AC coil Full-wave rectifier built in
Ambient temperature -20 to 60°C
Fluid temperature Air -10 to 60°C, water 1 to 60°C, oil -5 to 60°C, hot water to 99°C, hot oil to 100°C
Thread Rc (resin body: one-touch fitting)
Source SMC Korea catalog VXZ (SMCKR_VXZ__New_.pdf), p. 174-191 (PDF p. 4-21)
VXZ230AA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ230AB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230AD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230AZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230BA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ230BB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230BD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230BZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230CA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: DC24V | Electrical entry: Grommet
VXZ230CB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230CD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230CZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230DA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: DC24V | Electrical entry: Grommet
VXZ230DB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230DD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230DZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230EA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: DC24V | Electrical entry: Grommet
VXZ230EB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230ED Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230EZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232AA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ232AB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232AD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232AZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232BA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ232BB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232BD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232BZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232CA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ232CB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232CD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232CZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232DA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ232DB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232DD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232DZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233AA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ233AB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233AD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233AZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233BA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ233BB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233BD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233BZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233CA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ233CB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233CD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233CZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233DA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ233DB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233DD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233DZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235AA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ235AB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235AD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235AZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235BA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ235BB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235BD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235BZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235CA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ235CB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235CD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235CZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235DA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ235DB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235DD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235DZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236AA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ236AB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236AD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236AZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236BA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ236BB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236BD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236BZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236CA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ236CB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236CD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236CZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236DA Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ236DB Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236DD Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236DZ1B Size/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0AA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0AB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0AD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0AZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0BA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0BB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0BD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0BZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0CA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0CB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0CD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0CZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0DA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0DB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0DD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0DZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0EA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0EB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0ED Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0EZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2AA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2AB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2AD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2AZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2BA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2BB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2BD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2BZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2CA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2CB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2CD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2CZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2DA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2DB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2DD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2DZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3AA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3AB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3AD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3AZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3BA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3BB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3BD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3BZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3CA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3CB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3CD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3CZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3DA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3DB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3DD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3DZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5AA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5AB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5AD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5AZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5BA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5BB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5BD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5BZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5CA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5CB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5CD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5CZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5DA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5DB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5DD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5DZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6AA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6AB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6AD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6AZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6BA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6BB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6BD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6BZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6CA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6CB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6CD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6CZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6DA Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6DB Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6DD Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6DZ1B Size/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ240FA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ240FB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ240FD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ240FZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ240GA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ240GB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ240GD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ240GZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ242FA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ242FB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ242FD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ242FZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ242GA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ242GB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ242GD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ242GZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ243FA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ243FB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ243FD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ243FZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ243GA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ243GB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ243GD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ243GZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ245FA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ245FB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ245FD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ245FZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ245GA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ245GB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ245GD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ245GZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ246FA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ246FB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ246FD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ246FZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ246GA Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ246GB Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ246GD Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ246GZ1B Size/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B0FA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B0FB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B0FD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B0FZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B0GA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B0GB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B0GD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B0GZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B2FA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B2FB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B2FD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B2FZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B2GA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B2GB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B2GD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B2GZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B3FA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B3FB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B3FD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B3FZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B3GA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B3GB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B3GD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B3GZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B5FA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B5FB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B5FD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B5FZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B5GA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B5GB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B5GD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B5GZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B6FA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B6FB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B6FD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B6FZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B6GA Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B6GB Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B6GD Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B6GZ1B Size/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ250HA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ250HB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ250HD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ250HZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ250JA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ250JB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ250JD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ250JZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ252HA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ252HB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ252HD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ252HZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ252JA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ252JB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ252JD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ252JZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ253HA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ253HB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ253HD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ253HZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ253JA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ253JB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ253JD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ253JZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ255HA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ255HB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ255HD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ255HZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ255JA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ255JB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ255JD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ255JZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ256HA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ256HB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ256HD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ256HZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ256JA Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ256JB Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ256JD Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ256JZ1B Size/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C0HA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C0HB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C0HD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C0HZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C0JA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C0JB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C0JD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C0JZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C2HA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C2HB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C2HD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C2HZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C2JA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C2JB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C2JD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C2JZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C3HA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C3HB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C3HD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C3HZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C3JA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C3JB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C3JD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C3JZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C5HA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C5HB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C5HD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C5HZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C5JA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C5JB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C5JD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C5JZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C6HA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C6HB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C6HD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C6HZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C6JA Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C6JB Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C6JD Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C6JZ1B Size/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ260KA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ260KB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ260KD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ260KZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ260LA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ260LB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ260LD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ260LZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ262KA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ262KB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ262KD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ262KZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ262LA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ262LB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ262LD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ262LZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ263KA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ263KB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ263KD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ263KZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ263LA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ263LB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ263LD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ263LZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ265KA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ265KB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ265KD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ265KZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ265LA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ265LB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ265LD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ265LZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ266KA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ266KB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ266KD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ266KZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ266LA Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ266LB Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ266LD Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ266LZ1B Size/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D0KA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D0KB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D0KD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D0KZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D0LA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D0LB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D0LD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D0LZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D2KA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D2KB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D2KD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D2KZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D2LA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D2LB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D2LD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D2LZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D3KA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D3KB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D3KD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D3KZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D3LA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D3LB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D3LD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D3LZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D5KA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D5KB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D5KD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D5KZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D5LA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D5LB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D5LD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D5LZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D6KA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D6KB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D6KD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D6KZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D6LA Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D6LB Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D6LD Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D6LZ1B Size/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
2-Port ValvesSMC
408 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VXZ 2-Port Solenoid Valve (Zero Differential, Pilot, 10A-25A)

Brand SMC·2-Port Valves

Available part numbers (408)

VXZ230AA, VXZ230AB, VXZ230AD, VXZ230AZ1B, VXZ230BA, VXZ230BB, VXZ230BD, VXZ230BZ1B, VXZ230CA, VXZ230CB + 398 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VXZ230AASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ230ABSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230ADSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230AZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230BASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ230BBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230BDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230BZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230CASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: DC24V | Electrical entry: Grommet
VXZ230CBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230CDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230CZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230DASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: DC24V | Electrical entry: Grommet
VXZ230DBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230DDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230DZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ230EASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: DC24V | Electrical entry: Grommet
VXZ230EBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ230EDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ230EZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232AASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ232ABSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232ADSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232AZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232BASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ232BBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232BDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232BZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232CASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ232CBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232CDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232CZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ232DASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ232DBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ232DDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ232DZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233AASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ233ABSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233ADSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233AZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233BASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ233BBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233BDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233BZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233CASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ233CBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233CDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233CZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ233DASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ233DBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ233DDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ233DZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235AASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ235ABSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235ADSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235AZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235BASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ235BBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235BDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235BZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235CASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ235CBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235CDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235CZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ235DASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ235DBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ235DDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ235DZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236AASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ236ABSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236ADSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236AZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236BASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ236BBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236BDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236BZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236CASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ236CBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236CDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236CZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ236DASize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ236DBSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ236DDSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ236DZ1BSize/type: 10A N.C., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0AASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0ABSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0ADSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0AZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0BASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0BBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0BDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0BZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Al, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0CASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0CBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0CDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0CZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.10 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0DASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0DBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0DDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0DZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.3/8 in | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A0EASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A0EBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A0EDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A0EZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Resin, one-touch dia.12 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2AASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2ABSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2ADSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2AZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2BASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2BBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2BDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2BZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2CASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2CBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2CDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2CZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A2DASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A2DBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A2DDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A2DZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3AASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3ABSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3ADSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3AZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3BASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3BBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3BDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3BZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3CASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3CBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3CDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3CZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A3DASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A3DBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A3DDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A3DZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5AASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5ABSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5ADSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5AZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5BASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5BBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5BDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5BZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5CASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5CBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5CDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5CZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A5DASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A5DBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A5DDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A5DZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6AASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6ABSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6ADSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6AZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6BASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6BBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6BDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6BZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6CASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6CBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6CDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6CZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2A6DASize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: DC24V | Electrical entry: Grommet
VXZ2A6DBSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2A6DDSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2A6DZ1BSize/type: 10A N.O., orifice 10 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/8 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ240FASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ240FBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ240FDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ240FZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ240GASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ240GBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ240GDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ240GZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ242FASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ242FBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ242FDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ242FZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ242GASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ242GBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ242GDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ242GZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ243FASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ243FBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ243FDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ243FZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ243GASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ243GBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ243GDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ243GZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ245FASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ245FBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ245FDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ245FZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ245GASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ245GBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ245GDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ245GZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ246FASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ246FBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ246FDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ246FZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ246GASize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ246GBSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ246GDSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ246GZ1BSize/type: 15A N.C., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B0FASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B0FBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B0FDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B0FZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B0GASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B0GBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B0GDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B0GZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B2FASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B2FBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B2FDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B2FZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B2GASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B2GBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B2GDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B2GZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B3FASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B3FBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B3FDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B3FZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B3GASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B3GBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B3GDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B3GZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B5FASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B5FBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B5FDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B5FZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B5GASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B5GBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B5GDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B5GZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B6FASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B6FBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B6FDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B6FZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2B6GASize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: DC24V | Electrical entry: Grommet
VXZ2B6GBSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2B6GDSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2B6GZ1BSize/type: 15A N.O., orifice 15 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1/2 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ250HASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ250HBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ250HDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ250HZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ250JASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ250JBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ250JDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ250JZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ252HASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ252HBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ252HDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ252HZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ252JASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ252JBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ252JDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ252JZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ253HASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ253HBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ253HDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ253HZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ253JASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ253JBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ253JDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ253JZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ255HASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ255HBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ255HDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ255HZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ255JASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ255JBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ255JDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ255JZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ256HASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ256HBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ256HDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ256HZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ256JASize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ256JBSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ256JDSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ256JZ1BSize/type: 20A N.C., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C0HASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C0HBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C0HDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C0HZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C0JASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C0JBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C0JDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C0JZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C2HASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C2HBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C2HDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C2HZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C2JASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C2JBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C2JDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C2JZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C3HASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C3HBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C3HDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C3HZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C3JASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C3JBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C3JDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C3JZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C5HASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C5HBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C5HDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C5HZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C5JASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C5JBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C5JDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C5JZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C6HASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C6HBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C6HDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C6HZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2C6JASize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: DC24V | Electrical entry: Grommet
VXZ2C6JBSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2C6JDSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2C6JZ1BSize/type: 20A N.O., orifice 20 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc3/4 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ260KASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ260KBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ260KDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ260KZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ260LASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ260LBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ260LDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ260LZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ262KASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ262KBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ262KDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ262KZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ262LASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ262LBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ262LDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ262LZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ263KASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ263KBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ263KDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ263KZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ263LASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ263LBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ263LDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ263LZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ265KASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ265KBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ265KDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ265KZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ265LASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ265LBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ265LDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ265LZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ266KASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ266KBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ266KDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ266KZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ266LASize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ266LBSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ266LDSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ266LZ1BSize/type: 25A N.C., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D0KASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D0KBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D0KDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D0KZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D0LASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D0LBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D0LDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D0LZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Air (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D2KASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D2KBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D2KDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D2KZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D2LASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D2LBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D2LDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D2LZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Water (NBR seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D3KASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D3KBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D3KDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D3KZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D3LASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D3LBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D3LDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D3LZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Oil (FKM seal, class B coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D5KASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D5KBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D5KDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D5KZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D5LASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D5LBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D5LDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D5LZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot water (EPDM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D6KASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D6KBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D6KDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D6KZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: C37 brass, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor
VXZ2D6LASize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: DC24V | Electrical entry: Grommet
VXZ2D6LBSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC100V | Electrical entry: Grommet with surge suppressor
VXZ2D6LDSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC200V | Electrical entry: Grommet with surge suppressor
VXZ2D6LZ1BSize/type: 25A N.O., orifice 25 mm | Fluid/seal: Hot oil (FKM seal, class H coil) | Body/port: Stainless, Rc1 | Voltage: AC220V | Electrical entry: Grommet with surge suppressor

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
