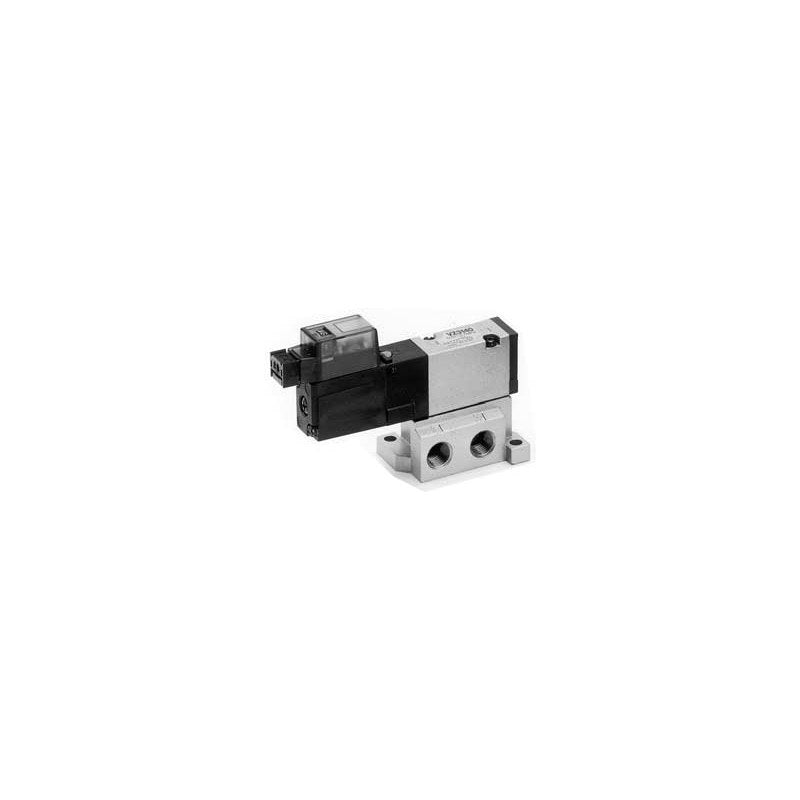

SMC VZ1000 4-Port Solenoid Valve (Direct Piping, M5)

SMC VZ1000 series compact 15 mm wide pilot-operated 4-port solenoid valve, 2-position single, direct piping with M5 ports, for cylinders up to ø16.

Key features

15 mm body width, low power consumption 1.8 W DC (2.1 W with light)
Electrical entry: grommet (G 300 mm, H 600 mm), L or M plug connector (with/without lead wire), DIN terminal
Listed codes: DC24V, AC100V, AC200V with G, L, M, D entry, with or without light/surge suppressor (Z); GZ, HZ, DOZ not available
Surge suppressor only (S), foot bracket (F, DXT170-34-1B) and CE compliant (Q) versions as suffixes
Manifolds VV4Z1-20/21P/25 available (see catalog)

Specifications

Fluid	Air
Valve type	Pilot-operated 4-port, 2-position single
Operating pressure range	0.15 to 0.7 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Response time	15 ms or less (0.5 MPa)
Max. operating frequency	15 Hz
Port size	M5x0.8
Manual override	Non-locking push
Impact/vibration resistance	300/50 m/s²
Allowable voltage fluctuation	-15 to +10% of rated voltage
Mass	90 g
Source	SMC Korea catalog VZ1000/3000/5000 (SMCKR_VZ1000_3000_5000_web.pdf), p. 597-598 (PDF p. 9-10)

VZ1120-5G-M5		Voltage: DC24V \| Electrical entry: Grommet 300 mm \| Light/surge: None
VZ1120-5L-M5		Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: None
VZ1120-5LZ-M5		Voltage: DC24V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor
VZ1120-5M-M5		Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: None
VZ1120-5MZ-M5		Voltage: DC24V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor
VZ1120-5D-M5		Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: None
VZ1120-5DZ-M5		Voltage: DC24V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor
VZ1120-1G-M5		Voltage: AC100V \| Electrical entry: Grommet 300 mm \| Light/surge: None
VZ1120-1L-M5		Voltage: AC100V \| Electrical entry: L plug connector \| Light/surge: None
VZ1120-1LZ-M5		Voltage: AC100V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor
VZ1120-1M-M5		Voltage: AC100V \| Electrical entry: M plug connector \| Light/surge: None
VZ1120-1MZ-M5		Voltage: AC100V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor
VZ1120-1D-M5		Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: None
VZ1120-1DZ-M5		Voltage: AC100V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor
VZ1120-2G-M5		Voltage: AC200V \| Electrical entry: Grommet 300 mm \| Light/surge: None
VZ1120-2L-M5		Voltage: AC200V \| Electrical entry: L plug connector \| Light/surge: None
VZ1120-2LZ-M5		Voltage: AC200V \| Electrical entry: L plug connector \| Light/surge: Light/surge suppressor
VZ1120-2M-M5		Voltage: AC200V \| Electrical entry: M plug connector \| Light/surge: None
VZ1120-2MZ-M5		Voltage: AC200V \| Electrical entry: M plug connector \| Light/surge: Light/surge suppressor
VZ1120-2D-M5		Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: None
VZ1120-2DZ-M5		Voltage: AC200V \| Electrical entry: DIN terminal \| Light/surge: Light/surge suppressor
