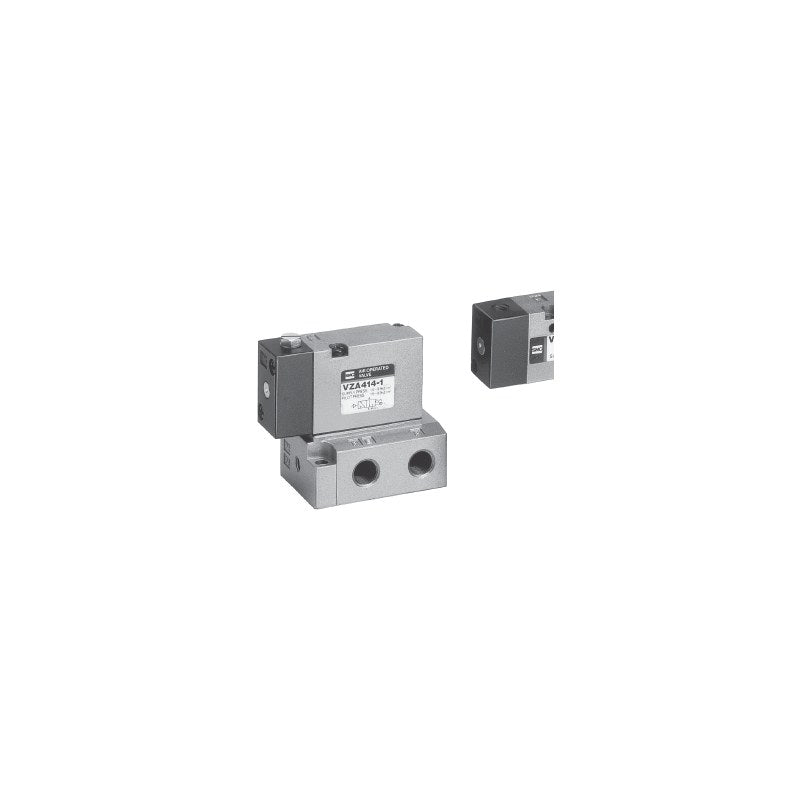

SMC VZA200/400 3-Port Air Operated Valve (Direct and Base Piping)

SMC VZA200/400 3-Port Air Operated Valve (Direct and Base Piping)

SMC VZA200/400 series air-piloted 3-port poppet valve for pressures up to 1.0 MPa, in direct piping or base piping (sub-plate) versions.

Key features

  • N.C. or N.O. switching, two body sizes (VZA200, VZA400), with manual override
  • Base piping type selectable pilot port: sub-plate side (1, not for manifold) or body side (2)
  • Base piping valves listed with Rc sub-plate or without sub-plate for manifold use
  • Foot bracket (-F) for direct piping types; NPT, NPTF and G threads on order
  • Manifolds VV3ZA2/VV3ZA4 (2 to 10 stations, direct 20 or base 50 type) available

Specifications

Fluid Air
Valve type 3-port air operated valve
Operating pressure range VZA200 0.1 to 1.0 MPa; VZA400 0.15 to 1.0 MPa
Pilot pressure range VZA200 0.1 to 1.0 MPa; VZA400 0.15 to 1.0 MPa (operating pressure ≤ pilot pressure)
Ambient and fluid temperature -10 to 60°C (no freezing)
Impact/vibration resistance 150/50 m/s²
Pilot port M5x0.8
Universal porting Not possible
Flow rate C (P→A) [dm³/(s·bar)] VZA212 0.60, VZA214 1.0, VZA412 2.0, VZA414 2.4
Source SMC Korea catalog VZA200/400 (SMCKR_VZA200_400.pdf), p. 1350-1352 (PDF p. 1-3)
VZA212-P-M5 Series: VZA200 | Piping: Direct piping | Switching: N.C. | Pilot port: Body side | Port size: M5x0.8
VZA214-1P-01 Series: VZA200 | Piping: Base piping | Switching: N.C. | Pilot port: Sub-plate side | Port size: Rc1/8 (sub-plate)
VZA214-1P Series: VZA200 | Piping: Base piping | Switching: N.C. | Pilot port: Sub-plate side | Port size: Without sub-plate
VZA214-2P-01 Series: VZA200 | Piping: Base piping | Switching: N.C. | Pilot port: Body side | Port size: Rc1/8 (sub-plate)
VZA214-2P Series: VZA200 | Piping: Base piping | Switching: N.C. | Pilot port: Body side | Port size: Without sub-plate
VZA222-P-M5 Series: VZA200 | Piping: Direct piping | Switching: N.O. | Pilot port: Body side | Port size: M5x0.8
VZA224-1P-01 Series: VZA200 | Piping: Base piping | Switching: N.O. | Pilot port: Sub-plate side | Port size: Rc1/8 (sub-plate)
VZA224-1P Series: VZA200 | Piping: Base piping | Switching: N.O. | Pilot port: Sub-plate side | Port size: Without sub-plate
VZA224-2P-01 Series: VZA200 | Piping: Base piping | Switching: N.O. | Pilot port: Body side | Port size: Rc1/8 (sub-plate)
VZA224-2P Series: VZA200 | Piping: Base piping | Switching: N.O. | Pilot port: Body side | Port size: Without sub-plate
VZA412-P-01 Series: VZA400 | Piping: Direct piping | Switching: N.C. | Pilot port: Body side | Port size: Rc1/8
VZA414-1P-01 Series: VZA400 | Piping: Base piping | Switching: N.C. | Pilot port: Sub-plate side | Port size: Rc1/8 (sub-plate)
VZA414-1P-02 Series: VZA400 | Piping: Base piping | Switching: N.C. | Pilot port: Sub-plate side | Port size: Rc1/4 (sub-plate)
VZA414-1P Series: VZA400 | Piping: Base piping | Switching: N.C. | Pilot port: Sub-plate side | Port size: Without sub-plate
VZA414-2P-01 Series: VZA400 | Piping: Base piping | Switching: N.C. | Pilot port: Body side | Port size: Rc1/8 (sub-plate)
VZA414-2P-02 Series: VZA400 | Piping: Base piping | Switching: N.C. | Pilot port: Body side | Port size: Rc1/4 (sub-plate)
VZA414-2P Series: VZA400 | Piping: Base piping | Switching: N.C. | Pilot port: Body side | Port size: Without sub-plate
VZA422-P-01 Series: VZA400 | Piping: Direct piping | Switching: N.O. | Pilot port: Body side | Port size: Rc1/8
VZA424-1P-01 Series: VZA400 | Piping: Base piping | Switching: N.O. | Pilot port: Sub-plate side | Port size: Rc1/8 (sub-plate)
VZA424-1P-02 Series: VZA400 | Piping: Base piping | Switching: N.O. | Pilot port: Sub-plate side | Port size: Rc1/4 (sub-plate)
VZA424-1P Series: VZA400 | Piping: Base piping | Switching: N.O. | Pilot port: Sub-plate side | Port size: Without sub-plate
VZA424-2P-01 Series: VZA400 | Piping: Base piping | Switching: N.O. | Pilot port: Body side | Port size: Rc1/8 (sub-plate)
VZA424-2P-02 Series: VZA400 | Piping: Base piping | Switching: N.O. | Pilot port: Body side | Port size: Rc1/4 (sub-plate)
VZA424-2P Series: VZA400 | Piping: Base piping | Switching: N.O. | Pilot port: Body side | Port size: Without sub-plate
