SMC VZA2000/4000 5-Port Air Operated Valve

SMC VZA2000/4000 5-Port Air Operated Valve

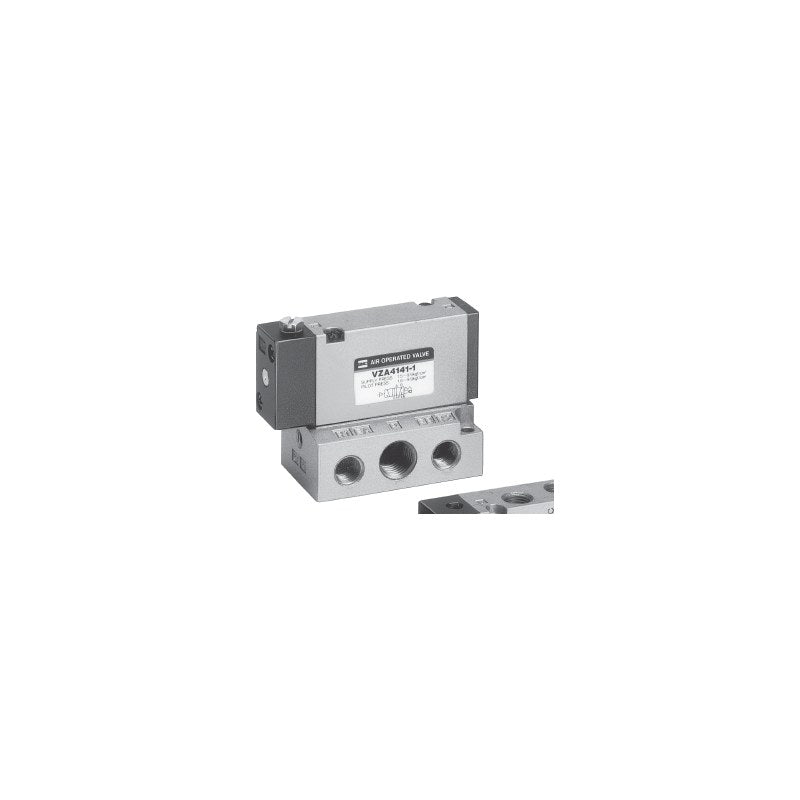

SMC VZA2000/4000 series air-piloted 5-port valve with direct piping or base piping (sub-plate) body and up to 1.0 MPa operating pressure.

Key features

  • Switching: 2-position single/double and 3-position closed or exhaust center
  • Direct piping type (VZA21) and base piping type (VZA41) with pilot port on body side or sub-plate side
  • Operating pressure up to 1.0 MPa; universal porting possible except single type
  • Mounts on VV5ZA2/VV5ZA4 manifolds (types 20 and 50)
  • Foot bracket (F) for single direct piping type; G (F), NPT (N), NPTF (T) threads on order

Specifications

Fluid Air
Valve type Air-operated 5-port valve
Operating pressure Single 0.1 to 1.0 MPa (VZA4 0.15 to 1.0); double/3-pos 0 to 1.0 MPa
Pilot pressure VZA2 0.1 to 1.0 MPa; VZA4 0.15 to 1.0 (single), 0.1 to 1.0 MPa (others)
Ambient and fluid temperature -10 to 60°C (no freezing)
Impact/vibration resistance 150/50 m/s²
Sub-plate assembly VZA2000-S-01, VZA4000-S-01/02
Source SMC Korea catalog VZA2000/4000 (SMCKR_VZA2000_4000.pdf), p. 1292-1293, 1297-1298 (PDF p. 1-2, 6-7)
VZA2121-M5 Series: VZA2000 | Switching: 2-pos single | Piping: Direct piping | Port: M5x0.8 | Pilot port: Body side
VZA2141-2 Series: VZA2000 | Switching: 2-pos single | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA2141-1-01 Series: VZA2000 | Switching: 2-pos single | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA2141-2-01 Series: VZA2000 | Switching: 2-pos single | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA2221-M5 Series: VZA2000 | Switching: 2-pos double | Piping: Direct piping | Port: M5x0.8 | Pilot port: Body side
VZA2241-2 Series: VZA2000 | Switching: 2-pos double | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA2241-1-01 Series: VZA2000 | Switching: 2-pos double | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA2241-2-01 Series: VZA2000 | Switching: 2-pos double | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA2321-M5 Series: VZA2000 | Switching: 3-pos closed center | Piping: Direct piping | Port: M5x0.8 | Pilot port: Body side
VZA2341-2 Series: VZA2000 | Switching: 3-pos closed center | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA2341-1-01 Series: VZA2000 | Switching: 3-pos closed center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA2341-2-01 Series: VZA2000 | Switching: 3-pos closed center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA2421-M5 Series: VZA2000 | Switching: 3-pos exhaust center | Piping: Direct piping | Port: M5x0.8 | Pilot port: Body side
VZA2441-2 Series: VZA2000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA2441-1-01 Series: VZA2000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA2441-2-01 Series: VZA2000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA4121-01 Series: VZA4000 | Switching: 2-pos single | Piping: Direct piping | Port: Rc1/8 | Pilot port: Body side
VZA4141-2 Series: VZA4000 | Switching: 2-pos single | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA4141-1-01 Series: VZA4000 | Switching: 2-pos single | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA4141-1-02 Series: VZA4000 | Switching: 2-pos single | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Sub-plate side
VZA4141-2-01 Series: VZA4000 | Switching: 2-pos single | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA4141-2-02 Series: VZA4000 | Switching: 2-pos single | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Body side
VZA4221-01 Series: VZA4000 | Switching: 2-pos double | Piping: Direct piping | Port: Rc1/8 | Pilot port: Body side
VZA4241-2 Series: VZA4000 | Switching: 2-pos double | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA4241-1-01 Series: VZA4000 | Switching: 2-pos double | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA4241-1-02 Series: VZA4000 | Switching: 2-pos double | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Sub-plate side
VZA4241-2-01 Series: VZA4000 | Switching: 2-pos double | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA4241-2-02 Series: VZA4000 | Switching: 2-pos double | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Body side
VZA4321-01 Series: VZA4000 | Switching: 3-pos closed center | Piping: Direct piping | Port: Rc1/8 | Pilot port: Body side
VZA4341-2 Series: VZA4000 | Switching: 3-pos closed center | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA4341-1-01 Series: VZA4000 | Switching: 3-pos closed center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA4341-1-02 Series: VZA4000 | Switching: 3-pos closed center | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Sub-plate side
VZA4341-2-01 Series: VZA4000 | Switching: 3-pos closed center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA4341-2-02 Series: VZA4000 | Switching: 3-pos closed center | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Body side
VZA4421-01 Series: VZA4000 | Switching: 3-pos exhaust center | Piping: Direct piping | Port: Rc1/8 | Pilot port: Body side
VZA4441-2 Series: VZA4000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Without sub-plate | Pilot port: Body side
VZA4441-1-01 Series: VZA4000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Sub-plate side
VZA4441-1-02 Series: VZA4000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Sub-plate side
VZA4441-2-01 Series: VZA4000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Sub-plate Rc1/8 | Pilot port: Body side
VZA4441-2-02 Series: VZA4000 | Switching: 3-pos exhaust center | Piping: Base piping | Port: Sub-plate Rc1/4 | Pilot port: Body side
