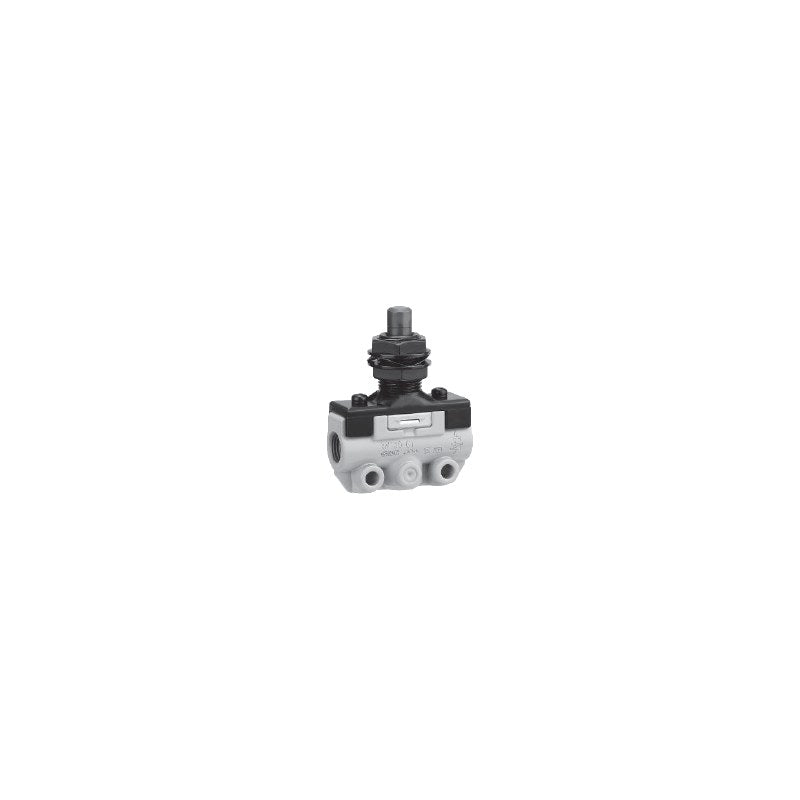

SMC VZM400 5-Port Mechanical Valve (Metal Seal, Rc1/8)

SMC VZM400 5-Port Mechanical Valve (Metal Seal, Rc1/8)

SMC VZM400 series compact pilot-operated 5-port mechanical valve with metal seal spool for high frequency and long life, internal or external pilot.

Key features

  • Compact with large flow; metal seal for high frequency and long service life (300 c.p.m. max.)
  • Mechanical actuators: roller lever, one-way roller lever, straight plunger and roller plunger (POM or hardened steel rollers)
  • Manual actuators: flip toggle, push buttons, 2-position selector and key selector; four button colors
  • Internal or external pilot type; all EXH ports can be piped
  • Foot bracket (F, internal pilot only), NPT/G threads (N01/F01) and push-lock buttons (X207A/X219A) on order

Specifications

Fluid Air
Operating pressure 0.15 to 1.0 MPa (external pilot: main 0 to 1.0, pilot 0.15 to 1.0)
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow rate C [dm³/(s·bar)] 2.0 (P-A/B), 1.7 (A/B-EA/EB)
Cv 0.49 / 0.44
Max. operating frequency 300 c.p.m. (mechanical operation)
Port size Main Rc1/8; pilot/exhaust (PE) M5
Seal Metal seal spool
Lubrication Not required (use ISO VG32 turbine oil if lubricated)
Replacement actuator part no. VM-<actuator code>C (e.g. VM-01C, VM-30CR)
Source SMC Korea catalog VM/VZM/VFM (SMCKR_VM_VZM_VFM.pdf), p. 1449-1450 (PDF p. 43-44)
VZM450-01-00 Pilot: Internal pilot | Actuator: Basic type (no actuator) | Color: N/A
VZM451-01-00 Pilot: External pilot | Actuator: Basic type (no actuator) | Color: N/A
VZM450-01-01 Pilot: Internal pilot | Actuator: Roller lever, POM roller | Color: N/A
VZM451-01-01 Pilot: External pilot | Actuator: Roller lever, POM roller | Color: N/A
VZM450-01-01S Pilot: Internal pilot | Actuator: Roller lever, steel roller | Color: N/A
VZM451-01-01S Pilot: External pilot | Actuator: Roller lever, steel roller | Color: N/A
VZM450-01-02 Pilot: Internal pilot | Actuator: One-way roller lever, POM roller | Color: N/A
VZM451-01-02 Pilot: External pilot | Actuator: One-way roller lever, POM roller | Color: N/A
VZM450-01-02S Pilot: Internal pilot | Actuator: One-way roller lever, steel roller | Color: N/A
VZM451-01-02S Pilot: External pilot | Actuator: One-way roller lever, steel roller | Color: N/A
VZM450-01-06 Pilot: Internal pilot | Actuator: Roller plunger, POM roller | Color: N/A
VZM451-01-06 Pilot: External pilot | Actuator: Roller plunger, POM roller | Color: N/A
VZM450-01-06S Pilot: Internal pilot | Actuator: Roller plunger, steel roller | Color: N/A
VZM451-01-06S Pilot: External pilot | Actuator: Roller plunger, steel roller | Color: N/A
VZM450-01-05 Pilot: Internal pilot | Actuator: Straight plunger | Color: N/A
VZM451-01-05 Pilot: External pilot | Actuator: Straight plunger | Color: N/A
VZM450-01-08 Pilot: Internal pilot | Actuator: Flip toggle | Color: N/A
VZM451-01-08 Pilot: External pilot | Actuator: Flip toggle | Color: N/A
VZM450-01-30R Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Red
VZM451-01-30R Pilot: External pilot | Actuator: Push button (mushroom) | Color: Red
VZM450-01-30B Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Black
VZM451-01-30B Pilot: External pilot | Actuator: Push button (mushroom) | Color: Black
VZM450-01-30G Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Green
VZM451-01-30G Pilot: External pilot | Actuator: Push button (mushroom) | Color: Green
VZM450-01-30Y Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Yellow
VZM451-01-30Y Pilot: External pilot | Actuator: Push button (mushroom) | Color: Yellow
VZM450-01-33 Pilot: Internal pilot | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VZM451-01-33 Pilot: External pilot | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VZM450-01-34R Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Red
VZM451-01-34R Pilot: External pilot | Actuator: Selector (2-position) | Color: Red
VZM450-01-34B Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Black
VZM451-01-34B Pilot: External pilot | Actuator: Selector (2-position) | Color: Black
VZM450-01-34G Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Green
VZM451-01-34G Pilot: External pilot | Actuator: Selector (2-position) | Color: Green
VZM450-01-34Y Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Yellow
VZM451-01-34Y Pilot: External pilot | Actuator: Selector (2-position) | Color: Yellow
VZM450-01-36 Pilot: Internal pilot | Actuator: Key selector (2-position) | Color: N/A
VZM451-01-36 Pilot: External pilot | Actuator: Key selector (2-position) | Color: N/A
VZM450-01-32R Pilot: Internal pilot | Actuator: Push button (extended) | Color: Red
VZM451-01-32R Pilot: External pilot | Actuator: Push button (extended) | Color: Red
VZM450-01-32B Pilot: Internal pilot | Actuator: Push button (extended) | Color: Black
VZM451-01-32B Pilot: External pilot | Actuator: Push button (extended) | Color: Black
VZM450-01-32G Pilot: Internal pilot | Actuator: Push button (extended) | Color: Green
VZM451-01-32G Pilot: External pilot | Actuator: Push button (extended) | Color: Green
VZM450-01-32Y Pilot: Internal pilot | Actuator: Push button (extended) | Color: Yellow
VZM451-01-32Y Pilot: External pilot | Actuator: Push button (extended) | Color: Yellow
