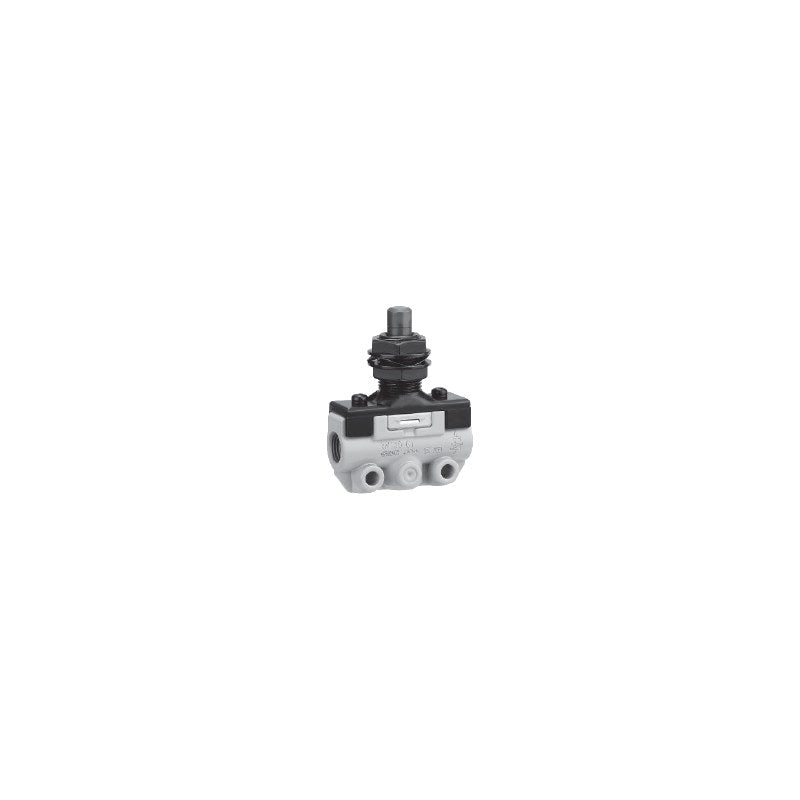

SMC VZM500 5-Port Mechanical Valve (Elastomer Seal, Rc1/8)

SMC VZM500 5-Port Mechanical Valve (Elastomer Seal, Rc1/8)

SMC VZM500 series compact pilot-operated 5-port mechanical valve with elastomer seal, internal or external pilot, foot bracket or manifold mounting.

Key features

  • Compact with large flow; high frequency and long life (300 c.p.m. max.)
  • Mechanical actuators: roller lever, one-way roller lever, straight plunger and roller plunger (POM or hardened steel rollers)
  • Manual actuators: flip toggle, push buttons, 2-position selector and key selector; four button colors
  • Internal or external pilot type; all EXH ports can be piped
  • Push-pull actuator (internal pilot only); foot bracket (F) and manifold mounting available

Specifications

Fluid Air
Operating pressure 0.15 to 0.7 MPa (external pilot: main 0 to 0.7, pilot 0.15 to 0.7)
Ambient and fluid temperature -5 to 60°C (no freezing)
Flow rate C [dm³/(s·bar)] 2.2 (P-A/B), 2.4 (A/B-R)
Cv 0.58 / 0.63
Max. operating frequency 300 c.p.m. (mechanical operation)
Port size Main Rc1/8; pilot/exhaust (PE) M5
Seal Elastomer seal spool
Lubrication Not required (use ISO VG32 turbine oil if lubricated)
Replacement actuator part no. VM-<actuator code>C (e.g. VM-01C, VM-30CR)
Source SMC Korea catalog VM/VZM/VFM (SMCKR_VM_VZM_VFM.pdf), p. 1455-1456 (PDF p. 49-50)
VZM550-01-00 Pilot: Internal pilot | Actuator: Basic type (no actuator) | Color: N/A
VZM551-01-00 Pilot: External pilot | Actuator: Basic type (no actuator) | Color: N/A
VZM550-01-01 Pilot: Internal pilot | Actuator: Roller lever, POM roller | Color: N/A
VZM551-01-01 Pilot: External pilot | Actuator: Roller lever, POM roller | Color: N/A
VZM550-01-01S Pilot: Internal pilot | Actuator: Roller lever, steel roller | Color: N/A
VZM551-01-01S Pilot: External pilot | Actuator: Roller lever, steel roller | Color: N/A
VZM550-01-02 Pilot: Internal pilot | Actuator: One-way roller lever, POM roller | Color: N/A
VZM551-01-02 Pilot: External pilot | Actuator: One-way roller lever, POM roller | Color: N/A
VZM550-01-02S Pilot: Internal pilot | Actuator: One-way roller lever, steel roller | Color: N/A
VZM551-01-02S Pilot: External pilot | Actuator: One-way roller lever, steel roller | Color: N/A
VZM550-01-06 Pilot: Internal pilot | Actuator: Roller plunger, POM roller | Color: N/A
VZM551-01-06 Pilot: External pilot | Actuator: Roller plunger, POM roller | Color: N/A
VZM550-01-06S Pilot: Internal pilot | Actuator: Roller plunger, steel roller | Color: N/A
VZM551-01-06S Pilot: External pilot | Actuator: Roller plunger, steel roller | Color: N/A
VZM550-01-05 Pilot: Internal pilot | Actuator: Straight plunger | Color: N/A
VZM551-01-05 Pilot: External pilot | Actuator: Straight plunger | Color: N/A
VZM550-01-08 Pilot: Internal pilot | Actuator: Flip toggle | Color: N/A
VZM551-01-08 Pilot: External pilot | Actuator: Flip toggle | Color: N/A
VZM550-01-30R Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Red
VZM551-01-30R Pilot: External pilot | Actuator: Push button (mushroom) | Color: Red
VZM550-01-30B Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Black
VZM551-01-30B Pilot: External pilot | Actuator: Push button (mushroom) | Color: Black
VZM550-01-30G Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Green
VZM551-01-30G Pilot: External pilot | Actuator: Push button (mushroom) | Color: Green
VZM550-01-30Y Pilot: Internal pilot | Actuator: Push button (mushroom) | Color: Yellow
VZM551-01-30Y Pilot: External pilot | Actuator: Push button (mushroom) | Color: Yellow
VZM550-01-33 Pilot: Internal pilot | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VZM551-01-33 Pilot: External pilot | Actuator: Push button (flush) | Color: 4-color set (R/B/G/Y)
VZM550-01-34R Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Red
VZM551-01-34R Pilot: External pilot | Actuator: Selector (2-position) | Color: Red
VZM550-01-34B Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Black
VZM551-01-34B Pilot: External pilot | Actuator: Selector (2-position) | Color: Black
VZM550-01-34G Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Green
VZM551-01-34G Pilot: External pilot | Actuator: Selector (2-position) | Color: Green
VZM550-01-34Y Pilot: Internal pilot | Actuator: Selector (2-position) | Color: Yellow
VZM551-01-34Y Pilot: External pilot | Actuator: Selector (2-position) | Color: Yellow
VZM550-01-36 Pilot: Internal pilot | Actuator: Key selector (2-position) | Color: N/A
VZM551-01-36 Pilot: External pilot | Actuator: Key selector (2-position) | Color: N/A
VZM550-01-32R Pilot: Internal pilot | Actuator: Push button (extended) | Color: Red
VZM551-01-32R Pilot: External pilot | Actuator: Push button (extended) | Color: Red
VZM550-01-32B Pilot: Internal pilot | Actuator: Push button (extended) | Color: Black
VZM551-01-32B Pilot: External pilot | Actuator: Push button (extended) | Color: Black
VZM550-01-32G Pilot: Internal pilot | Actuator: Push button (extended) | Color: Green
VZM551-01-32G Pilot: External pilot | Actuator: Push button (extended) | Color: Green
VZM550-01-37 Pilot: Internal pilot | Actuator: Push-pull | Color: N/A
VZM550-01-32Y Pilot: Internal pilot | Actuator: Push button (extended) | Color: Yellow
VZM551-01-32Y Pilot: External pilot | Actuator: Push button (extended) | Color: Yellow
Mechanical ValvesSMC
47 product codes available in this family
