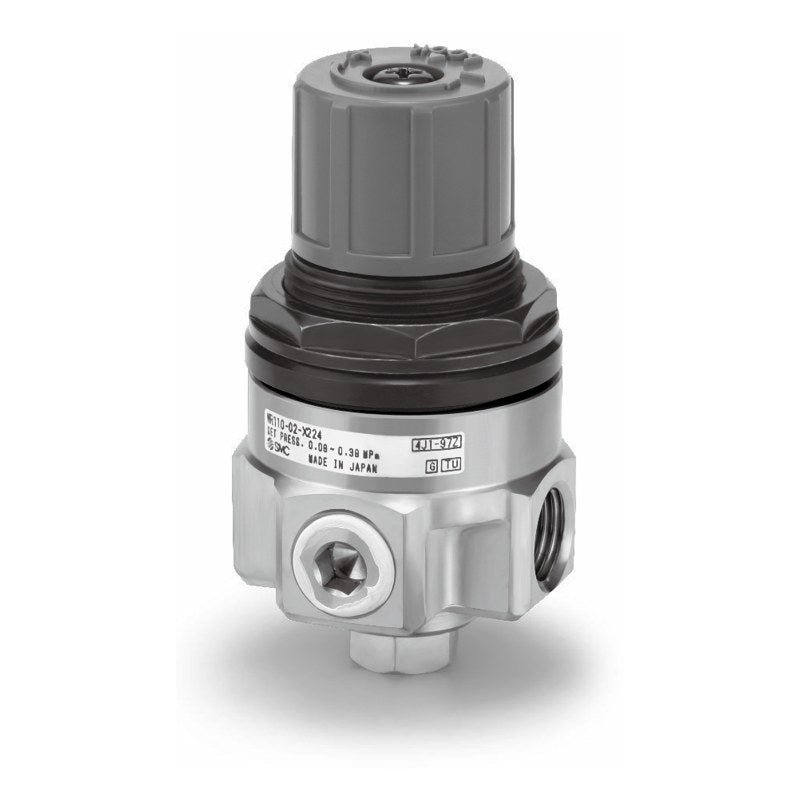

SMC WR110 Water Regulator (Rc1/8, Rc1/4)

SMC WR110 Water Regulator (Rc1/8, Rc1/4)

SMC WR110 water regulator with special brass body for pressure regulation of water lines, in two set pressure ranges (-X224, -X215).

Key features

  • Special brass body, weather-resistant NBR / stainless diaphragm assembly
  • Set pressure 0.08 to 0.39 MPa (-X224) or 0.05 to 0.69 MPa (-X215)
  • Panel mount with M30x1.5 set nut (panel cut 30.5 mm)
  • Gauge ports Rc1/8 or 1/4; NPT ports available for -X215
  • Not for deionized water; bracket B21-1P and gauges G46-4/7/10-01 to 02-SRB sold separately

Specifications

Fluid Water (not DI water)
Proof pressure 1.72 MPa
Max. operating pressure 0.8 MPa
Ambient and fluid temperature -5 to 60 C (no freezing)
Body material Special brass
Mass 0.26 kg
Replacement valve 1349173-5
Source SMC Korea leaflet WR110 (SMCKR_WR110.pdf), 14-K627, p. 1-2
WR110-01-X224 Set pressure: 0.08 to 0.39 MPa | Port size: Rc1/8
WR110-02-X224 Set pressure: 0.08 to 0.39 MPa | Port size: Rc1/4
WR110-01-X215 Set pressure: 0.05 to 0.69 MPa | Port size: Rc1/8
WR110-02-X215 Set pressure: 0.05 to 0.69 MPa | Port size: Rc1/4
RegulatorsSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC WR110 Water Regulator (Rc1/8, Rc1/4)

Brand SMC·Regulators

Available part numbers (4)

WR110-01-X224, WR110-02-X224, WR110-01-X215, WR110-02-X215

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WR110-01-X224Set pressure: 0.08 to 0.39 MPa | Port size: Rc1/8
WR110-02-X224Set pressure: 0.08 to 0.39 MPa | Port size: Rc1/4
WR110-01-X215Set pressure: 0.05 to 0.69 MPa | Port size: Rc1/8
WR110-02-X215Set pressure: 0.05 to 0.69 MPa | Port size: Rc1/4
