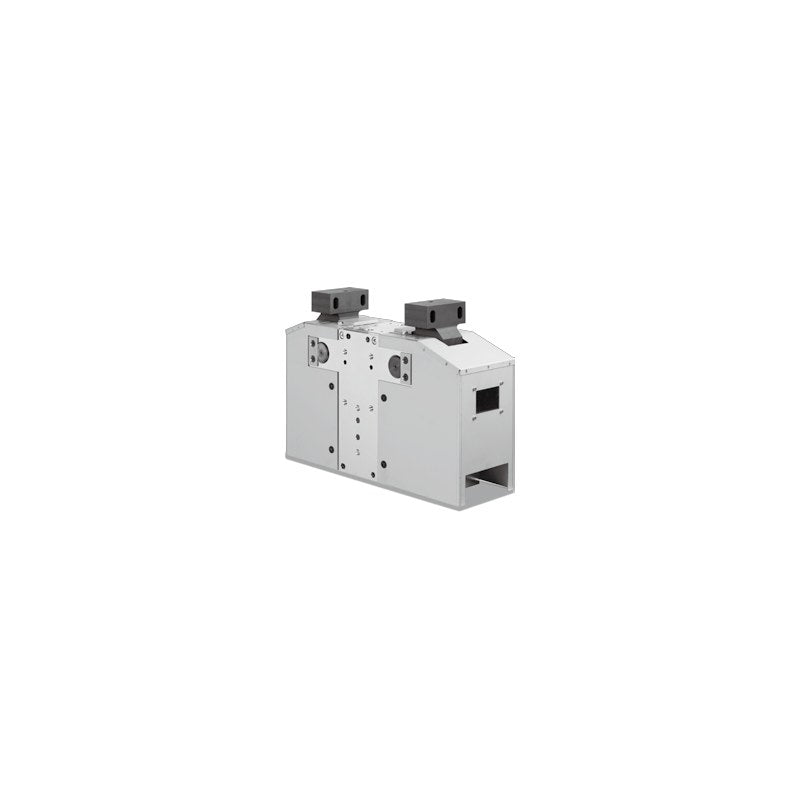

SMC WRF100 Frame Clamp Cylinder (T / S Arm, ø100)

SMC WRF100 Frame Clamp Cylinder (T / S Arm, ø100)

SMC WRF100 frame clamp cylinder, ø100 bore, with standardized T-type or S-type clamp arms and 20,000 N clamp force for body frame jigs.

Key features

  • Clamp force 20,000 N or more at 0.5 MPa
  • Standard catchers give highly repeatable arm stop position at clamp
  • Locating pin holes for repeatable positioning when cylinder or work is re-installed
  • T-type arm widths 200/240/270 mm, S-type 130/200/240 mm
  • Optional spatter protective cover (C); limit switch bracket kit WRF-BK sold separately (limit switch not included)

Specifications

Bore 100 mm
Stroke 48 mm
Fluid Air
Proof pressure 0.8 MPa
Max. operating pressure 0.5 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Cushion Clamp side none, unclamp side rubber cushion
Lubrication Not required
Operating time 1.0 s or more (clamp and unclamp)
Arm opening 24° (12° each side)
Source SMC Korea catalog WRF100 (SMCKR_WRF100.pdf), p. 80-81 (PDF p. 1-2)
WRF100-T200 Arm type: T-type | Arm width: 200 mm | Protective cover: Without
WRF100-T200C Arm type: T-type | Arm width: 200 mm | Protective cover: With
WRF100-T240 Arm type: T-type | Arm width: 240 mm | Protective cover: Without
WRF100-T240C Arm type: T-type | Arm width: 240 mm | Protective cover: With
WRF100-T270 Arm type: T-type | Arm width: 270 mm | Protective cover: Without
WRF100-T270C Arm type: T-type | Arm width: 270 mm | Protective cover: With
WRF100-S130 Arm type: S-type | Arm width: 130 mm | Protective cover: Without
WRF100-S130C Arm type: S-type | Arm width: 130 mm | Protective cover: With
WRF100-S200 Arm type: S-type | Arm width: 200 mm | Protective cover: Without
WRF100-S200C Arm type: S-type | Arm width: 200 mm | Protective cover: With
WRF100-S240 Arm type: S-type | Arm width: 240 mm | Protective cover: Without
WRF100-S240C Arm type: S-type | Arm width: 240 mm | Protective cover: With
Clamp CylindersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC WRF100 Frame Clamp Cylinder (T / S Arm, ø100)

Brand SMC·Clamp Cylinders

Available part numbers (12)

WRF100-T200, WRF100-T200C, WRF100-T240, WRF100-T240C, WRF100-T270, WRF100-T270C, WRF100-S130, WRF100-S130C, WRF100-S200, WRF100-S200C + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRF100-T200Arm type: T-type | Arm width: 200 mm | Protective cover: Without
WRF100-T200CArm type: T-type | Arm width: 200 mm | Protective cover: With
WRF100-T240Arm type: T-type | Arm width: 240 mm | Protective cover: Without
WRF100-T240CArm type: T-type | Arm width: 240 mm | Protective cover: With
WRF100-T270Arm type: T-type | Arm width: 270 mm | Protective cover: Without
WRF100-T270CArm type: T-type | Arm width: 270 mm | Protective cover: With
WRF100-S130Arm type: S-type | Arm width: 130 mm | Protective cover: Without
WRF100-S130CArm type: S-type | Arm width: 130 mm | Protective cover: With
WRF100-S200Arm type: S-type | Arm width: 200 mm | Protective cover: Without
WRF100-S200CArm type: S-type | Arm width: 200 mm | Protective cover: With
WRF100-S240Arm type: S-type | Arm width: 240 mm | Protective cover: Without
WRF100-S240CArm type: S-type | Arm width: 240 mm | Protective cover: With
