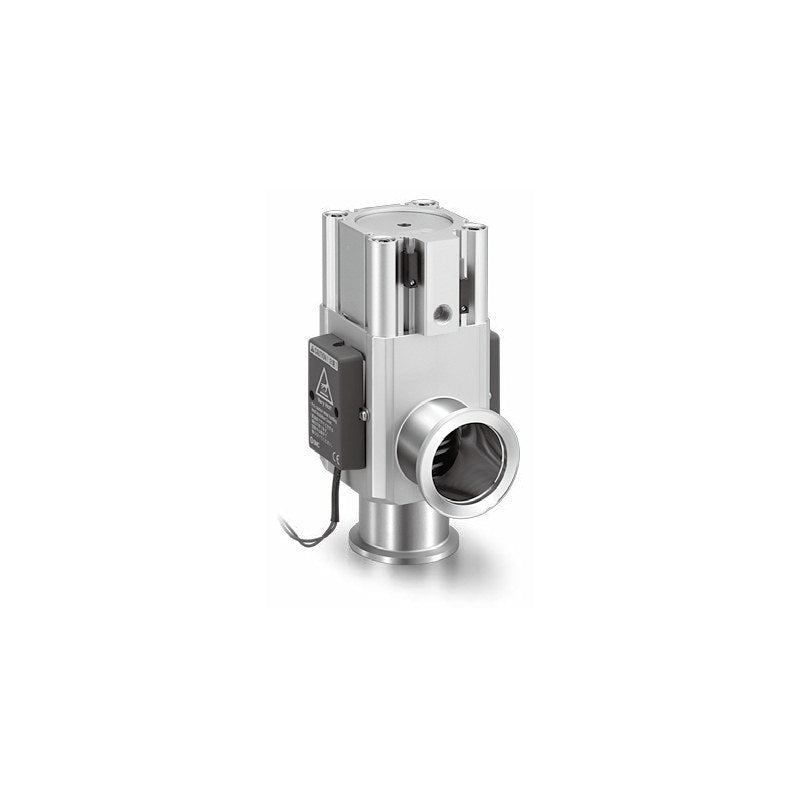

SMC XLA High Vacuum L-Type Valve (Aluminum, N.C., Bellows, 16-160)

SMC XLA High Vacuum L-Type Valve (Aluminum, N.C., Bellows, 16-160)

SMC XLA normally closed, air-operated aluminum high vacuum angle (L-type) valve with bellows seal, in flange sizes 16 to 160.

Key features

  • Aluminum body: light, compact, uniform baking temperature, low outgassing and low heavy-metal contamination
  • Sizes 16-80 (design -2) have a replaceable bellows assembly to cut maintenance cost
  • Normally closed, opened by pilot pressure, closed by spring; SUS316L bellows seal
  • Optional open indicator, heaters for 100/120 C body heating (H4/H5) and high-temperature build to 150 C (H0)
  • Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded
  • Seal material change (EPDM, Kalrez, Chemraz, VMQ, ULTIC ARMOR etc.) via -X suffix

Specifications

Valve type Normally closed, pressurize to open, spring seal
Fluid Inert gas under vacuum
Body material Aluminum alloy (A6063)
Surface treatment Hard anodized outside, untreated inside
Operating pressure 1x10^-6 Pa(abs) to atmospheric
Conductance L/s: 16=5, 25=14, 40=45, 50=80, 63=160, 80=200, 100=300, 160=800
Leakage (FKM) Internal 1.3x10^-10, external 1.3x10^-11 Pa m3/s
Pilot pressure 0.4-0.7 MPa
Pilot port M5 (16-50), Rc1/8 (63-100), Rc1/4 (160)
Flange KF (NW) all sizes; K (DN) for 63, 80, 100, 160
Source SMC Korea XL catalogs (SMCKR_XL-2.pdf p. 4, 6; SMCKR_XL.pdf p. 2, 4)
XLA-16-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-16H0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-16A-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-16AH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-16F-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-16FH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-16G-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-16GH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-16J-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-16JH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-16K-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-16KH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-16L-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-16LH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-16M-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-16MH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-25-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-25H0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-25H5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-25A-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-25AH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-25AH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-25F-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-25FH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-25FH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-25G-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-25GH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-25GH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-25J-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-25JH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-25JH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-25K-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-25KH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-25KH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-25L-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-25LH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-25LH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-25M-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-25MH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-25MH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-40-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-40H0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-40H4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-40H5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-40A-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-40AH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-40AH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-40AH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-40F-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-40FH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-40FH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-40FH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-40G-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-40GH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-40GH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-40GH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-40J-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-40JH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-40JH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-40JH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-40K-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-40KH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-40KH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-40KH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-40L-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-40LH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-40LH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-40LH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-40M-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-40MH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-40MH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-40MH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-50-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-50H0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-50H4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-50H5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-50A-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-50AH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-50AH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-50AH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-50F-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-50FH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-50FH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-50FH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-50G-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-50GH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-50GH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-50GH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-50J-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-50JH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-50JH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-50JH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-50K-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-50KH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-50KH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-50KH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-50L-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-50LH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-50LH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-50LH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-50M-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-50MH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-50MH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-50MH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-63H0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63H4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63H5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63A-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-63AH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63AH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63AH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63F-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-63FH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63FH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63FH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63G-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-63GH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63GH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63GH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63J-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-63JH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63JH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63JH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63K-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-63KH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63KH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63KH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63L-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-63LH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63LH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63LH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63M-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-63MH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63MH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63MH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63D-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-63DH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63DH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63DH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63DA-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-63DAH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63DAH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63DAH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63DF-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-63DFH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63DFH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63DFH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63DG-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-63DGH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63DGH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63DGH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63DJ-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-63DJH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63DJH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63DJH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63DK-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-63DKH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63DKH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63DKH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63DL-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-63DLH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63DLH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63DLH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63DM-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-63DMH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63DMH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63DMH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-80H0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80H4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80H5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80A-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-80AH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80AH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80AH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80F-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-80FH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80FH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80FH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80G-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-80GH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80GH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80GH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80J-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-80JH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80JH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80JH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80K-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-80KH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80KH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80KH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80L-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-80LH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80LH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80LH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80M-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-80MH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80MH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80MH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80D-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-80DH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80DH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80DH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80DA-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-80DAH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80DAH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80DAH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80DF-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-80DFH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80DFH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80DFH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80DG-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-80DGH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80DGH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80DGH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80DJ-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-80DJH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80DJH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80DJH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80DK-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-80DKH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80DKH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80DKH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80DL-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-80DLH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80DLH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80DLH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80DM-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-80DMH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80DMH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80DMH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-100H0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100H4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100H5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100A Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-100AH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100AH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100AH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100F Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-100FH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100FH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100FH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100G Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-100GH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100GH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100GH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100J Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-100JH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100JH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100JH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100K Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-100KH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100KH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100KH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100L Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-100LH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100LH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100LH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100M Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-100MH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100MH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100MH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100D Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-100DH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100DH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100DH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100DA Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-100DAH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100DAH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100DAH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100DF Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-100DFH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100DFH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100DFH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100DG Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-100DGH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100DGH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100DGH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100DJ Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-100DJH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100DJH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100DJH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100DK Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-100DKH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100DKH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100DKH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100DL Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-100DLH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100DLH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100DLH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100DM Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-100DMH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100DMH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100DMH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-160H0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160H4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160H5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160A Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-160AH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160AH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160AH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160F Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-160FH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160FH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160FH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160G Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-160GH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160GH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160GH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160J Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-160JH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160JH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160JH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160K Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-160KH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160KH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160KH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160L Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-160LH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160LH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160LH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160M Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-160MH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160MH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160MH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160D Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-160DH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160DH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160DH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160DA Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-160DAH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160DAH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160DAH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160DF Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-160DFH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160DFH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160DFH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160DG Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-160DGH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160DGH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160DGH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160DJ Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-160DJH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160DJH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160DJH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160DK Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-160DKH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160DKH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160DKH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160DL Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-160DLH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160DLH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160DLH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160DM Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-160DMH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160DMH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160DMH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
High Vacuum ValvesSMC
360 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XLA High Vacuum L-Type Valve (Aluminum, N.C., Bellows, 16-160)

Brand SMC·High Vacuum Valves

Available part numbers (360)

XLA-16-2, XLA-16H0-2, XLA-16A-2, XLA-16AH0-2, XLA-16F-2, XLA-16FH0-2, XLA-16G-2, XLA-16GH0-2, XLA-16J-2, XLA-16JH0-2 + 350 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XLA-16-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-16H0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-16A-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-16AH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-16F-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-16FH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-16G-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-16GH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-16J-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-16JH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-16K-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-16KH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-16L-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-16LH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-16M-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-16MH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-25-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-25H0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-25H5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-25A-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-25AH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-25AH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-25F-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-25FH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-25FH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-25G-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-25GH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-25GH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-25J-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-25JH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-25JH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-25K-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-25KH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-25KH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-25L-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-25LH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-25LH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-25M-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-25MH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-25MH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-40-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-40H0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-40H4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-40H5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-40A-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-40AH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-40AH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-40AH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-40F-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-40FH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-40FH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-40FH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-40G-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-40GH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-40GH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-40GH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-40J-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-40JH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-40JH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-40JH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-40K-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-40KH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-40KH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-40KH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-40L-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-40LH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-40LH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-40LH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-40M-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-40MH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-40MH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-40MH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-50-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-50H0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-50H4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-50H5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-50A-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-50AH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-50AH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-50AH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-50F-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-50FH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-50FH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-50FH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-50G-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-50GH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-50GH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-50GH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-50J-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-50JH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-50JH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-50JH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-50K-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-50KH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-50KH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-50KH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-50L-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-50LH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-50LH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-50LH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-50M-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-50MH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-50MH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-50MH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-63H0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63H4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63H5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63A-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-63AH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63AH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63AH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63F-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-63FH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63FH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63FH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63G-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-63GH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63GH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63GH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63J-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-63JH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63JH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63JH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63K-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-63KH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63KH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63KH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63L-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-63LH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63LH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63LH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63M-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-63MH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63MH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63MH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63D-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-63DH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63DH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63DH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63DA-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-63DAH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-63DAH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-63DAH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-63DF-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-63DFH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63DFH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63DFH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63DG-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-63DGH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63DGH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63DGH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63DJ-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-63DJH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63DJH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63DJH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-63DK-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-63DKH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-63DKH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-63DKH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-63DL-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-63DLH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-63DLH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-63DLH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-63DM-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-63DMH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-63DMH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-63DMH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-80H0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80H4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80H5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80A-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-80AH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80AH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80AH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80F-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-80FH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80FH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80FH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80G-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-80GH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80GH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80GH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80J-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-80JH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80JH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80JH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80K-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-80KH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80KH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80KH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80L-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-80LH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80LH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80LH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80M-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-80MH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80MH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80MH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80D-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-80DH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80DH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80DH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80DA-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-80DAH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-80DAH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-80DAH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-80DF-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-80DFH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80DFH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80DFH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80DG-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-80DGH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80DGH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80DGH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80DJ-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-80DJH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80DJH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80DJH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-80DK-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-80DKH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-80DKH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-80DKH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-80DL-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-80DLH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-80DLH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-80DLH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-80DM-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-80DMH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-80DMH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-80DMH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-100H0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100H4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100H5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100AFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-100AH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100AH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100AH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100FFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-100FH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100FH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100FH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100GFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-100GH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100GH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100GH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100JFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-100JH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100JH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100JH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100KFlange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-100KH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100KH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100KH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100LFlange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-100LH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100LH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100LH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100MFlange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-100MH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100MH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100MH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100DFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-100DH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100DH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100DH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100DAFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-100DAH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-100DAH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-100DAH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-100DFFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-100DFH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100DFH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100DFH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100DGFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-100DGH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100DGH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100DGH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100DJFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-100DJH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100DJH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100DJH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-100DKFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-100DKH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-100DKH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-100DKH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-100DLFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-100DLH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-100DLH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-100DLH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-100DMFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-100DMH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-100DMH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-100DMH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-160H0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160H4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160H5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160AFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-160AH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160AH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160AH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160FFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-160FH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160FH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160FH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160GFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-160GH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160GH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160GH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160JFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-160JH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160JH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160JH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160KFlange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-160KH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160KH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160KH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160LFlange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-160LH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160LH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160LH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160MFlange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-160MH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160MH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160MH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160DFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLA-160DH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160DH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160DH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160DAFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLA-160DAH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLA-160DAH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLA-160DAH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLA-160DFFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLA-160DFH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160DFH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160DFH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160DGFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLA-160DGH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160DGH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160DGH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160DJFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLA-160DJH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160DJH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160DJH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLA-160DKFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLA-160DKH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLA-160DKH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLA-160DKH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLA-160DLFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLA-160DLH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLA-160DLH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLA-160DLH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLA-160DMFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLA-160DMH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLA-160DMH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLA-160DMH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
