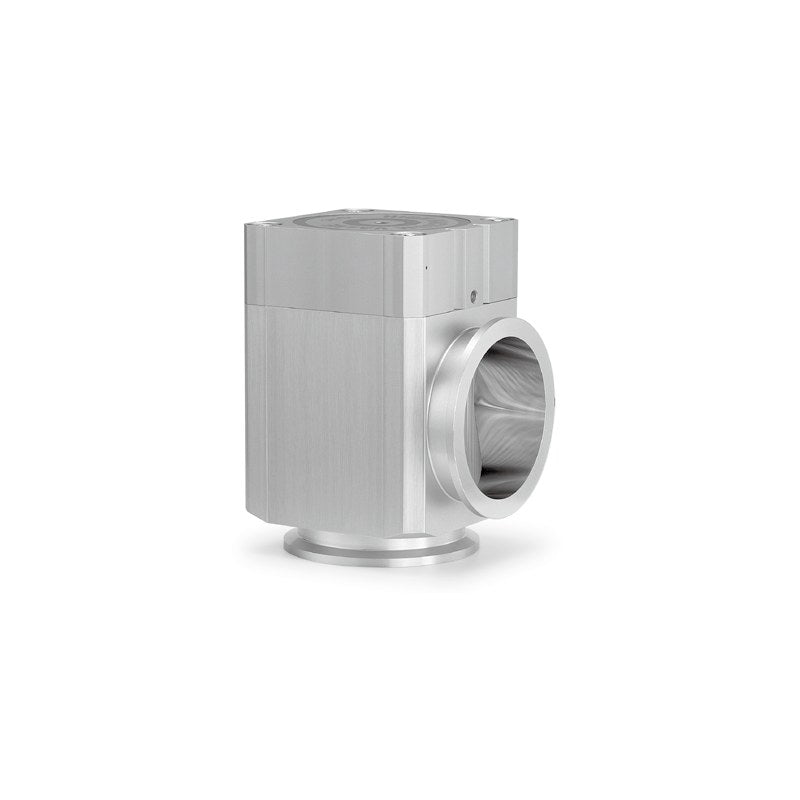

SMC XLAV High Vacuum L-Type Valve with Solenoid Valve (100, 160)

SMC XLAV large-bore aluminum high vacuum L-type valve, normally closed with bellows seal and mounted pilot solenoid valve, flange sizes 100 and 160.

Key features

Large conductance: 300 L/s (100) and 800 L/s (160)
KF (NW) or K (DN) flange
Pilot solenoid valve mounted on the actuator: supply pilot air to 1(P) and switch electrically
Coil voltages AC100/110/200/220V and DC12/24V; grommet or L/M plug connector lead entry
Lamp/surge suppressor (S/Z/U) and CE/UKCA (Q) are suffix options, not expanded
Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded

Specifications

Valve type	Normally closed, bellows seal, solenoid pilot
Fluid	Inert gas under vacuum
Body material	Aluminum alloy (A6063)
Surface treatment	Hard anodized outside, untreated inside
Operating temperature	5-50 C
Operating pressure	1x10^-6 Pa(abs) to atmospheric
Pilot pressure	0.4-0.7 MPa
Pilot solenoid	SYJ519
Mass	10.7 kg (100), 18.6 kg (160)
Source	SMC Korea XL catalog (SMCKR_XL.pdf), p. 3-4

XLAV-100F-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100F-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100F-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100F-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100F-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100F-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100F-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100F-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100F-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100F-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100F-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100F-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100F-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100F-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100F-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100F-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100F-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100F-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100F-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100F-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100F-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100F-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100F-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100F-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100G-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100G-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100G-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100G-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100G-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100G-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100G-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100G-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100G-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100G-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100G-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100G-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100G-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100G-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100G-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100G-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100G-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100G-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100G-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100G-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100G-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100G-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100G-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100G-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100J-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100J-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100J-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100J-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100J-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100J-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100J-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100J-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100J-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100J-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100J-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100J-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100J-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100J-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100J-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100J-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100J-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100J-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100J-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100J-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100J-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100J-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100J-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100J-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100K-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100K-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100K-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100K-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100K-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100K-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100K-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100K-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100K-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100K-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100K-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100K-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100K-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100K-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100K-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100K-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100K-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100K-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100K-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100K-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100K-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100K-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100K-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100K-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100L-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100L-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100L-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100L-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100L-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100L-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100L-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100L-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100L-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100L-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100L-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100L-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100L-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100L-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100L-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100L-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100L-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100L-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100L-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100L-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100L-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100L-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100L-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100L-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100M-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100M-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100M-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100M-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100M-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100M-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100M-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100M-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100M-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100M-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100M-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100M-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100M-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100M-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100M-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100M-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100M-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100M-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100M-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100M-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100M-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100M-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100M-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100M-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100DF-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DF-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DF-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DF-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DF-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DF-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DF-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DF-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DF-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DF-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DF-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DF-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DF-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DF-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DF-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DF-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DF-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DF-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DF-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100DF-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100DF-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DF-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DF-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100DF-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100DG-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DG-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DG-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DG-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DG-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DG-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DG-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DG-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DG-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DG-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DG-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DG-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DG-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DG-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DG-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DG-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DG-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DG-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DG-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100DG-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100DG-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DG-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DG-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100DG-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100DJ-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DJ-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DJ-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DJ-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DJ-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DJ-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DJ-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DJ-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DJ-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DJ-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DJ-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DJ-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DJ-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DJ-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DJ-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DJ-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DJ-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DJ-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DJ-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100DJ-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100DJ-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DJ-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DJ-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100DJ-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100DK-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DK-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DK-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DK-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DK-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DK-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DK-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DK-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DK-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DK-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DK-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DK-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DK-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DK-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DK-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DK-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DK-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DK-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DK-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100DK-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100DK-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DK-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DK-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100DK-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100DL-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DL-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DL-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DL-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DL-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DL-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DL-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DL-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DL-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DL-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DL-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DL-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DL-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DL-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DL-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DL-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DL-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DL-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DL-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100DL-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100DL-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DL-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DL-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100DL-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-100DM-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DM-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DM-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DM-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DM-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DM-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DM-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DM-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DM-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DM-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DM-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DM-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DM-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DM-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DM-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-100DM-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-100DM-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DM-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DM-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-100DM-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-100DM-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-100DM-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-100DM-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-100DM-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160F-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160F-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160F-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160F-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160F-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160F-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160F-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160F-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160F-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160F-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160F-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160F-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160F-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160F-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160F-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160F-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160F-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160F-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160F-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160F-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160F-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160F-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160F-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160F-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160G-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160G-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160G-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160G-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160G-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160G-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160G-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160G-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160G-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160G-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160G-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160G-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160G-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160G-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160G-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160G-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160G-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160G-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160G-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160G-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160G-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160G-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160G-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160G-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160J-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160J-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160J-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160J-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160J-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160J-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160J-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160J-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160J-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160J-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160J-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160J-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160J-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160J-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160J-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160J-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160J-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160J-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160J-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160J-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160J-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160J-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160J-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160J-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160K-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160K-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160K-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160K-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160K-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160K-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160K-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160K-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160K-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160K-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160K-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160K-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160K-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160K-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160K-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160K-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160K-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160K-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160K-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160K-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160K-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160K-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160K-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160K-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160L-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160L-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160L-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160L-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160L-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160L-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160L-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160L-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160L-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160L-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160L-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160L-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160L-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160L-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160L-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160L-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160L-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160L-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160L-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160L-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160L-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160L-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160L-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160L-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160M-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160M-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160M-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160M-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160M-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160M-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160M-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160M-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160M-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160M-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160M-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160M-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160M-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160M-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160M-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160M-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160M-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160M-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160M-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160M-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160M-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160M-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160M-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160M-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160DF-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DF-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DF-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DF-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DF-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DF-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DF-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DF-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DF-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DF-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DF-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DF-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DF-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DF-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DF-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DF-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DF-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DF-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DF-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160DF-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160DF-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DF-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DF-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160DF-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160DG-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DG-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DG-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DG-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DG-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DG-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DG-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DG-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DG-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DG-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DG-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DG-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DG-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DG-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DG-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DG-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DG-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DG-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DG-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160DG-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160DG-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DG-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DG-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160DG-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160DJ-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DJ-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DJ-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DJ-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DJ-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DJ-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DJ-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DJ-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DJ-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DJ-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DJ-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DJ-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DJ-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DJ-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DJ-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DJ-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DJ-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DJ-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DJ-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160DJ-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160DJ-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DJ-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DJ-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160DJ-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160DK-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DK-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DK-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DK-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DK-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DK-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DK-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DK-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DK-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DK-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DK-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DK-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DK-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DK-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DK-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DK-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DK-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DK-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DK-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160DK-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160DK-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DK-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DK-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160DK-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160DL-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DL-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DL-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DL-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DL-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DL-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DL-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DL-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DL-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DL-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DL-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DL-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DL-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DL-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DL-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DL-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DL-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DL-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DL-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160DL-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160DL-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DL-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DL-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160DL-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-160DM-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DM-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DM-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DM-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DM-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DM-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DM-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DM-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DM-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DM-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DM-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DM-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DM-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DM-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DM-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-160DM-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-160DM-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DM-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DM-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-160DM-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-160DM-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-160DM-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-160DM-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-160DM-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector

High Vacuum ValvesSMC

576 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XLAV High Vacuum L-Type Valve with Solenoid Valve (100, 160)

Brand SMC·High Vacuum Valves

Available part numbers (576)

XLAV-100F-1G, XLAV-100F-1H, XLAV-100F-1L, XLAV-100F-1M, XLAV-100F-2G, XLAV-100F-2H, XLAV-100F-2L, XLAV-100F-2M, XLAV-100F-3G, XLAV-100F-3H + 566 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	XLAV-100F-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100F-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100F-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100F-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100F-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100F-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100F-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100F-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100F-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100F-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100F-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100F-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100F-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100F-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100F-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100F-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100F-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100F-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100F-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100F-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100F-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100F-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100F-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100F-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100G-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100G-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100G-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100G-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100G-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100G-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100G-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100G-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100G-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100G-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100G-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100G-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100G-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100G-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100G-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100G-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100G-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100G-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100G-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100G-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100G-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100G-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100G-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100G-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100J-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100J-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100J-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100J-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100J-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100J-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100J-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100J-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100J-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100J-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100J-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100J-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100J-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100J-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100J-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100J-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100J-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100J-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100J-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100J-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100J-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100J-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100J-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100J-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100K-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100K-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100K-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100K-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100K-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100K-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100K-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100K-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100K-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100K-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100K-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100K-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100K-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100K-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100K-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100K-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100K-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100K-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100K-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100K-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100K-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100K-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100K-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100K-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100L-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100L-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100L-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100L-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100L-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100L-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100L-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100L-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100L-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100L-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100L-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100L-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100L-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100L-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100L-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100L-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100L-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100L-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100L-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100L-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100L-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100L-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100L-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100L-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100M-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100M-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100M-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100M-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100M-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100M-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100M-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100M-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100M-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100M-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100M-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100M-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100M-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100M-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100M-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100M-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100M-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100M-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100M-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100M-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100M-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100M-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100M-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100M-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100DF-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DF-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DF-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DF-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DF-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DF-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DF-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DF-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DF-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DF-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DF-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DF-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DF-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DF-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DF-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DF-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DF-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DF-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DF-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100DF-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100DF-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DF-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DF-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100DF-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100DG-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DG-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DG-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DG-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DG-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DG-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DG-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DG-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DG-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DG-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DG-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DG-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DG-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DG-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DG-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DG-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DG-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DG-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DG-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100DG-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100DG-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DG-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DG-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100DG-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100DJ-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DJ-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DJ-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DJ-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DJ-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DJ-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DJ-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DJ-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DJ-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DJ-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DJ-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DJ-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DJ-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DJ-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DJ-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DJ-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DJ-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DJ-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DJ-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100DJ-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100DJ-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DJ-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DJ-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100DJ-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100DK-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DK-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DK-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DK-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DK-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DK-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DK-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DK-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DK-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DK-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DK-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DK-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DK-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DK-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DK-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DK-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DK-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DK-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DK-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100DK-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100DK-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DK-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DK-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100DK-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100DL-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DL-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DL-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DL-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DL-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DL-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DL-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DL-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DL-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DL-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DL-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DL-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DL-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DL-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DL-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DL-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DL-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DL-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DL-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100DL-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100DL-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DL-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DL-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100DL-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-100DM-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DM-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DM-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DM-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DM-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DM-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DM-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DM-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DM-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DM-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DM-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DM-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DM-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DM-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DM-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-100DM-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-100DM-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DM-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DM-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-100DM-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-100DM-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-100DM-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-100DM-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-100DM-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160F-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160F-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160F-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160F-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160F-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160F-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160F-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160F-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160F-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160F-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160F-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160F-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160F-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160F-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160F-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160F-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160F-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160F-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160F-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160F-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160F-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160F-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160F-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160F-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160G-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160G-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160G-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160G-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160G-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160G-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160G-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160G-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160G-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160G-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160G-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160G-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160G-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160G-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160G-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160G-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160G-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160G-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160G-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160G-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160G-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160G-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160G-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160G-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160J-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160J-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160J-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160J-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160J-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160J-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160J-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160J-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160J-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160J-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160J-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160J-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160J-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160J-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160J-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160J-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160J-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160J-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160J-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160J-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160J-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160J-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160J-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160J-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160K-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160K-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160K-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160K-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160K-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160K-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160K-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160K-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160K-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160K-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160K-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160K-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160K-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160K-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160K-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160K-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160K-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160K-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160K-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160K-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160K-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160K-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160K-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160K-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160L-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160L-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160L-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160L-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160L-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160L-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160L-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160L-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160L-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160L-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160L-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160L-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160L-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160L-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160L-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160L-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160L-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160L-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160L-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160L-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160L-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160L-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160L-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160L-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160M-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160M-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160M-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160M-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160M-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160M-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160M-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160M-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160M-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160M-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160M-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160M-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160M-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160M-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160M-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160M-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160M-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160M-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160M-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160M-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160M-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160M-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160M-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160M-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160DF-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DF-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DF-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DF-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DF-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DF-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DF-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DF-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DF-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DF-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DF-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DF-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DF-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DF-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DF-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DF-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DF-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DF-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DF-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160DF-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160DF-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DF-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DF-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160DF-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160DG-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DG-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DG-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DG-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DG-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DG-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DG-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DG-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DG-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DG-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DG-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DG-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DG-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DG-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DG-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DG-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DG-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DG-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DG-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160DG-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160DG-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DG-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DG-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160DG-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160DJ-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DJ-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DJ-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DJ-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DJ-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DJ-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DJ-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DJ-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DJ-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DJ-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DJ-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DJ-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DJ-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DJ-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DJ-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DJ-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DJ-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DJ-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DJ-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160DJ-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160DJ-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DJ-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DJ-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160DJ-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160DK-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DK-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DK-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DK-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DK-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DK-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DK-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DK-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DK-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DK-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DK-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DK-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DK-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DK-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DK-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DK-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DK-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DK-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DK-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160DK-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160DK-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DK-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DK-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160DK-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160DL-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DL-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DL-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DL-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DL-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DL-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DL-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DL-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DL-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DL-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DL-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DL-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DL-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DL-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DL-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DL-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DL-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DL-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DL-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160DL-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160DL-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DL-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DL-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160DL-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-160DM-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DM-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DM-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DM-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DM-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DM-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DM-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DM-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DM-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DM-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DM-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DM-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DM-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DM-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DM-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-160DM-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-160DM-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DM-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DM-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-160DM-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-160DM-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-160DM-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-160DM-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-160DM-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC XLAV High Vacuum L-Type Valve with Solenoid Valve (100, 160)
