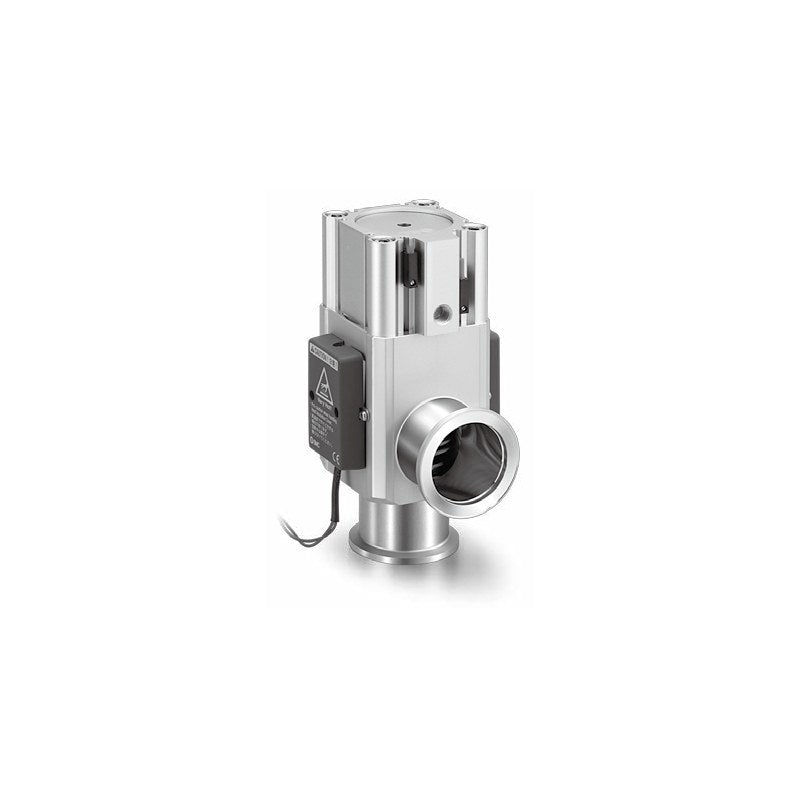

SMC XLAV High Vacuum L-Type Valve with Solenoid Valve (16-80)

SMC XLAV aluminum high vacuum L-type valve, normally closed with bellows seal and a directly mounted pilot solenoid valve, flange sizes 16 to 80.

Key features

Same aluminum bellows-seal body as XLA with replaceable bellows assembly (design -2)
Pilot solenoid valve mounted on the actuator: supply pilot air to 1(P) and switch electrically
Coil voltages AC100/110/200/220V and DC12/24V; grommet or L/M plug connector lead entry
Lamp/surge suppressor (S/Z/U) and CE/UKCA (Q) are suffix options, not expanded
Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded
Seal material change (EPDM, Kalrez, Chemraz, VMQ, ULTIC ARMOR etc.) via -X suffix

Specifications

Valve type	Normally closed, bellows seal, solenoid pilot
Fluid	Inert gas under vacuum
Body material	Aluminum alloy (A6063)
Surface treatment	Hard anodized outside, untreated inside
Operating temperature	5-50 C
Operating pressure	1x10^-6 Pa(abs) to atmospheric
Conductance	L/s: 16=5, 25=14, 40=45, 50=80, 63=160, 80=200
Pilot pressure	0.4-0.7 MPa
Pilot solenoid	SYJ319 (16-50), SYJ519 (63, 80)
Source	SMC Korea XL catalog (SMCKR_XL-2.pdf), p. 5-6

XLAV-16F-2-1G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16F-2-1H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16F-2-1L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16F-2-1M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16F-2-2G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16F-2-2H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16F-2-2L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16F-2-2M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16F-2-3G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16F-2-3H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16F-2-3L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16F-2-3M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16F-2-4G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16F-2-4H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16F-2-4L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16F-2-4M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16F-2-5G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16F-2-5H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16F-2-5L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-16F-2-5M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-16F-2-6G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16F-2-6H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16F-2-6L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-16F-2-6M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-16G-2-1G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16G-2-1H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16G-2-1L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16G-2-1M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16G-2-2G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16G-2-2H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16G-2-2L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16G-2-2M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16G-2-3G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16G-2-3H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16G-2-3L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16G-2-3M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16G-2-4G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16G-2-4H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16G-2-4L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16G-2-4M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16G-2-5G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16G-2-5H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16G-2-5L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-16G-2-5M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-16G-2-6G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16G-2-6H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16G-2-6L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-16G-2-6M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-16J-2-1G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16J-2-1H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16J-2-1L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16J-2-2G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16J-2-2H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16J-2-2L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16J-2-3G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16J-2-3H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16J-2-3L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16J-2-4G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16J-2-4H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16J-2-4L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16J-2-5G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16J-2-5H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16J-2-5L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-16J-2-5M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-16J-2-6G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16J-2-6H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16J-2-6L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-16J-2-6M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-16K-2-1G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16K-2-1H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16K-2-1L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16K-2-1M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16K-2-2G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16K-2-2H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16K-2-2L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16K-2-2M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16K-2-3G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16K-2-3H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16K-2-3L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16K-2-3M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16K-2-4G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16K-2-4H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16K-2-4L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16K-2-4M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16K-2-5G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16K-2-5H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16K-2-5L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-16K-2-5M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-16K-2-6G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16K-2-6H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16K-2-6L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-16K-2-6M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-16L-2-1G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16L-2-1H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16L-2-1L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16L-2-1M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16L-2-2G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16L-2-2H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16L-2-2L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16L-2-2M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16L-2-3G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16L-2-3H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16L-2-3L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16L-2-3M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16L-2-4G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16L-2-4H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16L-2-4L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16L-2-4M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-16L-2-5G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16L-2-5H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16L-2-5L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-16L-2-5M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-16L-2-6G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16L-2-6H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16L-2-6L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-16L-2-6M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-16M-2-1G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16M-2-1H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16M-2-1L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16M-2-2G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16M-2-2H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16M-2-2L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16M-2-3G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16M-2-3H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16M-2-3L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16M-2-4G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-16M-2-4H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-16M-2-4L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-16M-2-5G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16M-2-5H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16M-2-5L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-16M-2-5M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-16M-2-6G		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-16M-2-6H		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-16M-2-6L		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-16M-2-6M		Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-25F-2-1G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25F-2-1H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25F-2-1L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25F-2-1M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25F-2-2G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25F-2-2H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25F-2-2L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25F-2-2M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25F-2-3G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25F-2-3H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25F-2-3L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25F-2-3M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25F-2-4G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25F-2-4H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25F-2-4L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25F-2-4M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25F-2-5G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25F-2-5H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25F-2-5L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-25F-2-5M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-25F-2-6G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25F-2-6H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25F-2-6L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-25F-2-6M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-25G-2-1G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25G-2-1H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25G-2-1L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25G-2-1M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25G-2-2G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25G-2-2H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25G-2-2L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25G-2-2M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25G-2-3G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25G-2-3H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25G-2-3L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25G-2-3M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25G-2-4G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25G-2-4H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25G-2-4L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25G-2-4M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25G-2-5G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25G-2-5H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25G-2-5L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-25G-2-5M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-25G-2-6G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25G-2-6H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25G-2-6L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-25G-2-6M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-25J-2-1G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25J-2-1H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25J-2-1L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25J-2-2G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25J-2-2H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25J-2-2L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25J-2-3G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25J-2-3H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25J-2-3L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25J-2-4G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25J-2-4H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25J-2-4L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25J-2-5G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25J-2-5H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25J-2-5L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-25J-2-5M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-25J-2-6G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25J-2-6H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25J-2-6L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-25J-2-6M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-25K-2-1G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25K-2-1H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25K-2-1L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25K-2-1M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25K-2-2G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25K-2-2H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25K-2-2L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25K-2-2M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25K-2-3G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25K-2-3H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25K-2-3L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25K-2-3M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25K-2-4G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25K-2-4H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25K-2-4L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25K-2-4M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25K-2-5G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25K-2-5H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25K-2-5L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-25K-2-5M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-25K-2-6G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25K-2-6H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25K-2-6L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-25K-2-6M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-25L-2-1G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25L-2-1H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25L-2-1L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25L-2-1M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25L-2-2G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25L-2-2H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25L-2-2L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25L-2-2M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25L-2-3G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25L-2-3H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25L-2-3L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25L-2-3M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25L-2-4G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25L-2-4H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25L-2-4L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25L-2-4M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-25L-2-5G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25L-2-5H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25L-2-5L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-25L-2-5M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-25L-2-6G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25L-2-6H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25L-2-6L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-25L-2-6M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-25M-2-1G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25M-2-1H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25M-2-1L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25M-2-2G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25M-2-2H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25M-2-2L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25M-2-3G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25M-2-3H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25M-2-3L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25M-2-4G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-25M-2-4H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-25M-2-4L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-25M-2-5G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25M-2-5H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25M-2-5L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-25M-2-5M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-25M-2-6G		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-25M-2-6H		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-25M-2-6L		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-25M-2-6M		Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-40F-2-1G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40F-2-1H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40F-2-1L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40F-2-1M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40F-2-2G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40F-2-2H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40F-2-2L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40F-2-2M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40F-2-3G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40F-2-3H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40F-2-3L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40F-2-3M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40F-2-4G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40F-2-4H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40F-2-4L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40F-2-4M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40F-2-5G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40F-2-5H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40F-2-5L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-40F-2-5M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-40F-2-6G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40F-2-6H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40F-2-6L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-40F-2-6M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-40G-2-1G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40G-2-1H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40G-2-1L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40G-2-1M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40G-2-2G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40G-2-2H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40G-2-2L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40G-2-2M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40G-2-3G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40G-2-3H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40G-2-3L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40G-2-3M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40G-2-4G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40G-2-4H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40G-2-4L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40G-2-4M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40G-2-5G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40G-2-5H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40G-2-5L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-40G-2-5M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-40G-2-6G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40G-2-6H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40G-2-6L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-40G-2-6M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-40J-2-1G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40J-2-1H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40J-2-1L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40J-2-1M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40J-2-2G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40J-2-2H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40J-2-2L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40J-2-2M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40J-2-3G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40J-2-3H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40J-2-3L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40J-2-3M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40J-2-4G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40J-2-4H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40J-2-4L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40J-2-4M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40J-2-5G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40J-2-5H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40J-2-5L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-40J-2-5M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-40J-2-6G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40J-2-6H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40J-2-6L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-40J-2-6M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-40K-2-1G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40K-2-1H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40K-2-1L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40K-2-1M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40K-2-2G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40K-2-2H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40K-2-2L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40K-2-2M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40K-2-3G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40K-2-3H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40K-2-3L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40K-2-3M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40K-2-4G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40K-2-4H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40K-2-4L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40K-2-4M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40K-2-5G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40K-2-5H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40K-2-5L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-40K-2-5M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-40K-2-6G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40K-2-6H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40K-2-6L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-40K-2-6M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-40L-2-1G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40L-2-1H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40L-2-1L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40L-2-1M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40L-2-2G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40L-2-2H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40L-2-2L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40L-2-2M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40L-2-3G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40L-2-3H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40L-2-3L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40L-2-3M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40L-2-4G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40L-2-4H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40L-2-4L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40L-2-4M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40L-2-5G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40L-2-5H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40L-2-5L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-40L-2-5M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-40L-2-6G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40L-2-6H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40L-2-6L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-40L-2-6M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-40M-2-1G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40M-2-1H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40M-2-1L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40M-2-1M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40M-2-2G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40M-2-2H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40M-2-2L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40M-2-2M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40M-2-3G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40M-2-3H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40M-2-3L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40M-2-3M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40M-2-4G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-40M-2-4H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-40M-2-4L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-40M-2-4M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-40M-2-5G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40M-2-5H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40M-2-5L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-40M-2-5M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-40M-2-6G		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-40M-2-6H		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-40M-2-6L		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-40M-2-6M		Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-50F-2-1G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50F-2-1H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50F-2-1L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50F-2-1M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50F-2-2G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50F-2-2H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50F-2-2L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50F-2-2M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50F-2-3G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50F-2-3H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50F-2-3L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50F-2-3M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50F-2-4G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50F-2-4H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50F-2-4L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50F-2-4M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50F-2-5G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50F-2-5H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50F-2-5L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-50F-2-5M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-50F-2-6G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50F-2-6H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50F-2-6L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-50F-2-6M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-50G-2-1G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50G-2-1H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50G-2-1L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50G-2-1M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50G-2-2G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50G-2-2H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50G-2-2L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50G-2-2M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50G-2-3G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50G-2-3H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50G-2-3L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50G-2-3M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50G-2-4G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50G-2-4H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50G-2-4L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50G-2-4M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50G-2-5G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50G-2-5H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50G-2-5L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-50G-2-5M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-50G-2-6G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50G-2-6H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50G-2-6L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-50G-2-6M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-50J-2-1G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50J-2-1H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50J-2-1L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50J-2-1M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50J-2-2G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50J-2-2H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50J-2-2L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50J-2-2M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50J-2-3G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50J-2-3H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50J-2-3L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50J-2-3M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50J-2-4G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50J-2-4H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50J-2-4L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50J-2-4M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50J-2-5G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50J-2-5H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50J-2-5L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-50J-2-5M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-50J-2-6G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50J-2-6H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50J-2-6L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-50J-2-6M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-50K-2-1G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50K-2-1H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50K-2-1L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50K-2-1M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50K-2-2G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50K-2-2H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50K-2-2L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50K-2-2M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50K-2-3G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50K-2-3H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50K-2-3L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50K-2-3M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50K-2-4G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50K-2-4H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50K-2-4L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50K-2-4M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50K-2-5G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50K-2-5H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50K-2-5L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-50K-2-5M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-50K-2-6G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50K-2-6H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50K-2-6L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-50K-2-6M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-50L-2-1G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50L-2-1H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50L-2-1L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50L-2-1M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50L-2-2G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50L-2-2H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50L-2-2L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50L-2-2M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50L-2-3G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50L-2-3H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50L-2-3L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50L-2-3M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50L-2-4G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50L-2-4H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50L-2-4L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50L-2-4M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50L-2-5G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50L-2-5H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50L-2-5L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-50L-2-5M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-50L-2-6G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50L-2-6H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50L-2-6L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-50L-2-6M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-50M-2-1G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50M-2-1H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50M-2-1L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50M-2-1M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50M-2-2G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50M-2-2H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50M-2-2L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50M-2-2M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50M-2-3G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50M-2-3H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50M-2-3L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50M-2-3M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50M-2-4G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-50M-2-4H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-50M-2-4L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-50M-2-4M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-50M-2-5G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50M-2-5H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50M-2-5L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-50M-2-5M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-50M-2-6G		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-50M-2-6H		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-50M-2-6L		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-50M-2-6M		Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63F-2-1G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63F-2-1H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63F-2-1L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63F-2-1M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63F-2-2G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63F-2-2H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63F-2-2L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63F-2-2M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63F-2-3G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63F-2-3H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63F-2-3L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63F-2-3M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63F-2-4G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63F-2-4H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63F-2-4L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63F-2-4M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63F-2-5G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63F-2-5H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63F-2-5L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63F-2-5M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63F-2-6G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63F-2-6H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63F-2-6L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63F-2-6M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63G-2-1G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63G-2-1H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63G-2-1L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63G-2-1M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63G-2-2G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63G-2-2H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63G-2-2L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63G-2-2M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63G-2-3G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63G-2-3H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63G-2-3L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63G-2-3M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63G-2-4G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63G-2-4H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63G-2-4L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63G-2-4M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63G-2-5G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63G-2-5H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63G-2-5L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63G-2-5M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63G-2-6G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63G-2-6H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63G-2-6L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63G-2-6M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63J-2-1G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63J-2-1H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63J-2-1L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63J-2-1M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63J-2-2G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63J-2-2H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63J-2-2L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63J-2-2M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63J-2-3G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63J-2-3H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63J-2-3L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63J-2-3M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63J-2-4G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63J-2-4H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63J-2-4L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63J-2-4M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63J-2-5G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63J-2-5H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63J-2-5L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63J-2-5M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63J-2-6G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63J-2-6H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63J-2-6L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63J-2-6M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63K-2-1G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63K-2-1H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63K-2-1L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63K-2-1M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63K-2-2G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63K-2-2H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63K-2-2L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63K-2-2M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63K-2-3G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63K-2-3H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63K-2-3L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63K-2-3M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63K-2-4G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63K-2-4H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63K-2-4L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63K-2-4M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63K-2-5G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63K-2-5H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63K-2-5L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63K-2-5M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63K-2-6G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63K-2-6H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63K-2-6L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63K-2-6M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63L-2-1G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63L-2-1H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63L-2-1L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63L-2-1M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63L-2-2G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63L-2-2H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63L-2-2L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63L-2-2M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63L-2-3G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63L-2-3H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63L-2-3L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63L-2-3M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63L-2-4G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63L-2-4H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63L-2-4L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63L-2-4M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63L-2-5G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63L-2-5H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63L-2-5L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63L-2-5M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63L-2-6G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63L-2-6H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63L-2-6L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63L-2-6M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63M-2-1G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63M-2-1H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63M-2-1L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63M-2-1M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63M-2-2G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63M-2-2H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63M-2-2L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63M-2-2M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63M-2-3G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63M-2-3H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63M-2-3L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63M-2-3M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63M-2-4G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63M-2-4H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63M-2-4L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63M-2-4M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63M-2-5G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63M-2-5H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63M-2-5L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63M-2-5M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63M-2-6G		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63M-2-6H		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63M-2-6L		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63M-2-6M		Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63DF-2-1G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DF-2-1H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DF-2-1L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DF-2-1M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DF-2-2G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DF-2-2H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DF-2-2L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DF-2-2M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DF-2-3G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DF-2-3H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DF-2-3L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DF-2-3M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DF-2-4G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DF-2-4H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DF-2-4L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DF-2-4M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DF-2-5G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DF-2-5H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DF-2-5L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63DF-2-5M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63DF-2-6G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DF-2-6H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DF-2-6L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63DF-2-6M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63DG-2-1G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DG-2-1H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DG-2-1L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DG-2-1M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DG-2-2G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DG-2-2H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DG-2-2L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DG-2-2M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DG-2-3G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DG-2-3H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DG-2-3L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DG-2-3M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DG-2-4G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DG-2-4H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DG-2-4L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DG-2-4M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DG-2-5G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DG-2-5H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DG-2-5L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63DG-2-5M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63DG-2-6G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DG-2-6H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DG-2-6L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63DG-2-6M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63DJ-2-1G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DJ-2-1H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DJ-2-1L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DJ-2-1M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DJ-2-2G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DJ-2-2H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DJ-2-2L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DJ-2-2M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DJ-2-3G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DJ-2-3H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DJ-2-3L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DJ-2-3M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DJ-2-4G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DJ-2-4H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DJ-2-4L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DJ-2-4M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DJ-2-5G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DJ-2-5H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DJ-2-5L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63DJ-2-5M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63DJ-2-6G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DJ-2-6H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DJ-2-6L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63DJ-2-6M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63DK-2-1G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DK-2-1H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DK-2-1L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DK-2-1M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DK-2-2G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DK-2-2H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DK-2-2L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DK-2-2M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DK-2-3G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DK-2-3H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DK-2-3L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DK-2-3M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DK-2-4G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DK-2-4H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DK-2-4L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DK-2-4M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DK-2-5G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DK-2-5H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DK-2-5L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63DK-2-5M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63DK-2-6G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DK-2-6H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DK-2-6L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63DK-2-6M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63DL-2-1G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DL-2-1H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DL-2-1L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DL-2-1M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DL-2-2G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DL-2-2H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DL-2-2L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DL-2-2M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DL-2-3G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DL-2-3H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DL-2-3L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DL-2-3M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DL-2-4G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DL-2-4H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DL-2-4L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DL-2-4M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DL-2-5G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DL-2-5H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DL-2-5L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63DL-2-5M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63DL-2-6G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DL-2-6H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DL-2-6L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63DL-2-6M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-63DM-2-1G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DM-2-1H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DM-2-1L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DM-2-1M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DM-2-2G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DM-2-2H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DM-2-2L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DM-2-2M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DM-2-3G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DM-2-3H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DM-2-3L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DM-2-3M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DM-2-4G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DM-2-4H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DM-2-4L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-63DM-2-4M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-63DM-2-5G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DM-2-5H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DM-2-5L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-63DM-2-5M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-63DM-2-6G		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-63DM-2-6H		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-63DM-2-6L		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-63DM-2-6M		Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80F-2-1G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80F-2-1H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80F-2-1L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80F-2-1M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80F-2-2G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80F-2-2H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80F-2-2L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80F-2-2M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80F-2-3G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80F-2-3H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80F-2-3L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80F-2-3M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80F-2-4G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80F-2-4H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80F-2-4L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80F-2-4M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80F-2-5G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80F-2-5H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80F-2-5L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80F-2-5M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80F-2-6G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80F-2-6H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80F-2-6L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80F-2-6M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80G-2-1G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80G-2-1H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80G-2-1L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80G-2-1M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80G-2-2G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80G-2-2H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80G-2-2L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80G-2-2M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80G-2-3G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80G-2-3H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80G-2-3L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80G-2-3M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80G-2-4G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80G-2-4H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80G-2-4L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80G-2-4M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80G-2-5G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80G-2-5H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80G-2-5L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80G-2-5M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80G-2-6G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80G-2-6H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80G-2-6L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80G-2-6M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80J-2-1G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80J-2-1H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80J-2-1L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80J-2-1M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80J-2-2G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80J-2-2H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80J-2-2L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80J-2-2M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80J-2-3G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80J-2-3H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80J-2-3L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80J-2-3M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80J-2-4G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80J-2-4H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80J-2-4L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80J-2-4M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80J-2-5G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80J-2-5H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80J-2-5L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80J-2-5M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80J-2-6G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80J-2-6H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80J-2-6L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80J-2-6M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80K-2-1G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80K-2-1H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80K-2-1L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80K-2-1M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80K-2-2G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80K-2-2H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80K-2-2L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80K-2-2M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80K-2-3G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80K-2-3H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80K-2-3L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80K-2-3M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80K-2-4G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80K-2-4H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80K-2-4L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80K-2-4M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80K-2-5G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80K-2-5H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80K-2-5L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80K-2-5M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80K-2-6G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80K-2-6H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80K-2-6L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80K-2-6M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80L-2-1G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80L-2-1H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80L-2-1L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80L-2-1M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80L-2-2G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80L-2-2H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80L-2-2L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80L-2-2M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80L-2-3G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80L-2-3H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80L-2-3L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80L-2-3M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80L-2-4G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80L-2-4H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80L-2-4L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80L-2-4M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80L-2-5G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80L-2-5H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80L-2-5L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80L-2-5M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80L-2-6G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80L-2-6H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80L-2-6L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80L-2-6M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80M-2-1G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80M-2-1H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80M-2-1L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80M-2-1M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80M-2-2G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80M-2-2H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80M-2-2L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80M-2-2M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80M-2-3G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80M-2-3H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80M-2-3L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80M-2-3M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80M-2-4G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80M-2-4H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80M-2-4L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80M-2-4M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80M-2-5G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80M-2-5H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80M-2-5L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80M-2-5M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80M-2-6G		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80M-2-6H		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80M-2-6L		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80M-2-6M		Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80DF-2-1G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DF-2-1H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DF-2-1L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DF-2-1M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DF-2-2G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DF-2-2H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DF-2-2L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DF-2-2M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DF-2-3G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DF-2-3H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DF-2-3L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DF-2-3M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DF-2-4G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DF-2-4H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DF-2-4L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DF-2-4M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DF-2-5G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DF-2-5H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DF-2-5L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80DF-2-5M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80DF-2-6G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DF-2-6H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DF-2-6L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80DF-2-6M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80DG-2-1G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DG-2-1H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DG-2-1L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DG-2-1M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DG-2-2G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DG-2-2H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DG-2-2L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DG-2-2M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DG-2-3G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DG-2-3H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DG-2-3L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DG-2-3M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DG-2-4G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DG-2-4H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DG-2-4L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DG-2-4M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DG-2-5G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DG-2-5H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DG-2-5L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80DG-2-5M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80DG-2-6G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DG-2-6H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DG-2-6L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80DG-2-6M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80DJ-2-1G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DJ-2-1H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DJ-2-1L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DJ-2-1M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DJ-2-2G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DJ-2-2H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DJ-2-2L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DJ-2-2M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DJ-2-3G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DJ-2-3H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DJ-2-3L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DJ-2-3M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DJ-2-4G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DJ-2-4H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DJ-2-4L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DJ-2-4M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DJ-2-5G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DJ-2-5H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DJ-2-5L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80DJ-2-5M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80DJ-2-6G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DJ-2-6H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DJ-2-6L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80DJ-2-6M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80DK-2-1G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DK-2-1H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DK-2-1L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DK-2-1M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DK-2-2G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DK-2-2H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DK-2-2L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DK-2-2M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DK-2-3G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DK-2-3H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DK-2-3L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DK-2-3M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DK-2-4G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DK-2-4H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DK-2-4L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DK-2-4M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DK-2-5G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DK-2-5H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DK-2-5L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80DK-2-5M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80DK-2-6G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DK-2-6H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DK-2-6L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80DK-2-6M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80DL-2-1G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DL-2-1H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DL-2-1L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DL-2-1M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DL-2-2G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DL-2-2H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DL-2-2L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DL-2-2M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DL-2-3G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DL-2-3H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DL-2-3L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DL-2-3M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DL-2-4G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DL-2-4H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DL-2-4L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DL-2-4M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DL-2-5G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DL-2-5H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DL-2-5L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80DL-2-5M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80DL-2-6G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DL-2-6H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DL-2-6L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80DL-2-6M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLAV-80DM-2-1G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DM-2-1H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DM-2-1L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DM-2-1M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DM-2-2G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DM-2-2H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DM-2-2L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DM-2-2M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DM-2-3G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DM-2-3H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DM-2-3L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DM-2-3M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DM-2-4G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DM-2-4H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DM-2-4L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLAV-80DM-2-4M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLAV-80DM-2-5G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DM-2-5H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DM-2-5L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLAV-80DM-2-5M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLAV-80DM-2-6G		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLAV-80DM-2-6H		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLAV-80DM-2-6L		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLAV-80DM-2-6M		Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector

High Vacuum ValvesSMC

1136 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XLAV High Vacuum L-Type Valve with Solenoid Valve (16-80)

Brand SMC·High Vacuum Valves

Available part numbers (1136)

XLAV-16F-2-1G, XLAV-16F-2-1H, XLAV-16F-2-1L, XLAV-16F-2-1M, XLAV-16F-2-2G, XLAV-16F-2-2H, XLAV-16F-2-2L, XLAV-16F-2-2M, XLAV-16F-2-3G, XLAV-16F-2-3H + 1126 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	XLAV-16F-2-1G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16F-2-1H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16F-2-1L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16F-2-1M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16F-2-2G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16F-2-2H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16F-2-2L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16F-2-2M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16F-2-3G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16F-2-3H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16F-2-3L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16F-2-3M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16F-2-4G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16F-2-4H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16F-2-4L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16F-2-4M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16F-2-5G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16F-2-5H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16F-2-5L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-16F-2-5M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-16F-2-6G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16F-2-6H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16F-2-6L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-16F-2-6M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-16G-2-1G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16G-2-1H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16G-2-1L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16G-2-1M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16G-2-2G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16G-2-2H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16G-2-2L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16G-2-2M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16G-2-3G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16G-2-3H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16G-2-3L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16G-2-3M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16G-2-4G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16G-2-4H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16G-2-4L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16G-2-4M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16G-2-5G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16G-2-5H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16G-2-5L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-16G-2-5M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-16G-2-6G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16G-2-6H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16G-2-6L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-16G-2-6M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-16J-2-1G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16J-2-1H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16J-2-1L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16J-2-2G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16J-2-2H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16J-2-2L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16J-2-3G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16J-2-3H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16J-2-3L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16J-2-4G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16J-2-4H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16J-2-4L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16J-2-5G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16J-2-5H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16J-2-5L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-16J-2-5M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-16J-2-6G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16J-2-6H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16J-2-6L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-16J-2-6M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-16K-2-1G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16K-2-1H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16K-2-1L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16K-2-1M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16K-2-2G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16K-2-2H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16K-2-2L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16K-2-2M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16K-2-3G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16K-2-3H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16K-2-3L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16K-2-3M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16K-2-4G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16K-2-4H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16K-2-4L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16K-2-4M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16K-2-5G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16K-2-5H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16K-2-5L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-16K-2-5M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-16K-2-6G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16K-2-6H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16K-2-6L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-16K-2-6M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-16L-2-1G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16L-2-1H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16L-2-1L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16L-2-1M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16L-2-2G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16L-2-2H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16L-2-2L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16L-2-2M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16L-2-3G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16L-2-3H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16L-2-3L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16L-2-3M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16L-2-4G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16L-2-4H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16L-2-4L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16L-2-4M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-16L-2-5G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16L-2-5H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16L-2-5L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-16L-2-5M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-16L-2-6G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16L-2-6H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16L-2-6L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-16L-2-6M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-16M-2-1G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16M-2-1H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16M-2-1L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16M-2-2G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16M-2-2H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16M-2-2L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16M-2-3G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16M-2-3H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16M-2-3L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16M-2-4G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16M-2-4H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16M-2-4L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-16M-2-5G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16M-2-5H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16M-2-5L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-16M-2-5M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-16M-2-6G	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-16M-2-6H	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-16M-2-6L	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-16M-2-6M	Flange size: 16 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-25F-2-1G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25F-2-1H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25F-2-1L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25F-2-1M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25F-2-2G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25F-2-2H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25F-2-2L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25F-2-2M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25F-2-3G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25F-2-3H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25F-2-3L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25F-2-3M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25F-2-4G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25F-2-4H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25F-2-4L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25F-2-4M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25F-2-5G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25F-2-5H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25F-2-5L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-25F-2-5M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-25F-2-6G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25F-2-6H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25F-2-6L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-25F-2-6M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-25G-2-1G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25G-2-1H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25G-2-1L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25G-2-1M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25G-2-2G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25G-2-2H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25G-2-2L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25G-2-2M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25G-2-3G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25G-2-3H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25G-2-3L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25G-2-3M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25G-2-4G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25G-2-4H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25G-2-4L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25G-2-4M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25G-2-5G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25G-2-5H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25G-2-5L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-25G-2-5M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-25G-2-6G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25G-2-6H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25G-2-6L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-25G-2-6M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-25J-2-1G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25J-2-1H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25J-2-1L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25J-2-2G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25J-2-2H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25J-2-2L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25J-2-3G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25J-2-3H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25J-2-3L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25J-2-4G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25J-2-4H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25J-2-4L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25J-2-5G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25J-2-5H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25J-2-5L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-25J-2-5M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-25J-2-6G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25J-2-6H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25J-2-6L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-25J-2-6M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-25K-2-1G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25K-2-1H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25K-2-1L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25K-2-1M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25K-2-2G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25K-2-2H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25K-2-2L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25K-2-2M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25K-2-3G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25K-2-3H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25K-2-3L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25K-2-3M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25K-2-4G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25K-2-4H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25K-2-4L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25K-2-4M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25K-2-5G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25K-2-5H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25K-2-5L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-25K-2-5M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-25K-2-6G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25K-2-6H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25K-2-6L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-25K-2-6M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-25L-2-1G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25L-2-1H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25L-2-1L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25L-2-1M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25L-2-2G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25L-2-2H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25L-2-2L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25L-2-2M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25L-2-3G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25L-2-3H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25L-2-3L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25L-2-3M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25L-2-4G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25L-2-4H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25L-2-4L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25L-2-4M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-25L-2-5G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25L-2-5H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25L-2-5L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-25L-2-5M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-25L-2-6G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25L-2-6H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25L-2-6L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-25L-2-6M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-25M-2-1G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25M-2-1H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25M-2-1L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25M-2-2G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25M-2-2H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25M-2-2L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25M-2-3G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25M-2-3H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25M-2-3L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25M-2-4G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25M-2-4H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25M-2-4L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-25M-2-5G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25M-2-5H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25M-2-5L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-25M-2-5M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-25M-2-6G	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-25M-2-6H	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-25M-2-6L	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-25M-2-6M	Flange size: 25 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-40F-2-1G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40F-2-1H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40F-2-1L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40F-2-1M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40F-2-2G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40F-2-2H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40F-2-2L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40F-2-2M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40F-2-3G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40F-2-3H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40F-2-3L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40F-2-3M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40F-2-4G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40F-2-4H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40F-2-4L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40F-2-4M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40F-2-5G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40F-2-5H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40F-2-5L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-40F-2-5M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-40F-2-6G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40F-2-6H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40F-2-6L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-40F-2-6M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-40G-2-1G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40G-2-1H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40G-2-1L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40G-2-1M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40G-2-2G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40G-2-2H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40G-2-2L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40G-2-2M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40G-2-3G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40G-2-3H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40G-2-3L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40G-2-3M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40G-2-4G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40G-2-4H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40G-2-4L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40G-2-4M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40G-2-5G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40G-2-5H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40G-2-5L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-40G-2-5M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-40G-2-6G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40G-2-6H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40G-2-6L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-40G-2-6M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-40J-2-1G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40J-2-1H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40J-2-1L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40J-2-1M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40J-2-2G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40J-2-2H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40J-2-2L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40J-2-2M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40J-2-3G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40J-2-3H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40J-2-3L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40J-2-3M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40J-2-4G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40J-2-4H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40J-2-4L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40J-2-4M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40J-2-5G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40J-2-5H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40J-2-5L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-40J-2-5M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-40J-2-6G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40J-2-6H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40J-2-6L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-40J-2-6M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-40K-2-1G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40K-2-1H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40K-2-1L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40K-2-1M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40K-2-2G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40K-2-2H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40K-2-2L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40K-2-2M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40K-2-3G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40K-2-3H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40K-2-3L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40K-2-3M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40K-2-4G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40K-2-4H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40K-2-4L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40K-2-4M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40K-2-5G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40K-2-5H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40K-2-5L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-40K-2-5M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-40K-2-6G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40K-2-6H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40K-2-6L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-40K-2-6M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-40L-2-1G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40L-2-1H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40L-2-1L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40L-2-1M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40L-2-2G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40L-2-2H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40L-2-2L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40L-2-2M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40L-2-3G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40L-2-3H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40L-2-3L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40L-2-3M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40L-2-4G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40L-2-4H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40L-2-4L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40L-2-4M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40L-2-5G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40L-2-5H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40L-2-5L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-40L-2-5M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-40L-2-6G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40L-2-6H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40L-2-6L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-40L-2-6M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-40M-2-1G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40M-2-1H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40M-2-1L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40M-2-1M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40M-2-2G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40M-2-2H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40M-2-2L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40M-2-2M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40M-2-3G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40M-2-3H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40M-2-3L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40M-2-3M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40M-2-4G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40M-2-4H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40M-2-4L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-40M-2-4M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-40M-2-5G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40M-2-5H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40M-2-5L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-40M-2-5M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-40M-2-6G	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-40M-2-6H	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-40M-2-6L	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-40M-2-6M	Flange size: 40 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-50F-2-1G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50F-2-1H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50F-2-1L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50F-2-1M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50F-2-2G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50F-2-2H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50F-2-2L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50F-2-2M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50F-2-3G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50F-2-3H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50F-2-3L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50F-2-3M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50F-2-4G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50F-2-4H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50F-2-4L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50F-2-4M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50F-2-5G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50F-2-5H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50F-2-5L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-50F-2-5M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-50F-2-6G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50F-2-6H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50F-2-6L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-50F-2-6M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-50G-2-1G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50G-2-1H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50G-2-1L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50G-2-1M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50G-2-2G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50G-2-2H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50G-2-2L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50G-2-2M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50G-2-3G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50G-2-3H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50G-2-3L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50G-2-3M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50G-2-4G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50G-2-4H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50G-2-4L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50G-2-4M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50G-2-5G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50G-2-5H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50G-2-5L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-50G-2-5M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-50G-2-6G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50G-2-6H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50G-2-6L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-50G-2-6M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-50J-2-1G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50J-2-1H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50J-2-1L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50J-2-1M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50J-2-2G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50J-2-2H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50J-2-2L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50J-2-2M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50J-2-3G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50J-2-3H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50J-2-3L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50J-2-3M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50J-2-4G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50J-2-4H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50J-2-4L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50J-2-4M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50J-2-5G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50J-2-5H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50J-2-5L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-50J-2-5M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-50J-2-6G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50J-2-6H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50J-2-6L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-50J-2-6M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-50K-2-1G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50K-2-1H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50K-2-1L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50K-2-1M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50K-2-2G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50K-2-2H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50K-2-2L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50K-2-2M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50K-2-3G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50K-2-3H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50K-2-3L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50K-2-3M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50K-2-4G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50K-2-4H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50K-2-4L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50K-2-4M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50K-2-5G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50K-2-5H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50K-2-5L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-50K-2-5M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-50K-2-6G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50K-2-6H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50K-2-6L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-50K-2-6M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-50L-2-1G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50L-2-1H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50L-2-1L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50L-2-1M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50L-2-2G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50L-2-2H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50L-2-2L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50L-2-2M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50L-2-3G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50L-2-3H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50L-2-3L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50L-2-3M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50L-2-4G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50L-2-4H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50L-2-4L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50L-2-4M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50L-2-5G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50L-2-5H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50L-2-5L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-50L-2-5M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-50L-2-6G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50L-2-6H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50L-2-6L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-50L-2-6M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-50M-2-1G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50M-2-1H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50M-2-1L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50M-2-1M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50M-2-2G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50M-2-2H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50M-2-2L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50M-2-2M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50M-2-3G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50M-2-3H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50M-2-3L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50M-2-3M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50M-2-4G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50M-2-4H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50M-2-4L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-50M-2-4M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-50M-2-5G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50M-2-5H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50M-2-5L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-50M-2-5M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-50M-2-6G	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-50M-2-6H	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-50M-2-6L	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-50M-2-6M	Flange size: 50 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63F-2-1G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63F-2-1H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63F-2-1L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63F-2-1M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63F-2-2G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63F-2-2H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63F-2-2L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63F-2-2M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63F-2-3G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63F-2-3H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63F-2-3L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63F-2-3M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63F-2-4G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63F-2-4H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63F-2-4L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63F-2-4M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63F-2-5G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63F-2-5H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63F-2-5L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63F-2-5M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63F-2-6G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63F-2-6H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63F-2-6L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63F-2-6M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63G-2-1G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63G-2-1H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63G-2-1L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63G-2-1M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63G-2-2G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63G-2-2H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63G-2-2L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63G-2-2M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63G-2-3G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63G-2-3H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63G-2-3L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63G-2-3M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63G-2-4G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63G-2-4H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63G-2-4L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63G-2-4M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63G-2-5G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63G-2-5H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63G-2-5L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63G-2-5M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63G-2-6G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63G-2-6H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63G-2-6L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63G-2-6M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63J-2-1G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63J-2-1H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63J-2-1L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63J-2-1M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63J-2-2G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63J-2-2H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63J-2-2L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63J-2-2M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63J-2-3G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63J-2-3H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63J-2-3L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63J-2-3M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63J-2-4G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63J-2-4H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63J-2-4L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63J-2-4M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63J-2-5G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63J-2-5H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63J-2-5L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63J-2-5M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63J-2-6G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63J-2-6H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63J-2-6L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63J-2-6M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63K-2-1G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63K-2-1H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63K-2-1L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63K-2-1M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63K-2-2G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63K-2-2H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63K-2-2L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63K-2-2M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63K-2-3G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63K-2-3H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63K-2-3L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63K-2-3M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63K-2-4G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63K-2-4H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63K-2-4L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63K-2-4M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63K-2-5G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63K-2-5H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63K-2-5L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63K-2-5M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63K-2-6G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63K-2-6H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63K-2-6L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63K-2-6M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63L-2-1G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63L-2-1H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63L-2-1L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63L-2-1M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63L-2-2G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63L-2-2H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63L-2-2L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63L-2-2M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63L-2-3G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63L-2-3H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63L-2-3L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63L-2-3M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63L-2-4G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63L-2-4H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63L-2-4L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63L-2-4M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63L-2-5G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63L-2-5H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63L-2-5L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63L-2-5M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63L-2-6G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63L-2-6H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63L-2-6L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63L-2-6M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63M-2-1G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63M-2-1H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63M-2-1L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63M-2-1M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63M-2-2G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63M-2-2H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63M-2-2L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63M-2-2M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63M-2-3G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63M-2-3H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63M-2-3L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63M-2-3M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63M-2-4G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63M-2-4H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63M-2-4L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63M-2-4M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63M-2-5G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63M-2-5H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63M-2-5L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63M-2-5M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63M-2-6G	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63M-2-6H	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63M-2-6L	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63M-2-6M	Flange size: 63 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63DF-2-1G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DF-2-1H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DF-2-1L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DF-2-1M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DF-2-2G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DF-2-2H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DF-2-2L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DF-2-2M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DF-2-3G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DF-2-3H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DF-2-3L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DF-2-3M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DF-2-4G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DF-2-4H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DF-2-4L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DF-2-4M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DF-2-5G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DF-2-5H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DF-2-5L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63DF-2-5M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63DF-2-6G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DF-2-6H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DF-2-6L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63DF-2-6M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63DG-2-1G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DG-2-1H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DG-2-1L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DG-2-1M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DG-2-2G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DG-2-2H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DG-2-2L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DG-2-2M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DG-2-3G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DG-2-3H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DG-2-3L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DG-2-3M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DG-2-4G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DG-2-4H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DG-2-4L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DG-2-4M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DG-2-5G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DG-2-5H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DG-2-5L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63DG-2-5M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63DG-2-6G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DG-2-6H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DG-2-6L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63DG-2-6M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63DJ-2-1G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DJ-2-1H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DJ-2-1L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DJ-2-1M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DJ-2-2G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DJ-2-2H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DJ-2-2L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DJ-2-2M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DJ-2-3G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DJ-2-3H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DJ-2-3L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DJ-2-3M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DJ-2-4G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DJ-2-4H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DJ-2-4L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DJ-2-4M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DJ-2-5G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DJ-2-5H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DJ-2-5L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63DJ-2-5M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63DJ-2-6G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DJ-2-6H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DJ-2-6L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63DJ-2-6M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63DK-2-1G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DK-2-1H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DK-2-1L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DK-2-1M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DK-2-2G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DK-2-2H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DK-2-2L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DK-2-2M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DK-2-3G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DK-2-3H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DK-2-3L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DK-2-3M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DK-2-4G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DK-2-4H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DK-2-4L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DK-2-4M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DK-2-5G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DK-2-5H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DK-2-5L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63DK-2-5M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63DK-2-6G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DK-2-6H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DK-2-6L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63DK-2-6M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63DL-2-1G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DL-2-1H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DL-2-1L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DL-2-1M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DL-2-2G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DL-2-2H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DL-2-2L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DL-2-2M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DL-2-3G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DL-2-3H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DL-2-3L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DL-2-3M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DL-2-4G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DL-2-4H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DL-2-4L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DL-2-4M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DL-2-5G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DL-2-5H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DL-2-5L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63DL-2-5M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63DL-2-6G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DL-2-6H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DL-2-6L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63DL-2-6M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-63DM-2-1G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DM-2-1H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DM-2-1L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DM-2-1M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DM-2-2G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DM-2-2H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DM-2-2L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DM-2-2M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DM-2-3G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DM-2-3H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DM-2-3L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DM-2-3M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DM-2-4G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DM-2-4H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DM-2-4L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-63DM-2-4M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-63DM-2-5G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DM-2-5H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DM-2-5L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-63DM-2-5M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-63DM-2-6G	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-63DM-2-6H	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-63DM-2-6L	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-63DM-2-6M	Flange size: 63 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80F-2-1G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80F-2-1H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80F-2-1L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80F-2-1M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80F-2-2G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80F-2-2H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80F-2-2L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80F-2-2M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80F-2-3G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80F-2-3H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80F-2-3L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80F-2-3M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80F-2-4G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80F-2-4H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80F-2-4L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80F-2-4M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80F-2-5G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80F-2-5H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80F-2-5L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80F-2-5M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80F-2-6G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80F-2-6H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80F-2-6L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80F-2-6M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80G-2-1G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80G-2-1H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80G-2-1L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80G-2-1M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80G-2-2G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80G-2-2H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80G-2-2L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80G-2-2M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80G-2-3G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80G-2-3H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80G-2-3L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80G-2-3M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80G-2-4G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80G-2-4H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80G-2-4L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80G-2-4M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80G-2-5G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80G-2-5H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80G-2-5L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80G-2-5M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80G-2-6G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80G-2-6H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80G-2-6L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80G-2-6M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80J-2-1G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80J-2-1H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80J-2-1L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80J-2-1M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80J-2-2G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80J-2-2H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80J-2-2L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80J-2-2M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80J-2-3G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80J-2-3H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80J-2-3L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80J-2-3M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80J-2-4G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80J-2-4H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80J-2-4L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80J-2-4M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80J-2-5G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80J-2-5H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80J-2-5L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80J-2-5M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80J-2-6G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80J-2-6H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80J-2-6L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80J-2-6M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80K-2-1G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80K-2-1H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80K-2-1L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80K-2-1M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80K-2-2G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80K-2-2H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80K-2-2L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80K-2-2M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80K-2-3G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80K-2-3H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80K-2-3L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80K-2-3M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80K-2-4G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80K-2-4H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80K-2-4L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80K-2-4M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80K-2-5G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80K-2-5H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80K-2-5L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80K-2-5M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80K-2-6G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80K-2-6H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80K-2-6L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80K-2-6M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80L-2-1G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80L-2-1H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80L-2-1L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80L-2-1M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80L-2-2G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80L-2-2H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80L-2-2L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80L-2-2M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80L-2-3G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80L-2-3H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80L-2-3L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80L-2-3M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80L-2-4G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80L-2-4H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80L-2-4L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80L-2-4M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80L-2-5G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80L-2-5H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80L-2-5L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80L-2-5M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80L-2-6G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80L-2-6H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80L-2-6L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80L-2-6M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80M-2-1G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80M-2-1H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80M-2-1L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80M-2-1M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80M-2-2G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80M-2-2H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80M-2-2L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80M-2-2M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80M-2-3G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80M-2-3H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80M-2-3L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80M-2-3M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80M-2-4G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80M-2-4H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80M-2-4L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80M-2-4M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80M-2-5G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80M-2-5H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80M-2-5L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80M-2-5M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80M-2-6G	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80M-2-6H	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80M-2-6L	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80M-2-6M	Flange size: 80 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80DF-2-1G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DF-2-1H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DF-2-1L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DF-2-1M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DF-2-2G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DF-2-2H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DF-2-2L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DF-2-2M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DF-2-3G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DF-2-3H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DF-2-3L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DF-2-3M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DF-2-4G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DF-2-4H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DF-2-4L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DF-2-4M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DF-2-5G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DF-2-5H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DF-2-5L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80DF-2-5M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80DF-2-6G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DF-2-6H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DF-2-6L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80DF-2-6M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80DG-2-1G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DG-2-1H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DG-2-1L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DG-2-1M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DG-2-2G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DG-2-2H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DG-2-2L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DG-2-2M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DG-2-3G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DG-2-3H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DG-2-3L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DG-2-3M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DG-2-4G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DG-2-4H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DG-2-4L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DG-2-4M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DG-2-5G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DG-2-5H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DG-2-5L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80DG-2-5M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80DG-2-6G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DG-2-6H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DG-2-6L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80DG-2-6M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80DJ-2-1G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DJ-2-1H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DJ-2-1L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DJ-2-1M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DJ-2-2G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DJ-2-2H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DJ-2-2L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DJ-2-2M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DJ-2-3G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DJ-2-3H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DJ-2-3L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DJ-2-3M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DJ-2-4G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DJ-2-4H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DJ-2-4L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DJ-2-4M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DJ-2-5G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DJ-2-5H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DJ-2-5L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80DJ-2-5M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80DJ-2-6G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DJ-2-6H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DJ-2-6L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80DJ-2-6M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80DK-2-1G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DK-2-1H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DK-2-1L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DK-2-1M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DK-2-2G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DK-2-2H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DK-2-2L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DK-2-2M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DK-2-3G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DK-2-3H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DK-2-3L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DK-2-3M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DK-2-4G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DK-2-4H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DK-2-4L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DK-2-4M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DK-2-5G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DK-2-5H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DK-2-5L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80DK-2-5M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80DK-2-6G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DK-2-6H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DK-2-6L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80DK-2-6M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80DL-2-1G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DL-2-1H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DL-2-1L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DL-2-1M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DL-2-2G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DL-2-2H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DL-2-2L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DL-2-2M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DL-2-3G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DL-2-3H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DL-2-3L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DL-2-3M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DL-2-4G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DL-2-4H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DL-2-4L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DL-2-4M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DL-2-5G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DL-2-5H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DL-2-5L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80DL-2-5M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80DL-2-6G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DL-2-6H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DL-2-6L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80DL-2-6M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLAV-80DM-2-1G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DM-2-1H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DM-2-1L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DM-2-1M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DM-2-2G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DM-2-2H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DM-2-2L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DM-2-2M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DM-2-3G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DM-2-3H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DM-2-3L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DM-2-3M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DM-2-4G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DM-2-4H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DM-2-4L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLAV-80DM-2-4M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLAV-80DM-2-5G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DM-2-5H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DM-2-5L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLAV-80DM-2-5M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLAV-80DM-2-6G	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLAV-80DM-2-6H	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLAV-80DM-2-6L	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLAV-80DM-2-6M	Flange size: 80 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC XLAV High Vacuum L-Type Valve with Solenoid Valve (16-80)
