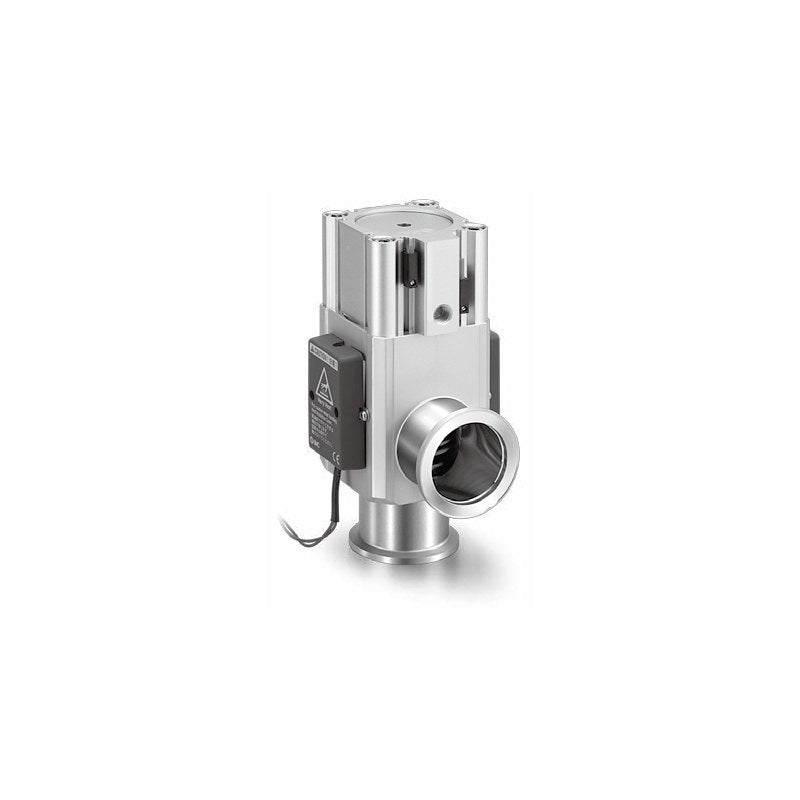

SMC XLC High Vacuum L-Type Valve (Double Acting, Bellows, 16-160)

SMC XLC High Vacuum L-Type Valve (Double Acting, Bellows, 16-160)

SMC XLC double-acting aluminum high vacuum L-type valve with bellows seal, opened and closed by pilot pressure, flange sizes 16 to 160.

Key features

  • Double acting: pilot port P-1 opens, P-2 closes the valve
  • Aluminum body with SUS316L bellows; replaceable bellows assembly on sizes 16-80 (design -2)
  • Optional heaters (H4/H5) and high-temperature version to 150 C (H0)
  • Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded
  • Seal material change (EPDM, Kalrez, Chemraz, VMQ, ULTIC ARMOR etc.) via -X suffix

Specifications

Valve type Double acting, pressurize to open/close
Fluid Inert gas under vacuum
Body material Aluminum alloy (A6063)
Surface treatment Hard anodized outside, untreated inside
Operating pressure 1x10^-6 Pa(abs) to atmospheric
Conductance L/s: 16=5, 25=14, 40=45, 50=80, 63=160, 80=200, 100=300, 160=800
Leakage (FKM) Internal 1.3x10^-10, external 1.3x10^-11 Pa m3/s
Pilot pressure 0.3-0.6 MPa (16-50), 0.4-0.6 MPa (63-160)
Source SMC Korea XL catalogs (SMCKR_XL-2.pdf p. 8-9; SMCKR_XL.pdf p. 8-9)
