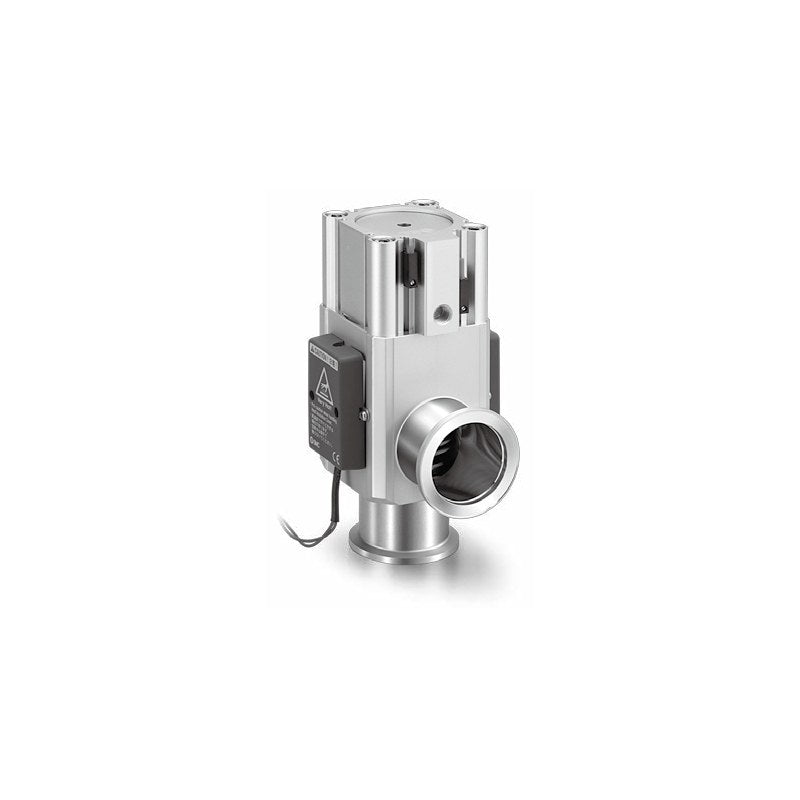

SMC XLF High Vacuum L-Type Valve (N.C., O-Ring Seal, 16-160)

SMC XLF High Vacuum L-Type Valve (N.C., O-Ring Seal, 16-160)

SMC XLF normally closed, air-operated aluminum high vacuum L-type valve with O-ring shaft seal, flange sizes 16 to 160.

Key features

  • O-ring shaft seal (no bellows) for a simple, economical construction
  • Normally closed, pressurize to open, spring return
  • Optional open indicator, heaters (H4/H5) and high-temperature build to 150 C (H0)
  • Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded
  • Seal material change (EPDM, Kalrez, Chemraz, VMQ, ULTIC ARMOR etc.) via -X suffix

Specifications

Valve type Normally closed, pressurize to open, spring seal
Fluid Inert gas under vacuum
Body material Aluminum alloy (A6063)
Surface treatment Hard anodized outside, untreated inside
Operating pressure 1x10^-5 Pa(abs) to atmospheric
Conductance L/s: 16=5, 25=14, 40=45, 50=80, 63=160, 80=200, 100=300, 160=800
Leakage (FKM) Internal and external 1.3x10^-10 Pa m3/s
Pilot pressure 0.4-0.7 MPa
Source SMC Korea XL catalogs (SMCKR_XL-2.pdf p. 11, 13; SMCKR_XL.pdf p. 16, 18)
XLF-16-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-16H0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-16A-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-16AH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-16F-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-16FH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-16G-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-16GH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-16J-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-16JH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-16K-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-16KH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-16L-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-16LH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-16M-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-16MH0-2 Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-25-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-25H0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-25H5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-25A-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-25AH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-25AH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-25F-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-25FH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-25FH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-25G-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-25GH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-25GH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-25J-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-25JH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-25JH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-25K-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-25KH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-25KH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-25L-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-25LH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-25LH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-25M-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-25MH0-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-25MH5-2 Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-40-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-40H0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-40H4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-40H5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-40A-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-40AH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-40AH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-40AH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-40F-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-40FH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-40FH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-40FH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-40G-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-40GH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-40GH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-40GH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-40J-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-40JH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-40JH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-40JH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-40K-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-40KH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-40KH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-40KH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-40L-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-40LH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-40LH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-40LH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-40M-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-40MH0-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-40MH4-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-40MH5-2 Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-50-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-50H0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-50H4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-50H5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-50A-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-50AH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-50AH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-50AH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-50F-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-50FH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-50FH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-50FH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-50G-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-50GH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-50GH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-50GH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-50J-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-50JH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-50JH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-50JH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-50K-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-50KH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-50KH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-50KH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-50L-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-50LH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-50LH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-50LH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-50M-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-50MH0-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-50MH4-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-50MH5-2 Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-63H0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63H4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63H5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63A-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-63AH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63AH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63AH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63F-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-63FH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63FH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63FH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63G-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-63GH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63GH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63GH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63J-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-63JH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63JH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63JH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63K-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-63KH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63KH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63KH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63L-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-63LH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63LH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63LH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63M-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-63MH0-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63MH4-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63MH5-2 Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63D-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-63DH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63DH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63DH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63DA-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-63DAH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63DAH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63DAH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63DF-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-63DFH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63DFH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63DFH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63DG-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-63DGH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63DGH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63DGH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63DJ-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-63DJH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63DJH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63DJH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63DK-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-63DKH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63DKH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63DKH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63DL-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-63DLH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63DLH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63DLH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63DM-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-63DMH0-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63DMH4-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63DMH5-2 Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-80H0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80H4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80H5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80A-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-80AH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80AH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80AH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80F-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-80FH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80FH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80FH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80G-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-80GH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80GH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80GH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80J-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-80JH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80JH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80JH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80K-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-80KH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80KH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80KH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80L-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-80LH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80LH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80LH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80M-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-80MH0-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80MH4-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80MH5-2 Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80D-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-80DH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80DH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80DH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80DA-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-80DAH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80DAH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80DAH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80DF-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-80DFH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80DFH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80DFH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80DG-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-80DGH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80DGH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80DGH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80DJ-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-80DJH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80DJH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80DJH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80DK-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-80DKH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80DKH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80DKH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80DL-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-80DLH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80DLH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80DLH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80DM-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-80DMH0-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80DMH4-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80DMH5-2 Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-100H0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100H4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100H5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100A Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-100AH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100AH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100AH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100F Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-100FH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100FH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100FH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100G Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-100GH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100GH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100GH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100J Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-100JH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100JH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100JH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100K Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-100KH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100KH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100KH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100L Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-100LH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100LH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100LH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100M Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-100MH0 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100MH4 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100MH5 Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100D Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-100DH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100DH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100DH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100DA Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-100DAH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100DAH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100DAH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100DF Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-100DFH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100DFH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100DFH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100DG Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-100DGH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100DGH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100DGH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100DJ Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-100DJH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100DJH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100DJH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100DK Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-100DKH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100DKH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100DKH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100DL Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-100DLH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100DLH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100DLH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100DM Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-100DMH0 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100DMH4 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100DMH5 Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-160H0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160H4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160H5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160A Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-160AH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160AH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160AH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160F Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-160FH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160FH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160FH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160G Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-160GH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160GH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160GH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160J Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-160JH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160JH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160JH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160K Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-160KH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160KH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160KH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160L Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-160LH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160LH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160LH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160M Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-160MH0 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160MH4 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160MH5 Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160D Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-160DH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160DH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160DH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160DA Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-160DAH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160DAH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160DAH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160DF Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-160DFH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160DFH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160DFH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160DG Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-160DGH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160DGH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160DGH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160DJ Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-160DJH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160DJH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160DJH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160DK Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-160DKH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160DKH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160DKH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160DL Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-160DLH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160DLH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160DLH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160DM Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-160DMH0 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160DMH4 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160DMH5 Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
High Vacuum ValvesSMC
360 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XLF High Vacuum L-Type Valve (N.C., O-Ring Seal, 16-160)

Brand SMC·High Vacuum Valves

Available part numbers (360)

XLF-16-2, XLF-16H0-2, XLF-16A-2, XLF-16AH0-2, XLF-16F-2, XLF-16FH0-2, XLF-16G-2, XLF-16GH0-2, XLF-16J-2, XLF-16JH0-2 + 350 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XLF-16-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-16H0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-16A-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-16AH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-16F-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-16FH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-16G-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-16GH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-16J-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-16JH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-16K-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-16KH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-16L-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-16LH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-16M-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-16MH0-2Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-25-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-25H0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-25H5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-25A-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-25AH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-25AH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-25F-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-25FH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-25FH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-25G-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-25GH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-25GH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-25J-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-25JH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-25JH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-25K-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-25KH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-25KH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-25L-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-25LH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-25LH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-25M-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-25MH0-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-25MH5-2Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-40-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-40H0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-40H4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-40H5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-40A-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-40AH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-40AH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-40AH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-40F-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-40FH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-40FH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-40FH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-40G-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-40GH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-40GH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-40GH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-40J-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-40JH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-40JH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-40JH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-40K-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-40KH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-40KH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-40KH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-40L-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-40LH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-40LH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-40LH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-40M-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-40MH0-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-40MH4-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-40MH5-2Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-50-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-50H0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-50H4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-50H5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-50A-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-50AH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-50AH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-50AH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-50F-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-50FH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-50FH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-50FH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-50G-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-50GH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-50GH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-50GH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-50J-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-50JH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-50JH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-50JH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-50K-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-50KH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-50KH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-50KH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-50L-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-50LH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-50LH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-50LH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-50M-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-50MH0-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-50MH4-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-50MH5-2Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-63H0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63H4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63H5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63A-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-63AH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63AH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63AH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63F-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-63FH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63FH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63FH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63G-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-63GH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63GH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63GH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63J-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-63JH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63JH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63JH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63K-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-63KH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63KH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63KH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63L-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-63LH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63LH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63LH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63M-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-63MH0-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63MH4-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63MH5-2Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63D-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-63DH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63DH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63DH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63DA-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-63DAH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-63DAH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-63DAH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-63DF-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-63DFH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63DFH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63DFH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63DG-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-63DGH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63DGH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63DGH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63DJ-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-63DJH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63DJH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63DJH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-63DK-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-63DKH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-63DKH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-63DKH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-63DL-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-63DLH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-63DLH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-63DLH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-63DM-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-63DMH0-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-63DMH4-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-63DMH5-2Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-80H0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80H4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80H5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80A-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-80AH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80AH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80AH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80F-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-80FH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80FH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80FH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80G-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-80GH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80GH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80GH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80J-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-80JH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80JH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80JH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80K-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-80KH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80KH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80KH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80L-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-80LH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80LH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80LH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80M-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-80MH0-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80MH4-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80MH5-2Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80D-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-80DH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80DH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80DH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80DA-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-80DAH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-80DAH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-80DAH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-80DF-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-80DFH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80DFH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80DFH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80DG-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-80DGH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80DGH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80DGH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80DJ-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-80DJH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80DJH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80DJH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-80DK-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-80DKH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-80DKH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-80DKH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-80DL-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-80DLH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-80DLH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-80DLH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-80DM-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-80DMH0-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-80DMH4-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-80DMH5-2Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-100H0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100H4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100H5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100AFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-100AH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100AH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100AH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100FFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-100FH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100FH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100FH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100GFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-100GH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100GH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100GH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100JFlange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-100JH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100JH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100JH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100KFlange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-100KH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100KH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100KH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100LFlange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-100LH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100LH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100LH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100MFlange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-100MH0Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100MH4Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100MH5Flange size: 100 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100DFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-100DH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100DH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100DH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100DAFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-100DAH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-100DAH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-100DAH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-100DFFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-100DFH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100DFH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100DFH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100DGFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-100DGH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100DGH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100DGH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100DJFlange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-100DJH0Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100DJH4Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100DJH5Flange size: 100 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-100DKFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-100DKH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-100DKH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-100DKH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-100DLFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-100DLH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-100DLH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-100DLH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-100DMFlange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-100DMH0Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-100DMH4Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-100DMH5Flange size: 100 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-160H0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160H4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160H5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160AFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-160AH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160AH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160AH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160FFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-160FH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160FH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160FH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160GFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-160GH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160GH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160GH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160JFlange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-160JH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160JH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160JH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160KFlange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-160KH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160KH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160KH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160LFlange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-160LH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160LH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160LH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160MFlange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-160MH0Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160MH4Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160MH5Flange size: 160 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160DFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XLF-160DH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160DH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160DH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160DAFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XLF-160DAH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp, no heater
XLF-160DAH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 100 C heater fitted
XLF-160DAH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C, 120 C heater fitted
XLF-160DFFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XLF-160DFH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160DFH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160DFH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160DGFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XLF-160DGH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160DGH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160DGH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160DJFlange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XLF-160DJH0Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160DJH4Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160DJH5Flange size: 160 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C, 120 C heater fitted
XLF-160DKFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XLF-160DKH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp, no heater
XLF-160DKH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 100 C heater fitted
XLF-160DKH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C, 120 C heater fitted
XLF-160DLFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XLF-160DLH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp, no heater
XLF-160DLH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 100 C heater fitted
XLF-160DLH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C, 120 C heater fitted
XLF-160DMFlange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XLF-160DMH0Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp, no heater
XLF-160DMH4Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 100 C heater fitted
XLF-160DMH5Flange size: 160 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C, 120 C heater fitted

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
