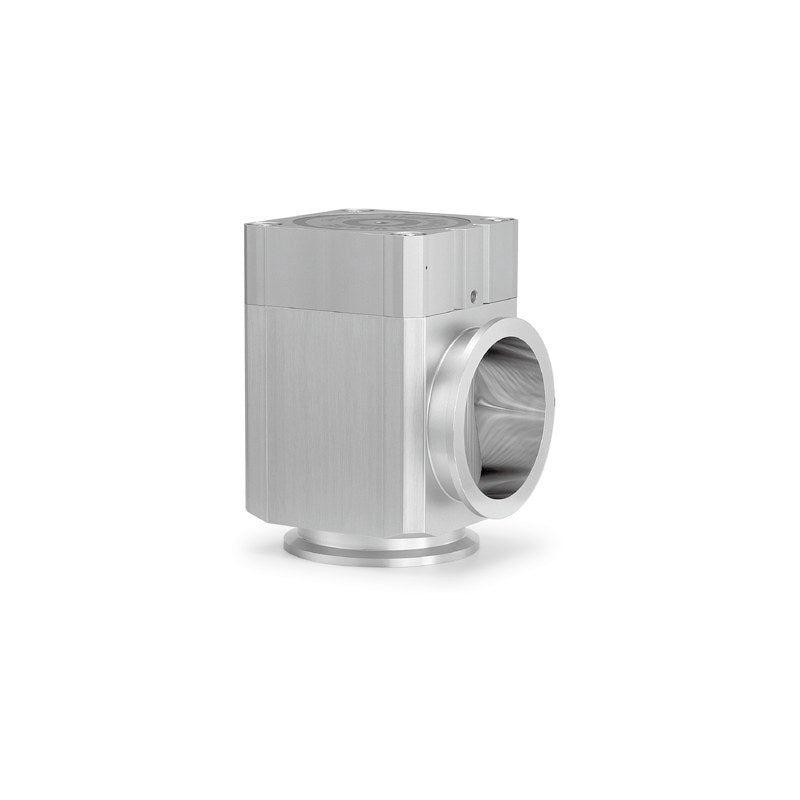

SMC XLFV High Vacuum L-Type Valve with Solenoid Valve (100, 160)

SMC XLFV large-bore aluminum high vacuum L-type valve, normally closed with O-ring seal and mounted pilot solenoid valve, flange sizes 100 and 160.

Key features

Conductance 300 L/s (100) and 800 L/s (160); KF (NW) or K (DN) flange
O-ring shaft seal valve with pilot solenoid valve mounted on the actuator
Pilot solenoid valve mounted on the actuator: supply pilot air to 1(P) and switch electrically
Coil voltages AC100/110/200/220V and DC12/24V; grommet or L/M plug connector lead entry
Lamp/surge suppressor (S/Z/U) and CE/UKCA (Q) are suffix options, not expanded
Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded
Seal material change (EPDM, Kalrez, Chemraz, VMQ, ULTIC ARMOR etc.) via -X suffix

Specifications

Valve type	Normally closed, O-ring seal, solenoid pilot
Fluid	Inert gas under vacuum
Body material	Aluminum alloy (A6063)
Surface treatment	Hard anodized outside, untreated inside
Operating temperature	5-50 C
Operating pressure	1x10^-5 Pa(abs) to atmospheric
Pilot pressure	0.4-0.7 MPa
Pilot solenoid	SYJ519
Source	SMC Korea XL catalog (SMCKR_XL.pdf), p. 17-18

XLFV-100F-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100F-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100F-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100F-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100F-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100F-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100F-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100F-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100F-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100F-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100F-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100F-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100F-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100F-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100F-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100F-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100F-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100F-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100F-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100F-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100F-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100F-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100F-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100F-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100G-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100G-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100G-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100G-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100G-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100G-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100G-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100G-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100G-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100G-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100G-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100G-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100G-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100G-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100G-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100G-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100G-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100G-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100G-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100G-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100G-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100G-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100G-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100G-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100J-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100J-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100J-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100J-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100J-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100J-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100J-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100J-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100J-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100J-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100J-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100J-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100J-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100J-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100J-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100J-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100J-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100J-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100J-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100J-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100J-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100J-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100J-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100J-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100K-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100K-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100K-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100K-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100K-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100K-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100K-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100K-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100K-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100K-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100K-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100K-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100K-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100K-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100K-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100K-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100K-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100K-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100K-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100K-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100K-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100K-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100K-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100K-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100L-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100L-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100L-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100L-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100L-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100L-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100L-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100L-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100L-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100L-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100L-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100L-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100L-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100L-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100L-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100L-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100L-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100L-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100L-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100L-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100L-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100L-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100L-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100L-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100M-1G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100M-1H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100M-1L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100M-1M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100M-2G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100M-2H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100M-2L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100M-2M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100M-3G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100M-3H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100M-3L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100M-3M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100M-4G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100M-4H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100M-4L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100M-4M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100M-5G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100M-5H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100M-5L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100M-5M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100M-6G		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100M-6H		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100M-6L		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100M-6M		Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100DF-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DF-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DF-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DF-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DF-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DF-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DF-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DF-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DF-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DF-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DF-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DF-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DF-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DF-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DF-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DF-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DF-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DF-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DF-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100DF-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100DF-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DF-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DF-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100DF-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100DG-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DG-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DG-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DG-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DG-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DG-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DG-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DG-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DG-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DG-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DG-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DG-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DG-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DG-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DG-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DG-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DG-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DG-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DG-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100DG-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100DG-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DG-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DG-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100DG-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100DJ-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DJ-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DJ-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DJ-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DJ-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DJ-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DJ-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DJ-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DJ-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DJ-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DJ-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DJ-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DJ-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DJ-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DJ-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DJ-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DJ-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DJ-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DJ-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100DJ-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100DJ-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DJ-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DJ-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100DJ-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100DK-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DK-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DK-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DK-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DK-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DK-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DK-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DK-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DK-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DK-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DK-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DK-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DK-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DK-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DK-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DK-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DK-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DK-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DK-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100DK-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100DK-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DK-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DK-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100DK-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100DL-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DL-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DL-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DL-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DL-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DL-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DL-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DL-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DL-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DL-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DL-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DL-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DL-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DL-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DL-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DL-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DL-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DL-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DL-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100DL-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100DL-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DL-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DL-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100DL-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-100DM-1G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DM-1H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DM-1L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DM-1M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DM-2G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DM-2H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DM-2L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DM-2M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DM-3G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DM-3H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DM-3L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DM-3M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DM-4G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DM-4H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DM-4L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-100DM-4M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-100DM-5G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DM-5H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DM-5L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-100DM-5M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-100DM-6G		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-100DM-6H		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-100DM-6L		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-100DM-6M		Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160F-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160F-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160F-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160F-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160F-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160F-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160F-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160F-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160F-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160F-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160F-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160F-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160F-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160F-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160F-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160F-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160F-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160F-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160F-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160F-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160F-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160F-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160F-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160F-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160G-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160G-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160G-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160G-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160G-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160G-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160G-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160G-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160G-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160G-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160G-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160G-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160G-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160G-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160G-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160G-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160G-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160G-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160G-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160G-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160G-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160G-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160G-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160G-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160J-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160J-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160J-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160J-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160J-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160J-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160J-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160J-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160J-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160J-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160J-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160J-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160J-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160J-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160J-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160J-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160J-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160J-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160J-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160J-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160J-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160J-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160J-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160J-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160K-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160K-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160K-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160K-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160K-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160K-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160K-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160K-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160K-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160K-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160K-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160K-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160K-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160K-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160K-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160K-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160K-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160K-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160K-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160K-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160K-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160K-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160K-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160K-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160L-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160L-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160L-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160L-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160L-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160L-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160L-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160L-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160L-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160L-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160L-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160L-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160L-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160L-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160L-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160L-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160L-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160L-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160L-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160L-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160L-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160L-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160L-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160L-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160M-1G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160M-1H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160M-1L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160M-1M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160M-2G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160M-2H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160M-2L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160M-2M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160M-3G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160M-3H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160M-3L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160M-3M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160M-4G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160M-4H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160M-4L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160M-4M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160M-5G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160M-5H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160M-5L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160M-5M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160M-6G		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160M-6H		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160M-6L		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160M-6M		Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160DF-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DF-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DF-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DF-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DF-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DF-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DF-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DF-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DF-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DF-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DF-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DF-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DF-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DF-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DF-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DF-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DF-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DF-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DF-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160DF-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160DF-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DF-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DF-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160DF-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160DG-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DG-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DG-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DG-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DG-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DG-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DG-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DG-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DG-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DG-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DG-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DG-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DG-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DG-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DG-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DG-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DG-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DG-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DG-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160DG-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160DG-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DG-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DG-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160DG-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160DJ-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DJ-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DJ-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DJ-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DJ-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DJ-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DJ-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DJ-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DJ-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DJ-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DJ-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DJ-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DJ-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DJ-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DJ-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DJ-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DJ-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DJ-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DJ-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160DJ-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160DJ-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DJ-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DJ-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160DJ-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160DK-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DK-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DK-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DK-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DK-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DK-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DK-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DK-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DK-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DK-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DK-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DK-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DK-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DK-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DK-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DK-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DK-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DK-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DK-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160DK-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160DK-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DK-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DK-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160DK-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160DL-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DL-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DL-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DL-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DL-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DL-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DL-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DL-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DL-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DL-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DL-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DL-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DL-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DL-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DL-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DL-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DL-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DL-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DL-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160DL-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160DL-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DL-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DL-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160DL-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
XLFV-160DM-1G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DM-1H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DM-1L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DM-1M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DM-2G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DM-2H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DM-2L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DM-2M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DM-3G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DM-3H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DM-3L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DM-3M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DM-4G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DM-4H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DM-4L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
XLFV-160DM-4M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
XLFV-160DM-5G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DM-5H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DM-5L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
XLFV-160DM-5M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
XLFV-160DM-6G		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
XLFV-160DM-6H		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
XLFV-160DM-6L		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
XLFV-160DM-6M		Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector

High Vacuum ValvesSMC

576 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XLFV High Vacuum L-Type Valve with Solenoid Valve (100, 160)

Brand SMC·High Vacuum Valves

Available part numbers (576)

XLFV-100F-1G, XLFV-100F-1H, XLFV-100F-1L, XLFV-100F-1M, XLFV-100F-2G, XLFV-100F-2H, XLFV-100F-2L, XLFV-100F-2M, XLFV-100F-3G, XLFV-100F-3H + 566 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	XLFV-100F-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100F-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100F-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100F-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100F-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100F-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100F-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100F-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100F-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100F-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100F-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100F-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100F-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100F-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100F-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100F-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100F-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100F-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100F-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100F-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100F-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100F-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100F-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100F-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100G-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100G-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100G-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100G-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100G-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100G-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100G-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100G-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100G-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100G-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100G-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100G-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100G-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100G-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100G-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100G-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100G-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100G-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100G-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100G-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100G-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100G-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100G-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100G-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100J-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100J-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100J-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100J-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100J-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100J-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100J-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100J-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100J-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100J-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100J-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100J-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100J-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100J-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100J-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100J-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100J-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100J-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100J-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100J-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100J-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100J-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100J-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100J-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100K-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100K-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100K-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100K-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100K-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100K-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100K-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100K-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100K-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100K-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100K-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100K-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100K-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100K-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100K-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100K-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100K-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100K-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100K-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100K-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100K-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100K-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100K-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100K-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100L-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100L-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100L-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100L-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100L-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100L-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100L-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100L-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100L-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100L-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100L-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100L-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100L-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100L-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100L-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100L-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100L-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100L-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100L-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100L-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100L-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100L-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100L-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100L-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100M-1G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100M-1H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100M-1L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100M-1M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100M-2G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100M-2H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100M-2L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100M-2M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100M-3G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100M-3H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100M-3L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100M-3M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100M-4G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100M-4H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100M-4L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100M-4M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100M-5G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100M-5H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100M-5L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100M-5M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100M-6G	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100M-6H	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100M-6L	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100M-6M	Flange size: 100 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100DF-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DF-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DF-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DF-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DF-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DF-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DF-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DF-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DF-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DF-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DF-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DF-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DF-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DF-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DF-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DF-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DF-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DF-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DF-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100DF-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100DF-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DF-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DF-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100DF-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100DG-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DG-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DG-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DG-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DG-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DG-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DG-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DG-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DG-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DG-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DG-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DG-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DG-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DG-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DG-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DG-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DG-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DG-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DG-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100DG-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100DG-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DG-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DG-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100DG-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100DJ-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DJ-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DJ-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DJ-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DJ-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DJ-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DJ-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DJ-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DJ-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DJ-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DJ-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DJ-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DJ-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DJ-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DJ-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DJ-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DJ-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DJ-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DJ-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100DJ-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100DJ-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DJ-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DJ-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100DJ-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100DK-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DK-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DK-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DK-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DK-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DK-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DK-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DK-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DK-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DK-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DK-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DK-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DK-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DK-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DK-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DK-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DK-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DK-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DK-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100DK-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100DK-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DK-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DK-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100DK-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100DL-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DL-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DL-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DL-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DL-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DL-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DL-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DL-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DL-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DL-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DL-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DL-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DL-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DL-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DL-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DL-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DL-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DL-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DL-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100DL-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100DL-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DL-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DL-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100DL-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-100DM-1G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DM-1H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DM-1L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DM-1M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DM-2G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DM-2H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DM-2L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DM-2M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DM-3G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DM-3H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DM-3L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DM-3M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DM-4G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DM-4H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DM-4L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-100DM-4M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-100DM-5G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DM-5H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DM-5L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-100DM-5M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-100DM-6G	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-100DM-6H	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-100DM-6L	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-100DM-6M	Flange size: 100 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160F-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160F-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160F-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160F-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160F-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160F-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160F-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160F-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160F-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160F-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160F-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160F-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160F-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160F-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160F-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160F-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160F-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160F-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160F-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160F-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160F-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160F-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160F-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160F-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160G-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160G-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160G-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160G-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160G-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160G-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160G-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160G-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160G-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160G-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160G-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160G-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160G-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160G-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160G-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160G-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160G-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160G-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160G-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160G-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160G-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160G-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160G-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160G-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160J-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160J-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160J-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160J-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160J-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160J-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160J-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160J-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160J-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160J-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160J-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160J-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160J-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160J-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160J-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160J-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160J-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160J-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160J-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160J-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160J-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160J-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160J-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160J-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160K-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160K-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160K-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160K-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160K-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160K-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160K-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160K-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160K-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160K-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160K-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160K-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160K-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160K-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160K-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160K-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160K-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160K-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160K-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160K-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160K-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160K-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160K-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160K-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160L-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160L-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160L-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160L-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160L-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160L-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160L-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160L-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160L-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160L-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160L-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160L-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160L-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160L-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160L-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160L-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160L-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160L-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160L-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160L-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160L-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160L-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160L-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160L-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160M-1G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160M-1H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160M-1L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160M-1M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160M-2G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160M-2H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160M-2L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160M-2M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160M-3G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160M-3H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160M-3L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160M-3M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160M-4G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160M-4H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160M-4L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160M-4M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160M-5G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160M-5H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160M-5L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160M-5M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160M-6G	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160M-6H	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160M-6L	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160M-6M	Flange size: 160 \| Flange type: KF (NW) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160DF-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DF-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DF-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DF-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DF-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DF-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DF-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DF-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DF-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DF-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DF-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DF-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DF-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DF-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DF-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DF-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DF-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DF-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DF-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160DF-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160DF-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DF-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DF-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160DF-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160DG-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DG-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DG-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DG-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DG-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DG-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DG-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DG-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DG-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DG-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DG-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DG-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DG-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DG-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DG-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DG-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DG-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DG-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DG-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160DG-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160DG-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DG-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DG-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160DG-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160DJ-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DJ-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DJ-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DJ-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DJ-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DJ-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DJ-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DJ-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DJ-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DJ-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DJ-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DJ-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DJ-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DJ-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DJ-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DJ-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DJ-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DJ-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DJ-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160DJ-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160DJ-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DJ-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DJ-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160DJ-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: Indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160DK-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DK-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DK-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DK-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DK-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DK-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DK-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DK-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DK-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DK-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DK-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DK-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DK-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DK-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DK-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DK-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DK-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DK-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DK-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160DK-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160DK-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DK-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DK-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160DK-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve left \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160DL-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DL-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DL-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DL-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DL-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DL-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DL-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DL-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DL-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DL-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DL-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DL-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DL-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DL-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DL-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DL-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DL-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DL-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DL-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160DL-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160DL-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DL-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DL-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160DL-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve rear \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector
	XLFV-160DM-1G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DM-1H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DM-1L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DM-1M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC100V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DM-2G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DM-2H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DM-2L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DM-2M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC200V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DM-3G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DM-3H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DM-3L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DM-3M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC110V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DM-4G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DM-4H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DM-4L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: L-type plug connector
	XLFV-160DM-4M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: AC220V 50/60Hz \| Lead wire entry: M-type plug connector
	XLFV-160DM-5G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DM-5H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DM-5L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: L-type plug connector
	XLFV-160DM-5M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC24V \| Lead wire entry: M-type plug connector
	XLFV-160DM-6G	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 300 mm lead
	XLFV-160DM-6H	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: Grommet, 600 mm lead
	XLFV-160DM-6L	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: L-type plug connector
	XLFV-160DM-6M	Flange size: 160 \| Flange type: K (DN) \| Indicator and valve: No indicator, valve right \| Coil voltage: DC12V \| Lead wire entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC XLFV High Vacuum L-Type Valve with Solenoid Valve (100, 160)
