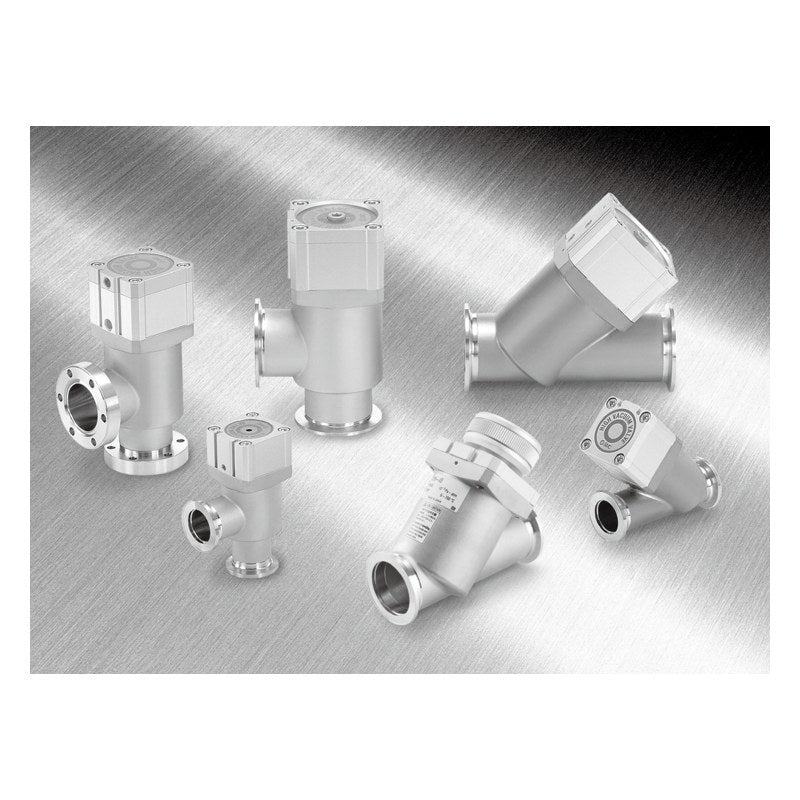

SMC XMA/XYA Stainless High Vacuum Valve (L/Straight, N.C., Bellows)

SMC XMA/XYA Stainless High Vacuum Valve (L/Straight, N.C., Bellows)

SMC XMA (L-type) and XYA (straight type) normally closed stainless steel high vacuum valves with bellows seal.

Key features

  • One-piece precision-cast SCS13 stainless body with no gas trap
  • XMA mounting compatible with the aluminum XL series
  • KF (NW), K (DN) and CF (conflat) flanges on XMA; KF and K on XYA
  • High-temperature version to 150 C (H0)
  • Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded
  • Seal material change (EPDM, Kalrez, Chemraz, VMQ, ULTIC ARMOR etc.) via -X suffix

Specifications

Valve type N.C., pressurize to open, spring seal
Fluid Inert gas under vacuum
Body material Stainless steel SCS13 (SUS304 equiv.)
Bellows SUS316L
Operating pressure 1x10^-6 Pa(abs) to atmospheric
Leakage (FKM) Internal 1.3x10^-10, external 1.3x10^-11 Pa m3/s
Conductance L/s: 16=5, 25=14, 40=45, 50=80, 63=160, 80=200
Pilot pressure 0.4-0.7 MPa
Source SMC Korea XM/XY catalog (SMCKR_XM_XY.pdf), p. 3-4
XMA-16 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-16H0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-16A Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-16AH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-16F Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-16FH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-16G Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-16GH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-16J Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-16JH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-16K Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-16KH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-16L Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-16LH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-16M Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-16MH0 Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-16C Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-16CH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-16CA Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-16CAH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-16CF Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-16CFH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-16CG Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-16CGH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-16CJ Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-16CJH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-16CK Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-16CKH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-16CL Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-16CLH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-16CM Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-16CMH0 Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-25 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-25H0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-25A Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-25AH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-25F Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-25FH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-25G Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-25GH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-25J Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-25JH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-25K Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-25KH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-25L Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-25LH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-25M Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-25MH0 Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-40 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-40H0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-40A Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-40AH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-40F Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-40FH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-40G Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-40GH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-40J Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-40JH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-40K Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-40KH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-40L Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-40LH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-40M Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-40MH0 Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-40C Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-40CH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-40CA Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-40CAH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-40CF Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-40CFH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-40CG Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-40CGH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-40CJ Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-40CJH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-40CK Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-40CKH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-40CL Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-40CLH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-40CM Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-40CMH0 Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-50 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-50H0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-50A Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-50AH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-50F Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-50FH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-50G Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-50GH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-50J Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-50JH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-50K Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-50KH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-50L Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-50LH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-50M Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-50MH0 Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-63 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-63H0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-63A Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-63AH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-63F Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-63FH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-63G Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-63GH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-63J Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-63JH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-63K Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-63KH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-63L Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-63LH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-63M Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-63MH0 Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-63D Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-63DH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-63DA Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-63DAH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-63DF Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-63DFH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-63DG Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-63DGH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-63DJ Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-63DJH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-63DK Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-63DKH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-63DL Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-63DLH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-63DM Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-63DMH0 Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-63C Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-63CH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-63CA Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-63CAH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-63CF Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-63CFH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-63CG Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-63CGH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-63CJ Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-63CJH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-63CK Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-63CKH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-63CL Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-63CLH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-63CM Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-63CMH0 Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-80 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-80H0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-80A Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-80AH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-80F Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-80FH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-80G Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-80GH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-80J Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-80JH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-80K Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-80KH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-80L Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-80LH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-80M Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-80MH0 Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-80D Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-80DH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-80DA Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-80DAH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-80DF Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-80DFH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-80DG Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-80DGH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-80DJ Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-80DJH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-80DK Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-80DKH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-80DL Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-80DLH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-80DM Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-80DMH0 Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-25 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-25H0 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-25A Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-25AH0 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-25F Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-25FH0 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-25J Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-25JH0 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-25K Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-25KH0 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-25M Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-25MH0 Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-40 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-40H0 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-40A Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-40AH0 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-40F Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-40FH0 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-40J Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-40JH0 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-40K Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-40KH0 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-40M Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-40MH0 Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-50 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-50H0 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-50A Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-50AH0 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-50F Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-50FH0 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-50J Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-50JH0 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-50K Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-50KH0 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-50M Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-50MH0 Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-63 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-63H0 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-63A Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-63AH0 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-63F Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-63FH0 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-63J Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-63JH0 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-63K Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-63KH0 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-63M Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-63MH0 Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-63D Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-63DH0 Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-63DA Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-63DAH0 Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-63DF Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-63DFH0 Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-63DJ Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-63DJH0 Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-63DK Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-63DKH0 Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-63DM Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-63DMH0 Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-80 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-80H0 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-80A Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-80AH0 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-80F Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-80FH0 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-80J Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-80JH0 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-80K Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-80KH0 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-80M Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-80MH0 Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-80D Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-80DH0 Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-80DA Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-80DAH0 Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-80DF Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-80DFH0 Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-80DJ Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-80DJH0 Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-80DK Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-80DKH0 Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-80DM Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-80DMH0 Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
High Vacuum ValvesSMC
260 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XMA/XYA Stainless High Vacuum Valve (L/Straight, N.C., Bellows)

Brand SMC·High Vacuum Valves

Available part numbers (260)

XMA-16, XMA-16H0, XMA-16A, XMA-16AH0, XMA-16F, XMA-16FH0, XMA-16G, XMA-16GH0, XMA-16J, XMA-16JH0 + 250 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XMA-16Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-16H0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-16ABody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-16AH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-16FBody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-16FH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-16GBody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-16GH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-16JBody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-16JH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-16KBody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-16KH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-16LBody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-16LH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-16MBody: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-16MH0Body: L-type (XMA) | Flange size: 16 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-16CBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-16CH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-16CABody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-16CAH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-16CFBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-16CFH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-16CGBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-16CGH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-16CJBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-16CJH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-16CKBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-16CKH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-16CLBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-16CLH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-16CMBody: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-16CMH0Body: L-type (XMA) | Flange size: 16 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-25Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-25H0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-25ABody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-25AH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-25FBody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-25FH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-25GBody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-25GH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-25JBody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-25JH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-25KBody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-25KH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-25LBody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-25LH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-25MBody: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-25MH0Body: L-type (XMA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-40Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-40H0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-40ABody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-40AH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-40FBody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-40FH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-40GBody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-40GH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-40JBody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-40JH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-40KBody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-40KH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-40LBody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-40LH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-40MBody: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-40MH0Body: L-type (XMA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-40CBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-40CH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-40CABody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-40CAH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-40CFBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-40CFH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-40CGBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-40CGH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-40CJBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-40CJH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-40CKBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-40CKH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-40CLBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-40CLH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-40CMBody: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-40CMH0Body: L-type (XMA) | Flange size: 40 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-50Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-50H0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-50ABody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-50AH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-50FBody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-50FH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-50GBody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-50GH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-50JBody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-50JH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-50KBody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-50KH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-50LBody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-50LH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-50MBody: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-50MH0Body: L-type (XMA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-63Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-63H0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-63ABody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-63AH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-63FBody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-63FH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-63GBody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-63GH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-63JBody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-63JH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-63KBody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-63KH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-63LBody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-63LH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-63MBody: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-63MH0Body: L-type (XMA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-63DBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-63DH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-63DABody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-63DAH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-63DFBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-63DFH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-63DGBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-63DGH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-63DJBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-63DJH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-63DKBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-63DKH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-63DLBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-63DLH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-63DMBody: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-63DMH0Body: L-type (XMA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-63CBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-63CH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-63CABody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-63CAH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-63CFBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-63CFH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-63CGBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-63CGH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-63CJBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-63CJH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-63CKBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-63CKH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-63CLBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-63CLH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-63CMBody: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-63CMH0Body: L-type (XMA) | Flange size: 63 | Flange type: CF (conflat) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-80Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-80H0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-80ABody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-80AH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-80FBody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-80FH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-80GBody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-80GH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-80JBody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-80JH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-80KBody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-80KH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-80LBody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-80LH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-80MBody: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-80MH0Body: L-type (XMA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XMA-80DBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-60 C standard
XMA-80DH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port flange side | Temperature: 5-150 C high temp
XMA-80DABody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-60 C standard
XMA-80DAH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port flange side | Temperature: 5-150 C high temp
XMA-80DFBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XMA-80DFH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XMA-80DGBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XMA-80DGH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XMA-80DJBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XMA-80DJH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XMA-80DKBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XMA-80DKH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XMA-80DLBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XMA-80DLH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XMA-80DMBody: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XMA-80DMH0Body: L-type (XMA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-25Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-25H0Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-25ABody: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-25AH0Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-25FBody: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-25FH0Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-25JBody: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-25JH0Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-25KBody: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-25KH0Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-25MBody: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-25MH0Body: Straight (XYA) | Flange size: 25 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-40Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-40H0Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-40ABody: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-40AH0Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-40FBody: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-40FH0Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-40JBody: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-40JH0Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-40KBody: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-40KH0Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-40MBody: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-40MH0Body: Straight (XYA) | Flange size: 40 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-50Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-50H0Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-50ABody: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-50AH0Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-50FBody: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-50FH0Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-50JBody: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-50JH0Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-50KBody: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-50KH0Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-50MBody: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-50MH0Body: Straight (XYA) | Flange size: 50 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-63Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-63H0Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-63ABody: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-63AH0Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-63FBody: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-63FH0Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-63JBody: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-63JH0Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-63KBody: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-63KH0Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-63MBody: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-63MH0Body: Straight (XYA) | Flange size: 63 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-63DBody: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-63DH0Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-63DABody: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-63DAH0Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-63DFBody: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-63DFH0Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-63DJBody: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-63DJH0Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-63DKBody: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-63DKH0Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-63DMBody: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-63DMH0Body: Straight (XYA) | Flange size: 63 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-80Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-80H0Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-80ABody: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-80AH0Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-80FBody: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-80FH0Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-80JBody: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-80JH0Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-80KBody: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-80KH0Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-80MBody: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-80MH0Body: Straight (XYA) | Flange size: 80 | Flange type: KF (NW) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp
XYA-80DBody: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-60 C standard
XYA-80DH0Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port rear | Temperature: 5-150 C high temp
XYA-80DABody: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-60 C standard
XYA-80DAH0Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port rear | Temperature: 5-150 C high temp
XYA-80DFBody: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-60 C standard
XYA-80DFH0Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port left | Temperature: 5-150 C high temp
XYA-80DJBody: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-60 C standard
XYA-80DJH0Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: Indicator, port right | Temperature: 5-150 C high temp
XYA-80DKBody: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-60 C standard
XYA-80DKH0Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port left | Temperature: 5-150 C high temp
XYA-80DMBody: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-60 C standard
XYA-80DMH0Body: Straight (XYA) | Flange size: 80 | Flange type: K (DN) | Indicator and port: No indicator, port right | Temperature: 5-150 C high temp

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
