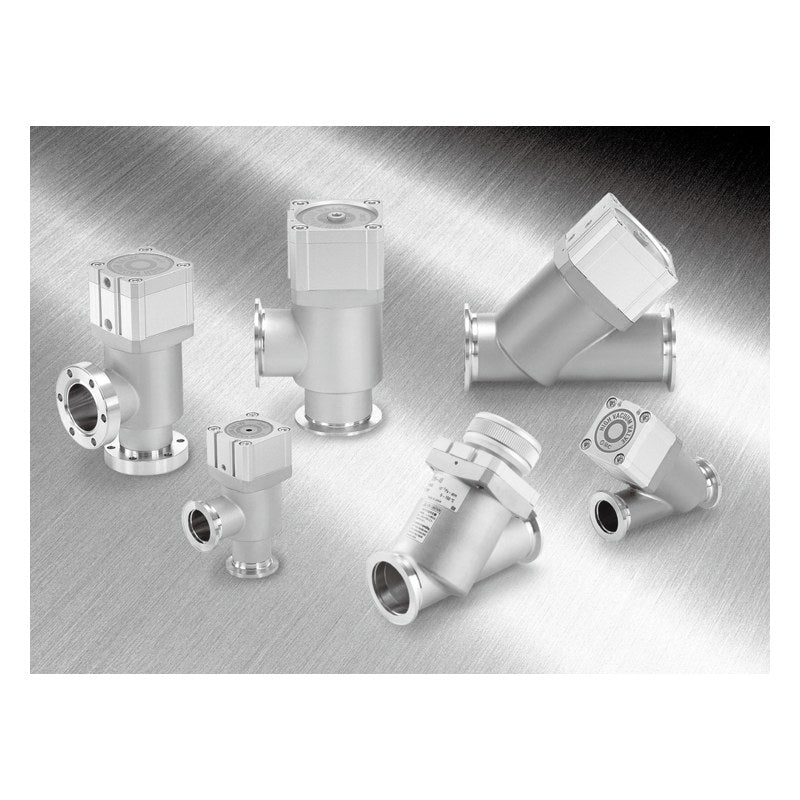

SMC XMC/XYC Stainless High Vacuum Valve (L/Straight, Double Acting)

SMC XMC/XYC Stainless High Vacuum Valve (L/Straight, Double Acting)

SMC XMC (L-type) and XYC (straight type) double-acting stainless steel high vacuum valves with bellows seal.

Key features

  • Double acting: opened and closed by pilot pressure
  • Precision-cast SCS13 stainless body, SUS316L bellows
  • KF (NW), K (DN) and CF flanges on XMC; KF and K on XYC
  • High-temperature version to 150 C (H0)
  • Auto switch (D-M9N/M9P/M9B/A90/A93, 1 or 2 pcs) is an order suffix, not expanded

Specifications

Valve type Double acting, bellows seal
Fluid Inert gas under vacuum
Body material Stainless steel SCS13 (SUS304 equiv.)
Bellows SUS316L
Operating pressure 1x10^-6 Pa(abs) to atmospheric
Leakage (FKM) Internal 1.3x10^-10, external 1.3x10^-11 Pa m3/s
Conductance L/s: 16=5, 25=14, 40=45, 50=80, 63=160, 80=200
