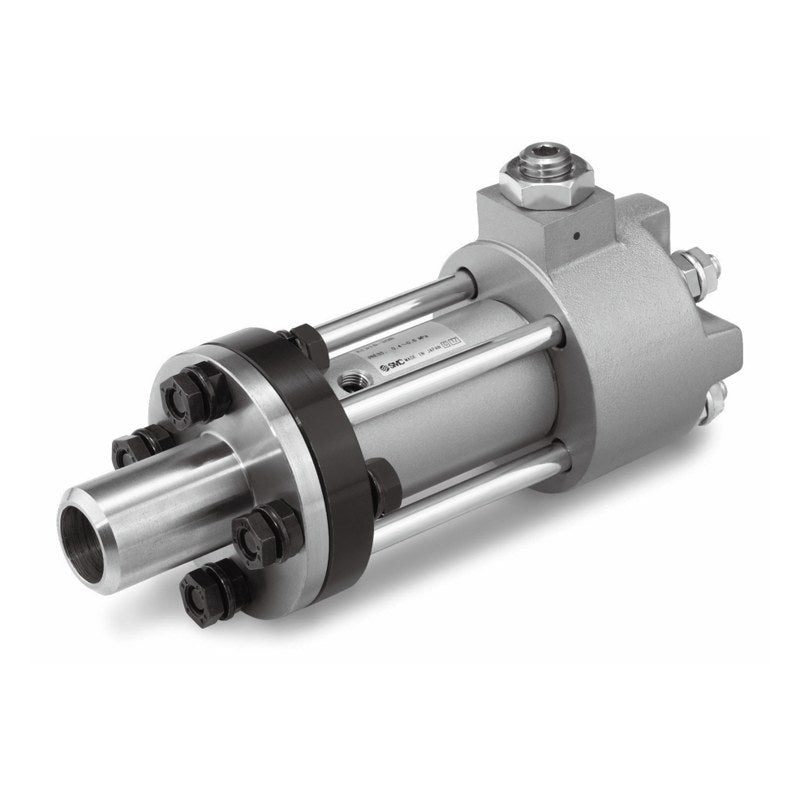

SMC XT316 Air Shocker (Pneumatic Knocker, ø30 to ø100)

SMC XT316 Air Shocker (Pneumatic Knocker, ø30 to ø100)

SMC XT316 series air shocker, a pneumatic piston type impact generator that clears bridging and build-up of powder and granular material in hoppers and chutes, ø30 to ø100 mm cylinder.

Key features

  • Strong, stable striking force; impact force adjustable by supply pressure
  • Non-lube operation; driven by a 3-port solenoid valve (tank charge, poppet release, piston strike)
  • Selection by hopper diameter and plate thickness chart (e.g. ø500 mm hopper, 4 mm plate: one XT316-63)
  • Available with mounting base (B) for full-perimeter welding to the hopper wall
  • Supplied with mounting bolts, spring washers and hard lock nuts

Specifications

Operating pressure 0.4 to 0.6 MPa
Ambient and fluid temperature 0 to 60°C
Lubrication Not required (non-lube)
Mass (incl. base and bolts) ø30 2.5, ø40 4.4, ø63 11.2, ø80 15, ø100 33.5 kg
Air consumption per stroke ø30 0.33, ø40 0.75, ø63 1.29, ø80 1.91, ø100 4 L
Port size Rc1/8 (ø30 to ø80), Rc3/8 (ø100)
Source SMC Korea catalog XT316 Series (SMCKR_XT316.pdf), p. 1-3 (PDF p. 1-4)
XT316-30 Cylinder bore: ø30 mm | Base: Without base | Impact energy: 0.05 to 0.07 kgm | Port: Rc1/8
XT316-30B Cylinder bore: ø30 mm | Base: With base | Impact energy: 0.05 to 0.07 kgm | Port: Rc1/8
XT316-40 Cylinder bore: ø40 mm | Base: Without base | Impact energy: 0.17 to 0.31 kgm | Port: Rc1/8
XT316-40B Cylinder bore: ø40 mm | Base: With base | Impact energy: 0.17 to 0.31 kgm | Port: Rc1/8
XT316-63 Cylinder bore: ø63 mm | Base: Without base | Impact energy: 0.45 to 0.75 kgm | Port: Rc1/8
XT316-63B Cylinder bore: ø63 mm | Base: With base | Impact energy: 0.45 to 0.75 kgm | Port: Rc1/8
XT316-80 Cylinder bore: ø80 mm | Base: Without base | Impact energy: 1.0 to 1.8 kgm | Port: Rc1/8
XT316-80B Cylinder bore: ø80 mm | Base: With base | Impact energy: 1.0 to 1.8 kgm | Port: Rc1/8
XT316-100 Cylinder bore: ø100 mm | Base: Without base | Impact energy: 2.2 to 4.0 kgm | Port: Rc3/8
XT316-100B Cylinder bore: ø100 mm | Base: With base | Impact energy: 2.2 to 4.0 kgm | Port: Rc3/8
Pneumatic KnockersSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC XT316 Air Shocker (Pneumatic Knocker, ø30 to ø100)

Brand SMC·Pneumatic Knockers

Available part numbers (10)

XT316-30, XT316-30B, XT316-40, XT316-40B, XT316-63, XT316-63B, XT316-80, XT316-80B, XT316-100, XT316-100B

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XT316-30Cylinder bore: ø30 mm | Base: Without base | Impact energy: 0.05 to 0.07 kgm | Port: Rc1/8
XT316-30BCylinder bore: ø30 mm | Base: With base | Impact energy: 0.05 to 0.07 kgm | Port: Rc1/8
XT316-40Cylinder bore: ø40 mm | Base: Without base | Impact energy: 0.17 to 0.31 kgm | Port: Rc1/8
XT316-40BCylinder bore: ø40 mm | Base: With base | Impact energy: 0.17 to 0.31 kgm | Port: Rc1/8
XT316-63Cylinder bore: ø63 mm | Base: Without base | Impact energy: 0.45 to 0.75 kgm | Port: Rc1/8
XT316-63BCylinder bore: ø63 mm | Base: With base | Impact energy: 0.45 to 0.75 kgm | Port: Rc1/8
XT316-80Cylinder bore: ø80 mm | Base: Without base | Impact energy: 1.0 to 1.8 kgm | Port: Rc1/8
XT316-80BCylinder bore: ø80 mm | Base: With base | Impact energy: 1.0 to 1.8 kgm | Port: Rc1/8
XT316-100Cylinder bore: ø100 mm | Base: Without base | Impact energy: 2.2 to 4.0 kgm | Port: Rc3/8
XT316-100BCylinder bore: ø100 mm | Base: With base | Impact energy: 2.2 to 4.0 kgm | Port: Rc3/8
