SMC ZFA Air Suction Filter (Vacuum Line, Rc1/8 and Rc1/4)

SMC ZFA Air Suction Filter (Vacuum Line, Rc1/8 and Rc1/4)

SMC ZFA series air suction filter for vacuum lines, catching solid contaminants in a cartridge element before they reach ejectors, valves and vacuum pumps.

Key features

  • Contaminants are trapped inside the element, so none remain in the case
  • Large element filtration area (2110 mm² on ZFA100, 4210 mm² on ZFA200)
  • Can be manifolded up to 10 stations with ZZFA bracket sets

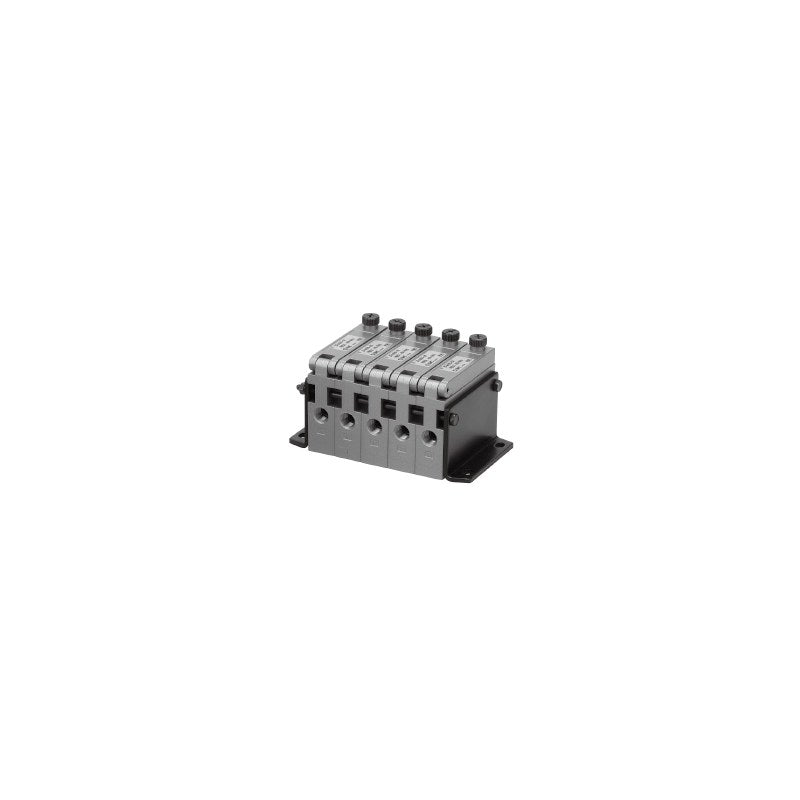

  • Cartridge type element, replaced by opening the cover; mounting orientation unrestricted
  • Bracket (L, R or LR), NPTF (T) and G (F) threads are ordered as options

Specifications

Fluid Air, nitrogen
Operating pressure range -100 to 0 kPa
Vacuum break pressure Max. 0.5 MPa (pressure hold not allowed)
Ambient and fluid temperature 5 to 60°C
Filtration 30 µm (95% capture efficiency)
Element replacement differential pressure 20 kPa
Port thread Rc (standard)
Case / cover material Aluminum alloy / zinc alloy
Replacement element EJ001H-030N (ZFA100), EJ101H-030N (ZFA200)
Bracket sets BP-1H-1A / BP-1H-2A (single), ZZFA1-/ZZFA2- + stations (manifold)
Source SMC Korea catalog ZFA Series (SMCKR_ZFA.pdf), p. 276-278 (PDF p. 2-4)
ZFA100-01 Model: ZFA100 | Port size: Rc1/8 | Recommended flow: 50 L/min (ANR) | Filtration area: 2110 mm² | Mass: 0.14 kg
ZFA200-02 Model: ZFA200 | Port size: Rc1/4 | Recommended flow: 200 L/min (ANR) | Filtration area: 4210 mm² | Mass: 0.19 kg
