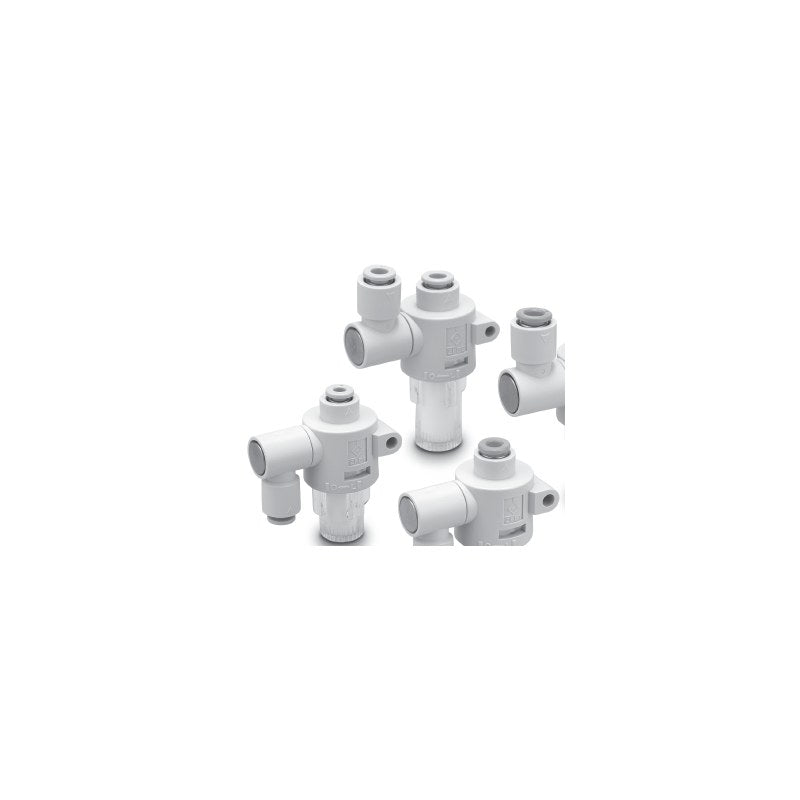

SMC ZFB Air Suction Filter with One-touch Fittings (ø4 to ø1/2")

SMC ZFB series air suction filter with one-touch fittings on IN and OUT, protecting vacuum equipment from solid contaminants in compact resin construction.

Key features

IN-side tube direction can be rotated through 360°
One-touch fittings for quick tube connection and removal
Lightweight, compact resin body (PBT) with transparent nylon case
Cartridge element replaced simply by turning the transparent cover
Metric sizes ø4 to ø10 (light gray release button); inch sizes ø3/16" to ø1/2" (orange) made to order

Specifications

Fluid	Air, nitrogen
Operating pressure range	-100 to 0 kPa
Vacuum break pressure	Max. 0.5 MPa (pressure hold not allowed)
Ambient and fluid temperature	0 to 60°C (no freezing)
Filtration	30 µm (95% capture efficiency)
Element replacement differential pressure	20 kPa
Applicable tubing	Nylon, soft nylon, polyurethane
Replacement element sets	I-34S-A, I-35S-A, I-36S-A, I-39S-A (10 pcs with O-rings)
Source	SMC Korea catalog ZFB Series (SMCKR_ZFB.pdf), p. 799-800 (PDF p. 1-2)

ZFB100-04		Body size: ZFB10 \| Tube O.D.: ø4 (metric) \| Recommended flow: 10 L/min (ANR) \| Filtration area: 1037 mm² \| Mass: 22 g
ZFB100-06		Body size: ZFB10 \| Tube O.D.: ø6 (metric) \| Recommended flow: 20 L/min (ANR) \| Filtration area: 1037 mm² \| Mass: 22 g
ZFB200-06		Body size: ZFB20 \| Tube O.D.: ø6 (metric) \| Recommended flow: 30 L/min (ANR) \| Filtration area: 1584 mm² \| Mass: 30 g
ZFB200-08		Body size: ZFB20 \| Tube O.D.: ø8 (metric) \| Recommended flow: 50 L/min (ANR) \| Filtration area: 1584 mm² \| Mass: 30 g
ZFB300-08		Body size: ZFB30 \| Tube O.D.: ø8 (metric) \| Recommended flow: 75 L/min (ANR) \| Filtration area: 1980 mm² \| Mass: 39 g
ZFB300-10		Body size: ZFB30 \| Tube O.D.: ø10 (metric) \| Recommended flow: 75 L/min (ANR) \| Filtration area: 1980 mm² \| Mass: 39 g
ZFB101-05		Body size: ZFB10 \| Tube O.D.: ø3/16" (inch, made to order) \| Recommended flow: 20 L/min (ANR) \| Filtration area: 1037 mm² \| Mass: 22 g
ZFB101-07		Body size: ZFB10 \| Tube O.D.: ø1/4" (inch, made to order) \| Recommended flow: 20 L/min (ANR) \| Filtration area: 1037 mm² \| Mass: 22 g
ZFB201-07		Body size: ZFB20 \| Tube O.D.: ø1/4" (inch, made to order) \| Recommended flow: 30 L/min (ANR) \| Filtration area: 1584 mm² \| Mass: 30 g
ZFB301-11		Body size: ZFB30 \| Tube O.D.: ø3/8" (inch, made to order) \| Recommended flow: 75 L/min (ANR) \| Filtration area: 1980 mm² \| Mass: 40 g
ZFB401-13		Body size: ZFB40 \| Tube O.D.: ø1/2" (inch, made to order) \| Recommended flow: 100 L/min (ANR) \| Filtration area: 3016 mm² \| Mass: 62 g
