SMC ZFC In-line Air Filter (Vacuum / Positive Pressure, ø2 to ø12)

SMC ZFC In-line Air Filter (Vacuum / Positive Pressure, ø2 to ø12)

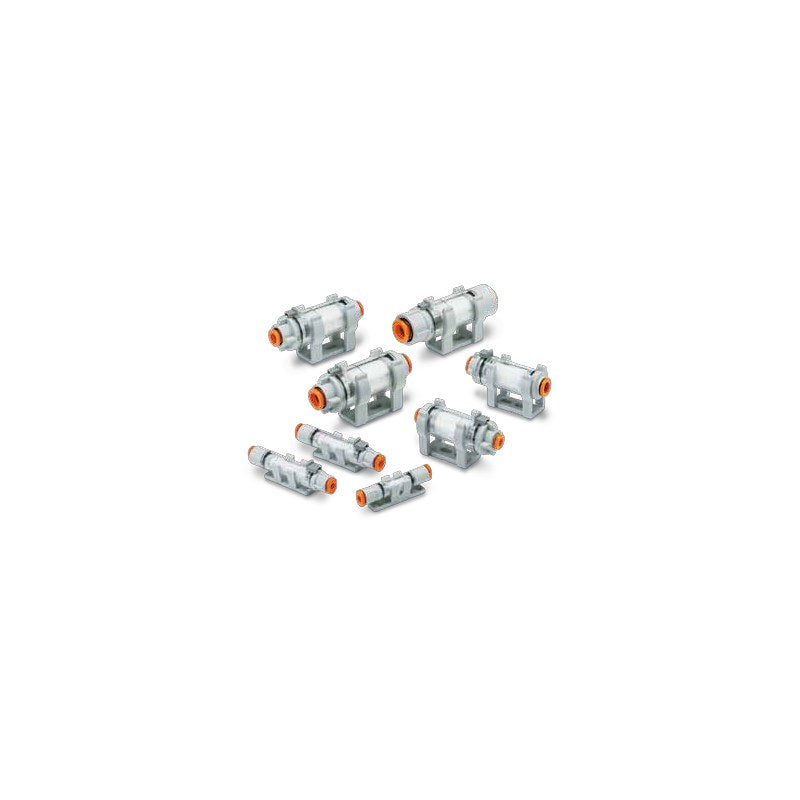

SMC ZFC series in-line air filter with one-touch fittings, usable on both vacuum and positive pressure lines from -100 kPa to 1.0 MPa, in four body sizes and 18 models.

Key features

  • One filter for positive pressure (up to 1.0 MPa at 20°C) and vacuum (-100 kPa)
  • Four body sizes: ZFC1 and ZFC3 (space-saving) and ZFC5 and ZFC7 (long-life)
  • Transparent polycarbonate case for visual check of the 5 µm element
  • Metric sizes (light gray release button) and inch sizes (orange)
  • Bracket (B) is an option; different IN/OUT sizes (-X01/-X02), blue element (-X03), 10 µm (-X04), FKM (-X05) and nylon case (-X06) are made to order

Specifications

Fluid Air, nitrogen
Operating pressure -100 kPa to 1.0 MPa (20°C)
Proof pressure 1.5 MPa (20°C)
Ambient and fluid temperature 0 to 60°C
Filtration 5 µm (95% capture efficiency)
Element replacement differential pressure 0.1 MPa (positive), 20 kPa (vacuum)
Applicable tubing Nylon, soft nylon, polyurethane
Case material Polycarbonate
Replacement elements ZFC-EL-1, -2, -3, -4 (ZFC1, 3, 5, 7)
Brackets ZFC-BR001 to ZFC-BR004
Source SMC Korea catalog CAT.KS100-103B ZFC Series (SMCKR_ZFC.pdf), p. 1-3 (PDF p. 1-4)
ZFC11 Body size: ZFC1 | Tube O.D.: ø2 | Flow (positive pressure): 15 L/min (ANR) | Flow (vacuum): 2 L/min (ANR) | Filtration area: 140 mm²
ZFC12 Body size: ZFC1 | Tube O.D.: ø3.2 | Flow (positive pressure): 45 L/min (ANR) | Flow (vacuum): 5 L/min (ANR) | Filtration area: 140 mm²
ZFC1A Body size: ZFC1 | Tube O.D.: ø1/8" | Flow (positive pressure): 45 L/min (ANR) | Flow (vacuum): 5 L/min (ANR) | Filtration area: 140 mm²
ZFC32 Body size: ZFC3 | Tube O.D.: ø3.2 | Flow (positive pressure): 50 L/min (ANR) | Flow (vacuum): 7 L/min (ANR) | Filtration area: 470 mm²
ZFC33 Body size: ZFC3 | Tube O.D.: ø4 | Flow (positive pressure): 80 L/min (ANR) | Flow (vacuum): 10 L/min (ANR) | Filtration area: 470 mm²
ZFC3A Body size: ZFC3 | Tube O.D.: ø1/8" | Flow (positive pressure): 50 L/min (ANR) | Flow (vacuum): 7 L/min (ANR) | Filtration area: 470 mm²
ZFC3B Body size: ZFC3 | Tube O.D.: ø5/32" | Flow (positive pressure): 80 L/min (ANR) | Flow (vacuum): 10 L/min (ANR) | Filtration area: 470 mm²
ZFC53 Body size: ZFC5 | Tube O.D.: ø4 | Flow (positive pressure): 100 L/min (ANR) | Flow (vacuum): 10 L/min (ANR) | Filtration area: 750 mm²
ZFC54 Body size: ZFC5 | Tube O.D.: ø6 | Flow (positive pressure): 200 L/min (ANR) | Flow (vacuum): 20 L/min (ANR) | Filtration area: 750 mm²
ZFC5B Body size: ZFC5 | Tube O.D.: ø5/32" | Flow (positive pressure): 100 L/min (ANR) | Flow (vacuum): 10 L/min (ANR) | Filtration area: 750 mm²
ZFC5D Body size: ZFC5 | Tube O.D.: ø1/4" | Flow (positive pressure): 200 L/min (ANR) | Flow (vacuum): 20 L/min (ANR) | Filtration area: 750 mm²
ZFC74 Body size: ZFC7 | Tube O.D.: ø6 | Flow (positive pressure): 250 L/min (ANR) | Flow (vacuum): 30 L/min (ANR) | Filtration area: 1260 mm²
ZFC75 Body size: ZFC7 | Tube O.D.: ø8 | Flow (positive pressure): 450 L/min (ANR) | Flow (vacuum): 70 L/min (ANR) | Filtration area: 1260 mm²
ZFC76 Body size: ZFC7 | Tube O.D.: ø10 | Flow (positive pressure): 550 L/min (ANR) | Flow (vacuum): 80 L/min (ANR) | Filtration area: 1260 mm²
ZFC77 Body size: ZFC7 | Tube O.D.: ø12 | Flow (positive pressure): 650 L/min (ANR) | Flow (vacuum): 100 L/min (ANR) | Filtration area: 1260 mm²
ZFC7D Body size: ZFC7 | Tube O.D.: ø1/4" | Flow (positive pressure): 250 L/min (ANR) | Flow (vacuum): 30 L/min (ANR) | Filtration area: 1260 mm²
ZFC7E Body size: ZFC7 | Tube O.D.: ø5/16" | Flow (positive pressure): 450 L/min (ANR) | Flow (vacuum): 70 L/min (ANR) | Filtration area: 1260 mm²
ZFC7F Body size: ZFC7 | Tube O.D.: ø3/8" | Flow (positive pressure): 550 L/min (ANR) | Flow (vacuum): 80 L/min (ANR) | Filtration area: 1260 mm²
