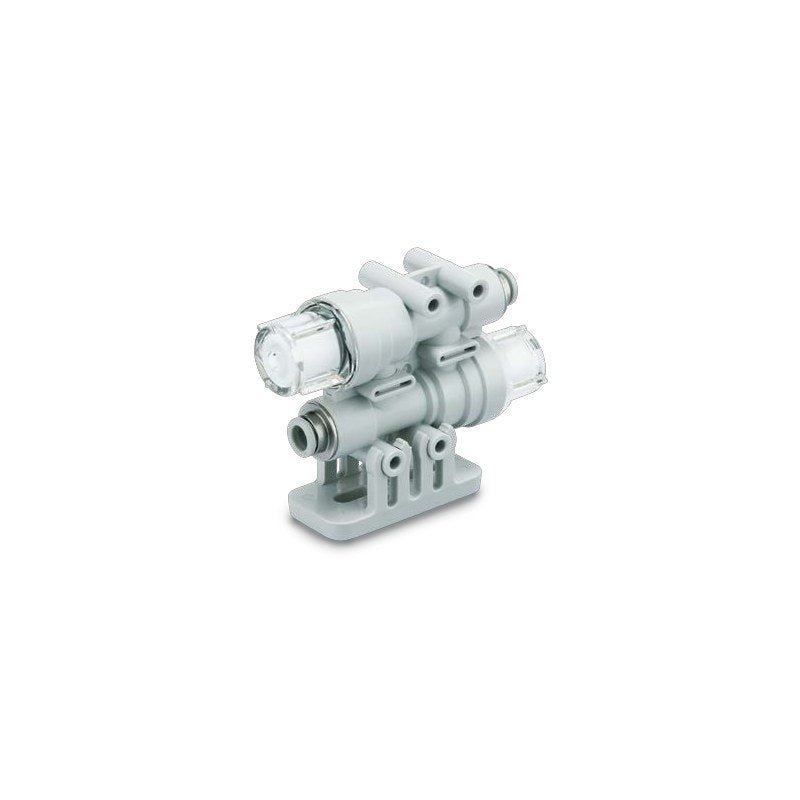

SMC ZFD In-line Air Filter (Bidirectional Collection, ø4 to ø8)

SMC ZFD series in-line air filter with two filters and two check valves in one body, collecting contaminants in both vacuum suction and vacuum release directions to prevent re-scattering.

Key features

Combines 2 in-line filters, 2 check valves, 2 tees and 2 elbows in one unit; 41% less installation area
Flow order filter then check valve protects the check valves from contaminant entrapment
Transparent polycarbonate cases; elements visible and cases removable without tools
One-touch fittings for ø4, ø6 and ø8 tubing
Holder (H) is an option; different port sizes (-X01), blue element (-X03) and 10 µm element (-X04) are made to order

Specifications

Fluid	Air
Operating pressure range	-100 to 0 kPa (vacuum side)
Vacuum release pressure	0.5 MPa or less
Proof pressure	0.5 MPa
Ambient and fluid temperature	0 to 50°C
Filtration	5 µm
Check valve cracking pressure	5 kPa
Case material	Polycarbonate
Replacement element	ZFC-EL-3 (10 pcs)
Source	SMC Korea catalog CAT.KS100-173A ZFD Series (SMCKR_ZFD.pdf), p. 1-2 (PDF p. 1-3)

ZFD53		Model: ZFD53 \| Tube O.D.: ø4 \| Mass: 34 g
ZFD54		Model: ZFD54 \| Tube O.D.: ø6 \| Mass: 33 g
ZFD55		Model: ZFD55 \| Tube O.D.: ø8 \| Mass: 35 g

FiltersSMC

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZFD In-line Air Filter (Bidirectional Collection, ø4 to ø8)

Brand SMC·Filters

Available part numbers (3)

ZFD53, ZFD54, ZFD55
