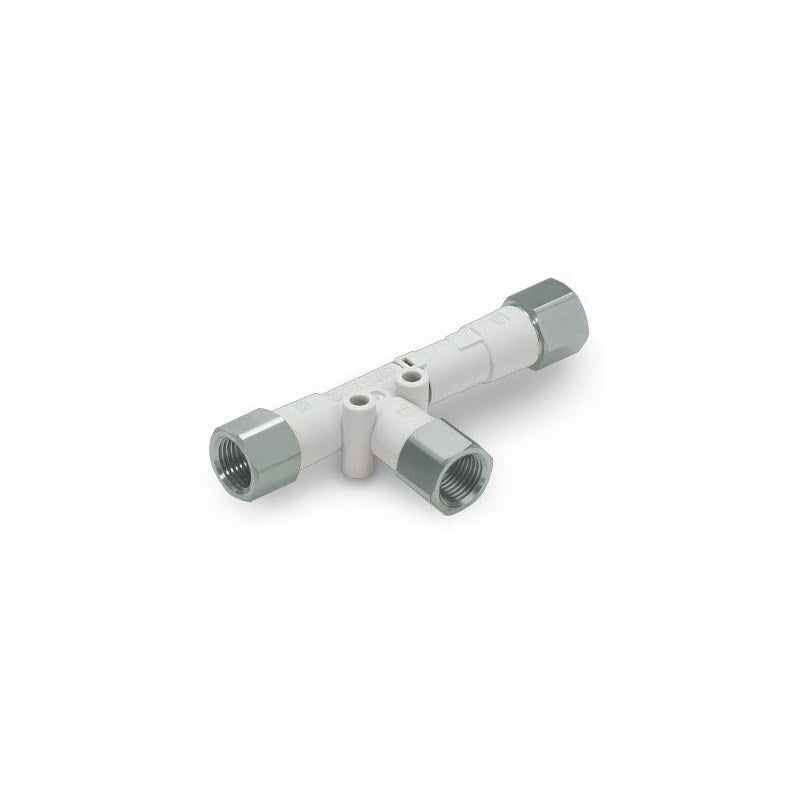

SMC ZH-A Vacuum Ejector (Direct Piping and Box Type)

SMC ZH-A Vacuum Ejector (Direct Piping and Box Type)

SMC ZHA series compact vacuum ejector in direct piping (D) and box type with built-in silencer (B), nozzle ø0.5 to ø2.0 mm, high-vacuum S or high-flow L type.

Key features

  • Smaller and lighter than the previous ZH: up to 39% less volume and 59% less mass (box type)
  • Seven nozzle sizes ø0.5 to ø2.0 mm; S type up to -90 kPa, L type -48 to -66 kPa with larger suction flow
  • One-touch fittings, Rc female threads or mixed connections; G and inch/NPT versions on order
  • Direct piping type supplied with standard bracket; no-bracket (N), silencer (S, NS) and L-type/DIN rail brackets (AS-L/D) available
  • Units can be clamped together with long bolt sets ZH2-TB-A

Specifications

Fluid Air
Operating pressure range 0.1 to 0.6 MPa
Operating temperature -5 to 50°C (no freezing)
Max. suction flow S 6 to 90, L 13 to 155 L/min (ANR)
Air consumption 13 to 201 L/min (ANR)
Rated vacuum at 0.45 MPa supply
Body material PBT
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane
Accessory (listed codes) Standard bracket included (blank symbol)
Source SMC Korea catalog ZH Series CAT.KS100-108C (SMCKR_ZH-A.pdf), p. 4-7 (PDF p. 5-8)
ZH05DSA-06-06-06 Type: Direct piping | Nozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | SUP port: ø6 | VAC port: ø6 | EXH: ø6
ZH05DSA-06-01-06 Type: Direct piping | Nozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: ø6
ZH05DSA-01-01-01 Type: Direct piping | Nozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Rc1/8
ZH05DLA-06-06-06 Type: Direct piping | Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: ø6 | EXH: ø6
ZH05DLA-06-01-06 Type: Direct piping | Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: ø6
ZH05DLA-01-01-01 Type: Direct piping | Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Rc1/8
ZH07DSA-06-06-06 Type: Direct piping | Nozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | SUP port: ø6 | VAC port: ø6 | EXH: ø6
ZH07DSA-06-01-06 Type: Direct piping | Nozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: ø6
ZH07DSA-01-01-01 Type: Direct piping | Nozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Rc1/8
ZH07DLA-06-06-06 Type: Direct piping | Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: ø6 | EXH: ø6
ZH07DLA-06-01-06 Type: Direct piping | Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: ø6
ZH07DLA-01-01-01 Type: Direct piping | Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Rc1/8
ZH10DSA-06-06-08 Type: Direct piping | Nozzle: ø1.0 mm | Max. vacuum: S, -90 kPa | SUP port: ø6 | VAC port: ø6 | EXH: ø8
ZH10DSA-06-01-08 Type: Direct piping | Nozzle: ø1.0 mm | Max. vacuum: S, -90 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: ø8
ZH10DSA-01-01-01 Type: Direct piping | Nozzle: ø1.0 mm | Max. vacuum: S, -90 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Rc1/8
ZH10DLA-06-06-08 Type: Direct piping | Nozzle: ø1.0 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: ø6 | EXH: ø8
ZH10DLA-06-01-08 Type: Direct piping | Nozzle: ø1.0 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: ø8
ZH10DLA-01-01-01 Type: Direct piping | Nozzle: ø1.0 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Rc1/8
ZH13DSA-08-10-10 Type: Direct piping | Nozzle: ø1.3 mm | Max. vacuum: S, -90 kPa | SUP port: ø8 | VAC port: ø10 | EXH: ø10
ZH13DSA-08-02-10 Type: Direct piping | Nozzle: ø1.3 mm | Max. vacuum: S, -90 kPa | SUP port: ø8 | VAC port: Rc1/4 | EXH: ø10
ZH13DSA-01-02-02 Type: Direct piping | Nozzle: ø1.3 mm | Max. vacuum: S, -90 kPa | SUP port: Rc1/8 | VAC port: Rc1/4 | EXH: Rc1/4
ZH13DLA-08-10-10 Type: Direct piping | Nozzle: ø1.3 mm | Max. vacuum: L, -48 kPa | SUP port: ø8 | VAC port: ø10 | EXH: ø10
ZH13DLA-08-02-10 Type: Direct piping | Nozzle: ø1.3 mm | Max. vacuum: L, -48 kPa | SUP port: ø8 | VAC port: Rc1/4 | EXH: ø10
ZH13DLA-01-02-02 Type: Direct piping | Nozzle: ø1.3 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/4 | EXH: Rc1/4
ZH15DSA-08-10-10 Type: Direct piping | Nozzle: ø1.5 mm | Max. vacuum: S, -90 kPa | SUP port: ø8 | VAC port: ø10 | EXH: ø10
ZH15DSA-08-03-10 Type: Direct piping | Nozzle: ø1.5 mm | Max. vacuum: S, -90 kPa | SUP port: ø8 | VAC port: Rc3/8 | EXH: ø10
ZH15DSA-02-03-03 Type: Direct piping | Nozzle: ø1.5 mm | Max. vacuum: S, -90 kPa | SUP port: Rc1/4 | VAC port: Rc3/8 | EXH: Rc3/8
ZH15DLA-08-10-10 Type: Direct piping | Nozzle: ø1.5 mm | Max. vacuum: L, -66 kPa | SUP port: ø8 | VAC port: ø10 | EXH: ø10
ZH15DLA-08-03-10 Type: Direct piping | Nozzle: ø1.5 mm | Max. vacuum: L, -66 kPa | SUP port: ø8 | VAC port: Rc3/8 | EXH: ø10
ZH15DLA-02-03-03 Type: Direct piping | Nozzle: ø1.5 mm | Max. vacuum: L, -66 kPa | SUP port: Rc1/4 | VAC port: Rc3/8 | EXH: Rc3/8
ZH18DSA-10-12-12 Type: Direct piping | Nozzle: ø1.8 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: ø12 | EXH: ø12
ZH18DSA-10-03-12 Type: Direct piping | Nozzle: ø1.8 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: Rc3/8 | EXH: ø12
ZH18DSA-03-03-03 Type: Direct piping | Nozzle: ø1.8 mm | Max. vacuum: S, -90 kPa | SUP port: Rc3/8 | VAC port: Rc3/8 | EXH: Rc3/8
ZH18DLA-10-12-12 Type: Direct piping | Nozzle: ø1.8 mm | Max. vacuum: L, -66 kPa | SUP port: ø10 | VAC port: ø12 | EXH: ø12
ZH18DLA-10-03-12 Type: Direct piping | Nozzle: ø1.8 mm | Max. vacuum: L, -66 kPa | SUP port: ø10 | VAC port: Rc3/8 | EXH: ø12
ZH18DLA-03-03-03 Type: Direct piping | Nozzle: ø1.8 mm | Max. vacuum: L, -66 kPa | SUP port: Rc3/8 | VAC port: Rc3/8 | EXH: Rc3/8
ZH20DSA-10-12-12 Type: Direct piping | Nozzle: ø2.0 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: ø12 | EXH: ø12
ZH20DSA-10-04-12 Type: Direct piping | Nozzle: ø2.0 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: Rc1/2 | EXH: ø12
ZH20DSA-03-04-04 Type: Direct piping | Nozzle: ø2.0 mm | Max. vacuum: S, -90 kPa | SUP port: Rc3/8 | VAC port: Rc1/2 | EXH: Rc1/2
ZH20DLA-10-12-12 Type: Direct piping | Nozzle: ø2.0 mm | Max. vacuum: L, -66 kPa | SUP port: ø10 | VAC port: ø12 | EXH: ø12
ZH20DLA-10-04-12 Type: Direct piping | Nozzle: ø2.0 mm | Max. vacuum: L, -66 kPa | SUP port: ø10 | VAC port: Rc1/2 | EXH: ø12
ZH20DLA-03-04-04 Type: Direct piping | Nozzle: ø2.0 mm | Max. vacuum: L, -66 kPa | SUP port: Rc3/8 | VAC port: Rc1/2 | EXH: Rc1/2
ZH05BSA-06-06 Type: Box type, built-in silencer | Nozzle: ø0.5 mm | Max. vacuum: S, -89 kPa | SUP port: ø6 | VAC port: ø6 | EXH: Built-in silencer
ZH05BSA-06-01 Type: Box type, built-in silencer | Nozzle: ø0.5 mm | Max. vacuum: S, -89 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH05BSA-01-01 Type: Box type, built-in silencer | Nozzle: ø0.5 mm | Max. vacuum: S, -89 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH05BLA-06-06 Type: Box type, built-in silencer | Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: ø6 | EXH: Built-in silencer
ZH05BLA-06-01 Type: Box type, built-in silencer | Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH05BLA-01-01 Type: Box type, built-in silencer | Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH07BSA-06-06 Type: Box type, built-in silencer | Nozzle: ø0.7 mm | Max. vacuum: S, -89 kPa | SUP port: ø6 | VAC port: ø6 | EXH: Built-in silencer
ZH07BSA-06-01 Type: Box type, built-in silencer | Nozzle: ø0.7 mm | Max. vacuum: S, -89 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH07BSA-01-01 Type: Box type, built-in silencer | Nozzle: ø0.7 mm | Max. vacuum: S, -89 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH07BLA-06-06 Type: Box type, built-in silencer | Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: ø6 | EXH: Built-in silencer
ZH07BLA-06-01 Type: Box type, built-in silencer | Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH07BLA-01-01 Type: Box type, built-in silencer | Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH10BSA-06-06 Type: Box type, built-in silencer | Nozzle: ø1.0 mm | Max. vacuum: S, -89 kPa | SUP port: ø6 | VAC port: ø6 | EXH: Built-in silencer
ZH10BSA-06-01 Type: Box type, built-in silencer | Nozzle: ø1.0 mm | Max. vacuum: S, -89 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH10BSA-01-01 Type: Box type, built-in silencer | Nozzle: ø1.0 mm | Max. vacuum: S, -89 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH10BLA-06-06 Type: Box type, built-in silencer | Nozzle: ø1.0 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: ø6 | EXH: Built-in silencer
ZH10BLA-06-01 Type: Box type, built-in silencer | Nozzle: ø1.0 mm | Max. vacuum: L, -48 kPa | SUP port: ø6 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH10BLA-01-01 Type: Box type, built-in silencer | Nozzle: ø1.0 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/8 | EXH: Built-in silencer
ZH13BSA-08-10 Type: Box type, built-in silencer | Nozzle: ø1.3 mm | Max. vacuum: S, -89 kPa | SUP port: ø8 | VAC port: ø10 | EXH: Built-in silencer
ZH13BSA-08-02 Type: Box type, built-in silencer | Nozzle: ø1.3 mm | Max. vacuum: S, -89 kPa | SUP port: ø8 | VAC port: Rc1/4 | EXH: Built-in silencer
ZH13BSA-01-02 Type: Box type, built-in silencer | Nozzle: ø1.3 mm | Max. vacuum: S, -89 kPa | SUP port: Rc1/8 | VAC port: Rc1/4 | EXH: Built-in silencer
ZH13BLA-08-10 Type: Box type, built-in silencer | Nozzle: ø1.3 mm | Max. vacuum: L, -48 kPa | SUP port: ø8 | VAC port: ø10 | EXH: Built-in silencer
ZH13BLA-08-02 Type: Box type, built-in silencer | Nozzle: ø1.3 mm | Max. vacuum: L, -48 kPa | SUP port: ø8 | VAC port: Rc1/4 | EXH: Built-in silencer
ZH13BLA-01-02 Type: Box type, built-in silencer | Nozzle: ø1.3 mm | Max. vacuum: L, -48 kPa | SUP port: Rc1/8 | VAC port: Rc1/4 | EXH: Built-in silencer
ZH15BSA-08-10 Type: Box type, built-in silencer | Nozzle: ø1.5 mm | Max. vacuum: S, -90 kPa | SUP port: ø8 | VAC port: ø10 | EXH: Built-in silencer
ZH15BSA-08-03 Type: Box type, built-in silencer | Nozzle: ø1.5 mm | Max. vacuum: S, -90 kPa | SUP port: ø8 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH15BSA-02-03 Type: Box type, built-in silencer | Nozzle: ø1.5 mm | Max. vacuum: S, -90 kPa | SUP port: Rc1/4 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH15BLA-08-10 Type: Box type, built-in silencer | Nozzle: ø1.5 mm | Max. vacuum: L, -66 kPa | SUP port: ø8 | VAC port: ø10 | EXH: Built-in silencer
ZH15BLA-08-03 Type: Box type, built-in silencer | Nozzle: ø1.5 mm | Max. vacuum: L, -66 kPa | SUP port: ø8 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH15BLA-02-03 Type: Box type, built-in silencer | Nozzle: ø1.5 mm | Max. vacuum: L, -66 kPa | SUP port: Rc1/4 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH18BSA-10-12 Type: Box type, built-in silencer | Nozzle: ø1.8 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: ø12 | EXH: Built-in silencer
ZH18BSA-10-03 Type: Box type, built-in silencer | Nozzle: ø1.8 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH18BSA-03-03 Type: Box type, built-in silencer | Nozzle: ø1.8 mm | Max. vacuum: S, -90 kPa | SUP port: Rc3/8 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH18BLA-10-12 Type: Box type, built-in silencer | Nozzle: ø1.8 mm | Max. vacuum: L, -66 kPa | SUP port: ø10 | VAC port: ø12 | EXH: Built-in silencer
ZH18BLA-10-03 Type: Box type, built-in silencer | Nozzle: ø1.8 mm | Max. vacuum: L, -66 kPa | SUP port: ø10 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH18BLA-03-03 Type: Box type, built-in silencer | Nozzle: ø1.8 mm | Max. vacuum: L, -66 kPa | SUP port: Rc3/8 | VAC port: Rc3/8 | EXH: Built-in silencer
ZH20BSA-10-12 Type: Box type, built-in silencer | Nozzle: ø2.0 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: ø12 | EXH: Built-in silencer
ZH20BSA-10-04 Type: Box type, built-in silencer | Nozzle: ø2.0 mm | Max. vacuum: S, -90 kPa | SUP port: ø10 | VAC port: Rc1/2 | EXH: Built-in silencer
ZH20BSA-03-04 Type: Box type, built-in silencer | Nozzle: ø2.0 mm | Max. vacuum: S, -90 kPa | SUP port: Rc3/8 | VAC port: Rc1/2 | EXH: Built-in silencer
ZH20BLA-10-12 Type: Box type, built-in silencer | Nozzle: ø2.0 mm | Max. vacuum: L, -62 kPa | SUP port: ø10 | VAC port: ø12 | EXH: Built-in silencer
ZH20BLA-10-04 Type: Box type, built-in silencer | Nozzle: ø2.0 mm | Max. vacuum: L, -62 kPa | SUP port: ø10 | VAC port: Rc1/2 | EXH: Built-in silencer
ZH20BLA-03-04 Type: Box type, built-in silencer | Nozzle: ø2.0 mm | Max. vacuum: L, -62 kPa | SUP port: Rc3/8 | VAC port: Rc1/2 | EXH: Built-in silencer
