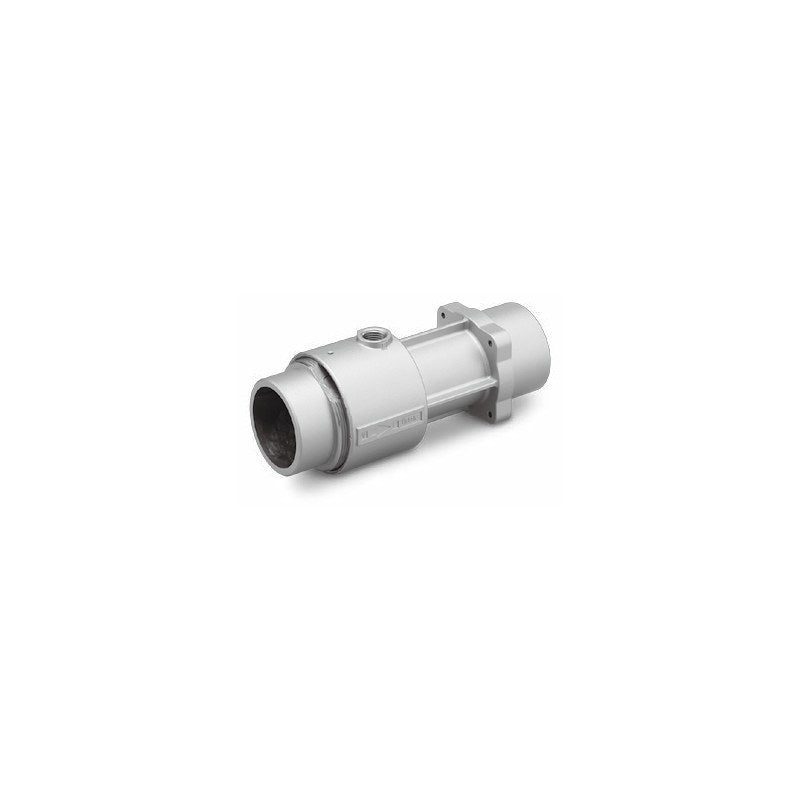

SMC ZHV Vacuum Flow (Passage ø13 to ø42 mm)

SMC ZHV series vacuum flow, a compressed-air driven unit that sucks and blows large flows through a straight passage of ø13 to ø42 mm for conveying chips, dust and water.

Key features

Vacuum flow over 3 times and blow flow over 4 times the supply air consumption (max. 5270 / 6820 L/min ANR, ZHV40)
Flow adjustable by turning the nozzle position (lock with hexagon socket set screw)
Up to 50% lighter and smaller than the previous ZH-X185, with compatible mounting, port connection and passage diameter
No motor maintenance compared with electric blowers; bracket and 10 µm dust bag (with hose band) available
Supply port thread Rc standard; G (F) and NPT (N) on order

Specifications

Fluid	Air
Supply pressure range	0 to 0.7 MPa
Ambient and fluid temperature	-5 to 80°C (no condensation/freezing)
Vacuum pressure	-6 kPa (factory setting, 0.5 MPa supply)
Air consumption	180 / 380 / 710 / 1330 L/min (ANR)
Body material	Aluminum die-cast
Seal material	NBR
Dust bag filtration	10 µm, polyester
Mass	46 / 209 / 526 / 1063 g (ZHV10/20/30/40)
Source	SMC Korea catalog ZHV CAT.KS100-152A (SMCKR_ZHV.pdf), p. 1-2 (PDF p. 1-3)

ZHV10		Passage: ø13 \| Suction flow: 520 L/min \| Blow flow: 670 L/min \| Accessory: None
ZHV10-B		Passage: ø13 \| Suction flow: 520 L/min \| Blow flow: 670 L/min \| Accessory: Bracket
ZHV10-D		Passage: ø13 \| Suction flow: 520 L/min \| Blow flow: 670 L/min \| Accessory: Dust bag
ZHV10-BD		Passage: ø13 \| Suction flow: 520 L/min \| Blow flow: 670 L/min \| Accessory: Bracket + dust bag
ZHV20		Passage: ø21.6 \| Suction flow: 1975 L/min \| Blow flow: 2360 L/min \| Accessory: None
ZHV20-B		Passage: ø21.6 \| Suction flow: 1975 L/min \| Blow flow: 2360 L/min \| Accessory: Bracket
ZHV20-D		Passage: ø21.6 \| Suction flow: 1975 L/min \| Blow flow: 2360 L/min \| Accessory: Dust bag
ZHV20-BD		Passage: ø21.6 \| Suction flow: 1975 L/min \| Blow flow: 2360 L/min \| Accessory: Bracket + dust bag
ZHV30		Passage: ø30 \| Suction flow: 4590 L/min \| Blow flow: 5310 L/min \| Accessory: None
ZHV30-B		Passage: ø30 \| Suction flow: 4590 L/min \| Blow flow: 5310 L/min \| Accessory: Bracket
ZHV30-D		Passage: ø30 \| Suction flow: 4590 L/min \| Blow flow: 5310 L/min \| Accessory: Dust bag
ZHV30-BD		Passage: ø30 \| Suction flow: 4590 L/min \| Blow flow: 5310 L/min \| Accessory: Bracket + dust bag
ZHV40		Passage: ø42 \| Suction flow: 5270 L/min \| Blow flow: 6820 L/min \| Accessory: None
ZHV40-B		Passage: ø42 \| Suction flow: 5270 L/min \| Blow flow: 6820 L/min \| Accessory: Bracket
ZHV40-D		Passage: ø42 \| Suction flow: 5270 L/min \| Blow flow: 6820 L/min \| Accessory: Dust bag
ZHV40-BD		Passage: ø42 \| Suction flow: 5270 L/min \| Blow flow: 6820 L/min \| Accessory: Bracket + dust bag
