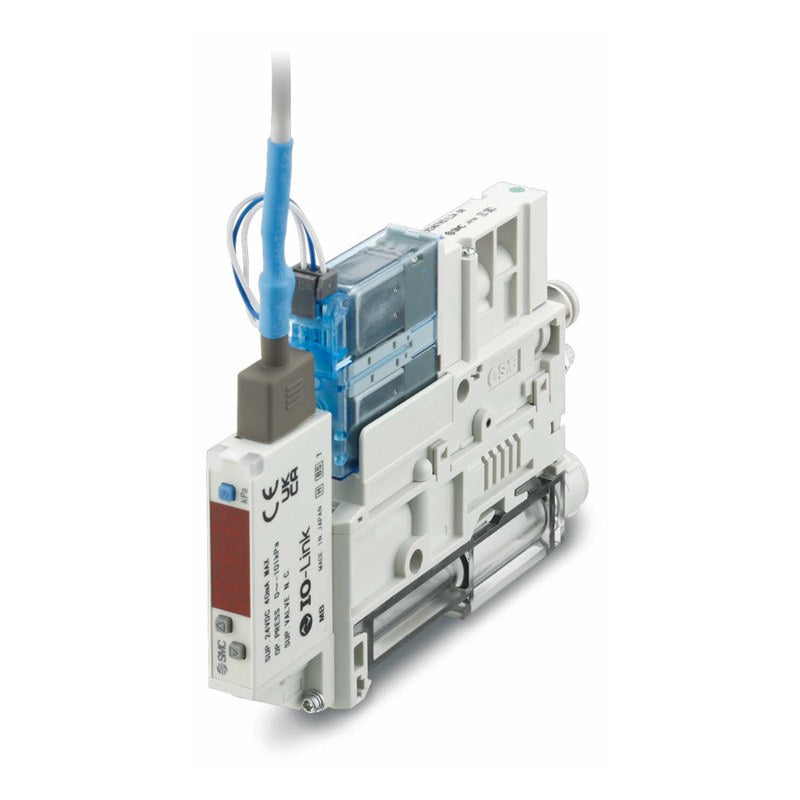

SMC ZK2-A Vacuum Unit, Vacuum Pump System (Single / Manifold)

SMC ZK2-A Vacuum Unit, Vacuum Pump System (Single / Manifold)

SMC ZK2-A series vacuum unit for vacuum pump systems, combining supply and release valves, suction filter and vacuum pressure switch or sensor for use with a central vacuum source.

Key features

  • Single unit ZK2P00 or manifold unit ZK2Q00 (for ZZK2 P/PN and Q/QN manifolds)
  • Valve combinations K, J and R (self-holding supply); air-operated version (Q1) and IO-Link switch version (K5 1-4, connector H)
  • All 11 pressure switch/sensor symbols listed (A to T, N); connector L/L2 (single) or plug-in C/C1 (manifold), Y/N for air-operated
  • V port ø6, ø8, ø1/4", ø5/16"; listed codes DC24V (DC12V symbol 6 on order)
  • Options as suffix: bracket (B), PE port with M3 thread (C), PD port (D/P), release flow needle nuts (E/J/K)

Specifications

Fluid Air
PV (vacuum supply) pressure 0 to -100 kPa
PS (pilot supply) pressure 0.3 to 0.6 MPa
Valves Pilot dual 2-port, poppet seal, 0.4 W
Suction filter 30 µm, 510 mm²
Ambient temperature -5 to 50°C (0 to 50°C with pressure switch)
Single unit mass 110 g (without sensor/switch)
Standards CE/UKCA, RoHS
Source SMC Korea catalog CAT.KS100-129C (SMCKR_ZK2-.pdf), p. 23-26, 28-29, 75-76 (PDF p. 24-27, 29-30, 76-77)
ZK2P00K5ALA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00K5ALA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00K5ALA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00K5ALA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00K5BLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00K5BLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00K5BLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00K5BLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00K5CLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00K5CLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00K5CLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00K5CLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00K5DLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00K5DLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00K5DLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00K5DLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00K5ELA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00K5ELA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00K5ELA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00K5ELA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00K5FLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00K5FLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00K5FLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00K5FLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00K5HLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00K5HLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00K5HLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00K5HLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00K5JLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00K5JLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00K5JLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00K5JLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00K5PLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00K5PLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00K5PLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00K5PLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00K5TLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00K5TLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00K5TLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00K5TLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00K5NL2A-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2P00K5NL2A-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2P00K5NL2A-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00K5NL2A-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2P00J5ALA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00J5ALA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00J5ALA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00J5ALA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00J5BLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00J5BLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00J5BLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00J5BLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00J5CLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00J5CLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00J5CLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00J5CLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00J5DLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00J5DLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00J5DLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00J5DLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00J5ELA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00J5ELA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00J5ELA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00J5ELA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00J5FLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00J5FLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00J5FLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00J5FLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00J5HLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00J5HLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00J5HLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00J5HLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00J5JLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00J5JLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00J5JLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00J5JLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00J5PLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00J5PLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00J5PLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00J5PLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00J5TLA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00J5TLA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00J5TLA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00J5TLA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00J5NL2A-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø6 one-touch
ZK2P00J5NL2A-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø8 one-touch
ZK2P00J5NL2A-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00J5NL2A-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø5/16" one-touch
ZK2P00R5ALA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00R5ALA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00R5ALA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00R5ALA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00R5BLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00R5BLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00R5BLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00R5BLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00R5CLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00R5CLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00R5CLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00R5CLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00R5DLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00R5DLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00R5DLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00R5DLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00R5ELA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00R5ELA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00R5ELA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00R5ELA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00R5FLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00R5FLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00R5FLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00R5FLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00R5HLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00R5HLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00R5HLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00R5HLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00R5JLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00R5JLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00R5JLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00R5JLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00R5PLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00R5PLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00R5PLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00R5PLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00R5TLA-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00R5TLA-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00R5TLA-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00R5TLA-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00R5NL2A-06 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2P00R5NL2A-08 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2P00R5NL2A-07 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00R5NL2A-09 Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2P00K51HA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø6 one-touch
ZK2P00K51HA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø8 one-touch
ZK2P00K51HA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø1/4" one-touch
ZK2P00K51HA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø5/16" one-touch
ZK2P00K52HA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø6 one-touch
ZK2P00K52HA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø8 one-touch
ZK2P00K52HA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø1/4" one-touch
ZK2P00K52HA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø5/16" one-touch
ZK2P00K53HA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø6 one-touch
ZK2P00K53HA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø8 one-touch
ZK2P00K53HA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø1/4" one-touch
ZK2P00K53HA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø5/16" one-touch
ZK2P00K54HA-06 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø6 one-touch
ZK2P00K54HA-08 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø8 one-touch
ZK2P00K54HA-07 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø1/4" one-touch
ZK2P00K54HA-09 Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1AYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00Q1AYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00Q1AYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00Q1AYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00Q1BYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00Q1BYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00Q1BYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1BYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1CYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00Q1CYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00Q1CYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00Q1CYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00Q1DYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00Q1DYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00Q1DYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1DYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1EYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00Q1EYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00Q1EYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00Q1EYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00Q1FYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00Q1FYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00Q1FYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1FYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1HYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00Q1HYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00Q1HYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00Q1HYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00Q1JYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00Q1JYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00Q1JYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1JYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1PYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00Q1PYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00Q1PYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00Q1PYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00Q1TYA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00Q1TYA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00Q1TYA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00Q1TYA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00Q1NNA-06 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2P00Q1NNA-08 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2P00Q1NNA-07 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00Q1NNA-09 Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00K5ACA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00K5ACA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00K5ACA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00K5ACA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00K5BCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00K5BCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00K5BCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5BCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5CCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00K5CCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00K5CCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00K5CCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00K5DCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00K5DCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00K5DCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5DCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5ECA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00K5ECA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00K5ECA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00K5ECA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00K5FCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00K5FCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00K5FCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5FCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5HCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00K5HCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00K5HCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00K5HCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00K5JCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00K5JCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00K5JCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5JCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5PCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00K5PCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00K5PCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00K5PCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00K5TCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00K5TCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00K5TCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00K5TCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00K5NC1A-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2Q00K5NC1A-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2Q00K5NC1A-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00K5NC1A-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00J5ACA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00J5ACA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00J5ACA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00J5ACA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00J5BCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00J5BCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00J5BCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5BCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5CCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00J5CCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00J5CCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00J5CCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00J5DCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00J5DCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00J5DCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5DCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5ECA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00J5ECA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00J5ECA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00J5ECA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00J5FCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00J5FCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00J5FCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5FCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5HCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00J5HCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00J5HCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00J5HCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00J5JCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00J5JCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00J5JCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5JCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5PCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00J5PCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00J5PCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00J5PCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00J5TCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00J5TCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00J5TCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00J5TCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00J5NC1A-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø6 one-touch
ZK2Q00J5NC1A-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø8 one-touch
ZK2Q00J5NC1A-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00J5NC1A-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00R5ACA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00R5ACA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00R5ACA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00R5ACA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00R5BCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00R5BCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00R5BCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5BCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5CCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00R5CCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00R5CCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00R5CCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00R5DCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00R5DCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00R5DCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5DCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5ECA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00R5ECA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00R5ECA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00R5ECA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00R5FCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00R5FCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00R5FCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5FCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5HCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00R5HCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00R5HCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00R5HCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00R5JCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00R5JCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00R5JCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5JCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5PCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00R5PCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00R5PCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00R5PCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00R5TCA-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00R5TCA-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00R5TCA-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00R5TCA-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00R5NC1A-06 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2Q00R5NC1A-08 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2Q00R5NC1A-07 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00R5NC1A-09 Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00K51HA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø6 one-touch
ZK2Q00K51HA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø8 one-touch
ZK2Q00K51HA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø1/4" one-touch
ZK2Q00K51HA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø5/16" one-touch
ZK2Q00K52HA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø6 one-touch
ZK2Q00K52HA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø8 one-touch
ZK2Q00K52HA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø1/4" one-touch
ZK2Q00K52HA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø5/16" one-touch
ZK2Q00K53HA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø6 one-touch
ZK2Q00K53HA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø8 one-touch
ZK2Q00K53HA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø1/4" one-touch
ZK2Q00K53HA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø5/16" one-touch
ZK2Q00K54HA-06 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø6 one-touch
ZK2Q00K54HA-08 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø8 one-touch
ZK2Q00K54HA-07 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø1/4" one-touch
ZK2Q00K54HA-09 Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1AYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00Q1AYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00Q1AYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00Q1AYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00Q1BYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00Q1BYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00Q1BYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1BYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1CYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00Q1CYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00Q1CYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00Q1CYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00Q1DYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00Q1DYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00Q1DYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1DYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1EYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00Q1EYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00Q1EYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00Q1EYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00Q1FYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00Q1FYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00Q1FYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1FYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1HYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00Q1HYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00Q1HYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00Q1HYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00Q1JYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00Q1JYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00Q1JYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1JYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1PYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00Q1PYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00Q1PYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00Q1PYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00Q1TYA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00Q1TYA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00Q1TYA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00Q1TYA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00Q1NNA-06 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2Q00Q1NNA-08 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2Q00Q1NNA-07 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00Q1NNA-09 Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø5/16" one-touch
Vacuum EquipmentSMC
384 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZK2-A Vacuum Unit, Vacuum Pump System (Single / Manifold)

Brand SMC·Vacuum Equipment

Available part numbers (384)

ZK2P00K5ALA-06, ZK2P00K5ALA-08, ZK2P00K5ALA-07, ZK2P00K5ALA-09, ZK2P00K5BLA-06, ZK2P00K5BLA-08, ZK2P00K5BLA-07, ZK2P00K5BLA-09, ZK2P00K5CLA-06, ZK2P00K5CLA-08 + 374 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZK2P00K5ALA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00K5ALA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00K5ALA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00K5ALA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00K5BLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00K5BLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00K5BLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00K5BLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00K5CLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00K5CLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00K5CLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00K5CLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00K5DLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00K5DLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00K5DLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00K5DLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00K5ELA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00K5ELA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00K5ELA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00K5ELA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00K5FLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00K5FLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00K5FLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00K5FLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00K5HLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00K5HLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00K5HLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00K5HLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00K5JLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00K5JLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00K5JLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00K5JLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00K5PLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00K5PLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00K5PLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00K5PLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00K5TLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00K5TLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00K5TLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00K5TLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00K5NL2A-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2P00K5NL2A-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2P00K5NL2A-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00K5NL2A-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2P00J5ALA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00J5ALA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00J5ALA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00J5ALA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00J5BLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00J5BLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00J5BLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00J5BLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00J5CLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00J5CLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00J5CLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00J5CLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00J5DLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00J5DLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00J5DLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00J5DLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00J5ELA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00J5ELA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00J5ELA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00J5ELA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00J5FLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00J5FLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00J5FLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00J5FLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00J5HLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00J5HLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00J5HLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00J5HLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00J5JLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00J5JLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00J5JLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00J5JLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00J5PLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00J5PLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00J5PLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00J5PLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00J5TLA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00J5TLA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00J5TLA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00J5TLA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00J5NL2A-06Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø6 one-touch
ZK2P00J5NL2A-08Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø8 one-touch
ZK2P00J5NL2A-07Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00J5NL2A-09Unit: Single unit (ZK2P00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø5/16" one-touch
ZK2P00R5ALA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00R5ALA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00R5ALA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00R5ALA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00R5BLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00R5BLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00R5BLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00R5BLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00R5CLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00R5CLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00R5CLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00R5CLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00R5DLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00R5DLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00R5DLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00R5DLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00R5ELA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00R5ELA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00R5ELA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00R5ELA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00R5FLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00R5FLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00R5FLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00R5FLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00R5HLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00R5HLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00R5HLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00R5HLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00R5JLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00R5JLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00R5JLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00R5JLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00R5PLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00R5PLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00R5PLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00R5PLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00R5TLA-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00R5TLA-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00R5TLA-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00R5TLA-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00R5NL2A-06Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2P00R5NL2A-08Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2P00R5NL2A-07Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00R5NL2A-09Unit: Single unit (ZK2P00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2P00K51HA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø6 one-touch
ZK2P00K51HA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø8 one-touch
ZK2P00K51HA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø1/4" one-touch
ZK2P00K51HA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø5/16" one-touch
ZK2P00K52HA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø6 one-touch
ZK2P00K52HA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø8 one-touch
ZK2P00K52HA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø1/4" one-touch
ZK2P00K52HA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø5/16" one-touch
ZK2P00K53HA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø6 one-touch
ZK2P00K53HA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø8 one-touch
ZK2P00K53HA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø1/4" one-touch
ZK2P00K53HA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø5/16" one-touch
ZK2P00K54HA-06Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø6 one-touch
ZK2P00K54HA-08Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø8 one-touch
ZK2P00K54HA-07Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø1/4" one-touch
ZK2P00K54HA-09Unit: Single unit (ZK2P00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1AYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00Q1AYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00Q1AYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00Q1AYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00Q1BYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00Q1BYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00Q1BYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1BYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1CYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00Q1CYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00Q1CYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00Q1CYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00Q1DYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00Q1DYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00Q1DYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1DYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1EYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2P00Q1EYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2P00Q1EYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2P00Q1EYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2P00Q1FYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2P00Q1FYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2P00Q1FYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1FYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1HYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2P00Q1HYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2P00Q1HYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2P00Q1HYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2P00Q1JYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2P00Q1JYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2P00Q1JYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2P00Q1JYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2P00Q1PYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00Q1PYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00Q1PYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00Q1PYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00Q1TYA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2P00Q1TYA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2P00Q1TYA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2P00Q1TYA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2P00Q1NNA-06Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2P00Q1NNA-08Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2P00Q1NNA-07Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2P00Q1NNA-09Unit: Single unit (ZK2P00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00K5ACA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00K5ACA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00K5ACA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00K5ACA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00K5BCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00K5BCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00K5BCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5BCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5CCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00K5CCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00K5CCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00K5CCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00K5DCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00K5DCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00K5DCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5DCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5ECA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00K5ECA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00K5ECA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00K5ECA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00K5FCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00K5FCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00K5FCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5FCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5HCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00K5HCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00K5HCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00K5HCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00K5JCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00K5JCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00K5JCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00K5JCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00K5PCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00K5PCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00K5PCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00K5PCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00K5TCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00K5TCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00K5TCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00K5TCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00K5NC1A-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2Q00K5NC1A-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2Q00K5NC1A-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00K5NC1A-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00J5ACA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00J5ACA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00J5ACA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00J5ACA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00J5BCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00J5BCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00J5BCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5BCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5CCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00J5CCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00J5CCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00J5CCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00J5DCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00J5DCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00J5DCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5DCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5ECA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00J5ECA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00J5ECA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00J5ECA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00J5FCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00J5FCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00J5FCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5FCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5HCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00J5HCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00J5HCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00J5HCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00J5JCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00J5JCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00J5JCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00J5JCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00J5PCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00J5PCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00J5PCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00J5PCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00J5TCA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00J5TCA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00J5TCA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00J5TCA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00J5NC1A-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø6 one-touch
ZK2Q00J5NC1A-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø8 one-touch
ZK2Q00J5NC1A-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00J5NC1A-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C., no release valve | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00R5ACA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00R5ACA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00R5ACA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00R5ACA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00R5BCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00R5BCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00R5BCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5BCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5CCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00R5CCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00R5CCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00R5CCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00R5DCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00R5DCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00R5DCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5DCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5ECA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00R5ECA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00R5ECA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00R5ECA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00R5FCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00R5FCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00R5FCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5FCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5HCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00R5HCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00R5HCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00R5HCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00R5JCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00R5JCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00R5JCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00R5JCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00R5PCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00R5PCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00R5PCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00R5PCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00R5TCA-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00R5TCA-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00R5TCA-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00R5TCA-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00R5NC1A-06Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2Q00R5NC1A-08Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2Q00R5NC1A-07Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00R5NC1A-09Unit: Manifold unit (ZK2Q00) | Valves: Self-holding supply + release N.C. | Pressure switch: None | V port: ø5/16" one-touch
ZK2Q00K51HA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø6 one-touch
ZK2Q00K51HA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø8 one-touch
ZK2Q00K51HA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø1/4" one-touch
ZK2Q00K51HA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa | V port: ø5/16" one-touch
ZK2Q00K52HA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø6 one-touch
ZK2Q00K52HA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø8 one-touch
ZK2Q00K52HA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø1/4" one-touch
ZK2Q00K52HA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link 0 to -101 kPa, SI fixed | V port: ø5/16" one-touch
ZK2Q00K53HA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø6 one-touch
ZK2Q00K53HA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø8 one-touch
ZK2Q00K53HA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø1/4" one-touch
ZK2Q00K53HA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa | V port: ø5/16" one-touch
ZK2Q00K54HA-06Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø6 one-touch
ZK2Q00K54HA-08Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø8 one-touch
ZK2Q00K54HA-07Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø1/4" one-touch
ZK2Q00K54HA-09Unit: Manifold unit (ZK2Q00) | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link -100 to 100 kPa, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1AYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00Q1AYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00Q1AYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00Q1AYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00Q1BYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00Q1BYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00Q1BYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1BYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1CYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00Q1CYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00Q1CYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00Q1CYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00Q1DYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00Q1DYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00Q1DYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1DYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch 0 to -101 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1EYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø6 one-touch
ZK2Q00Q1EYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø8 one-touch
ZK2Q00Q1EYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø1/4" one-touch
ZK2Q00Q1EYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN 2-out | V port: ø5/16" one-touch
ZK2Q00Q1FYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø6 one-touch
ZK2Q00Q1FYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø8 one-touch
ZK2Q00Q1FYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1FYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, NPN, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1HYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø6 one-touch
ZK2Q00Q1HYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø8 one-touch
ZK2Q00Q1HYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø1/4" one-touch
ZK2Q00Q1HYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP 2-out | V port: ø5/16" one-touch
ZK2Q00Q1JYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø6 one-touch
ZK2Q00Q1JYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø8 one-touch
ZK2Q00Q1JYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø1/4" one-touch
ZK2Q00Q1JYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Switch -100 to 100 kPa, PNP, SI fixed | V port: ø5/16" one-touch
ZK2Q00Q1PYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00Q1PYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00Q1PYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00Q1PYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor 0 to -101 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00Q1TYA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø6 one-touch
ZK2Q00Q1TYA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø8 one-touch
ZK2Q00Q1TYA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø1/4" one-touch
ZK2Q00Q1TYA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: Sensor -100 to 100 kPa, 1-5 V analog | V port: ø5/16" one-touch
ZK2Q00Q1NNA-06Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø6 one-touch
ZK2Q00Q1NNA-08Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø8 one-touch
ZK2Q00Q1NNA-07Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø1/4" one-touch
ZK2Q00Q1NNA-09Unit: Manifold unit (ZK2Q00) | Valves: Air-operated, supply/release N.C. | Pressure switch: None | V port: ø5/16" one-touch

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
