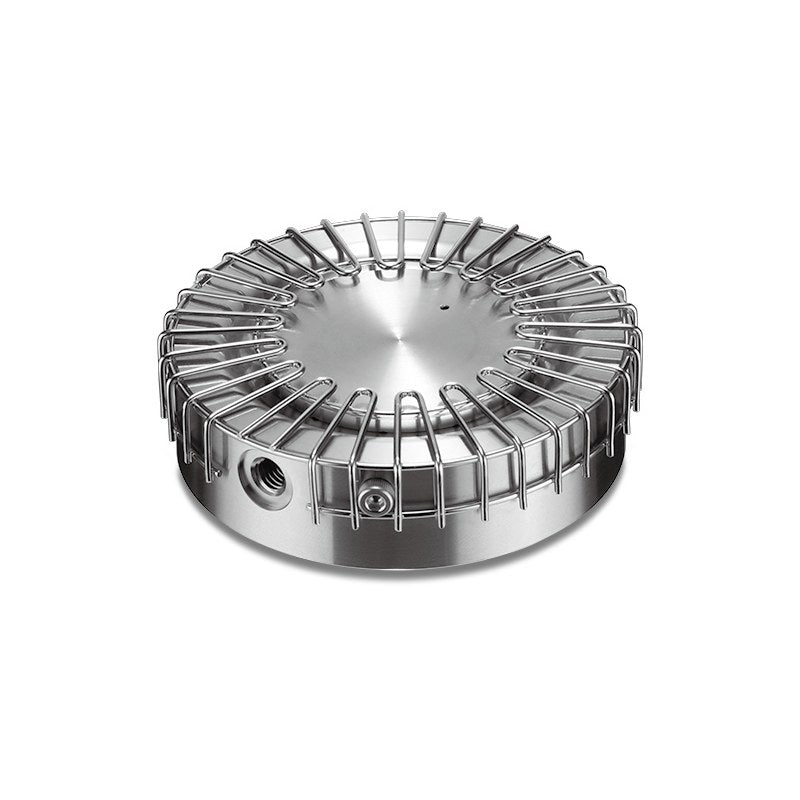

SMC ZNC Bernoulli Gripper (20 to 80 mm)

SMC ZNC Bernoulli Gripper (20 to 80 mm)

SMC ZNC series Bernoulli gripper that lifts thin film, cloth, boards and glass with a non-contact air flow, in five body sizes and three body materials.

Key features

  • Bernoulli principle: air flowing between gripper and work creates negative pressure, holding flat work at about 0.2 to 0.5 mm without contact
  • Lift force up to 65 N (ZNC80) at max. supply pressure; air consumption 131 to 255 L/min (ANR)
  • Body in aluminum, lightweight resin or rust-resistant stainless steel
  • Rubber stopper (NBR or silicone) prevents side slip; vibration-suppression cover reduces noise with soft work by up to 17 dB(A)
  • Multi-port usable for vacuum release or the optional PSE541-M5-X2 pressure sensor; supply from top or side
  • ZNC20 offered with aluminum or stainless mounting plate; spare stoppers and covers ordered as ZNCM- parts

Specifications

Operating principle Bernoulli
Fluid Air
Operating pressure 0.1 to 0.85 MPa
Proof pressure 0.75 MPa
Lift force (ZNC20/30/40/60/80) 5.2 / 10.7 / 13.8 / 28.3 / 65 N
Air consumption (ZNC20/30/40/60/80) 131 / 138 / 182 / 182 / 255 L/min (ANR)
Ambient/fluid temperature -5 to 80 C (resin -5 to 40 C); with sensor 0 to 50 C
Grease Grease-free
Pressure sensor rated range 0 to -101 kPa
Source SMC Korea catalog CAT.KS100-145B (SMCKR_ZNC.pdf), p. 3-6 (PDF p. 4-7)
ZNC20 Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC20-S Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20-PN Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC20-PNS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20-PS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC20-PSS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20-VS Body size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC20-VSS Body size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20T Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-S Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20T-PN Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-PNS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20T-PS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-PSS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20T-VS Body size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-VSS Body size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20TS Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-S Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20TS-PN Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-PNS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20TS-PS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-PSS Body size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20TS-VS Body size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-VSS Body size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20P Body size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC20P-S Body size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20P-PN Body size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC20P-PNS Body size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20P-PS Body size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC20P-PSS Body size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20P-VS Body size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC20P-VSS Body size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20PT Body size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-S Body size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PT-PN Body size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-PNS Body size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PT-PS Body size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-PSS Body size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PT-VS Body size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-VSS Body size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PTS Body size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-S Body size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PTS-PN Body size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-PNS Body size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PTS-PS Body size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-PSS Body size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PTS-VS Body size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-VSS Body size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20S Body size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC20S-S Body size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20S-PN Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC20S-PNS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20S-PS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC20S-PSS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20S-VS Body size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC20S-VSS Body size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20ST Body size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-S Body size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20ST-PN Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-PNS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20ST-PS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-PSS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20ST-VS Body size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-VSS Body size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20STS Body size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-S Body size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20STS-PN Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-PNS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20STS-PS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-PSS Body size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20STS-VS Body size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-VSS Body size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC30 Body size: 30 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC30-S Body size: 30 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30-PN Body size: 30 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC30-PNS Body size: 30 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30-PS Body size: 30 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC30-PSS Body size: 30 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30-VS Body size: 30 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC30-VSS Body size: 30 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P Body size: 30 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC30P-S Body size: 30 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P-PN Body size: 30 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC30P-PNS Body size: 30 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P-PS Body size: 30 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC30P-PSS Body size: 30 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P-VS Body size: 30 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC30P-VSS Body size: 30 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S Body size: 30 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC30S-S Body size: 30 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S-PN Body size: 30 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC30S-PNS Body size: 30 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S-PS Body size: 30 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC30S-PSS Body size: 30 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S-VS Body size: 30 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC30S-VSS Body size: 30 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40 Body size: 40 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC40-S Body size: 40 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-PN Body size: 40 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC40-PNS Body size: 40 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-PS Body size: 40 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC40-PSS Body size: 40 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-VP Body size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, resin | Pressure sensor: None | Mounting plate: None
ZNC40-VPS Body size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, resin | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-VS Body size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC40-VSS Body size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P Body size: 40 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC40P-S Body size: 40 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P-PN Body size: 40 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC40P-PNS Body size: 40 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P-PS Body size: 40 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC40P-PSS Body size: 40 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P-VP Body size: 40 mm | Body material: Resin | Attachment: Vibration cover, resin | Pressure sensor: None | Mounting plate: None
ZNC40P-VPS Body size: 40 mm | Body material: Resin | Attachment: Vibration cover, resin | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S Body size: 40 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC40S-S Body size: 40 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S-PN Body size: 40 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC40S-PNS Body size: 40 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S-PS Body size: 40 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC40S-PSS Body size: 40 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S-VS Body size: 40 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC40S-VSS Body size: 40 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60 Body size: 60 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC60-S Body size: 60 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60-PN Body size: 60 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC60-PNS Body size: 60 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60-PS Body size: 60 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC60-PSS Body size: 60 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60-VS Body size: 60 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC60-VSS Body size: 60 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P Body size: 60 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC60P-S Body size: 60 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P-PN Body size: 60 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC60P-PNS Body size: 60 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P-PS Body size: 60 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC60P-PSS Body size: 60 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P-VS Body size: 60 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC60P-VSS Body size: 60 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S Body size: 60 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC60S-S Body size: 60 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S-PN Body size: 60 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC60S-PNS Body size: 60 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S-PS Body size: 60 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC60S-PSS Body size: 60 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S-VS Body size: 60 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC60S-VSS Body size: 60 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80 Body size: 80 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC80-S Body size: 80 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80-PN Body size: 80 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC80-PNS Body size: 80 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80-PS Body size: 80 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC80-PSS Body size: 80 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80-VS Body size: 80 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC80-VSS Body size: 80 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P Body size: 80 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC80P-S Body size: 80 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P-PN Body size: 80 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC80P-PNS Body size: 80 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P-PS Body size: 80 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC80P-PSS Body size: 80 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P-VS Body size: 80 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC80P-VSS Body size: 80 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S Body size: 80 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC80S-S Body size: 80 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S-PN Body size: 80 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC80S-PNS Body size: 80 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S-PS Body size: 80 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC80S-PSS Body size: 80 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S-VS Body size: 80 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC80S-VSS Body size: 80 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
Vacuum EquipmentSMC
170 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZNC Bernoulli Gripper (20 to 80 mm)

Brand SMC·Vacuum Equipment

Available part numbers (170)

ZNC20, ZNC20-S, ZNC20-PN, ZNC20-PNS, ZNC20-PS, ZNC20-PSS, ZNC20-VS, ZNC20-VSS, ZNC20T, ZNC20T-S + 160 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZNC20Body size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC20-SBody size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20-PNBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC20-PNSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20-PSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC20-PSSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20-VSBody size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC20-VSSBody size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20TBody size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-SBody size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20T-PNBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-PNSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20T-PSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-PSSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20T-VSBody size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20T-VSSBody size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20TSBody size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-SBody size: 20 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20TS-PNBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-PNSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20TS-PSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-PSSBody size: 20 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20TS-VSBody size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20TS-VSSBody size: 20 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PBody size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC20P-SBody size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20P-PNBody size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC20P-PNSBody size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20P-PSBody size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC20P-PSSBody size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20P-VSBody size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC20P-VSSBody size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20PTBody size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-SBody size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PT-PNBody size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-PNSBody size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PT-PSBody size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-PSSBody size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PT-VSBody size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20PT-VSSBody size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20PTSBody size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-SBody size: 20 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PTS-PNBody size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-PNSBody size: 20 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PTS-PSBody size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-PSSBody size: 20 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20PTS-VSBody size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20PTS-VSSBody size: 20 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20SBody size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC20S-SBody size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20S-PNBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC20S-PNSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20S-PSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC20S-PSSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20S-VSBody size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC20S-VSSBody size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC20STBody size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-SBody size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20ST-PNBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-PNSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20ST-PSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-PSSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20ST-VSBody size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Aluminum plate
ZNC20ST-VSSBody size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Aluminum plate
ZNC20STSBody size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-SBody size: 20 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20STS-PNBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-PNSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20STS-PSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-PSSBody size: 20 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC20STS-VSBody size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: Stainless plate
ZNC20STS-VSSBody size: 20 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: Stainless plate
ZNC30Body size: 30 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC30-SBody size: 30 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30-PNBody size: 30 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC30-PNSBody size: 30 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30-PSBody size: 30 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC30-PSSBody size: 30 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30-VSBody size: 30 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC30-VSSBody size: 30 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30PBody size: 30 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC30P-SBody size: 30 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P-PNBody size: 30 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC30P-PNSBody size: 30 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P-PSBody size: 30 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC30P-PSSBody size: 30 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30P-VSBody size: 30 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC30P-VSSBody size: 30 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30SBody size: 30 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC30S-SBody size: 30 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S-PNBody size: 30 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC30S-PNSBody size: 30 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S-PSBody size: 30 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC30S-PSSBody size: 30 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC30S-VSBody size: 30 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC30S-VSSBody size: 30 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40Body size: 40 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC40-SBody size: 40 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-PNBody size: 40 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC40-PNSBody size: 40 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-PSBody size: 40 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC40-PSSBody size: 40 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-VPBody size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, resin | Pressure sensor: None | Mounting plate: None
ZNC40-VPSBody size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, resin | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40-VSBody size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC40-VSSBody size: 40 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40PBody size: 40 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC40P-SBody size: 40 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P-PNBody size: 40 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC40P-PNSBody size: 40 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P-PSBody size: 40 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC40P-PSSBody size: 40 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40P-VPBody size: 40 mm | Body material: Resin | Attachment: Vibration cover, resin | Pressure sensor: None | Mounting plate: None
ZNC40P-VPSBody size: 40 mm | Body material: Resin | Attachment: Vibration cover, resin | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40SBody size: 40 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC40S-SBody size: 40 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S-PNBody size: 40 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC40S-PNSBody size: 40 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S-PSBody size: 40 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC40S-PSSBody size: 40 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC40S-VSBody size: 40 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC40S-VSSBody size: 40 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60Body size: 60 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC60-SBody size: 60 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60-PNBody size: 60 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC60-PNSBody size: 60 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60-PSBody size: 60 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC60-PSSBody size: 60 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60-VSBody size: 60 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC60-VSSBody size: 60 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60PBody size: 60 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC60P-SBody size: 60 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P-PNBody size: 60 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC60P-PNSBody size: 60 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P-PSBody size: 60 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC60P-PSSBody size: 60 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60P-VSBody size: 60 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC60P-VSSBody size: 60 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60SBody size: 60 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC60S-SBody size: 60 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S-PNBody size: 60 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC60S-PNSBody size: 60 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S-PSBody size: 60 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC60S-PSSBody size: 60 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC60S-VSBody size: 60 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC60S-VSSBody size: 60 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80Body size: 80 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC80-SBody size: 80 mm | Body material: Aluminum | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80-PNBody size: 80 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC80-PNSBody size: 80 mm | Body material: Aluminum | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80-PSBody size: 80 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC80-PSSBody size: 80 mm | Body material: Aluminum | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80-VSBody size: 80 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC80-VSSBody size: 80 mm | Body material: Aluminum | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80PBody size: 80 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC80P-SBody size: 80 mm | Body material: Resin | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P-PNBody size: 80 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC80P-PNSBody size: 80 mm | Body material: Resin | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P-PSBody size: 80 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC80P-PSSBody size: 80 mm | Body material: Resin | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80P-VSBody size: 80 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC80P-VSSBody size: 80 mm | Body material: Resin | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80SBody size: 80 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: None | Mounting plate: None
ZNC80S-SBody size: 80 mm | Body material: Stainless steel | Attachment: Basic (no attachment) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S-PNBody size: 80 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: None | Mounting plate: None
ZNC80S-PNSBody size: 80 mm | Body material: Stainless steel | Attachment: Stopper, NBR (black) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S-PSBody size: 80 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: None | Mounting plate: None
ZNC80S-PSSBody size: 80 mm | Body material: Stainless steel | Attachment: Stopper, silicone (milky white) | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None
ZNC80S-VSBody size: 80 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: None | Mounting plate: None
ZNC80S-VSSBody size: 80 mm | Body material: Stainless steel | Attachment: Vibration cover, stainless | Pressure sensor: PSE541-M5-X2 (enclosed) | Mounting plate: None

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
