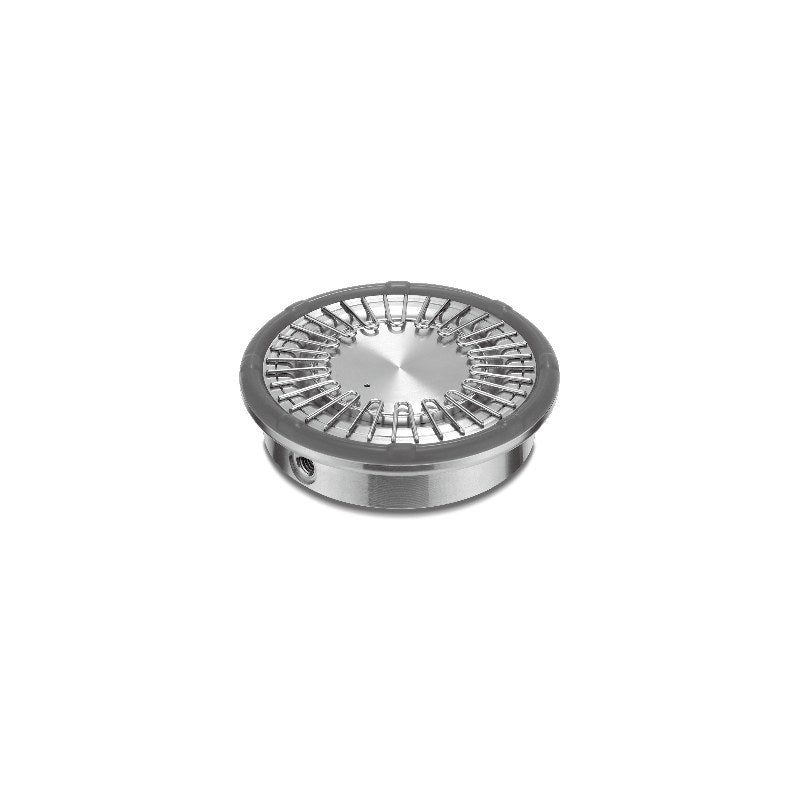

SMC ZNC-C Bernoulli Gripper with Coanda Grip (20 to 80 mm)

SMC ZNC-C Bernoulli Gripper with Coanda Grip (20 to 80 mm)

SMC ZNC-C series Bernoulli gripper with Coanda grip that directs blow air upward to keep light or adjacent work from scattering and stops slipping during pickup.

Key features

  • Coanda effect turns the blow air upward, reducing scattering of light work such as trays
  • Rubber Coanda grip around the full outer edge holds uneven or slippery work in contact
  • Grip rubber is silicone made of materials meeting FDA elution test and Japanese Food Sanitation Act standards
  • Aluminum or rust-resistant stainless body; optional vibration-suppression cover (factory fitted, cannot be added later)
  • Multi-port for vacuum release or the optional PSE541-M5-X2 pressure sensor; ZNC20 with optional mounting plate
  • Spare Coanda grip ordered as ZNCM-(size)C

Specifications

Operating principle Bernoulli with Coanda grip
Fluid Air
Operating pressure 0.1 to 0.5 MPa
Proof pressure 0.75 MPa
Lift force (ZNC20/30/40/60/80) 1.0 / 2.3 / 3.7 / 8.2 / 15.4 N
Air consumption (ZNC20/30/40/60/80) 131 / 138 / 182 / 182 / 255 L/min (ANR)
Ambient/fluid temperature -5 to 80 C (with sensor 0 to 50 C)
Grease Grease-free
Coanda grip material Silicone rubber
Source SMC Korea catalog CAT.KS100-156A (SMCKR_ZNC-C.pdf), p. 2-5 (PDF p. 4-7)
ZNC20-C Body size: 20 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC20-CS Body size: 20 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20-CV Body size: 20 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC20-CVS Body size: 20 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20T-C Body size: 20 mm | Body material: Aluminum | Mounting plate: Aluminum plate | Vibration cover: None | Pressure sensor: None
ZNC20T-CS Body size: 20 mm | Body material: Aluminum | Mounting plate: Aluminum plate | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20T-CV Body size: 20 mm | Body material: Aluminum | Mounting plate: Aluminum plate | Vibration cover: With cover | Pressure sensor: None
ZNC20T-CVS Body size: 20 mm | Body material: Aluminum | Mounting plate: Aluminum plate | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20TS-C Body size: 20 mm | Body material: Aluminum | Mounting plate: Stainless plate | Vibration cover: None | Pressure sensor: None
ZNC20TS-CS Body size: 20 mm | Body material: Aluminum | Mounting plate: Stainless plate | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20TS-CV Body size: 20 mm | Body material: Aluminum | Mounting plate: Stainless plate | Vibration cover: With cover | Pressure sensor: None
ZNC20TS-CVS Body size: 20 mm | Body material: Aluminum | Mounting plate: Stainless plate | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20S-C Body size: 20 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC20S-CS Body size: 20 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20S-CV Body size: 20 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC20S-CVS Body size: 20 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20ST-C Body size: 20 mm | Body material: Stainless steel | Mounting plate: Aluminum plate | Vibration cover: None | Pressure sensor: None
ZNC20ST-CS Body size: 20 mm | Body material: Stainless steel | Mounting plate: Aluminum plate | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20ST-CV Body size: 20 mm | Body material: Stainless steel | Mounting plate: Aluminum plate | Vibration cover: With cover | Pressure sensor: None
ZNC20ST-CVS Body size: 20 mm | Body material: Stainless steel | Mounting plate: Aluminum plate | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20STS-C Body size: 20 mm | Body material: Stainless steel | Mounting plate: Stainless plate | Vibration cover: None | Pressure sensor: None
ZNC20STS-CS Body size: 20 mm | Body material: Stainless steel | Mounting plate: Stainless plate | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC20STS-CV Body size: 20 mm | Body material: Stainless steel | Mounting plate: Stainless plate | Vibration cover: With cover | Pressure sensor: None
ZNC20STS-CVS Body size: 20 mm | Body material: Stainless steel | Mounting plate: Stainless plate | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC30-C Body size: 30 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC30-CS Body size: 30 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC30-CV Body size: 30 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC30-CVS Body size: 30 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC30S-C Body size: 30 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC30S-CS Body size: 30 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC30S-CV Body size: 30 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC30S-CVS Body size: 30 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC40-C Body size: 40 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC40-CS Body size: 40 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC40-CV Body size: 40 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC40-CVS Body size: 40 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC40S-C Body size: 40 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC40S-CS Body size: 40 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC40S-CV Body size: 40 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC40S-CVS Body size: 40 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC60-C Body size: 60 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC60-CS Body size: 60 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC60-CV Body size: 60 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC60-CVS Body size: 60 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC60S-C Body size: 60 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC60S-CS Body size: 60 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC60S-CV Body size: 60 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC60S-CVS Body size: 60 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC80-C Body size: 80 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC80-CS Body size: 80 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC80-CV Body size: 80 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC80-CVS Body size: 80 mm | Body material: Aluminum | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC80S-C Body size: 80 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: None
ZNC80S-CS Body size: 80 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: None | Pressure sensor: PSE541-M5-X2 (enclosed)
ZNC80S-CV Body size: 80 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: None
ZNC80S-CVS Body size: 80 mm | Body material: Stainless steel | Mounting plate: None | Vibration cover: With cover | Pressure sensor: PSE541-M5-X2 (enclosed)
Vacuum EquipmentSMC
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZNC-C Bernoulli Gripper with Coanda Grip (20 to 80 mm)

Brand SMC·Vacuum Equipment

Available part numbers (56)

ZNC20-C, ZNC20-CS, ZNC20-CV, ZNC20-CVS, ZNC20T-C, ZNC20T-CS, ZNC20T-CV, ZNC20T-CVS, ZNC20TS-C, ZNC20TS-CS + 46 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
