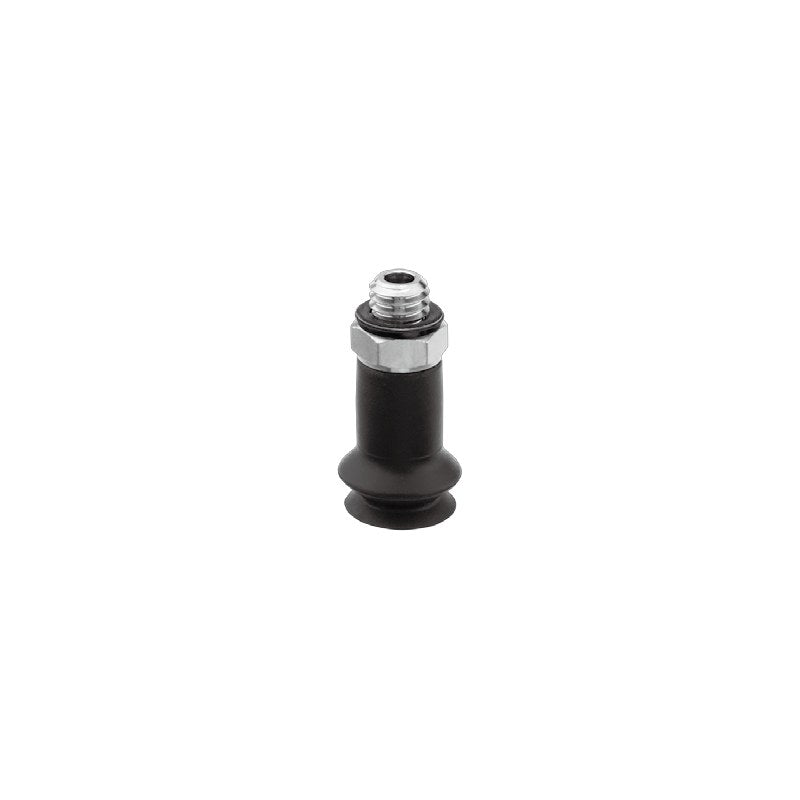

SMC ZP High-Rigidity Vacuum Pad, Bellows & Oval (dia 32-150, 30x50)

SMC ZP series high-rigidity bellows vacuum pad (HB, dia 32-150) and oval pad (HW, 30x50) for heavy workpieces and curved surfaces, as pad only, with adapter or with buffer.

Key features

High-rigidity bellows follows curved or uneven surfaces while carrying heavy or large workpieces
Vertical (ZPT) or lateral (ZPY) vacuum entry; adapter with G/M threads or M14/M16 plate mounting
Buffer JB, JF or J with 25-100 mm stroke on M18x1.5 or M22x1.5 mounting thread
Optional sheet (-PS) on HB pads prevents bellows sticking during long holding, extending life
Oval HW 30x50 pad for long narrow workpieces with vertical adapter

Specifications

Series	ZP high-rigidity (HB/HW), made to order
Pad materials	NBR, silicone, urethane, FKM, EPDM
Lifting force (HB dia 100, -60 kPa)	251 N theoretical
Lifting force (HW 30x50, -60 kPa)	104 N theoretical
Buffer strokes	25, 50, 75 mm; 100 mm for dia 100-150
Vacuum port	Rc1/8 (NPT versions not listed)
Sheet option	-PS suffix (not expanded)
Source	SMC Korea catalog ZP/ZP2 made-to-order (SMCKR_ZP_ZP2_ordermade.pdf), p. 54-66

ZP32HBN		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT32HBN-AG01		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 male
ZPT32HBN-B8		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT32HBN-BG01		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 female
ZPT32HBN-A14		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY32HBN-B01-B8		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPT32HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT32HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT32HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP32HBS		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT32HBS-AG01		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 male
ZPT32HBS-B8		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT32HBS-BG01		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 female
ZPT32HBS-A14		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY32HBS-B01-B8		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPT32HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT32HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT32HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP32HBF		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT32HBF-AG01		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 male
ZPT32HBF-B8		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT32HBF-BG01		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 female
ZPT32HBF-A14		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY32HBF-B01-B8		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPT32HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT32HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT32HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY32HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP40HBN		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT40HBN-AG02		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT40HBN-AG03		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT40HBN-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT40HBN-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT40HBN-A14		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY40HBN-B01-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY40HBN-B01-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT40HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP40HBS		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT40HBS-AG02		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT40HBS-AG03		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT40HBS-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT40HBS-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT40HBS-A14		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY40HBS-B01-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY40HBS-B01-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT40HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP40HBU		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT40HBU-AG02		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT40HBU-AG03		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT40HBU-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT40HBU-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT40HBU-A14		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY40HBU-B01-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY40HBU-B01-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT40HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP40HBF		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT40HBF-AG02		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT40HBF-AG03		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT40HBF-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT40HBF-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT40HBF-A14		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY40HBF-B01-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY40HBF-B01-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT40HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP40HBE		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT40HBE-AG02		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT40HBE-AG03		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT40HBE-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT40HBE-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT40HBE-A14		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY40HBE-B01-B8		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY40HBE-B01-B10		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT40HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT40HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY40HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP50HBN		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT50HBN-AG02		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT50HBN-AG03		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT50HBN-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT50HBN-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT50HBN-A14		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY50HBN-B01-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY50HBN-B01-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT50HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP50HBS		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT50HBS-AG02		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT50HBS-AG03		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT50HBS-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT50HBS-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT50HBS-A14		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY50HBS-B01-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY50HBS-B01-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT50HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP50HBU		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT50HBU-AG02		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT50HBU-AG03		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT50HBU-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT50HBU-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT50HBU-A14		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY50HBU-B01-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY50HBU-B01-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT50HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP50HBF		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT50HBF-AG02		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT50HBF-AG03		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT50HBF-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT50HBF-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT50HBF-A14		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY50HBF-B01-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY50HBF-B01-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT50HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP50HBE		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT50HBE-AG02		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT50HBE-AG03		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT50HBE-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT50HBE-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT50HBE-A14		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZPY50HBE-B01-B8		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
ZPY50HBE-B01-B10		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPT50HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT50HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY50HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP63HBN		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT63HBN-B8		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT63HBN-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT63HBN-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT63HBN-B16		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT63HBN-BG03		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT63HBN-BG04		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT63HBN-A16		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY63HBN-B01-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY63HBN-B01-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT63HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP63HBS		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT63HBS-B8		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT63HBS-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT63HBS-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT63HBS-B16		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT63HBS-BG03		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT63HBS-BG04		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT63HBS-A16		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY63HBS-B01-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY63HBS-B01-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT63HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP63HBU		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT63HBU-B8		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT63HBU-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT63HBU-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT63HBU-B16		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT63HBU-BG03		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT63HBU-BG04		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT63HBU-A16		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY63HBU-B01-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY63HBU-B01-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT63HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP63HBF		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT63HBF-B8		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT63HBF-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT63HBF-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT63HBF-B16		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT63HBF-BG03		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT63HBF-BG04		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT63HBF-A16		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY63HBF-B01-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY63HBF-B01-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT63HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP63HBE		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT63HBE-B8		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT63HBE-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT63HBE-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT63HBE-B16		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT63HBE-BG03		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT63HBE-BG04		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT63HBE-A16		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY63HBE-B01-B10		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY63HBE-B01-B12		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT63HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT63HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY63HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP80HBN		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT80HBN-B8		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT80HBN-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT80HBN-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT80HBN-B16		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT80HBN-BG03		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT80HBN-BG04		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT80HBN-A16		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY80HBN-B01-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY80HBN-B01-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT80HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBNJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP80HBS		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT80HBS-B8		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT80HBS-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT80HBS-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT80HBS-B16		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT80HBS-BG03		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT80HBS-BG04		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT80HBS-A16		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY80HBS-B01-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY80HBS-B01-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT80HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBSJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP80HBU		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT80HBU-B8		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT80HBU-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT80HBU-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT80HBU-B16		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT80HBU-BG03		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT80HBU-BG04		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT80HBU-A16		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY80HBU-B01-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY80HBU-B01-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT80HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBUJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP80HBF		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT80HBF-B8		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT80HBF-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT80HBF-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT80HBF-B16		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT80HBF-BG03		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT80HBF-BG04		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT80HBF-A16		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY80HBF-B01-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY80HBF-B01-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT80HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBFJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP80HBE		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT80HBE-B8		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT80HBE-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT80HBE-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT80HBE-B16		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT80HBE-BG03		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT80HBE-BG04		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT80HBE-A16		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY80HBE-B01-B10		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY80HBE-B01-B12		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT80HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPT80HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJB25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJB50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJB75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJF25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJF50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJF75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJ25-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJ50-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
ZPY80HBEJ75-B01-A18		Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
ZP100HBN		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT100HBN-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT100HBN-B16		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT100HBN-BG02		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT100HBN-BG03		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT100HBN-BG04		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT100HBN-A16		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY100HBN-B01-B10		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY100HBN-B01-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT100HBNJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBNJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBNJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP100HBS		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT100HBS-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT100HBS-B16		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT100HBS-BG02		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT100HBS-BG03		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT100HBS-BG04		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT100HBS-A16		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY100HBS-B01-B10		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY100HBS-B01-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT100HBSJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBSJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBSJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP100HBU		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT100HBU-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT100HBU-B16		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT100HBU-BG02		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT100HBU-BG03		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT100HBU-BG04		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT100HBU-A16		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY100HBU-B01-B10		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY100HBU-B01-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT100HBUJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBUJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBUJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP100HBF		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT100HBF-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT100HBF-B16		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT100HBF-BG02		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT100HBF-BG03		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT100HBF-BG04		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT100HBF-A16		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY100HBF-B01-B10		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY100HBF-B01-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT100HBFJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBFJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBFJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP100HBE		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT100HBE-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT100HBE-B16		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT100HBE-BG02		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT100HBE-BG03		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT100HBE-BG04		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT100HBE-A16		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY100HBE-B01-B10		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY100HBE-B01-B12		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT100HBEJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT100HBEJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJB25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJB50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJB75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJB100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJF25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJF50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJF75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJF100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJ25-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJ50-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJ75-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY100HBEJ100-B01-A22		Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP125HBN		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT125HBN-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT125HBN-B16		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT125HBN-BG02		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT125HBN-BG03		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT125HBN-BG04		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT125HBN-A16		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY125HBN-B01-B10		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY125HBN-B01-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT125HBNJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBNJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBNJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP125HBS		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT125HBS-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT125HBS-B16		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT125HBS-BG02		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT125HBS-BG03		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT125HBS-BG04		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT125HBS-A16		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY125HBS-B01-B10		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY125HBS-B01-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT125HBSJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBSJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBSJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP125HBU		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT125HBU-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT125HBU-B16		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT125HBU-BG02		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT125HBU-BG03		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT125HBU-BG04		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT125HBU-A16		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY125HBU-B01-B10		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY125HBU-B01-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT125HBUJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBUJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBUJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP125HBF		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT125HBF-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT125HBF-B16		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT125HBF-BG02		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT125HBF-BG03		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT125HBF-BG04		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT125HBF-A16		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY125HBF-B01-B10		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY125HBF-B01-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT125HBFJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBFJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBFJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP125HBE		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT125HBE-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT125HBE-B16		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT125HBE-BG02		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
ZPT125HBE-BG03		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
ZPT125HBE-BG04		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
ZPT125HBE-A16		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY125HBE-B01-B10		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
ZPY125HBE-B01-B12		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT125HBEJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT125HBEJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJB25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJB50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJB75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJB100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJF25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJF50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJF75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJF100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJ25-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJ50-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJ75-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY125HBEJ100-B01-A22		Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP150HBN		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT150HBN-B12		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT150HBN-B16		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT150HBN-A16		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY150HBN-B01-B12		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT150HBNJB25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJB50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJB75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJB100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJF25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJF50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJF75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBNJF100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJB25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJB50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJB75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJB100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJF25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJF50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJF75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBNJF100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP150HBF		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT150HBF-B12		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
ZPT150HBF-B16		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
ZPT150HBF-A16		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
ZPY150HBF-B01-B12		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
ZPT150HBFJB25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJB50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJB75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJB100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJF25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJF50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJF75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPT150HBFJF100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJB25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJB50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJB75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJB100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJF25-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJF50-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJF75-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
ZPY150HBFJF100-B01-A22		Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
ZP3050HWN		Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT3050HWN-AG02		Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT3050HWN-AG03		Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT3050HWN-B8		Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT3050HWN-B10		Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT3050HWN-A14		Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZP3050HWS		Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT3050HWS-AG02		Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT3050HWS-AG03		Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT3050HWS-B8		Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT3050HWS-B10		Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT3050HWS-A14		Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
ZP3050HWF		Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
ZPT3050HWF-AG02		Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
ZPT3050HWF-AG03		Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
ZPT3050HWF-B8		Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
ZPT3050HWF-B10		Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
ZPT3050HWF-A14		Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port

Vacuum PadsSMC

966 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZP High-Rigidity Vacuum Pad, Bellows & Oval (dia 32-150, 30x50)

Brand SMC·Vacuum Pads

Available part numbers (966)

ZP32HBN, ZPT32HBN-AG01, ZPT32HBN-B8, ZPT32HBN-BG01, ZPT32HBN-A14, ZPY32HBN-B01-B8, ZPT32HBNJB25-B01-A18, ZPT32HBNJB50-B01-A18, ZPT32HBNJB75-B01-A18, ZPY32HBNJB25-B01-A18 + 956 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ZP32HBN	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT32HBN-AG01	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 male
	ZPT32HBN-B8	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT32HBN-BG01	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 female
	ZPT32HBN-A14	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY32HBN-B01-B8	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPT32HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT32HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT32HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP32HBS	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT32HBS-AG01	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 male
	ZPT32HBS-B8	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT32HBS-BG01	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 female
	ZPT32HBS-A14	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY32HBS-B01-B8	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPT32HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT32HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT32HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP32HBF	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT32HBF-AG01	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 male
	ZPT32HBF-B8	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT32HBF-BG01	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/8 female
	ZPT32HBF-A14	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY32HBF-B01-B8	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPT32HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT32HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT32HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY32HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 32 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP40HBN	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT40HBN-AG02	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT40HBN-AG03	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT40HBN-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT40HBN-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT40HBN-A14	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY40HBN-B01-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY40HBN-B01-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT40HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP40HBS	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT40HBS-AG02	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT40HBS-AG03	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT40HBS-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT40HBS-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT40HBS-A14	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY40HBS-B01-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY40HBS-B01-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT40HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP40HBU	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT40HBU-AG02	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT40HBU-AG03	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT40HBU-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT40HBU-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT40HBU-A14	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY40HBU-B01-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY40HBU-B01-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT40HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP40HBF	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT40HBF-AG02	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT40HBF-AG03	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT40HBF-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT40HBF-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT40HBF-A14	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY40HBF-B01-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY40HBF-B01-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT40HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP40HBE	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT40HBE-AG02	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT40HBE-AG03	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT40HBE-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT40HBE-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT40HBE-A14	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY40HBE-B01-B8	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY40HBE-B01-B10	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT40HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT40HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY40HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 40 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP50HBN	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT50HBN-AG02	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT50HBN-AG03	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT50HBN-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT50HBN-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT50HBN-A14	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY50HBN-B01-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY50HBN-B01-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT50HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP50HBS	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT50HBS-AG02	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT50HBS-AG03	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT50HBS-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT50HBS-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT50HBS-A14	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY50HBS-B01-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY50HBS-B01-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT50HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP50HBU	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT50HBU-AG02	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT50HBU-AG03	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT50HBU-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT50HBU-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT50HBU-A14	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY50HBU-B01-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY50HBU-B01-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT50HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP50HBF	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT50HBF-AG02	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT50HBF-AG03	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT50HBF-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT50HBF-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT50HBF-A14	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY50HBF-B01-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY50HBF-B01-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT50HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP50HBE	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT50HBE-AG02	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT50HBE-AG03	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT50HBE-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT50HBE-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT50HBE-A14	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZPY50HBE-B01-B8	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M8x1.25 female, Rc1/8 port
	ZPY50HBE-B01-B10	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPT50HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT50HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY50HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 50 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP63HBN	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT63HBN-B8	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT63HBN-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT63HBN-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT63HBN-B16	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT63HBN-BG03	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT63HBN-BG04	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT63HBN-A16	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY63HBN-B01-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY63HBN-B01-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT63HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP63HBS	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT63HBS-B8	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT63HBS-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT63HBS-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT63HBS-B16	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT63HBS-BG03	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT63HBS-BG04	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT63HBS-A16	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY63HBS-B01-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY63HBS-B01-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT63HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP63HBU	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT63HBU-B8	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT63HBU-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT63HBU-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT63HBU-B16	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT63HBU-BG03	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT63HBU-BG04	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT63HBU-A16	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY63HBU-B01-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY63HBU-B01-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT63HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP63HBF	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT63HBF-B8	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT63HBF-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT63HBF-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT63HBF-B16	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT63HBF-BG03	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT63HBF-BG04	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT63HBF-A16	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY63HBF-B01-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY63HBF-B01-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT63HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP63HBE	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT63HBE-B8	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT63HBE-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT63HBE-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT63HBE-B16	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT63HBE-BG03	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT63HBE-BG04	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT63HBE-A16	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY63HBE-B01-B10	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY63HBE-B01-B12	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT63HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT63HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY63HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 63 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP80HBN	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT80HBN-B8	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT80HBN-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT80HBN-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT80HBN-B16	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT80HBN-BG03	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT80HBN-BG04	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT80HBN-A16	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY80HBN-B01-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY80HBN-B01-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT80HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBNJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP80HBS	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT80HBS-B8	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT80HBS-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT80HBS-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT80HBS-B16	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT80HBS-BG03	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT80HBS-BG04	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT80HBS-A16	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY80HBS-B01-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY80HBS-B01-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT80HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBSJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP80HBU	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT80HBU-B8	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT80HBU-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT80HBU-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT80HBU-B16	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT80HBU-BG03	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT80HBU-BG04	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT80HBU-A16	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY80HBU-B01-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY80HBU-B01-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT80HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBUJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP80HBF	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT80HBF-B8	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT80HBF-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT80HBF-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT80HBF-B16	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT80HBF-BG03	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT80HBF-BG04	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT80HBF-A16	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY80HBF-B01-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY80HBF-B01-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT80HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBFJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP80HBE	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT80HBE-B8	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT80HBE-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT80HBE-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT80HBE-B16	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT80HBE-BG03	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT80HBE-BG04	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT80HBE-A16	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY80HBE-B01-B10	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY80HBE-B01-B12	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT80HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPT80HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJB25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJB50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJB75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJF25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJF50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJF75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJ25-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJ50-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZPY80HBEJ75-B01-A18	Shape: Bellows \| Pad dia: 80 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M18x1.5 male, Rc1/8 port
	ZP100HBN	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT100HBN-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT100HBN-B16	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT100HBN-BG02	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT100HBN-BG03	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT100HBN-BG04	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT100HBN-A16	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY100HBN-B01-B10	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY100HBN-B01-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT100HBNJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBNJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBNJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP100HBS	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT100HBS-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT100HBS-B16	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT100HBS-BG02	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT100HBS-BG03	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT100HBS-BG04	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT100HBS-A16	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY100HBS-B01-B10	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY100HBS-B01-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT100HBSJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBSJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBSJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP100HBU	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT100HBU-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT100HBU-B16	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT100HBU-BG02	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT100HBU-BG03	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT100HBU-BG04	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT100HBU-A16	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY100HBU-B01-B10	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY100HBU-B01-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT100HBUJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBUJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBUJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP100HBF	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT100HBF-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT100HBF-B16	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT100HBF-BG02	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT100HBF-BG03	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT100HBF-BG04	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT100HBF-A16	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY100HBF-B01-B10	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY100HBF-B01-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT100HBFJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBFJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBFJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP100HBE	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT100HBE-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT100HBE-B16	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT100HBE-BG02	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT100HBE-BG03	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT100HBE-BG04	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT100HBE-A16	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY100HBE-B01-B10	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY100HBE-B01-B12	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT100HBEJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT100HBEJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJB25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJB50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJB75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJB100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJF25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJF50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJF75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJF100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJ25-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJ50-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJ75-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY100HBEJ100-B01-A22	Shape: Bellows \| Pad dia: 100 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP125HBN	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT125HBN-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT125HBN-B16	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT125HBN-BG02	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT125HBN-BG03	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT125HBN-BG04	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT125HBN-A16	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY125HBN-B01-B10	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY125HBN-B01-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT125HBNJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBNJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBNJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP125HBS	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT125HBS-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT125HBS-B16	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT125HBS-BG02	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT125HBS-BG03	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT125HBS-BG04	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT125HBS-A16	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY125HBS-B01-B10	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY125HBS-B01-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT125HBSJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBSJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBSJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Silicone rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP125HBU	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT125HBU-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT125HBU-B16	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT125HBU-BG02	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT125HBU-BG03	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT125HBU-BG04	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT125HBU-A16	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY125HBU-B01-B10	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY125HBU-B01-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT125HBUJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBUJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBUJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: Urethane rubber \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP125HBF	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT125HBF-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT125HBF-B16	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT125HBF-BG02	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT125HBF-BG03	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT125HBF-BG04	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT125HBF-A16	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY125HBF-B01-B10	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY125HBF-B01-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT125HBFJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBFJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBFJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP125HBE	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT125HBE-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT125HBE-B16	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT125HBE-BG02	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 female
	ZPT125HBE-BG03	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 female
	ZPT125HBE-BG04	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/2 female
	ZPT125HBE-A16	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY125HBE-B01-B10	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M10x1.5 female, Rc1/8 port
	ZPY125HBE-B01-B12	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT125HBEJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT125HBEJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Vertical \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJB25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJB50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJB75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJB100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJF25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJF50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJF75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJF100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJ25-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJ50-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJ75-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY125HBEJ100-B01-A22	Shape: Bellows \| Pad dia: 125 \| Pad material: EPDM \| Vacuum entry: Lateral \| Mounting: Buffer J, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP150HBN	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT150HBN-B12	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT150HBN-B16	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT150HBN-A16	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY150HBN-B01-B12	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT150HBNJB25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJB50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJB75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJB100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJF25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJF50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJF75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBNJF100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJB25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJB50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJB75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJB100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJF25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJF50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJF75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBNJF100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: NBR \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP150HBF	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT150HBF-B12	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M12x1.75 female
	ZPT150HBF-B16	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 female
	ZPT150HBF-A16	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M16x1.5 male plate, Rc1/8 port
	ZPY150HBF-B01-B12	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Adapter \| Connection: M12x1.75 female, Rc1/8 port
	ZPT150HBFJB25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJB50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJB75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJB100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJF25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJF50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJF75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPT150HBFJF100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJB25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJB50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJB75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJB100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JB, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJF25-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 25 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJF50-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 50 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJF75-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 75 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZPY150HBFJF100-B01-A22	Shape: Bellows \| Pad dia: 150 \| Pad material: FKM \| Vacuum entry: Lateral \| Mounting: Buffer JF, 100 mm \| Connection: M22x1.5 male, Rc1/8 port
	ZP3050HWN	Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT3050HWN-AG02	Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT3050HWN-AG03	Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT3050HWN-B8	Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT3050HWN-B10	Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT3050HWN-A14	Shape: Oval \| Pad dia: 30x50 \| Pad material: NBR \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZP3050HWS	Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT3050HWS-AG02	Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT3050HWS-AG03	Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT3050HWS-B8	Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT3050HWS-B10	Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT3050HWS-A14	Shape: Oval \| Pad dia: 30x50 \| Pad material: Silicone rubber \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port
	ZP3050HWF	Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: None (pad only) \| Mounting: Pad only \| Connection: None
	ZPT3050HWF-AG02	Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G1/4 male
	ZPT3050HWF-AG03	Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: G3/8 male
	ZPT3050HWF-B8	Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M8x1.25 female
	ZPT3050HWF-B10	Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M10x1.5 female
	ZPT3050HWF-A14	Shape: Oval \| Pad dia: 30x50 \| Pad material: FKM \| Vacuum entry: Vertical \| Mounting: Adapter \| Connection: M14x1 male plate, Rc1/8 port

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC ZP High-Rigidity Vacuum Pad, Bellows & Oval (dia 32-150, 30x50)
