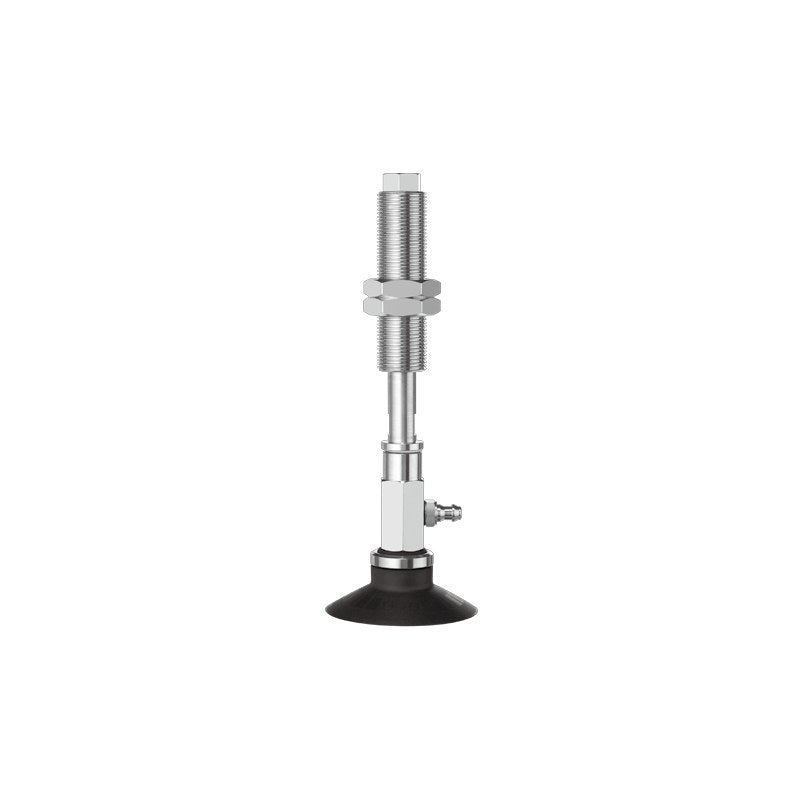

SMC ZP Vacuum Pad, Flat (ø40 to ø50)

SMC ZP series basic flat vacuum pad, ø40 to ø50, supplied as pad only, with vertical or lateral adapter, or with spring buffer.

Key features

Flat vacuum pad (shape symbol U), pad diameters ø40, ø50; for flat workpieces with a level surface that do not deform
Pad materials: NBR, silicone rubber (FDA 21CFR177.2600 compliant compound), urethane rubber, FKM, conductive NBR and conductive silicone rubber
Mounting: pad only, vertical adapter (T), lateral adapter with one-touch fitting (R) or barb fitting (Y), and spring buffer (vertical or lateral)
Buffer spec J (non-rotating) or K (rotation-stop); spring buffer absorbs height variation and impact on the workpiece
Not listed but orderable: stainless steel adapter/lock ring (S), NPT/NPTF ports (N01/T01), G-thread ports (AG/BG), barb fittings for soft polyurethane tube (U4/U6), vertical buffers with one-touch or barb vacuum entry, lateral barb buffers

Specifications

Fluid	Air (vacuum)
Pad shape	Flat (U)
Material hardness (Shore A)	NBR 50, silicone 40, urethane 50-60, FKM 60, conductive NBR 50-70, conductive silicone 50-60
Adapter material	Brass (stainless steel SUS304 on order, prefix S)
Buffer spring force (0 / full stroke)	ø2-ø8 0.8/1.2 N, ø10-ø32 1.0/3.0 N, ø40-ø50 2.0/5.0 N
Buffer type	J non-rotating, K rotation-stop
Order example	ZPT40UN-AS6
Source	SMC Korea catalog ZP basic pads (SMCKR_ZP_basic.pdf), PDF p. 6-25

ZP40UN		Pad diameter: ø40 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT40UN-AS6		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT40UN-A6		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT40UN-A8		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT40UN-B6		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT40UN-B8		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT40UN-B01		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR40UN-06-A6		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR40UN-06-A8		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR40UN-06-B6		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR40UN-06-B8		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR40UN-08-A6		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR40UN-08-A8		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR40UN-08-B6		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR40UN-08-B8		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY40UN-N6-A6		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY40UN-N6-A8		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY40UN-N6-B6		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY40UN-N6-B8		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT40UNJ10-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UNJ10-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UNJ10-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UNJ10-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UNJ20-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UNJ20-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UNJ20-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UNJ20-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UNJ30-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UNJ30-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UNJ30-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UNJ30-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UNJ50-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UNJ50-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UNJ50-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UNJ50-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UNK10-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UNK10-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UNK10-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UNK10-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UNK20-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UNK20-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UNK20-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UNK20-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UNK30-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UNK30-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UNK30-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UNK30-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UNK50-B5-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT40UNK50-B01-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UNK50-06-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UNK50-08-A14		Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP40US		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT40US-AS6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT40US-A6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT40US-A8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT40US-B6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT40US-B8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT40US-B01		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR40US-06-A6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR40US-06-A8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR40US-06-B6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR40US-06-B8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR40US-08-A6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR40US-08-A8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR40US-08-B6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR40US-08-B8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY40US-N6-A6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY40US-N6-A8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY40US-N6-B6		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY40US-N6-B8		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT40USJ10-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40USJ10-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40USJ10-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40USJ10-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40USJ20-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40USJ20-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40USJ20-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40USJ20-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40USJ30-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40USJ30-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40USJ30-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40USJ30-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40USJ50-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40USJ50-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40USJ50-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40USJ50-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40USK10-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40USK10-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40USK10-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40USK10-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40USK20-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40USK20-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40USK20-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40USK20-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40USK30-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40USK30-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40USK30-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40USK30-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40USK50-B5-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT40USK50-B01-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40USK50-06-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40USK50-08-A14		Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP40UU		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT40UU-AS6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT40UU-A6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT40UU-A8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT40UU-B6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT40UU-B8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT40UU-B01		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR40UU-06-A6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR40UU-06-A8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR40UU-06-B6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR40UU-06-B8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR40UU-08-A6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR40UU-08-A8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR40UU-08-B6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR40UU-08-B8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY40UU-N6-A6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY40UU-N6-A8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY40UU-N6-B6		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY40UU-N6-B8		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT40UUJ10-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UUJ10-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UUJ10-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UUJ10-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UUJ20-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UUJ20-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UUJ20-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UUJ20-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UUJ30-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UUJ30-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UUJ30-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UUJ30-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UUJ50-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UUJ50-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UUJ50-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UUJ50-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UUK10-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UUK10-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UUK10-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UUK10-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UUK20-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UUK20-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UUK20-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UUK20-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UUK30-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UUK30-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UUK30-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UUK30-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UUK50-B5-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT40UUK50-B01-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UUK50-06-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UUK50-08-A14		Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP40UF		Pad diameter: ø40 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT40UF-AS6		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT40UF-A6		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT40UF-A8		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT40UF-B6		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT40UF-B8		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT40UF-B01		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR40UF-06-A6		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR40UF-06-A8		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR40UF-06-B6		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR40UF-06-B8		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR40UF-08-A6		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR40UF-08-A8		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR40UF-08-B6		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR40UF-08-B8		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY40UF-N6-A6		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY40UF-N6-A8		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY40UF-N6-B6		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY40UF-N6-B8		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT40UFJ10-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UFJ10-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UFJ10-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UFJ10-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UFJ20-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UFJ20-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UFJ20-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UFJ20-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UFJ30-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UFJ30-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UFJ30-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UFJ30-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UFJ50-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UFJ50-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UFJ50-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UFJ50-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UFK10-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UFK10-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UFK10-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UFK10-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UFK20-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UFK20-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UFK20-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UFK20-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UFK30-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UFK30-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UFK30-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UFK30-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UFK50-B5-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT40UFK50-B01-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UFK50-06-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UFK50-08-A14		Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP40UGN		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT40UGN-AS6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT40UGN-A6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT40UGN-A8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT40UGN-B6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT40UGN-B8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT40UGN-B01		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR40UGN-06-A6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR40UGN-06-A8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR40UGN-06-B6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR40UGN-06-B8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR40UGN-08-A6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR40UGN-08-A8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR40UGN-08-B6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR40UGN-08-B8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY40UGN-N6-A6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY40UGN-N6-A8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY40UGN-N6-B6		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY40UGN-N6-B8		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT40UGNJ10-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UGNJ10-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UGNJ10-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UGNJ10-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UGNJ20-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UGNJ20-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UGNJ20-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UGNJ20-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UGNJ30-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UGNJ30-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UGNJ30-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UGNJ30-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UGNJ50-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UGNJ50-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UGNJ50-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UGNJ50-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UGNK10-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UGNK10-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UGNK10-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UGNK10-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UGNK20-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UGNK20-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UGNK20-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UGNK20-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UGNK30-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UGNK30-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UGNK30-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UGNK30-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UGNK50-B5-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT40UGNK50-B01-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UGNK50-06-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UGNK50-08-A14		Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP40UGS		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT40UGS-AS6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT40UGS-A6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT40UGS-A8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT40UGS-B6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT40UGS-B8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT40UGS-B01		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR40UGS-06-A6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR40UGS-06-A8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR40UGS-06-B6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR40UGS-06-B8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR40UGS-08-A6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR40UGS-08-A8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR40UGS-08-B6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR40UGS-08-B8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY40UGS-N6-A6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY40UGS-N6-A8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY40UGS-N6-B6		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY40UGS-N6-B8		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT40UGSJ10-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UGSJ10-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UGSJ10-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR40UGSJ10-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT40UGSJ20-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UGSJ20-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UGSJ20-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR40UGSJ20-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT40UGSJ30-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UGSJ30-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UGSJ30-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR40UGSJ30-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT40UGSJ50-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UGSJ50-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UGSJ50-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR40UGSJ50-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT40UGSK10-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UGSK10-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UGSK10-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR40UGSK10-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT40UGSK20-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UGSK20-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UGSK20-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR40UGSK20-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT40UGSK30-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UGSK30-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UGSK30-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR40UGSK30-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT40UGSK50-B5-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT40UGSK50-B01-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UGSK50-06-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR40UGSK50-08-A14		Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP50UN		Pad diameter: ø50 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT50UN-AS6		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT50UN-A6		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT50UN-A8		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT50UN-B6		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT50UN-B8		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT50UN-B01		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR50UN-06-A6		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR50UN-06-A8		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR50UN-06-B6		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR50UN-06-B8		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR50UN-08-A6		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR50UN-08-A8		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR50UN-08-B6		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR50UN-08-B8		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY50UN-N6-A6		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY50UN-N6-A8		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY50UN-N6-B6		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY50UN-N6-B8		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT50UNJ10-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UNJ10-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UNJ10-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UNJ10-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UNJ20-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UNJ20-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UNJ20-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UNJ20-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UNJ30-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UNJ30-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UNJ30-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UNJ30-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UNJ50-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UNJ50-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UNJ50-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UNJ50-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UNK10-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UNK10-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UNK10-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UNK10-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UNK20-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UNK20-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UNK20-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UNK20-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UNK30-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UNK30-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UNK30-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UNK30-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UNK50-B5-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT50UNK50-B01-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UNK50-06-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UNK50-08-A14		Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP50US		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT50US-AS6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT50US-A6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT50US-A8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT50US-B6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT50US-B8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT50US-B01		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR50US-06-A6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR50US-06-A8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR50US-06-B6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR50US-06-B8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR50US-08-A6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR50US-08-A8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR50US-08-B6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR50US-08-B8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY50US-N6-A6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY50US-N6-A8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY50US-N6-B6		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY50US-N6-B8		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT50USJ10-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50USJ10-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50USJ10-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50USJ10-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50USJ20-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50USJ20-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50USJ20-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50USJ20-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50USJ30-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50USJ30-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50USJ30-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50USJ30-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50USJ50-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50USJ50-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50USJ50-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50USJ50-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50USK10-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50USK10-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50USK10-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50USK10-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50USK20-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50USK20-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50USK20-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50USK20-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50USK30-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50USK30-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50USK30-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50USK30-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50USK50-B5-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT50USK50-B01-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50USK50-06-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50USK50-08-A14		Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP50UU		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT50UU-AS6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT50UU-A6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT50UU-A8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT50UU-B6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT50UU-B8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT50UU-B01		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR50UU-06-A6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR50UU-06-A8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR50UU-06-B6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR50UU-06-B8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR50UU-08-A6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR50UU-08-A8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR50UU-08-B6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR50UU-08-B8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY50UU-N6-A6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY50UU-N6-A8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY50UU-N6-B6		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY50UU-N6-B8		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT50UUJ10-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UUJ10-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UUJ10-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UUJ10-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UUJ20-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UUJ20-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UUJ20-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UUJ20-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UUJ30-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UUJ30-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UUJ30-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UUJ30-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UUJ50-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UUJ50-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UUJ50-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UUJ50-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UUK10-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UUK10-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UUK10-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UUK10-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UUK20-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UUK20-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UUK20-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UUK20-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UUK30-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UUK30-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UUK30-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UUK30-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UUK50-B5-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT50UUK50-B01-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UUK50-06-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UUK50-08-A14		Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP50UF		Pad diameter: ø50 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT50UF-AS6		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT50UF-A6		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT50UF-A8		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT50UF-B6		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT50UF-B8		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT50UF-B01		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR50UF-06-A6		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR50UF-06-A8		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR50UF-06-B6		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR50UF-06-B8		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR50UF-08-A6		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR50UF-08-A8		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR50UF-08-B6		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR50UF-08-B8		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY50UF-N6-A6		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY50UF-N6-A8		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY50UF-N6-B6		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY50UF-N6-B8		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT50UFJ10-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UFJ10-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UFJ10-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UFJ10-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UFJ20-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UFJ20-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UFJ20-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UFJ20-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UFJ30-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UFJ30-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UFJ30-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UFJ30-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UFJ50-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UFJ50-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UFJ50-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UFJ50-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UFK10-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UFK10-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UFK10-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UFK10-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UFK20-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UFK20-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UFK20-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UFK20-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UFK30-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UFK30-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UFK30-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UFK30-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UFK50-B5-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT50UFK50-B01-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UFK50-06-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UFK50-08-A14		Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP50UGN		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT50UGN-AS6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT50UGN-A6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT50UGN-A8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT50UGN-B6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT50UGN-B8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT50UGN-B01		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR50UGN-06-A6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR50UGN-06-A8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR50UGN-06-B6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR50UGN-06-B8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR50UGN-08-A6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR50UGN-08-A8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR50UGN-08-B6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR50UGN-08-B8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY50UGN-N6-A6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY50UGN-N6-A8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY50UGN-N6-B6		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY50UGN-N6-B8		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT50UGNJ10-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UGNJ10-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UGNJ10-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UGNJ10-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UGNJ20-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UGNJ20-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UGNJ20-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UGNJ20-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UGNJ30-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UGNJ30-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UGNJ30-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UGNJ30-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UGNJ50-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UGNJ50-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UGNJ50-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UGNJ50-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UGNK10-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UGNK10-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UGNK10-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UGNK10-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UGNK20-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UGNK20-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UGNK20-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UGNK20-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UGNK30-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UGNK30-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UGNK30-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UGNK30-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UGNK50-B5-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT50UGNK50-B01-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UGNK50-06-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UGNK50-08-A14		Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZP50UGS		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZPT50UGS-AS6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
ZPT50UGS-A6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
ZPT50UGS-A8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
ZPT50UGS-B6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
ZPT50UGS-B8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
ZPT50UGS-B01		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
ZPR50UGS-06-A6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
ZPR50UGS-06-A8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
ZPR50UGS-06-B6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
ZPR50UGS-06-B8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
ZPR50UGS-08-A6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
ZPR50UGS-08-A8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
ZPR50UGS-08-B6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
ZPR50UGS-08-B8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
ZPY50UGS-N6-A6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
ZPY50UGS-N6-A8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
ZPY50UGS-N6-B6		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
ZPY50UGS-N6-B8		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
ZPT50UGSJ10-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UGSJ10-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UGSJ10-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPR50UGSJ10-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
ZPT50UGSJ20-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UGSJ20-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UGSJ20-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPR50UGSJ20-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
ZPT50UGSJ30-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UGSJ30-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UGSJ30-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPR50UGSJ30-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
ZPT50UGSJ50-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UGSJ50-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UGSJ50-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPR50UGSJ50-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
ZPT50UGSK10-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UGSK10-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UGSK10-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPR50UGSK10-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
ZPT50UGSK20-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UGSK20-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UGSK20-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPR50UGSK20-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
ZPT50UGSK30-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UGSK30-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UGSK30-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPR50UGSK30-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
ZPT50UGSK50-B5-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPT50UGSK50-B01-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UGSK50-06-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
ZPR50UGSK50-08-A14		Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke

Vacuum PadsSMC

612 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZP Vacuum Pad, Flat (ø40 to ø50)

Brand SMC·Vacuum Pads

Available part numbers (612)

ZP40UN, ZPT40UN-AS6, ZPT40UN-A6, ZPT40UN-A8, ZPT40UN-B6, ZPT40UN-B8, ZPT40UN-B01, ZPR40UN-06-A6, ZPR40UN-06-A8, ZPR40UN-06-B6 + 602 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ZP40UN	Pad diameter: ø40 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT40UN-AS6	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT40UN-A6	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT40UN-A8	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT40UN-B6	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT40UN-B8	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UN-B01	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR40UN-06-A6	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR40UN-06-A8	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR40UN-06-B6	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR40UN-06-B8	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR40UN-08-A6	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR40UN-08-A8	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR40UN-08-B6	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR40UN-08-B8	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY40UN-N6-A6	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY40UN-N6-A8	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY40UN-N6-B6	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY40UN-N6-B8	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UNJ10-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UNJ10-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UNJ10-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UNJ10-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UNJ20-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UNJ20-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UNJ20-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UNJ20-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UNJ30-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UNJ30-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UNJ30-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UNJ30-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UNJ50-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UNJ50-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UNJ50-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UNJ50-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UNK10-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UNK10-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UNK10-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UNK10-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UNK20-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UNK20-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UNK20-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UNK20-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UNK30-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UNK30-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UNK30-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UNK30-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UNK50-B5-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT40UNK50-B01-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UNK50-06-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UNK50-08-A14	Pad diameter: ø40 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP40US	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT40US-AS6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT40US-A6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT40US-A8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT40US-B6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT40US-B8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT40US-B01	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR40US-06-A6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR40US-06-A8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR40US-06-B6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR40US-06-B8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR40US-08-A6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR40US-08-A8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR40US-08-B6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR40US-08-B8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY40US-N6-A6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY40US-N6-A8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY40US-N6-B6	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY40US-N6-B8	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT40USJ10-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40USJ10-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40USJ10-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40USJ10-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40USJ20-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40USJ20-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40USJ20-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40USJ20-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40USJ30-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40USJ30-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40USJ30-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40USJ30-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40USJ50-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40USJ50-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40USJ50-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40USJ50-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40USK10-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40USK10-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40USK10-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40USK10-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40USK20-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40USK20-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40USK20-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40USK20-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40USK30-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40USK30-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40USK30-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40USK30-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40USK50-B5-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT40USK50-B01-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40USK50-06-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40USK50-08-A14	Pad diameter: ø40 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP40UU	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT40UU-AS6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT40UU-A6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT40UU-A8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT40UU-B6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT40UU-B8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UU-B01	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR40UU-06-A6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR40UU-06-A8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR40UU-06-B6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR40UU-06-B8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR40UU-08-A6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR40UU-08-A8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR40UU-08-B6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR40UU-08-B8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY40UU-N6-A6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY40UU-N6-A8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY40UU-N6-B6	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY40UU-N6-B8	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UUJ10-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UUJ10-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UUJ10-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UUJ10-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UUJ20-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UUJ20-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UUJ20-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UUJ20-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UUJ30-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UUJ30-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UUJ30-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UUJ30-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UUJ50-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UUJ50-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UUJ50-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UUJ50-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UUK10-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UUK10-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UUK10-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UUK10-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UUK20-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UUK20-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UUK20-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UUK20-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UUK30-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UUK30-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UUK30-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UUK30-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UUK50-B5-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT40UUK50-B01-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UUK50-06-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UUK50-08-A14	Pad diameter: ø40 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP40UF	Pad diameter: ø40 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT40UF-AS6	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT40UF-A6	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT40UF-A8	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT40UF-B6	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT40UF-B8	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UF-B01	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR40UF-06-A6	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR40UF-06-A8	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR40UF-06-B6	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR40UF-06-B8	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR40UF-08-A6	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR40UF-08-A8	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR40UF-08-B6	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR40UF-08-B8	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY40UF-N6-A6	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY40UF-N6-A8	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY40UF-N6-B6	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY40UF-N6-B8	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UFJ10-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UFJ10-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UFJ10-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UFJ10-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UFJ20-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UFJ20-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UFJ20-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UFJ20-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UFJ30-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UFJ30-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UFJ30-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UFJ30-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UFJ50-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UFJ50-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UFJ50-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UFJ50-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UFK10-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UFK10-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UFK10-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UFK10-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UFK20-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UFK20-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UFK20-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UFK20-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UFK30-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UFK30-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UFK30-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UFK30-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UFK50-B5-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT40UFK50-B01-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UFK50-06-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UFK50-08-A14	Pad diameter: ø40 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP40UGN	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT40UGN-AS6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT40UGN-A6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT40UGN-A8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT40UGN-B6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT40UGN-B8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UGN-B01	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR40UGN-06-A6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR40UGN-06-A8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR40UGN-06-B6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR40UGN-06-B8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR40UGN-08-A6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR40UGN-08-A8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR40UGN-08-B6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR40UGN-08-B8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY40UGN-N6-A6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY40UGN-N6-A8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY40UGN-N6-B6	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY40UGN-N6-B8	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UGNJ10-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UGNJ10-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UGNJ10-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UGNJ10-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UGNJ20-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UGNJ20-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UGNJ20-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UGNJ20-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UGNJ30-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UGNJ30-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UGNJ30-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UGNJ30-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UGNJ50-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UGNJ50-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UGNJ50-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UGNJ50-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UGNK10-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UGNK10-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UGNK10-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UGNK10-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UGNK20-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UGNK20-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UGNK20-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UGNK20-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UGNK30-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UGNK30-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UGNK30-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UGNK30-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UGNK50-B5-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT40UGNK50-B01-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UGNK50-06-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UGNK50-08-A14	Pad diameter: ø40 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP40UGS	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT40UGS-AS6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT40UGS-A6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT40UGS-A8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT40UGS-B6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT40UGS-B8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UGS-B01	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR40UGS-06-A6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR40UGS-06-A8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR40UGS-06-B6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR40UGS-06-B8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR40UGS-08-A6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR40UGS-08-A8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR40UGS-08-B6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR40UGS-08-B8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY40UGS-N6-A6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY40UGS-N6-A8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY40UGS-N6-B6	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY40UGS-N6-B8	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT40UGSJ10-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UGSJ10-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UGSJ10-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR40UGSJ10-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT40UGSJ20-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UGSJ20-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UGSJ20-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR40UGSJ20-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT40UGSJ30-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UGSJ30-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UGSJ30-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR40UGSJ30-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT40UGSJ50-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UGSJ50-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UGSJ50-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR40UGSJ50-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT40UGSK10-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UGSK10-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UGSK10-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR40UGSK10-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT40UGSK20-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UGSK20-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UGSK20-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR40UGSK20-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT40UGSK30-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UGSK30-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UGSK30-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR40UGSK30-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT40UGSK50-B5-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT40UGSK50-B01-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UGSK50-06-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR40UGSK50-08-A14	Pad diameter: ø40 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP50UN	Pad diameter: ø50 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT50UN-AS6	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT50UN-A6	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT50UN-A8	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT50UN-B6	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT50UN-B8	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UN-B01	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR50UN-06-A6	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR50UN-06-A8	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR50UN-06-B6	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR50UN-06-B8	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR50UN-08-A6	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR50UN-08-A8	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR50UN-08-B6	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR50UN-08-B8	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY50UN-N6-A6	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY50UN-N6-A8	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY50UN-N6-B6	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY50UN-N6-B8	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UNJ10-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UNJ10-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UNJ10-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UNJ10-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UNJ20-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UNJ20-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UNJ20-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UNJ20-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UNJ30-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UNJ30-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UNJ30-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UNJ30-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UNJ50-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UNJ50-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UNJ50-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UNJ50-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UNK10-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UNK10-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UNK10-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UNK10-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UNK20-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UNK20-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UNK20-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UNK20-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UNK30-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UNK30-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UNK30-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UNK30-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UNK50-B5-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT50UNK50-B01-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UNK50-06-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UNK50-08-A14	Pad diameter: ø50 \| Material: NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP50US	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT50US-AS6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT50US-A6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT50US-A8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT50US-B6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT50US-B8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT50US-B01	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR50US-06-A6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR50US-06-A8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR50US-06-B6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR50US-06-B8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR50US-08-A6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR50US-08-A8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR50US-08-B6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR50US-08-B8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY50US-N6-A6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY50US-N6-A8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY50US-N6-B6	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY50US-N6-B8	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT50USJ10-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50USJ10-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50USJ10-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50USJ10-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50USJ20-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50USJ20-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50USJ20-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50USJ20-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50USJ30-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50USJ30-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50USJ30-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50USJ30-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50USJ50-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50USJ50-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50USJ50-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50USJ50-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50USK10-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50USK10-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50USK10-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50USK10-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50USK20-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50USK20-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50USK20-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50USK20-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50USK30-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50USK30-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50USK30-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50USK30-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50USK50-B5-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT50USK50-B01-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50USK50-06-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50USK50-08-A14	Pad diameter: ø50 \| Material: Silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP50UU	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT50UU-AS6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT50UU-A6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT50UU-A8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT50UU-B6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT50UU-B8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UU-B01	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR50UU-06-A6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR50UU-06-A8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR50UU-06-B6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR50UU-06-B8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR50UU-08-A6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR50UU-08-A8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR50UU-08-B6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR50UU-08-B8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY50UU-N6-A6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY50UU-N6-A8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY50UU-N6-B6	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY50UU-N6-B8	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UUJ10-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UUJ10-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UUJ10-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UUJ10-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UUJ20-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UUJ20-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UUJ20-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UUJ20-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UUJ30-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UUJ30-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UUJ30-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UUJ30-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UUJ50-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UUJ50-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UUJ50-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UUJ50-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UUK10-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UUK10-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UUK10-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UUK10-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UUK20-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UUK20-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UUK20-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UUK20-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UUK30-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UUK30-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UUK30-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UUK30-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UUK50-B5-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT50UUK50-B01-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UUK50-06-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UUK50-08-A14	Pad diameter: ø50 \| Material: Urethane rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP50UF	Pad diameter: ø50 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT50UF-AS6	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT50UF-A6	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT50UF-A8	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT50UF-B6	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT50UF-B8	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UF-B01	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR50UF-06-A6	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR50UF-06-A8	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR50UF-06-B6	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR50UF-06-B8	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR50UF-08-A6	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR50UF-08-A8	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR50UF-08-B6	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR50UF-08-B8	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY50UF-N6-A6	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY50UF-N6-A8	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY50UF-N6-B6	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY50UF-N6-B8	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UFJ10-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UFJ10-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UFJ10-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UFJ10-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UFJ20-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UFJ20-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UFJ20-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UFJ20-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UFJ30-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UFJ30-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UFJ30-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UFJ30-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UFJ50-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UFJ50-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UFJ50-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UFJ50-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UFK10-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UFK10-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UFK10-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UFK10-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UFK20-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UFK20-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UFK20-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UFK20-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UFK30-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UFK30-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UFK30-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UFK30-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UFK50-B5-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT50UFK50-B01-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UFK50-06-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UFK50-08-A14	Pad diameter: ø50 \| Material: FKM \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP50UGN	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT50UGN-AS6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT50UGN-A6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT50UGN-A8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT50UGN-B6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT50UGN-B8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UGN-B01	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR50UGN-06-A6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR50UGN-06-A8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR50UGN-06-B6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR50UGN-06-B8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR50UGN-08-A6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR50UGN-08-A8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR50UGN-08-B6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR50UGN-08-B8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY50UGN-N6-A6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY50UGN-N6-A8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY50UGN-N6-B6	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY50UGN-N6-B8	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UGNJ10-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UGNJ10-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UGNJ10-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UGNJ10-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UGNJ20-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UGNJ20-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UGNJ20-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UGNJ20-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UGNJ30-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UGNJ30-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UGNJ30-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UGNJ30-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UGNJ50-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UGNJ50-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UGNJ50-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UGNJ50-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UGNK10-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UGNK10-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UGNK10-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UGNK10-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UGNK20-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UGNK20-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UGNK20-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UGNK20-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UGNK30-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UGNK30-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UGNK30-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UGNK30-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UGNK50-B5-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT50UGNK50-B01-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UGNK50-06-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UGNK50-08-A14	Pad diameter: ø50 \| Material: Conductive NBR \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZP50UGS	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZPT50UGS-AS6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 male \| Connection: M6x1 male \| Buffer: -
	ZPT50UGS-A6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x1 male \| Buffer: -
	ZPT50UGS-A8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M5x0.8 female \| Connection: M8x1 male \| Buffer: -
	ZPT50UGS-B6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M6x1 female \| Connection: M6x1 female \| Buffer: -
	ZPT50UGS-B8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M8x1.25 female \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UGS-B01	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Rc1/8 female \| Connection: Rc1/8 female \| Buffer: -
	ZPR50UGS-06-A6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 male \| Buffer: -
	ZPR50UGS-06-A8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1 male \| Buffer: -
	ZPR50UGS-06-B6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M6x1 female \| Buffer: -
	ZPR50UGS-06-B8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M8x1.25 female \| Buffer: -
	ZPR50UGS-08-A6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 male \| Buffer: -
	ZPR50UGS-08-A8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1 male \| Buffer: -
	ZPR50UGS-08-B6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M6x1 female \| Buffer: -
	ZPR50UGS-08-B8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M8x1.25 female \| Buffer: -
	ZPY50UGS-N6-A6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 male \| Buffer: -
	ZPY50UGS-N6-A8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1 male \| Buffer: -
	ZPY50UGS-N6-B6	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M6x1 female \| Buffer: -
	ZPY50UGS-N6-B8	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter, barb \| Vacuum entry: Barb fitting, 6 mm nylon tube \| Connection: M8x1.25 female \| Buffer: -
	ZPT50UGSJ10-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UGSJ10-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UGSJ10-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPR50UGSJ10-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 10 mm stroke
	ZPT50UGSJ20-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UGSJ20-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UGSJ20-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPR50UGSJ20-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 20 mm stroke
	ZPT50UGSJ30-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UGSJ30-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UGSJ30-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPR50UGSJ30-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 30 mm stroke
	ZPT50UGSJ50-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UGSJ50-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UGSJ50-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPR50UGSJ50-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Non-rotating, 50 mm stroke
	ZPT50UGSK10-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UGSK10-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UGSK10-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPR50UGSK10-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 10 mm stroke
	ZPT50UGSK20-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UGSK20-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UGSK20-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPR50UGSK20-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 20 mm stroke
	ZPT50UGSK30-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UGSK30-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UGSK30-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPR50UGSK30-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 30 mm stroke
	ZPT50UGSK50-B5-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M5x0.8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPT50UGSK50-B01-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Rc1/8 female \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UGSK50-06-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 6 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke
	ZPR50UGSK50-08-A14	Pad diameter: ø50 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer, one-touch \| Vacuum entry: One-touch fitting, tube OD 8 \| Connection: M14x1 male \| Buffer: Rotation-stop, 50 mm stroke

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC ZP Vacuum Pad, Flat (ø40 to ø50)
