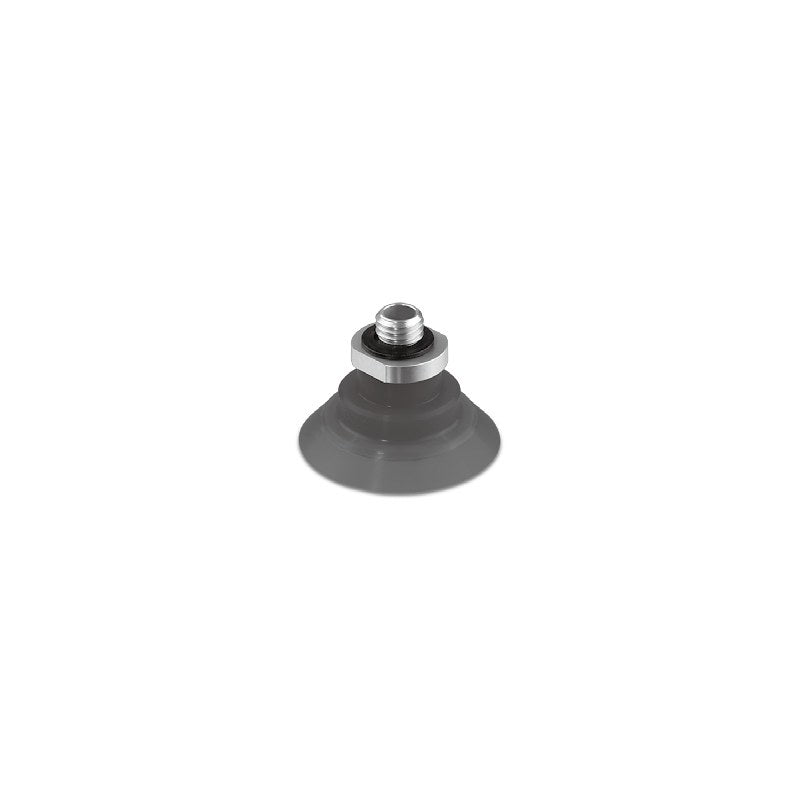

SMC ZP2 AN Nozzle Vacuum Pad (ø0.8, ø1.1)

SMC ZP2 AN Nozzle Vacuum Pad (ø0.8, ø1.1)

SMC ZP2 series AN nozzle vacuum pad, ø0.8 and ø1.1, for picking small parts such as IC chips, as pad only or with M5 vertical adapter.

Key features

  • Nozzle-shaped pad for small, space-saving pickup of IC chips and miniature parts
  • Pad diameters ø0.8 and ø1.1
  • Six pad materials: NBR, silicone, urethane, FKM, conductive NBR, conductive silicone
  • Vertical adapter with M5x0.8 male thread; pad supplied unassembled

Specifications

Pad shape Nozzle type (AN)
Fluid Air (vacuum)
Pad length 8 mm
Adapter assembly ZP2A-Z21P (with gasket); gasket ZP-5G2 (10 pcs)
Pad material colour/hardness NBR black A50; silicone milky white A40; urethane brown A55-60; FKM black A60; conductive NBR black A60-70; conductive silicone black A50-60
Source SMC Korea catalog Special-Application Pads ZP2/ZP3/ZP3P (SMCKR_ZP2_ZP3P_specials.pdf), p. 289 (PDF p. 46)
ZP2-08ANN Pad diameter: ø0.8 | Pad material: NBR | Mounting: Pad only
ZP2-T08ANN-A5 Pad diameter: ø0.8 | Pad material: NBR | Mounting: Adapter, vertical, M5x0.8 male
ZP2-08ANS Pad diameter: ø0.8 | Pad material: Silicone rubber | Mounting: Pad only
ZP2-T08ANS-A5 Pad diameter: ø0.8 | Pad material: Silicone rubber | Mounting: Adapter, vertical, M5x0.8 male
ZP2-08ANU Pad diameter: ø0.8 | Pad material: Urethane rubber | Mounting: Pad only
ZP2-T08ANU-A5 Pad diameter: ø0.8 | Pad material: Urethane rubber | Mounting: Adapter, vertical, M5x0.8 male
ZP2-08ANF Pad diameter: ø0.8 | Pad material: FKM | Mounting: Pad only
ZP2-T08ANF-A5 Pad diameter: ø0.8 | Pad material: FKM | Mounting: Adapter, vertical, M5x0.8 male
ZP2-08ANGN Pad diameter: ø0.8 | Pad material: Conductive NBR | Mounting: Pad only
ZP2-T08ANGN-A5 Pad diameter: ø0.8 | Pad material: Conductive NBR | Mounting: Adapter, vertical, M5x0.8 male
ZP2-08ANGS Pad diameter: ø0.8 | Pad material: Conductive silicone rubber | Mounting: Pad only
ZP2-T08ANGS-A5 Pad diameter: ø0.8 | Pad material: Conductive silicone rubber | Mounting: Adapter, vertical, M5x0.8 male
ZP2-11ANN Pad diameter: ø1.1 | Pad material: NBR | Mounting: Pad only
ZP2-T11ANN-A5 Pad diameter: ø1.1 | Pad material: NBR | Mounting: Adapter, vertical, M5x0.8 male
ZP2-11ANS Pad diameter: ø1.1 | Pad material: Silicone rubber | Mounting: Pad only
ZP2-T11ANS-A5 Pad diameter: ø1.1 | Pad material: Silicone rubber | Mounting: Adapter, vertical, M5x0.8 male
ZP2-11ANU Pad diameter: ø1.1 | Pad material: Urethane rubber | Mounting: Pad only
ZP2-T11ANU-A5 Pad diameter: ø1.1 | Pad material: Urethane rubber | Mounting: Adapter, vertical, M5x0.8 male
ZP2-11ANF Pad diameter: ø1.1 | Pad material: FKM | Mounting: Pad only
ZP2-T11ANF-A5 Pad diameter: ø1.1 | Pad material: FKM | Mounting: Adapter, vertical, M5x0.8 male
ZP2-11ANGN Pad diameter: ø1.1 | Pad material: Conductive NBR | Mounting: Pad only
ZP2-T11ANGN-A5 Pad diameter: ø1.1 | Pad material: Conductive NBR | Mounting: Adapter, vertical, M5x0.8 male
ZP2-11ANGS Pad diameter: ø1.1 | Pad material: Conductive silicone rubber | Mounting: Pad only
ZP2-T11ANGS-A5 Pad diameter: ø1.1 | Pad material: Conductive silicone rubber | Mounting: Adapter, vertical, M5x0.8 male
