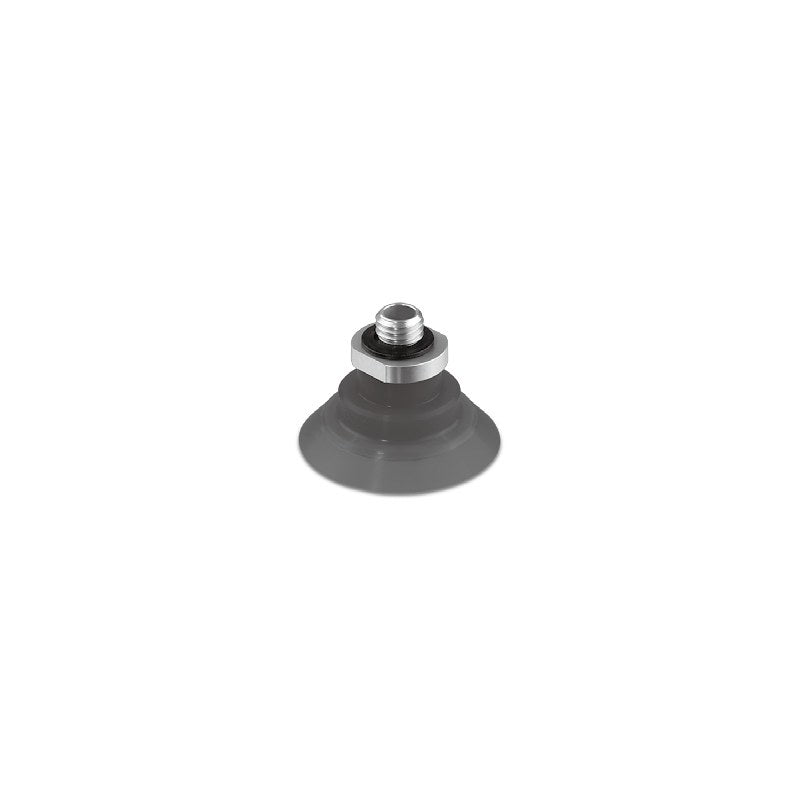

SMC ZP2 Panel Fixing Vacuum Pad (ZP2-Z002, ZP2-Z003)

SMC ZP2 Panel Fixing Vacuum Pad (ZP2-Z002, ZP2-Z003)

SMC ZP2 series panel fixing vacuum pad with PTFE pad and bellows mechanism for stage fixing of LCD panels and glass substrates.

Key features

  • PTFE pad on FKM bellows joint follows warped or slightly inclined panels
  • Square aluminum mounting plate (white alumite), 20x20 mm (Z002) or 40x40 mm (Z003)
  • For horizontal use and workpiece fixing only; not for vacuum holding applications
  • Use at full stroke; workpiece mass must not be applied directly to the pad

Specifications

Pad material PTFE
Joint material FKM
Mounting plate Aluminum alloy, white alumite, 4x ø2.4 holes
Application Stage fixing of LCD panels and glass substrates
Fluid Air (vacuum)
Source SMC Korea catalog Special-Application Pads ZP2/ZP3/ZP3P (SMCKR_ZP2_ZP3P_specials.pdf), p. 295-296 (PDF p. 52-53)
ZP2-Z002 Plate size: 20 x 20 mm | Pad suction diameter: ø11 (inner ø9) | Full stroke: 1.1 mm
ZP2-Z003 Plate size: 40 x 40 mm | Pad suction diameter: ø20 (inner ø18) | Full stroke: 2.0 mm
Vacuum PadsSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZP2 Panel Fixing Vacuum Pad (ZP2-Z002, ZP2-Z003)

Brand SMC·Vacuum Pads

Available part numbers (2)

ZP2-Z002, ZP2-Z003

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZP2-Z002Plate size: 20 x 20 mm | Pad suction diameter: ø11 (inner ø9) | Full stroke: 1.1 mm
ZP2-Z003Plate size: 40 x 40 mm | Pad suction diameter: ø20 (inner ø18) | Full stroke: 2.0 mm
