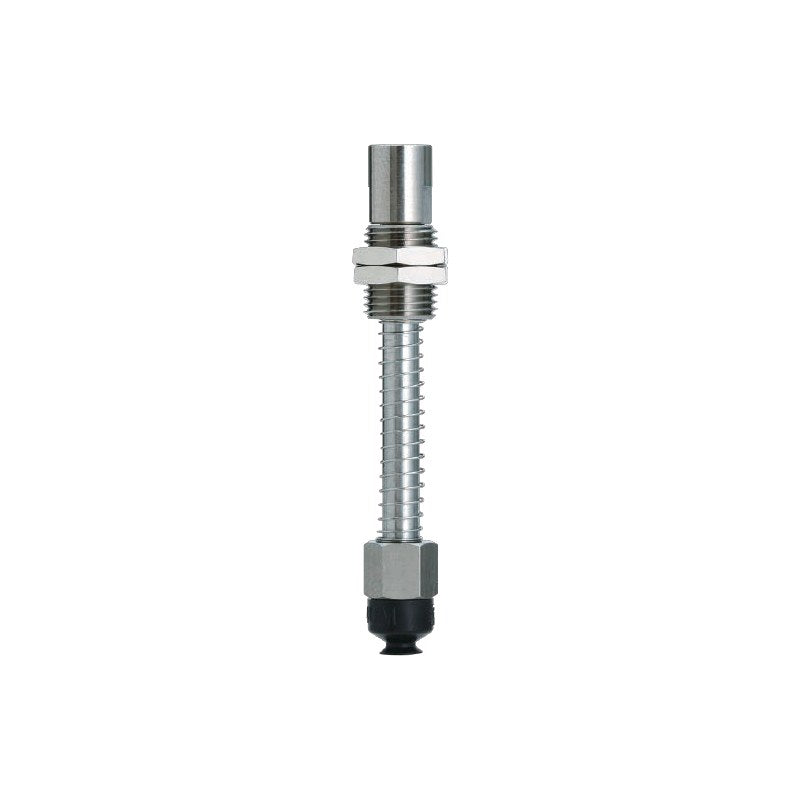

SMC ZP3 Compact Vacuum Pad, Flat (ø1.5 to ø3.5)

SMC ZP3 compact flat vacuum pad, ø1.5, ø2 and ø3.5, supplied as pad only, with vertical or lateral adapter, or with spring buffer.

Key features

Compact design: pad only height reduced by up to 9 mm and adapter type by up to 11 mm versus the ZP series
Supports ø2 tubing to save space when many pads are piped
Pad materials: NBR, silicone rubber (FDA 21CFR177.2600 compliant compound), urethane rubber, FKM, conductive NBR, conductive silicone rubber
Vertical (T) adapter with M3x0.5 male/female or M6x0.75 male thread; lateral (Y) adapter with M3x0.5 female thread
Vacuum entry: M3x0.5 female, one-touch fitting for ø2/ø4 tube, or barb fitting for ø2 polyurethane / ø4 soft tube
Buffer J (non-rotating) or K (rotation-stop), 3 or 6 mm stroke; stainless steel adapter (prefix S) on order

Specifications

Fluid	Air (vacuum)
Material hardness (Shore A)	NBR 60, silicone 60, urethane 50, FKM 60, conductive NBR 60-70, conductive silicone 60
Pad shape	Flat (U)
Buffer connection	J: M6x0.75, K: M8x0.75 male
Buffer spring force (0 / full stroke)	0.2 / 0.4 N (J), 0.2 / 0.5 N (K)
Order example	ZP3-T015UNJ3-B3
Source	SMC Korea catalog ZP3 compact pads (SMCKR_ZP3.pdf), PDF p. 4-10

ZP3-015UN		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T015UN-A3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T015UN-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UN-A6-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UN-B3-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UN-A6-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UN-B3-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UN-A6-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UN-B3-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UN-A6-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UN-B3-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UN-A6-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UN-B3-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UNJ3-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UNJ3-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UNJ3-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UNJ3-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UNJ3-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UNJ3-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UNJ3-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UNJ3-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UNJ3-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UNJ3-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UNJ6-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UNJ6-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UNJ6-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UNJ6-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UNJ6-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UNJ6-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UNJ6-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UNJ6-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UNJ6-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UNJ6-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UNK3-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UNK3-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UNK3-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UNK3-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UNK3-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UNK3-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UNK3-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UNK3-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UNK3-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UNK3-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UNK6-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UNK6-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UNK6-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UNK6-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UNK6-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UNK6-B3		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UNK6-02		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UNK6-04		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UNK6-U2		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UNK6-U4		Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-015US		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T015US-A3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T015US-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015US-A6-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015US-B3-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015US-A6-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015US-B3-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015US-A6-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015US-B3-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015US-A6-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015US-B3-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015US-A6-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015US-B3-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015USJ3-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015USJ3-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015USJ3-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015USJ3-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015USJ3-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015USJ3-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015USJ3-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015USJ3-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015USJ3-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015USJ3-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015USJ6-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015USJ6-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015USJ6-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015USJ6-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015USJ6-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015USJ6-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015USJ6-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015USJ6-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015USJ6-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015USJ6-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015USK3-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015USK3-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015USK3-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015USK3-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015USK3-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015USK3-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015USK3-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015USK3-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015USK3-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015USK3-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015USK6-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015USK6-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015USK6-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015USK6-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015USK6-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015USK6-B3		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015USK6-02		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015USK6-04		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015USK6-U2		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015USK6-U4		Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-015UU		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T015UU-A3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T015UU-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UU-A6-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UU-B3-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UU-A6-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UU-B3-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UU-A6-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UU-B3-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UU-A6-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UU-B3-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UU-A6-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UU-B3-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UUJ3-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UUJ3-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UUJ3-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UUJ3-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UUJ3-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UUJ3-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UUJ3-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UUJ3-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UUJ3-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UUJ3-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UUJ6-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UUJ6-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UUJ6-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UUJ6-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UUJ6-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UUJ6-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UUJ6-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UUJ6-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UUJ6-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UUJ6-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UUK3-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UUK3-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UUK3-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UUK3-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UUK3-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UUK3-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UUK3-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UUK3-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UUK3-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UUK3-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UUK6-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UUK6-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UUK6-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UUK6-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UUK6-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UUK6-B3		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UUK6-02		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UUK6-04		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UUK6-U2		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UUK6-U4		Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-015UF		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T015UF-A3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T015UF-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UF-A6-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UF-B3-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UF-A6-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UF-B3-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UF-A6-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UF-B3-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UF-A6-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UF-B3-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UF-A6-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UF-B3-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UFJ3-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UFJ3-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UFJ3-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UFJ3-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UFJ3-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UFJ3-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UFJ3-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UFJ3-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UFJ3-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UFJ3-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UFJ6-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UFJ6-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UFJ6-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UFJ6-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UFJ6-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UFJ6-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UFJ6-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UFJ6-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UFJ6-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UFJ6-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UFK3-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UFK3-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UFK3-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UFK3-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UFK3-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UFK3-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UFK3-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UFK3-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UFK3-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UFK3-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UFK6-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UFK6-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UFK6-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UFK6-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UFK6-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UFK6-B3		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UFK6-02		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UFK6-04		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UFK6-U2		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UFK6-U4		Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-015UGN		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T015UGN-A3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T015UGN-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGN-A6-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGN-B3-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGN-A6-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGN-B3-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGN-A6-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGN-B3-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGN-A6-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGN-B3-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGN-A6-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGN-B3-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGNJ3-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGNJ3-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGNJ3-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGNJ3-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGNJ3-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGNJ3-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGNJ3-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGNJ3-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGNJ3-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGNJ3-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGNJ6-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGNJ6-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGNJ6-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGNJ6-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGNJ6-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGNJ6-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGNJ6-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGNJ6-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGNJ6-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGNJ6-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGNK3-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGNK3-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGNK3-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGNK3-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGNK3-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGNK3-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGNK3-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGNK3-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGNK3-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGNK3-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGNK6-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGNK6-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGNK6-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGNK6-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGNK6-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGNK6-B3		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGNK6-02		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGNK6-04		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGNK6-U2		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGNK6-U4		Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-015UGS		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T015UGS-A3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T015UGS-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGS-A6-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGS-B3-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGS-A6-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGS-B3-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGS-A6-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGS-B3-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGS-A6-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGS-B3-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGS-A6-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y015UGS-B3-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T015UGSJ3-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGSJ3-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGSJ3-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGSJ3-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGSJ3-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGSJ3-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGSJ3-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGSJ3-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGSJ3-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y015UGSJ3-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T015UGSJ6-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGSJ6-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGSJ6-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGSJ6-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGSJ6-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGSJ6-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGSJ6-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGSJ6-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGSJ6-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y015UGSJ6-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T015UGSK3-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGSK3-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGSK3-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGSK3-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGSK3-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGSK3-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGSK3-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGSK3-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGSK3-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y015UGSK3-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T015UGSK6-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGSK6-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGSK6-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGSK6-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T015UGSK6-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGSK6-B3		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGSK6-02		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGSK6-04		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGSK6-U2		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y015UGSK6-U4		Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-02UN		Pad diameter: ø2 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T02UN-A3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T02UN-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UN-A6-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UN-B3-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UN-A6-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UN-B3-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UN-A6-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UN-B3-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UN-A6-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UN-B3-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UN-A6-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UN-B3-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UNJ3-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UNJ3-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UNJ3-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UNJ3-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UNJ3-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UNJ3-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UNJ3-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UNJ3-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UNJ3-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UNJ3-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UNJ6-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UNJ6-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UNJ6-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UNJ6-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UNJ6-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UNJ6-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UNJ6-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UNJ6-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UNJ6-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UNJ6-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UNK3-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UNK3-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UNK3-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UNK3-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UNK3-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UNK3-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UNK3-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UNK3-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UNK3-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UNK3-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UNK6-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UNK6-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UNK6-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UNK6-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UNK6-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UNK6-B3		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UNK6-02		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UNK6-04		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UNK6-U2		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UNK6-U4		Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-02US		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T02US-A3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T02US-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02US-A6-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02US-B3-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02US-A6-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02US-B3-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02US-A6-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02US-B3-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02US-A6-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02US-B3-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02US-A6-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02US-B3-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02USJ3-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02USJ3-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02USJ3-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02USJ3-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02USJ3-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02USJ3-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02USJ3-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02USJ3-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02USJ3-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02USJ3-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02USJ6-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02USJ6-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02USJ6-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02USJ6-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02USJ6-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02USJ6-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02USJ6-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02USJ6-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02USJ6-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02USJ6-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02USK3-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02USK3-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02USK3-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02USK3-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02USK3-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02USK3-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02USK3-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02USK3-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02USK3-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02USK3-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02USK6-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02USK6-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02USK6-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02USK6-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02USK6-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02USK6-B3		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02USK6-02		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02USK6-04		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02USK6-U2		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02USK6-U4		Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-02UU		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T02UU-A3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T02UU-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UU-A6-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UU-B3-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UU-A6-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UU-B3-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UU-A6-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UU-B3-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UU-A6-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UU-B3-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UU-A6-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UU-B3-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UUJ3-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UUJ3-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UUJ3-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UUJ3-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UUJ3-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UUJ3-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UUJ3-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UUJ3-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UUJ3-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UUJ3-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UUJ6-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UUJ6-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UUJ6-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UUJ6-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UUJ6-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UUJ6-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UUJ6-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UUJ6-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UUJ6-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UUJ6-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UUK3-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UUK3-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UUK3-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UUK3-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UUK3-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UUK3-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UUK3-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UUK3-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UUK3-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UUK3-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UUK6-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UUK6-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UUK6-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UUK6-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UUK6-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UUK6-B3		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UUK6-02		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UUK6-04		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UUK6-U2		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UUK6-U4		Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-02UF		Pad diameter: ø2 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T02UF-A3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T02UF-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UF-A6-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UF-B3-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UF-A6-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UF-B3-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UF-A6-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UF-B3-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UF-A6-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UF-B3-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UF-A6-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UF-B3-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UFJ3-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UFJ3-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UFJ3-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UFJ3-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UFJ3-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UFJ3-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UFJ3-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UFJ3-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UFJ3-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UFJ3-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UFJ6-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UFJ6-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UFJ6-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UFJ6-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UFJ6-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UFJ6-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UFJ6-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UFJ6-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UFJ6-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UFJ6-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UFK3-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UFK3-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UFK3-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UFK3-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UFK3-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UFK3-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UFK3-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UFK3-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UFK3-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UFK3-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UFK6-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UFK6-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UFK6-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UFK6-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UFK6-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UFK6-B3		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UFK6-02		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UFK6-04		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UFK6-U2		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UFK6-U4		Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-02UGN		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T02UGN-A3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T02UGN-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGN-A6-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGN-B3-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGN-A6-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGN-B3-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGN-A6-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGN-B3-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGN-A6-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGN-B3-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGN-A6-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGN-B3-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGNJ3-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGNJ3-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGNJ3-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGNJ3-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGNJ3-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGNJ3-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGNJ3-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGNJ3-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGNJ3-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGNJ3-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGNJ6-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGNJ6-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGNJ6-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGNJ6-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGNJ6-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGNJ6-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGNJ6-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGNJ6-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGNJ6-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGNJ6-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGNK3-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGNK3-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGNK3-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGNK3-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGNK3-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGNK3-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGNK3-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGNK3-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGNK3-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGNK3-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGNK6-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGNK6-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGNK6-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGNK6-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGNK6-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGNK6-B3		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGNK6-02		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGNK6-04		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGNK6-U2		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGNK6-U4		Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-02UGS		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T02UGS-A3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T02UGS-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGS-A6-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGS-B3-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGS-A6-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGS-B3-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGS-A6-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGS-B3-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGS-A6-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGS-B3-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGS-A6-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y02UGS-B3-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T02UGSJ3-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGSJ3-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGSJ3-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGSJ3-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGSJ3-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGSJ3-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGSJ3-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGSJ3-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGSJ3-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y02UGSJ3-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T02UGSJ6-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGSJ6-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGSJ6-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGSJ6-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGSJ6-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGSJ6-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGSJ6-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGSJ6-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGSJ6-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y02UGSJ6-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T02UGSK3-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGSK3-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGSK3-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGSK3-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGSK3-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGSK3-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGSK3-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGSK3-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGSK3-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y02UGSK3-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T02UGSK6-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGSK6-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGSK6-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGSK6-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T02UGSK6-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGSK6-B3		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGSK6-02		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGSK6-04		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGSK6-U2		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y02UGSK6-U4		Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-035UN		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T035UN-A3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T035UN-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UN-A6-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UN-B3-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UN-A6-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UN-B3-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UN-A6-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UN-B3-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UN-A6-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UN-B3-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UN-A6-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UN-B3-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UNJ3-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UNJ3-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UNJ3-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UNJ3-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UNJ3-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UNJ3-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UNJ3-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UNJ3-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UNJ3-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UNJ3-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UNJ6-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UNJ6-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UNJ6-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UNJ6-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UNJ6-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UNJ6-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UNJ6-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UNJ6-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UNJ6-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UNJ6-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UNK3-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UNK3-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UNK3-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UNK3-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UNK3-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UNK3-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UNK3-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UNK3-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UNK3-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UNK3-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UNK6-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UNK6-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UNK6-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UNK6-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UNK6-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UNK6-B3		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UNK6-02		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UNK6-04		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UNK6-U2		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UNK6-U4		Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-035US		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T035US-A3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T035US-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035US-A6-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035US-B3-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035US-A6-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035US-B3-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035US-A6-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035US-B3-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035US-A6-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035US-B3-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035US-A6-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035US-B3-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035USJ3-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035USJ3-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035USJ3-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035USJ3-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035USJ3-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035USJ3-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035USJ3-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035USJ3-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035USJ3-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035USJ3-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035USJ6-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035USJ6-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035USJ6-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035USJ6-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035USJ6-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035USJ6-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035USJ6-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035USJ6-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035USJ6-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035USJ6-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035USK3-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035USK3-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035USK3-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035USK3-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035USK3-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035USK3-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035USK3-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035USK3-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035USK3-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035USK3-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035USK6-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035USK6-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035USK6-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035USK6-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035USK6-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035USK6-B3		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035USK6-02		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035USK6-04		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035USK6-U2		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035USK6-U4		Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-035UU		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T035UU-A3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T035UU-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UU-A6-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UU-B3-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UU-A6-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UU-B3-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UU-A6-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UU-B3-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UU-A6-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UU-B3-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UU-A6-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UU-B3-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UUJ3-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UUJ3-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UUJ3-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UUJ3-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UUJ3-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UUJ3-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UUJ3-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UUJ3-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UUJ3-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UUJ3-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UUJ6-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UUJ6-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UUJ6-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UUJ6-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UUJ6-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UUJ6-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UUJ6-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UUJ6-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UUJ6-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UUJ6-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UUK3-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UUK3-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UUK3-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UUK3-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UUK3-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UUK3-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UUK3-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UUK3-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UUK3-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UUK3-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UUK6-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UUK6-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UUK6-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UUK6-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UUK6-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UUK6-B3		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UUK6-02		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UUK6-04		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UUK6-U2		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UUK6-U4		Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-035UF		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T035UF-A3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T035UF-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UF-A6-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UF-B3-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UF-A6-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UF-B3-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UF-A6-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UF-B3-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UF-A6-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UF-B3-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UF-A6-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UF-B3-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UFJ3-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UFJ3-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UFJ3-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UFJ3-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UFJ3-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UFJ3-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UFJ3-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UFJ3-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UFJ3-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UFJ3-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UFJ6-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UFJ6-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UFJ6-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UFJ6-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UFJ6-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UFJ6-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UFJ6-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UFJ6-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UFJ6-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UFJ6-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UFK3-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UFK3-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UFK3-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UFK3-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UFK3-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UFK3-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UFK3-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UFK3-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UFK3-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UFK3-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UFK6-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UFK6-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UFK6-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UFK6-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UFK6-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UFK6-B3		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UFK6-02		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UFK6-04		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UFK6-U2		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UFK6-U4		Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-035UGN		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T035UGN-A3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T035UGN-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGN-A6-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGN-B3-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGN-A6-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGN-B3-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGN-A6-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGN-B3-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGN-A6-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGN-B3-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGN-A6-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGN-B3-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGNJ3-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGNJ3-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGNJ3-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGNJ3-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGNJ3-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGNJ3-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGNJ3-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGNJ3-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGNJ3-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGNJ3-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGNJ6-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGNJ6-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGNJ6-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGNJ6-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGNJ6-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGNJ6-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGNJ6-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGNJ6-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGNJ6-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGNJ6-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGNK3-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGNK3-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGNK3-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGNK3-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGNK3-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGNK3-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGNK3-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGNK3-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGNK3-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGNK3-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGNK6-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGNK6-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGNK6-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGNK6-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGNK6-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGNK6-B3		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGNK6-02		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGNK6-04		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGNK6-U2		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGNK6-U4		Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-035UGS		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
ZP3-T035UGS-A3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
ZP3-T035UGS-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGS-A6-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGS-B3-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGS-A6-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGS-B3-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGS-A6-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGS-B3-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGS-A6-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGS-B3-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGS-A6-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
ZP3-Y035UGS-B3-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
ZP3-T035UGSJ3-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGSJ3-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGSJ3-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGSJ3-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGSJ3-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGSJ3-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGSJ3-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGSJ3-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGSJ3-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-Y035UGSJ3-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
ZP3-T035UGSJ6-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGSJ6-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGSJ6-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGSJ6-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGSJ6-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGSJ6-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGSJ6-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGSJ6-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGSJ6-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-Y035UGSJ6-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
ZP3-T035UGSK3-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGSK3-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGSK3-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGSK3-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGSK3-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGSK3-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGSK3-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGSK3-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGSK3-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-Y035UGSK3-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
ZP3-T035UGSK6-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGSK6-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGSK6-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGSK6-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-T035UGSK6-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGSK6-B3		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGSK6-02		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGSK6-04		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGSK6-U2		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
ZP3-Y035UGSK6-U4		Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke

Vacuum PadsSMC

954 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZP3 Compact Vacuum Pad, Flat (ø1.5 to ø3.5)

Brand SMC·Vacuum Pads

Available part numbers (954)

ZP3-015UN, ZP3-T015UN-A3, ZP3-T015UN-B3, ZP3-T015UN-A6-B3, ZP3-Y015UN-B3-B3, ZP3-T015UN-A6-02, ZP3-Y015UN-B3-02, ZP3-T015UN-A6-04, ZP3-Y015UN-B3-04, ZP3-T015UN-A6-U2 + 944 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ZP3-015UN	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T015UN-A3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T015UN-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UN-A6-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UN-B3-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UN-A6-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UN-B3-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UN-A6-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UN-B3-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UN-A6-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UN-B3-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UN-A6-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UN-B3-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UNJ3-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UNJ3-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UNJ3-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UNJ3-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UNJ3-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UNJ3-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UNJ3-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UNJ3-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UNJ3-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UNJ3-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UNJ6-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UNJ6-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UNJ6-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UNJ6-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UNJ6-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UNJ6-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UNJ6-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UNJ6-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UNJ6-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UNJ6-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UNK3-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UNK3-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UNK3-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UNK3-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UNK3-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UNK3-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UNK3-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UNK3-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UNK3-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UNK3-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UNK6-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UNK6-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UNK6-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UNK6-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UNK6-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UNK6-B3	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UNK6-02	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UNK6-04	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UNK6-U2	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UNK6-U4	Pad diameter: ø1.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-015US	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T015US-A3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T015US-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015US-A6-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015US-B3-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015US-A6-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015US-B3-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015US-A6-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015US-B3-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015US-A6-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015US-B3-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015US-A6-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015US-B3-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015USJ3-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015USJ3-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015USJ3-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015USJ3-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015USJ3-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015USJ3-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015USJ3-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015USJ3-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015USJ3-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015USJ3-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015USJ6-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015USJ6-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015USJ6-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015USJ6-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015USJ6-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015USJ6-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015USJ6-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015USJ6-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015USJ6-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015USJ6-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015USK3-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015USK3-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015USK3-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015USK3-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015USK3-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015USK3-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015USK3-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015USK3-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015USK3-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015USK3-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015USK6-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015USK6-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015USK6-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015USK6-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015USK6-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015USK6-B3	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015USK6-02	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015USK6-04	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015USK6-U2	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015USK6-U4	Pad diameter: ø1.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-015UU	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T015UU-A3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T015UU-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UU-A6-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UU-B3-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UU-A6-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UU-B3-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UU-A6-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UU-B3-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UU-A6-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UU-B3-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UU-A6-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UU-B3-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UUJ3-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UUJ3-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UUJ3-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UUJ3-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UUJ3-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UUJ3-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UUJ3-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UUJ3-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UUJ3-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UUJ3-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UUJ6-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UUJ6-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UUJ6-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UUJ6-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UUJ6-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UUJ6-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UUJ6-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UUJ6-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UUJ6-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UUJ6-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UUK3-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UUK3-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UUK3-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UUK3-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UUK3-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UUK3-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UUK3-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UUK3-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UUK3-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UUK3-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UUK6-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UUK6-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UUK6-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UUK6-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UUK6-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UUK6-B3	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UUK6-02	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UUK6-04	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UUK6-U2	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UUK6-U4	Pad diameter: ø1.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-015UF	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T015UF-A3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T015UF-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UF-A6-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UF-B3-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UF-A6-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UF-B3-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UF-A6-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UF-B3-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UF-A6-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UF-B3-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UF-A6-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UF-B3-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UFJ3-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UFJ3-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UFJ3-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UFJ3-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UFJ3-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UFJ3-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UFJ3-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UFJ3-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UFJ3-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UFJ3-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UFJ6-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UFJ6-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UFJ6-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UFJ6-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UFJ6-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UFJ6-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UFJ6-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UFJ6-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UFJ6-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UFJ6-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UFK3-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UFK3-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UFK3-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UFK3-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UFK3-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UFK3-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UFK3-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UFK3-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UFK3-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UFK3-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UFK6-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UFK6-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UFK6-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UFK6-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UFK6-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UFK6-B3	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UFK6-02	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UFK6-04	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UFK6-U2	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UFK6-U4	Pad diameter: ø1.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-015UGN	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T015UGN-A3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T015UGN-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGN-A6-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGN-B3-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGN-A6-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGN-B3-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGN-A6-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGN-B3-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGN-A6-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGN-B3-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGN-A6-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGN-B3-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGNJ3-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGNJ3-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGNJ3-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGNJ3-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGNJ3-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGNJ3-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGNJ3-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGNJ3-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGNJ3-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGNJ3-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGNJ6-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGNJ6-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGNJ6-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGNJ6-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGNJ6-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGNJ6-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGNJ6-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGNJ6-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGNJ6-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGNJ6-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGNK3-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGNK3-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGNK3-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGNK3-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGNK3-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGNK3-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGNK3-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGNK3-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGNK3-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGNK3-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGNK6-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGNK6-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGNK6-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGNK6-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGNK6-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGNK6-B3	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGNK6-02	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGNK6-04	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGNK6-U2	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGNK6-U4	Pad diameter: ø1.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-015UGS	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T015UGS-A3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T015UGS-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGS-A6-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGS-B3-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGS-A6-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGS-B3-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGS-A6-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGS-B3-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGS-A6-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGS-B3-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGS-A6-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y015UGS-B3-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T015UGSJ3-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGSJ3-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGSJ3-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGSJ3-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGSJ3-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGSJ3-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGSJ3-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGSJ3-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGSJ3-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y015UGSJ3-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T015UGSJ6-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGSJ6-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGSJ6-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGSJ6-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGSJ6-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGSJ6-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGSJ6-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGSJ6-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGSJ6-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y015UGSJ6-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T015UGSK3-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGSK3-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGSK3-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGSK3-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGSK3-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGSK3-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGSK3-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGSK3-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGSK3-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y015UGSK3-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T015UGSK6-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGSK6-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGSK6-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGSK6-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T015UGSK6-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGSK6-B3	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGSK6-02	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGSK6-04	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGSK6-U2	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y015UGSK6-U4	Pad diameter: ø1.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-02UN	Pad diameter: ø2 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T02UN-A3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T02UN-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UN-A6-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UN-B3-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UN-A6-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UN-B3-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UN-A6-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UN-B3-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UN-A6-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UN-B3-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UN-A6-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UN-B3-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UNJ3-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UNJ3-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UNJ3-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UNJ3-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UNJ3-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UNJ3-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UNJ3-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UNJ3-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UNJ3-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UNJ3-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UNJ6-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UNJ6-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UNJ6-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UNJ6-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UNJ6-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UNJ6-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UNJ6-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UNJ6-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UNJ6-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UNJ6-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UNK3-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UNK3-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UNK3-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UNK3-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UNK3-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UNK3-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UNK3-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UNK3-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UNK3-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UNK3-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UNK6-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UNK6-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UNK6-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UNK6-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UNK6-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UNK6-B3	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UNK6-02	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UNK6-04	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UNK6-U2	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UNK6-U4	Pad diameter: ø2 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-02US	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T02US-A3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T02US-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02US-A6-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02US-B3-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02US-A6-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02US-B3-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02US-A6-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02US-B3-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02US-A6-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02US-B3-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02US-A6-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02US-B3-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02USJ3-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02USJ3-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02USJ3-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02USJ3-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02USJ3-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02USJ3-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02USJ3-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02USJ3-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02USJ3-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02USJ3-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02USJ6-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02USJ6-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02USJ6-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02USJ6-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02USJ6-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02USJ6-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02USJ6-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02USJ6-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02USJ6-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02USJ6-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02USK3-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02USK3-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02USK3-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02USK3-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02USK3-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02USK3-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02USK3-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02USK3-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02USK3-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02USK3-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02USK6-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02USK6-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02USK6-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02USK6-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02USK6-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02USK6-B3	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02USK6-02	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02USK6-04	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02USK6-U2	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02USK6-U4	Pad diameter: ø2 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-02UU	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T02UU-A3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T02UU-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UU-A6-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UU-B3-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UU-A6-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UU-B3-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UU-A6-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UU-B3-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UU-A6-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UU-B3-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UU-A6-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UU-B3-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UUJ3-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UUJ3-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UUJ3-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UUJ3-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UUJ3-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UUJ3-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UUJ3-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UUJ3-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UUJ3-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UUJ3-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UUJ6-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UUJ6-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UUJ6-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UUJ6-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UUJ6-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UUJ6-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UUJ6-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UUJ6-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UUJ6-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UUJ6-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UUK3-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UUK3-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UUK3-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UUK3-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UUK3-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UUK3-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UUK3-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UUK3-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UUK3-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UUK3-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UUK6-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UUK6-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UUK6-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UUK6-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UUK6-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UUK6-B3	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UUK6-02	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UUK6-04	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UUK6-U2	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UUK6-U4	Pad diameter: ø2 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-02UF	Pad diameter: ø2 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T02UF-A3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T02UF-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UF-A6-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UF-B3-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UF-A6-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UF-B3-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UF-A6-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UF-B3-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UF-A6-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UF-B3-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UF-A6-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UF-B3-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UFJ3-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UFJ3-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UFJ3-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UFJ3-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UFJ3-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UFJ3-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UFJ3-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UFJ3-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UFJ3-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UFJ3-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UFJ6-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UFJ6-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UFJ6-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UFJ6-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UFJ6-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UFJ6-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UFJ6-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UFJ6-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UFJ6-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UFJ6-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UFK3-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UFK3-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UFK3-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UFK3-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UFK3-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UFK3-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UFK3-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UFK3-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UFK3-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UFK3-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UFK6-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UFK6-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UFK6-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UFK6-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UFK6-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UFK6-B3	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UFK6-02	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UFK6-04	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UFK6-U2	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UFK6-U4	Pad diameter: ø2 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-02UGN	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T02UGN-A3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T02UGN-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGN-A6-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGN-B3-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGN-A6-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGN-B3-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGN-A6-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGN-B3-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGN-A6-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGN-B3-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGN-A6-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGN-B3-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGNJ3-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGNJ3-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGNJ3-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGNJ3-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGNJ3-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGNJ3-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGNJ3-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGNJ3-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGNJ3-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGNJ3-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGNJ6-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGNJ6-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGNJ6-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGNJ6-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGNJ6-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGNJ6-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGNJ6-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGNJ6-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGNJ6-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGNJ6-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGNK3-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGNK3-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGNK3-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGNK3-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGNK3-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGNK3-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGNK3-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGNK3-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGNK3-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGNK3-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGNK6-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGNK6-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGNK6-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGNK6-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGNK6-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGNK6-B3	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGNK6-02	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGNK6-04	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGNK6-U2	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGNK6-U4	Pad diameter: ø2 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-02UGS	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T02UGS-A3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T02UGS-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGS-A6-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGS-B3-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGS-A6-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGS-B3-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGS-A6-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGS-B3-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGS-A6-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGS-B3-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGS-A6-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y02UGS-B3-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T02UGSJ3-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGSJ3-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGSJ3-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGSJ3-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGSJ3-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGSJ3-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGSJ3-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGSJ3-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGSJ3-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y02UGSJ3-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T02UGSJ6-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGSJ6-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGSJ6-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGSJ6-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGSJ6-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGSJ6-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGSJ6-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGSJ6-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGSJ6-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y02UGSJ6-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T02UGSK3-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGSK3-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGSK3-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGSK3-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGSK3-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGSK3-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGSK3-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGSK3-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGSK3-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y02UGSK3-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T02UGSK6-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGSK6-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGSK6-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGSK6-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T02UGSK6-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGSK6-B3	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGSK6-02	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGSK6-04	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGSK6-U2	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y02UGSK6-U4	Pad diameter: ø2 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-035UN	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T035UN-A3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T035UN-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UN-A6-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UN-B3-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UN-A6-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UN-B3-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UN-A6-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UN-B3-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UN-A6-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UN-B3-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UN-A6-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UN-B3-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UNJ3-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UNJ3-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UNJ3-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UNJ3-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UNJ3-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UNJ3-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UNJ3-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UNJ3-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UNJ3-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UNJ3-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UNJ6-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UNJ6-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UNJ6-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UNJ6-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UNJ6-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UNJ6-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UNJ6-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UNJ6-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UNJ6-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UNJ6-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UNK3-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UNK3-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UNK3-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UNK3-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UNK3-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UNK3-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UNK3-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UNK3-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UNK3-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UNK3-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UNK6-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UNK6-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UNK6-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UNK6-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UNK6-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UNK6-B3	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UNK6-02	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UNK6-04	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UNK6-U2	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UNK6-U4	Pad diameter: ø3.5 \| Material: NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-035US	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T035US-A3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T035US-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035US-A6-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035US-B3-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035US-A6-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035US-B3-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035US-A6-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035US-B3-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035US-A6-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035US-B3-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035US-A6-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035US-B3-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035USJ3-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035USJ3-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035USJ3-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035USJ3-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035USJ3-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035USJ3-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035USJ3-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035USJ3-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035USJ3-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035USJ3-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035USJ6-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035USJ6-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035USJ6-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035USJ6-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035USJ6-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035USJ6-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035USJ6-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035USJ6-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035USJ6-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035USJ6-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035USK3-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035USK3-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035USK3-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035USK3-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035USK3-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035USK3-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035USK3-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035USK3-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035USK3-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035USK3-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035USK6-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035USK6-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035USK6-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035USK6-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035USK6-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035USK6-B3	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035USK6-02	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035USK6-04	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035USK6-U2	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035USK6-U4	Pad diameter: ø3.5 \| Material: Silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-035UU	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T035UU-A3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T035UU-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UU-A6-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UU-B3-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UU-A6-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UU-B3-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UU-A6-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UU-B3-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UU-A6-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UU-B3-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UU-A6-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UU-B3-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UUJ3-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UUJ3-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UUJ3-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UUJ3-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UUJ3-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UUJ3-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UUJ3-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UUJ3-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UUJ3-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UUJ3-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UUJ6-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UUJ6-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UUJ6-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UUJ6-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UUJ6-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UUJ6-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UUJ6-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UUJ6-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UUJ6-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UUJ6-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UUK3-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UUK3-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UUK3-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UUK3-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UUK3-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UUK3-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UUK3-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UUK3-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UUK3-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UUK3-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UUK6-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UUK6-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UUK6-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UUK6-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UUK6-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UUK6-B3	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UUK6-02	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UUK6-04	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UUK6-U2	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UUK6-U4	Pad diameter: ø3.5 \| Material: Urethane rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-035UF	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T035UF-A3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T035UF-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UF-A6-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UF-B3-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UF-A6-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UF-B3-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UF-A6-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UF-B3-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UF-A6-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UF-B3-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UF-A6-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UF-B3-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UFJ3-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UFJ3-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UFJ3-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UFJ3-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UFJ3-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UFJ3-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UFJ3-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UFJ3-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UFJ3-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UFJ3-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UFJ6-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UFJ6-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UFJ6-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UFJ6-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UFJ6-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UFJ6-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UFJ6-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UFJ6-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UFJ6-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UFJ6-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UFK3-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UFK3-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UFK3-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UFK3-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UFK3-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UFK3-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UFK3-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UFK3-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UFK3-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UFK3-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UFK6-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UFK6-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UFK6-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UFK6-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UFK6-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UFK6-B3	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UFK6-02	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UFK6-04	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UFK6-U2	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UFK6-U4	Pad diameter: ø3.5 \| Material: FKM \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-035UGN	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T035UGN-A3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T035UGN-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGN-A6-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGN-B3-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGN-A6-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGN-B3-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGN-A6-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGN-B3-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGN-A6-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGN-B3-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGN-A6-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGN-B3-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGNJ3-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGNJ3-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGNJ3-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGNJ3-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGNJ3-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGNJ3-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGNJ3-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGNJ3-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGNJ3-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGNJ3-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGNJ6-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGNJ6-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGNJ6-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGNJ6-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGNJ6-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGNJ6-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGNJ6-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGNJ6-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGNJ6-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGNJ6-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGNK3-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGNK3-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGNK3-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGNK3-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGNK3-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGNK3-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGNK3-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGNK3-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGNK3-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGNK3-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGNK6-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGNK6-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGNK6-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGNK6-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGNK6-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGNK6-B3	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGNK6-02	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGNK6-04	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGNK6-U2	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGNK6-U4	Pad diameter: ø3.5 \| Material: Conductive NBR \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-035UGS	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Pad only \| Vacuum entry: - \| Connection: - \| Buffer: -
	ZP3-T035UGS-A3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 male \| Connection: M3x0.5 male \| Buffer: -
	ZP3-T035UGS-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGS-A6-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: M3x0.5 female \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGS-B3-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: M3x0.5 female \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGS-A6-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGS-B3-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGS-A6-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGS-B3-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGS-A6-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGS-B3-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGS-A6-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M6x0.75 male \| Buffer: -
	ZP3-Y035UGS-B3-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral adapter \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: M3x0.5 female \| Buffer: -
	ZP3-T035UGSJ3-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGSJ3-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGSJ3-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGSJ3-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGSJ3-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGSJ3-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGSJ3-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGSJ3-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGSJ3-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-Y035UGSJ3-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 3 mm stroke
	ZP3-T035UGSJ6-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGSJ6-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGSJ6-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGSJ6-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGSJ6-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGSJ6-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGSJ6-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGSJ6-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGSJ6-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-Y035UGSJ6-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Non-rotating, 6 mm stroke
	ZP3-T035UGSK3-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGSK3-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGSK3-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGSK3-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGSK3-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGSK3-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGSK3-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGSK3-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGSK3-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-Y035UGSK3-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 3 mm stroke
	ZP3-T035UGSK6-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGSK6-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGSK6-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGSK6-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-T035UGSK6-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Vertical buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGSK6-B3	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: M3x0.5 female \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGSK6-02	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 2 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGSK6-04	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: One-touch fitting, tube OD 4 \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGSK6-U2	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 2 mm urethane tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke
	ZP3-Y035UGSK6-U4	Pad diameter: ø3.5 \| Material: Conductive silicone rubber \| Mounting: Lateral buffer \| Vacuum entry: Barb fitting, 4 mm soft tube \| Connection: - \| Buffer: Rotation-stop, 6 mm stroke

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC ZP3 Compact Vacuum Pad, Flat (ø1.5 to ø3.5)
