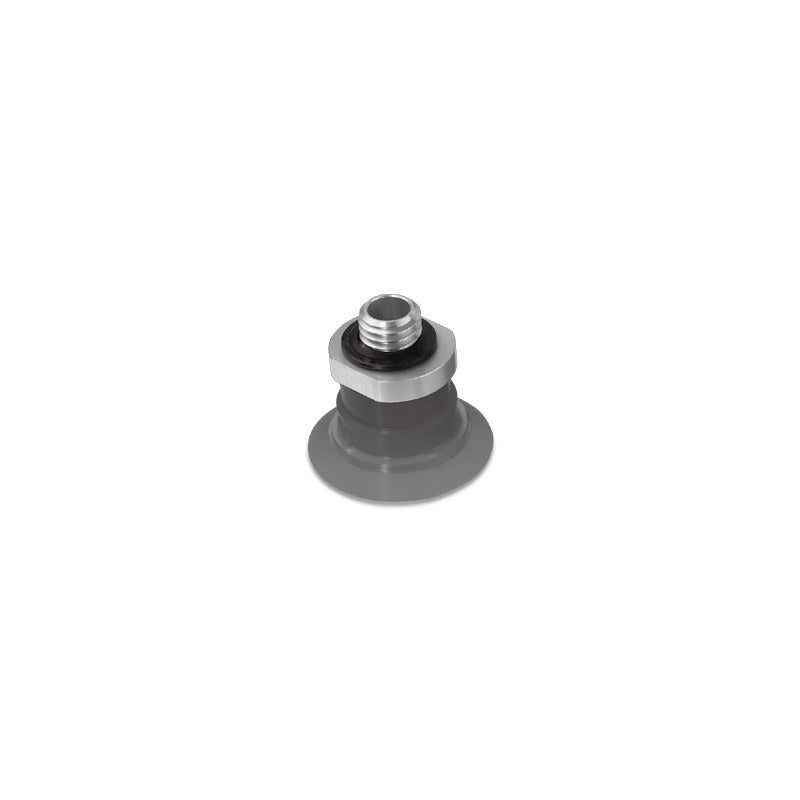

SMC ZP3P-PT Film Suction Vacuum Pad (ø20-50)

SMC ZP3P-PT Film Suction Vacuum Pad (ø20-50)

SMC ZP3P-PT series silicone vacuum pad for picking film-wrapped workpieces, ø20 to ø50, as pad only, with aluminum or stainless adapter, or with spring buffer.

Key features

  • Pad shape designed for film-packaged workpieces; blue silicone rubber (SF) compliant with FDA 21CFR177.2600
  • Pad diameters ø20, ø25, ø35 and ø50
  • Vertical adapter in aluminum or stainless steel (ZP3PS) with M5, M12, G1/8, G1/4, G3/8 male or M5/M8 female thread
  • Vertical spring buffer with (K) or without (J) rotation stop, 10 or 20 mm stroke
  • Buffer uses general industrial grease and is not FDA compliant; pads supplied unassembled

Specifications

Pad shape Film suction pad (PT)
Pad material Silicone rubber (SF), blue, A40, FDA compliant
Fluid Air (vacuum)
Buffer spring reaction ø20/25: 1.0-3.0 N; ø35/50: 2.0-5.0 N
Adapter assembly ZP3P(S)A-T1 (ø20/25), ZP3P(S)A-T2 (ø35/50)
Assembly Pad and nuts supplied unassembled
Source SMC Korea catalog Special-Application Pads ZP2/ZP3/ZP3P (SMCKR_ZP2_ZP3P_specials.pdf), p. 248-275 (PDF p. 1-3, 20-28)
ZP3P-20PTSF Pad diameter: ø20 | Mounting: Pad only | Adapter material: None (pad only) | Connection: None | Buffer: None
ZP3P-T20PTSF-A5 Pad diameter: ø20 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M5x0.8 male | Buffer: None
ZP3P-T20PTSF-AG1 Pad diameter: ø20 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: G1/8 male | Buffer: None
ZP3P-T20PTSF-B5 Pad diameter: ø20 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M5x0.8 female | Buffer: None
ZP3PS-T20PTSF-A5 Pad diameter: ø20 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M5x0.8 male | Buffer: None
ZP3PS-T20PTSF-AG1 Pad diameter: ø20 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: G1/8 male | Buffer: None
ZP3PS-T20PTSF-B5 Pad diameter: ø20 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M5x0.8 female | Buffer: None
ZP3P-T20PTSFJ10-B5 Pad diameter: ø20 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: No rotation stop, 10 mm
ZP3P-T20PTSFJ20-B5 Pad diameter: ø20 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: No rotation stop, 20 mm
ZP3P-T20PTSFK10-B5 Pad diameter: ø20 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: With rotation stop, 10 mm
ZP3P-T20PTSFK20-B5 Pad diameter: ø20 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: With rotation stop, 20 mm
ZP3P-25PTSF Pad diameter: ø25 | Mounting: Pad only | Adapter material: None (pad only) | Connection: None | Buffer: None
ZP3P-T25PTSF-A5 Pad diameter: ø25 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M5x0.8 male | Buffer: None
ZP3P-T25PTSF-AG1 Pad diameter: ø25 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: G1/8 male | Buffer: None
ZP3P-T25PTSF-B5 Pad diameter: ø25 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M5x0.8 female | Buffer: None
ZP3PS-T25PTSF-A5 Pad diameter: ø25 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M5x0.8 male | Buffer: None
ZP3PS-T25PTSF-AG1 Pad diameter: ø25 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: G1/8 male | Buffer: None
ZP3PS-T25PTSF-B5 Pad diameter: ø25 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M5x0.8 female | Buffer: None
ZP3P-T25PTSFJ10-B5 Pad diameter: ø25 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: No rotation stop, 10 mm
ZP3P-T25PTSFJ20-B5 Pad diameter: ø25 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: No rotation stop, 20 mm
ZP3P-T25PTSFK10-B5 Pad diameter: ø25 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: With rotation stop, 10 mm
ZP3P-T25PTSFK20-B5 Pad diameter: ø25 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M10x1 male, vac. M5 female | Buffer: With rotation stop, 20 mm
ZP3P-35PTSF Pad diameter: ø35 | Mounting: Pad only | Adapter material: None (pad only) | Connection: None | Buffer: None
ZP3P-T35PTSF-A12 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M12x1.75 male | Buffer: None
ZP3P-T35PTSF-AG2 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: G1/4 male | Buffer: None
ZP3P-T35PTSF-AG3 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: G3/8 male | Buffer: None
ZP3P-T35PTSF-B8 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M8x1.25 female | Buffer: None
ZP3PS-T35PTSF-A12 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M12x1.75 male | Buffer: None
ZP3PS-T35PTSF-AG2 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: G1/4 male | Buffer: None
ZP3PS-T35PTSF-AG3 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: G3/8 male | Buffer: None
ZP3PS-T35PTSF-B8 Pad diameter: ø35 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M8x1.25 female | Buffer: None
ZP3P-T35PTSFJ10-B01 Pad diameter: ø35 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: No rotation stop, 10 mm
ZP3P-T35PTSFJ20-B01 Pad diameter: ø35 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: No rotation stop, 20 mm
ZP3P-T35PTSFK10-B01 Pad diameter: ø35 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: With rotation stop, 10 mm
ZP3P-T35PTSFK20-B01 Pad diameter: ø35 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: With rotation stop, 20 mm
ZP3P-50PTSF Pad diameter: ø50 | Mounting: Pad only | Adapter material: None (pad only) | Connection: None | Buffer: None
ZP3P-T50PTSF-A12 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M12x1.75 male | Buffer: None
ZP3P-T50PTSF-AG2 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: G1/4 male | Buffer: None
ZP3P-T50PTSF-AG3 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: G3/8 male | Buffer: None
ZP3P-T50PTSF-B8 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Aluminum | Connection: M8x1.25 female | Buffer: None
ZP3PS-T50PTSF-A12 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M12x1.75 male | Buffer: None
ZP3PS-T50PTSF-AG2 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: G1/4 male | Buffer: None
ZP3PS-T50PTSF-AG3 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: G3/8 male | Buffer: None
ZP3PS-T50PTSF-B8 Pad diameter: ø50 | Mounting: Adapter, vertical (T) | Adapter material: Stainless steel SUS304 | Connection: M8x1.25 female | Buffer: None
ZP3P-T50PTSFJ10-B01 Pad diameter: ø50 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: No rotation stop, 10 mm
ZP3P-T50PTSFJ20-B01 Pad diameter: ø50 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: No rotation stop, 20 mm
ZP3P-T50PTSFK10-B01 Pad diameter: ø50 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: With rotation stop, 10 mm
ZP3P-T50PTSFK20-B01 Pad diameter: ø50 | Mounting: Buffer, vertical (T) | Adapter material: Buffer (standard) | Connection: M14x1 male, vac. Rc1/8 female | Buffer: With rotation stop, 20 mm
