SMC ZP3P-WJT Oval Bellows Vacuum Pad (2.5-Stage, Food Grade)

SMC ZP3P-WJT Oval Bellows Vacuum Pad (2.5-Stage, Food Grade)

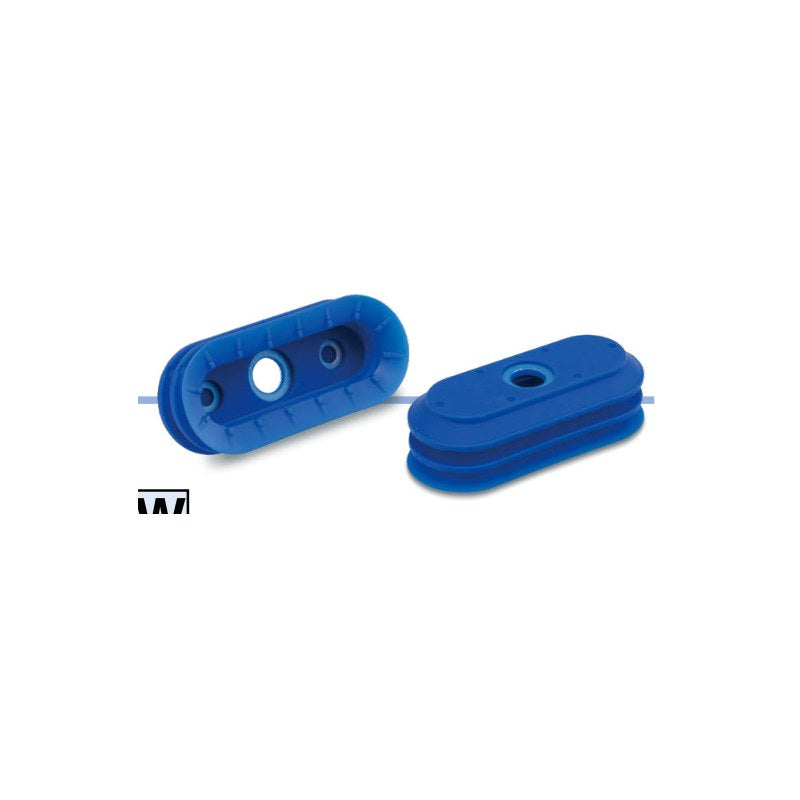

SMC ZP3P-WJT series 2.5-stage oval bellows vacuum pad in blue food-grade silicone, for long, narrow packaged liquid and powder workpieces.

Key features

  • Oval shape replaces several round pads with one; larger lift force than equivalent round pads
  • Thin lipped skirt follows the workpiece and secures suction area up to the skirt edge
  • Attachment prevents pad deformation; flat attachment suppresses wrinkles on film packages
  • Pad and attachment materials conform to FDA 21CFR177.2600, Japan Food Sanitation Act and (EC) No.1935/2004
  • Direct mounting with G male/female or M female thread, or plate mounting with M10/M14 male thread

Specifications

Series ZP3P-WJT (HF3A food-grade equivalent)
Pad material Silicone rubber, blue
Rubber hardness Shore A 60 +/-5
Ambient temperature -30 to 90 C
Attachment material Synthetic resin, white
Bellows 2.5-stage
Adapter material Aluminum alloy (anodized)
Shipping Mounting nut and flat attachment shipped unassembled
Source SMC Korea catalog CAT.KS100-179A (SMCKR_ZP3P-WJT.pdf), p. 1-8
ZP3P-1535WJT2SF Pad size: 15x35 | Attachment: None | Mounting: Pad only
ZP3P-1535WJT2SF-W Pad size: 15x35 | Attachment: Attachment | Mounting: Pad only
ZP3P-1535WJT2SF-WF Pad size: 15x35 | Attachment: Flat attachment | Mounting: Pad only
ZP3P-T1535WJT2SF-AG01 Pad size: 15x35 | Attachment: None | Mounting: G1/8 male
ZP3P-T1535WJT2SF-BG01 Pad size: 15x35 | Attachment: None | Mounting: G1/8 female
ZP3P-T1535WJT2SF-B5 Pad size: 15x35 | Attachment: None | Mounting: M5x0.8 female
ZP3P-T1535WJT2SF-A10-B6 Pad size: 15x35 | Attachment: None | Mounting: M10x1 plate, M6 port
ZP3P-T1535WJT2SF-W-AG01 Pad size: 15x35 | Attachment: Attachment | Mounting: G1/8 male
ZP3P-T1535WJT2SF-W-BG01 Pad size: 15x35 | Attachment: Attachment | Mounting: G1/8 female
ZP3P-T1535WJT2SF-W-B5 Pad size: 15x35 | Attachment: Attachment | Mounting: M5x0.8 female
ZP3P-T1535WJT2SF-W-A10-B6 Pad size: 15x35 | Attachment: Attachment | Mounting: M10x1 plate, M6 port
ZP3P-T1535WJT2SF-WF-AG01 Pad size: 15x35 | Attachment: Flat attachment | Mounting: G1/8 male
ZP3P-T1535WJT2SF-WF-BG01 Pad size: 15x35 | Attachment: Flat attachment | Mounting: G1/8 female
ZP3P-T1535WJT2SF-WF-B5 Pad size: 15x35 | Attachment: Flat attachment | Mounting: M5x0.8 female
ZP3P-T1535WJT2SF-WF-A10-B6 Pad size: 15x35 | Attachment: Flat attachment | Mounting: M10x1 plate, M6 port
ZP3P-2560WJT2SF Pad size: 25x60 | Attachment: None | Mounting: Pad only
ZP3P-2560WJT2SF-W Pad size: 25x60 | Attachment: Attachment | Mounting: Pad only
ZP3P-2560WJT2SF-WF Pad size: 25x60 | Attachment: Flat attachment | Mounting: Pad only
ZP3P-T2560WJT2SF-AG02 Pad size: 25x60 | Attachment: None | Mounting: G1/4 male
ZP3P-T2560WJT2SF-BG02 Pad size: 25x60 | Attachment: None | Mounting: G1/4 female
ZP3P-T2560WJT2SF-B8 Pad size: 25x60 | Attachment: None | Mounting: M8x1.25 female
ZP3P-T2560WJT2SF-A14-B01 Pad size: 25x60 | Attachment: None | Mounting: M14x1 plate, Rc1/8 port
ZP3P-T2560WJT2SF-W-AG02 Pad size: 25x60 | Attachment: Attachment | Mounting: G1/4 male
ZP3P-T2560WJT2SF-W-BG02 Pad size: 25x60 | Attachment: Attachment | Mounting: G1/4 female
ZP3P-T2560WJT2SF-W-B8 Pad size: 25x60 | Attachment: Attachment | Mounting: M8x1.25 female
ZP3P-T2560WJT2SF-W-A14-B01 Pad size: 25x60 | Attachment: Attachment | Mounting: M14x1 plate, Rc1/8 port
ZP3P-T2560WJT2SF-WF-AG02 Pad size: 25x60 | Attachment: Flat attachment | Mounting: G1/4 male
ZP3P-T2560WJT2SF-WF-BG02 Pad size: 25x60 | Attachment: Flat attachment | Mounting: G1/4 female
ZP3P-T2560WJT2SF-WF-B8 Pad size: 25x60 | Attachment: Flat attachment | Mounting: M8x1.25 female
ZP3P-T2560WJT2SF-WF-A14-B01 Pad size: 25x60 | Attachment: Flat attachment | Mounting: M14x1 plate, Rc1/8 port
ZP3P-3580WJT2SF Pad size: 35x80 | Attachment: None | Mounting: Pad only
ZP3P-3580WJT2SF-W Pad size: 35x80 | Attachment: Attachment | Mounting: Pad only
ZP3P-3580WJT2SF-WF Pad size: 35x80 | Attachment: Flat attachment | Mounting: Pad only
ZP3P-T3580WJT2SF-AG02 Pad size: 35x80 | Attachment: None | Mounting: G1/4 male
ZP3P-T3580WJT2SF-BG02 Pad size: 35x80 | Attachment: None | Mounting: G1/4 female
ZP3P-T3580WJT2SF-B8 Pad size: 35x80 | Attachment: None | Mounting: M8x1.25 female
ZP3P-T3580WJT2SF-A14-B01 Pad size: 35x80 | Attachment: None | Mounting: M14x1 plate, Rc1/8 port
ZP3P-T3580WJT2SF-W-AG02 Pad size: 35x80 | Attachment: Attachment | Mounting: G1/4 male
ZP3P-T3580WJT2SF-W-BG02 Pad size: 35x80 | Attachment: Attachment | Mounting: G1/4 female
ZP3P-T3580WJT2SF-W-B8 Pad size: 35x80 | Attachment: Attachment | Mounting: M8x1.25 female
ZP3P-T3580WJT2SF-W-A14-B01 Pad size: 35x80 | Attachment: Attachment | Mounting: M14x1 plate, Rc1/8 port
ZP3P-T3580WJT2SF-WF-AG02 Pad size: 35x80 | Attachment: Flat attachment | Mounting: G1/4 male
ZP3P-T3580WJT2SF-WF-BG02 Pad size: 35x80 | Attachment: Flat attachment | Mounting: G1/4 female
ZP3P-T3580WJT2SF-WF-B8 Pad size: 35x80 | Attachment: Flat attachment | Mounting: M8x1.25 female
ZP3P-T3580WJT2SF-WF-A14-B01 Pad size: 35x80 | Attachment: Flat attachment | Mounting: M14x1 plate, Rc1/8 port
